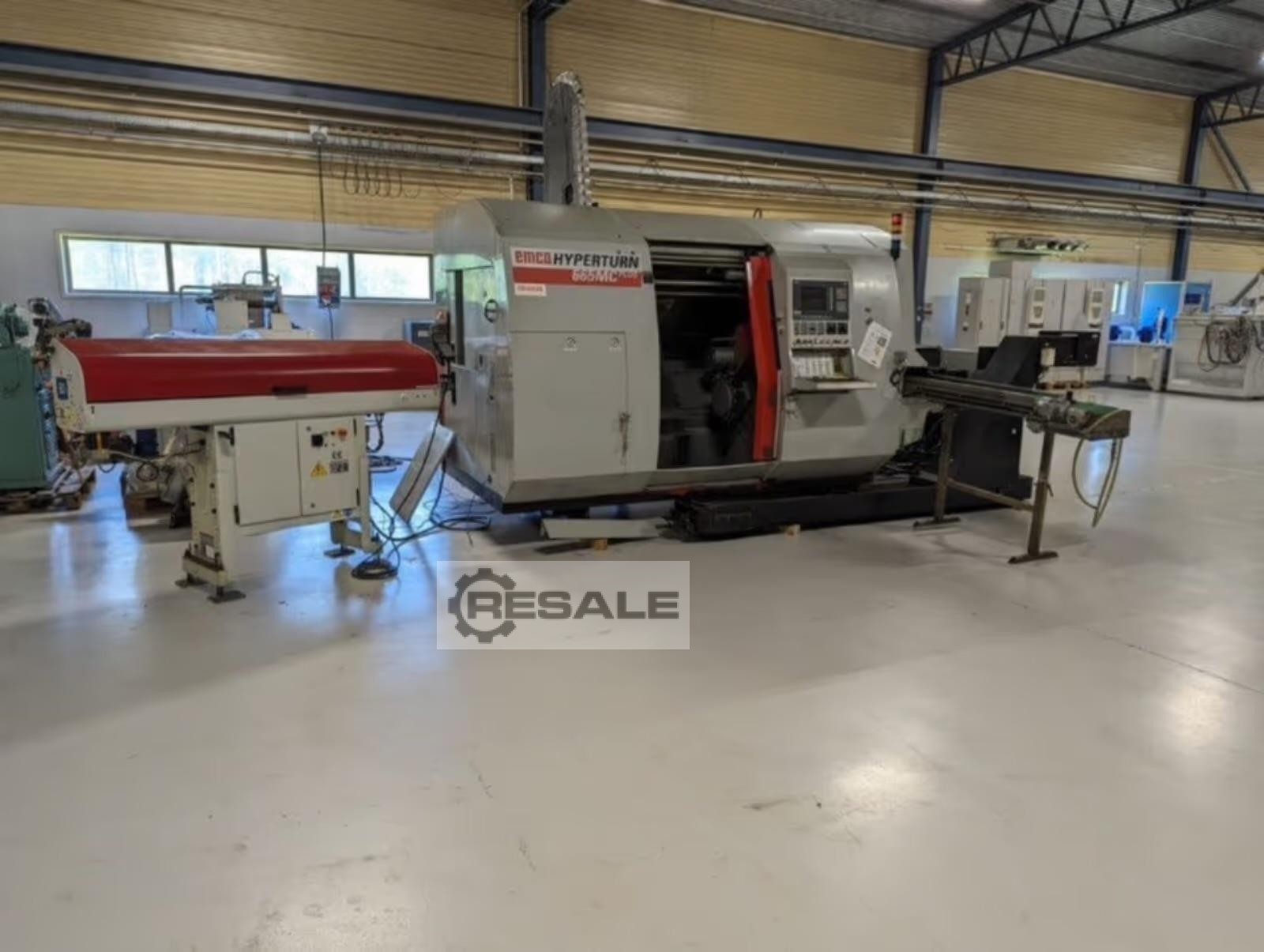

Centros de torneado CNC EMCO Hyperturn 665MC+ Frässpindel

Turning diameter: 500 mm Turning length: 744 mm CNC turning-milling center with swivel spindle

With this equipment, hardly anything is left to be desired

Manufacturer : Emco

Type: Hyperturn 665 Plus Power Mill

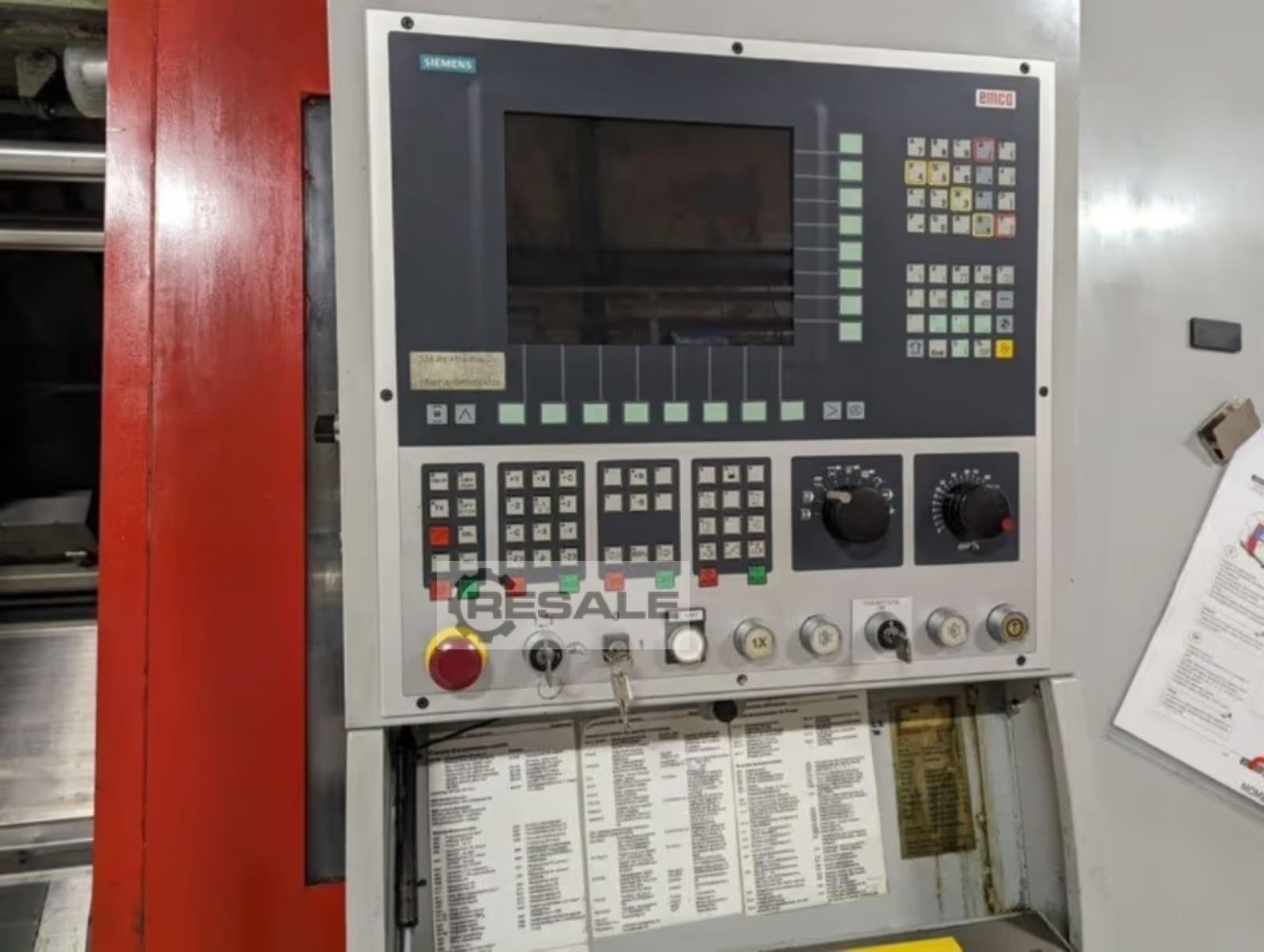

Control : Siemens 840

Year of manufacture : 2006

Duty cycle hours : 56000 h

Spindle hours : 22722 h

Availability : from stock Hultsfred / Sweden , to be visited under power

Video : ww.youtu.be/Mgqd\_Lq2ciM?si=eO0RL1\_Bq2Wie-h4

Specifications

Working range circulating diameter over bed : 600 mm

Circumferential diameter over face slide : 500 mm

Distance between the two spindle lugs : 975 mm

Max. turning diameter :430 mm

Max. part length : 744 mm

Max. rod diameter : 65 (76.2) mm

Travel X/X2 280/205 mm

Travel Z/Z2/Z3 900/750/750 mm

Travel Y 100 (+/–50) mm

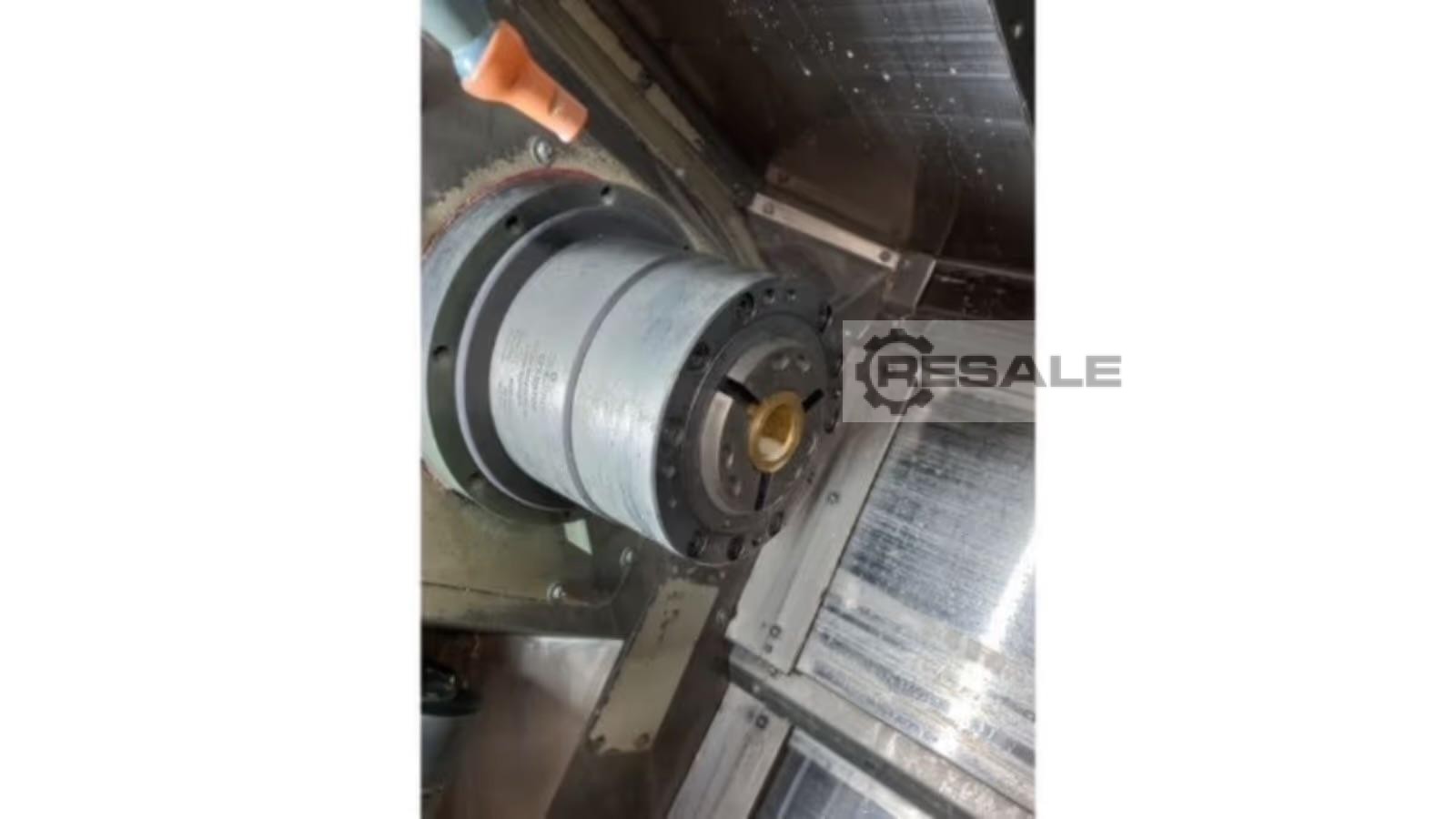

Main spindle

Speed range (infinitely adjustable) 0 – 5000 (4000) rpm

Torque max. 250 Nm

Drive power main spindle (AC hollow spindle motor): 29 kW

Spindle connection DIN 55026 A2-6 (A2-8)

Spindle diameter in front bearing 105 (130) mm

Spindle bore (without drawbar) Ø 73 (86) mm

C-axis: 0.001°

Sub-spindle

Speed range (infinitely adjustable) 0 – 7000 rpm

Torque max. 130 Nm

Spindle Connection DIN 55026 A2-6

Spindle diameter in the front bearing Ø 73 (86) mm

C-axis: 0.001°

Rapid traverse 1000 rpm

Sub-spindle (AC hollow spindle motor) 22 kW

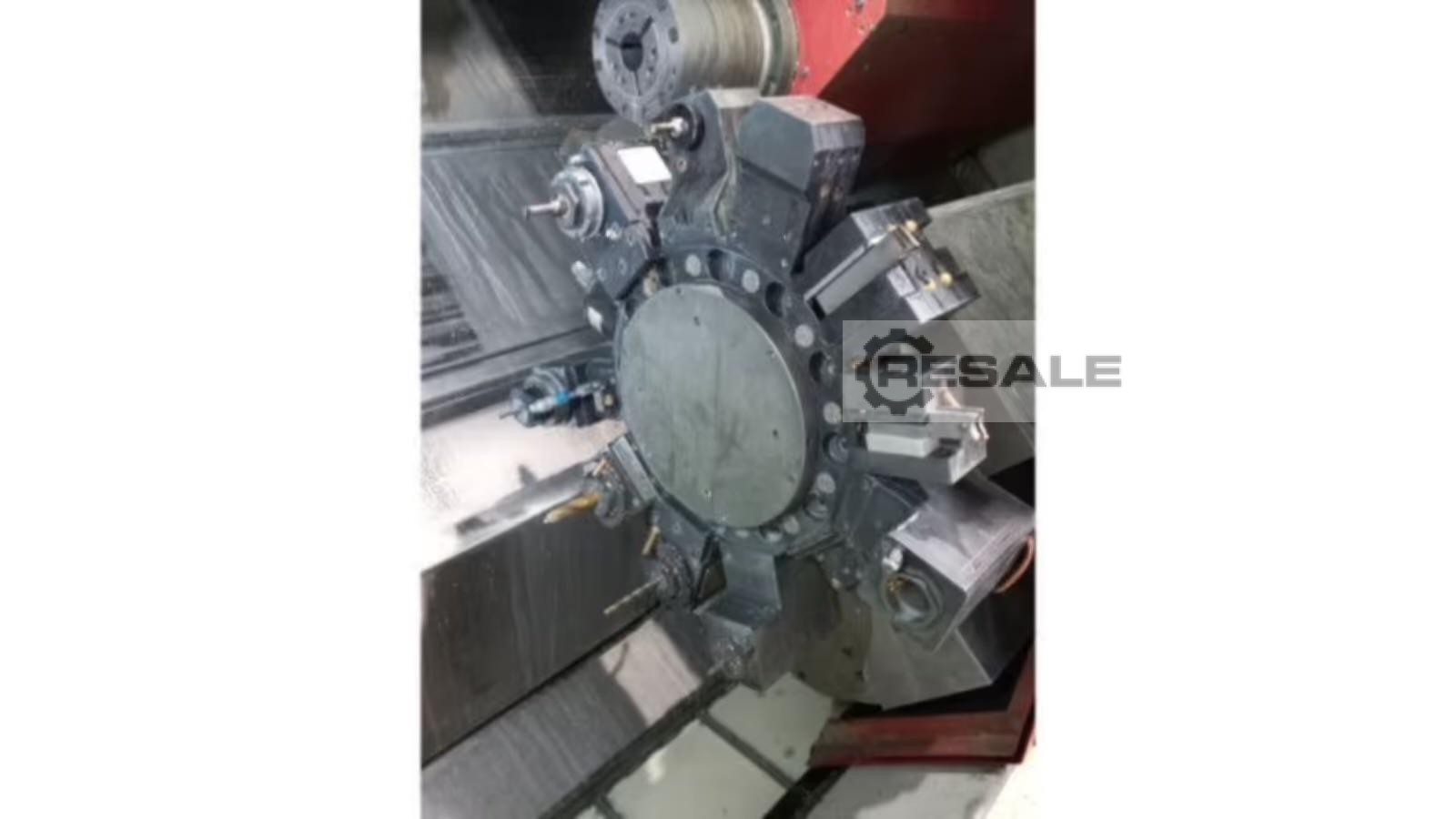

Tool turret

Tool positions : 12

Tool holder : VDI 40 (DIN 69880)

Turret switching time : 0.2 sec

Driven tools Speed range : 0 – 5000 (4500) rpm

Max. torque M-Tools: 25 Nm

Drive power M-Tools : 6.7 kW

Powered Tools : 12

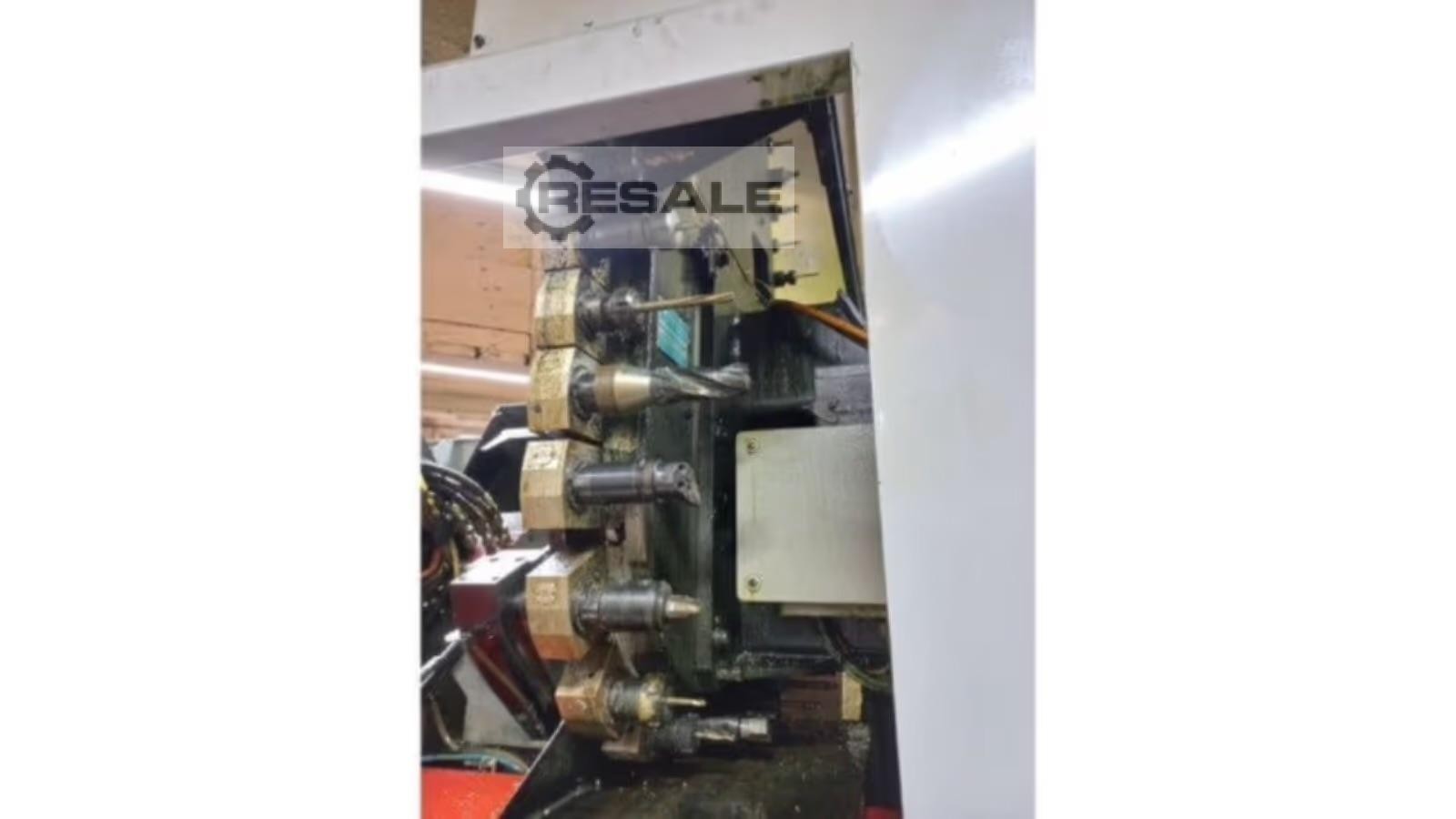

Milling spindle

B-axis swivel range (interpolable) 210°

Indexing holding torque: 3600/1300 Nm

B-axis positioning: 0.001°

Number of tools : 48 Tool holder

Tool holder milling spindle : Capto C4

Max. torque :40 Nm

Drive power milling spindle : 14.5 kW

Speed range: 0 – 10000 rpm

Tool change time (tool – tool) 1.3 sec

Rapid R51048693 traverse X/Z/Y/Z3 R51048693 (sub-spindle) 24/30/10/30 m/min

Feed force X/Z/Z3 (sub-spindle) 5000/8000/9000 N

Dimensions

Installation area (without chip conveyor) W x D 3400 x 2550 mm

Height 2300 mm

Total weight approx. 9500 kg

Other features

Coolant device tank volume 300 l
High-pressure pumps
Power consumption connected load 46 kVA
Compressed air connection 6 bar
IEMCA VIP 80 E bar loading magazine
Chip conveyor make Knoll with high-pressure pumps
Various hydraulic chucks, 3-jaws; Collet chuck
Various tool holders
Parts unloading with conveyor belt
Spindle oil cooler
Touch Setter, Tool Preset
Workspace flushing

All information has been provided to the best of our knowledge and belief, but we reserve the right to make errors

Subject to prior sale

All prices are net without statutory information. VAT
seller offer No. resale 168030949
