Máquinas de moldeo por inyección ENGEL ES 1350/275 HL

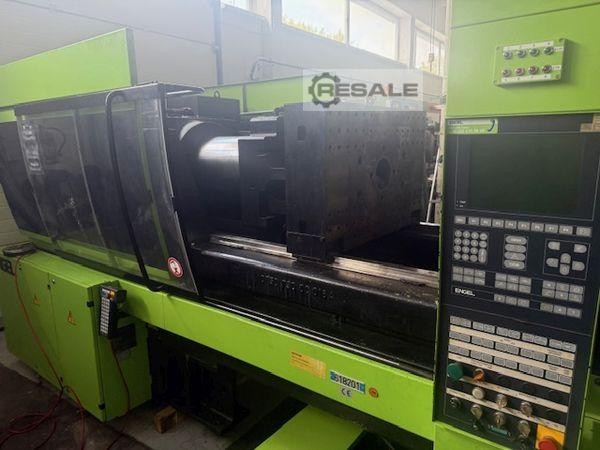

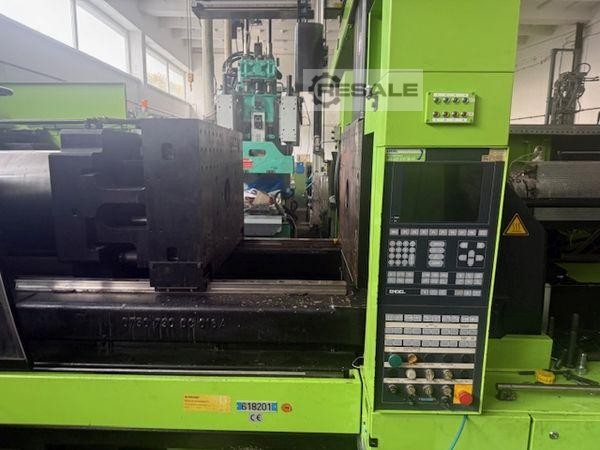

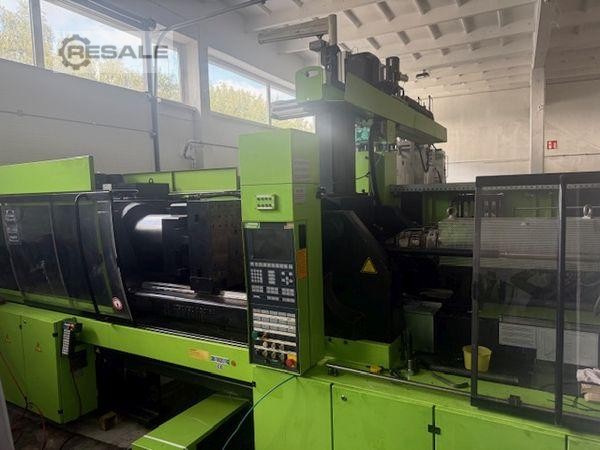

Clamping force: 2750 kN Engel ES 1350/275 HL with the Engel ERC 53/1-E robot / machine in very good technical condition
Year of Make: 2001

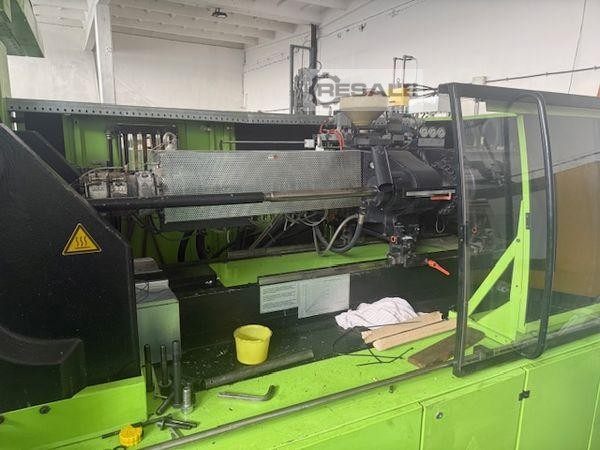

Injection unit:
Screw diameter: 60 mm
Injection weight: 547 g
Spray pressure: 1834 bar
Dosing volume: 618 ccm

Clamping unit:
Clamping force: 275 t
Spar spacing: 0x0 mm
Size of the clamping plates: 1050x900 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: CC 100

Additional equipment:
Machine in very good technical condition
Operating hours: 35,819 h in automatic mode
Tie-bar-less machine
Hydraulic core pull x 3
Control with hot runners x 16
Hardened injection unit - Bimetal
Machine has been regularly serviced by the authorized service Engel

Dimensions:
Weight: 20000 kg
Length/Width/Height: 7.10x2.15x2.30 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625082
