Máquinas de moldeo por inyección ENGEL Victory 2460/260 Tech Ecodrive

Clamping force: 2600 kN Engel Victory 2460/260 Tech Ecodrive with the Engel Viper 20 robot / Hybrid machine / Operating hours: approx. 10,000 h in automatic mode
Year of Make: 2021

Injection unit:
Screw diameter: 70 mm
Injection weight: approx. 1100 g
Spray pressure: 2000 bar
Dosing volume: 1212 ccm

Clamping unit:
Clamping force: 260 t
Spar spacing: 0x0 mm
Size of the mounting plates: 1100x1000 mm
Ejector: hydraulic
Clamping unit: hydraulic

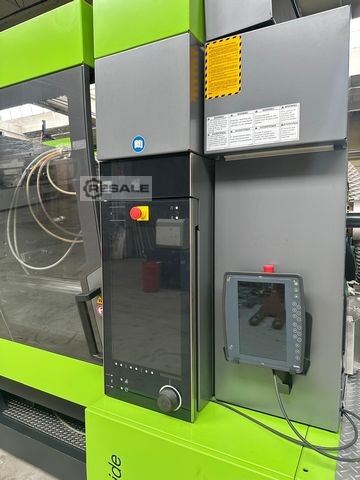

Control: CC 300 - touch screen

Additional equipment:
Production line with the Engel Viper 20 robot
Machine in perfect technical condition
Tie-bar-less, hybrid machine: energy-saving and very quiet
Operating hours: approx. 10,000 in automatic mode
Air Valve x 5
Hydraulic core pull x 2 on the side of the movable clamping plate
Hydraulic core pull x 2 on the side of the fixed clamping plate
Injection unit is wear-resistant and resistant to corrosion
Main motor of the machine - Servo motor driven by inverter - Energy saving
Proportional valve on the injection unit – precise injection
Kistler Sensor - Tool Pressure Control

Robot Angel Viper 20
Year of Make: 2021
6-axis robot: 6 axes are driven by servo motors (electric): X, Y, Z, B, C
Touch control panel
The safety package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost

Dimensions:
Weight: 21000 kg
Length/Width/Height: 7.35x2.06x2.37 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625079
