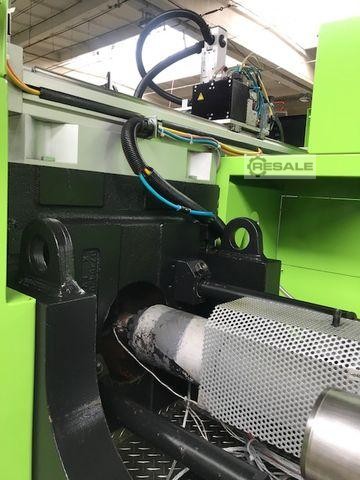

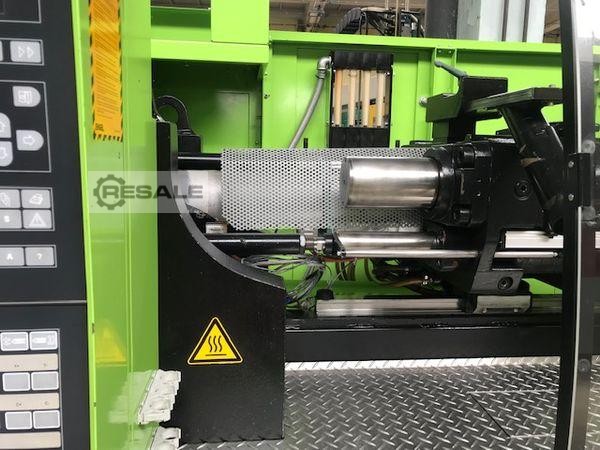

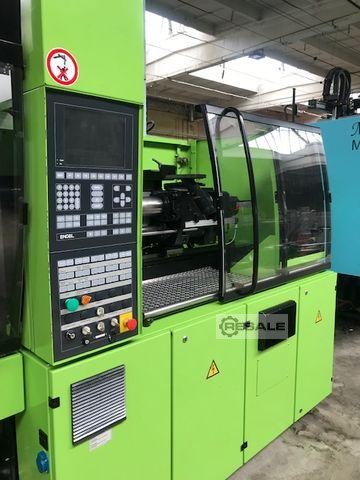

Máquinas de moldeo por inyección ENGEL Victory 330/110 Tech

Clamping force: 1100 kN Engel Victory 330/110 Tech / Production line with the Engel ER-HLI 41 robot and conveyor belt / machine in very good technical condition
Year of Make: 2004

Injection unit:
Screw diameter: 40 mm
Injection weight: 190 g
Spray pressure: 1670 bar
Dosing volume: 201 cc

Clamping unit:
Clamping force: 110 t
Spar spacing: 0x0 mm
Size of the clamping plates: 790x680 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: CC 100

Additional equipment:

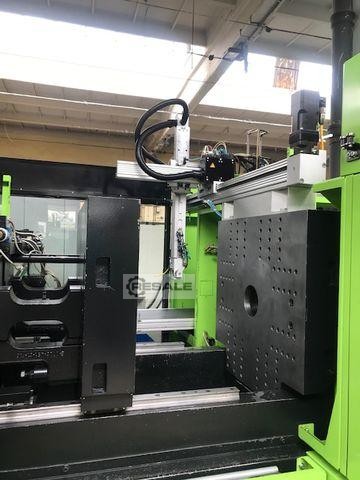

Production line with integrated Engel ER-HLI 41 robot and conveyor belt
Tie-bar-less machine
Hydraulic core pull x 1
Hardened injection unit - Bimetal
Machine has been serviced by the authorized service Engel
Machine with original protective housing for robot and conveyor belt

Dimensions:
Weight: 7400 kg
Length/Width/Height: 5.10x1.50x2.10 m

Drive:
Pumps/motor: 18.5 kW
Heating capacity: 9.2 kW
Total power: 27.7 kW

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 169625074
