Sierras de disco GMC - KGS 400/E

Code: 0360
Brand: GMC - ITALY
Model: KGS 400/E - CE Standard

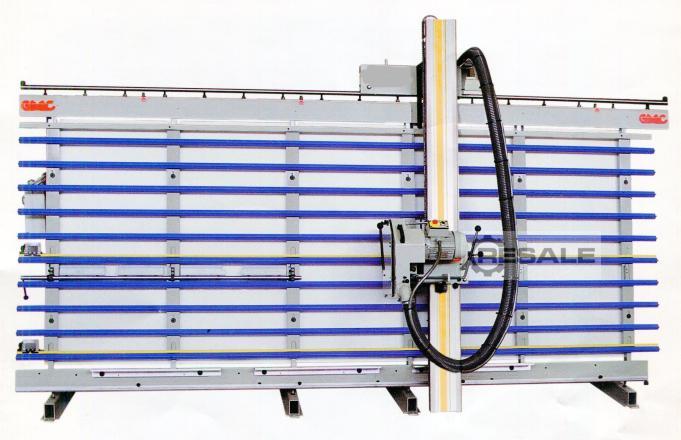

Manual vertical panel saw with scoring unit for cutting panels, furniture, customer made furniture, kitchens, plastics, composite materials, aluminium and various – CE Standard

Technical specifications:
Cutting length 3200 mm
Cutting height 1900 mm
Cutting thickness 50 mm
Blade diameter 250 mm Hole 20
Motor 4 Hp
Scoring unit for chip-free cutting - Blade diameter mm 110 Hole 20
Circular saw shaft speed 4800 rpm
Scoring saw shaft speed 7000 rpm
Retractable tilting intermediate support, half-length
Automatic mechanical moving frame
Double lower and upper measuring index for horizontal cuts
Overall dimensions of assembled machine mm 5100 x 1100 x 2800 h
Overall dimensions for transport: Frame mm 5100 x 460 x 2250 h + Beam mm 2900 x 850 x 850 h
Weight kg 450



seller offer No. resale Code: 0360
