Rebordeadoras HACO ERM 160.40

pressure: 40.0 t
chamfer lenght: 1600 mm
distance between columns: 1100 mm
stroke of upper beam: 100 mm
throat: 195 mm
working feed: 10.0 mm/sec
return speed: 70.0 mm/sec
: 180 bar
work height max.: 840 mm
table width: 110 mm
dayligth: 295 mm
Control: ATS 585
total power requirement: 5.5 kW
weight: 2500 kg
range L-W-H: 2100 x 1200 x 1800 mm

- in checked conditions - machinevideo -
https://www.youtube.com/watch?v=l9CdurfDGb0

Features:
- NC-controlled hydraulic press brake
- with ATLANTIC NC control ATS 585
Rear stop positioning (X-axis)
Depth adjustment positioning (Y1, Y2 axes)
Ability to program various programs
Swiveling control panel, front left
Tool and program library
- NC electric-motor-driven material/backgauge (X-axis)
With 2 stop fingers, manually adjustable (R and Z axes)

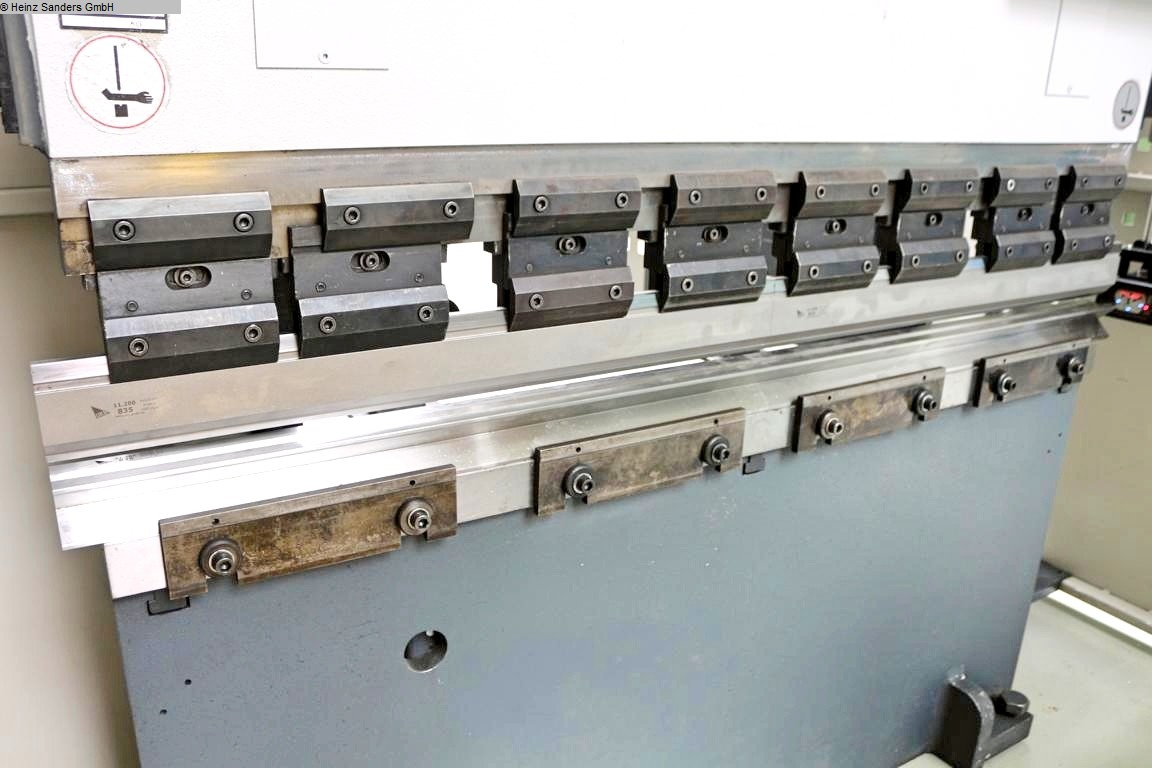

- Tool holder system A - with upper wedge camber
- Split insert/bending tools

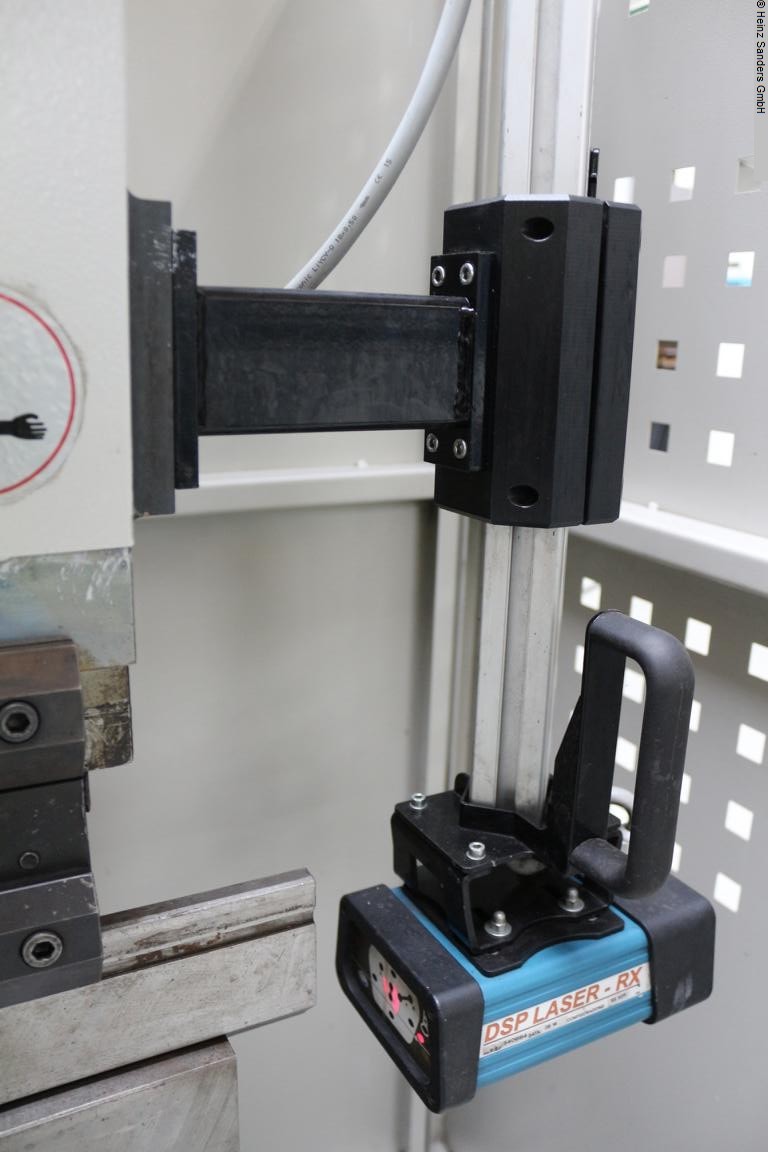

- DSP LASER RX safety device - front
- 2x side, swiveling safety doors
- 1x freely movable double foot control
- Operating instructions

Also included in the scope of delivery (pre-installed):

- 1x brand-new / split set of upper tools
UKB 11,200 mm - 2x 835 mm
Angle 85° - Radius R 0.8 mm - Height 66.5 mm
Load capacity 1000 kN/m max

- 1x brand-new / split set of lower tooling
UKB 21.207 - 2x 835 mm
V-openings = 16/22/35/50 mm
Angle 85°
Load capacity 800 kN/m max.



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1125-9308491
