Serruchos de distribución de bandejas HOLZMA HPL380/43/22 Profi

Holzma HPL380/43/22 Profi
Manufacturer: Holzma
Type: HPL380/43?22 Profi
M-Nr..: 0-240-06-8971
Year: 2010
Machine control: Holzma CAD Matic 4 – Professionel, 2D/3D, Ethernetanschluss
Windows XP embedded
19″ TFT touchscreen DVD, USB
Power: ca. 28 KW – 40A – 3 Ph/50Hz
Saw length: 4.300 mm
Dept/- panelwidth: 4.300 mm
Main saw: 18 KW
Bookthickness: 95 mm
Max. saw thickness: 82 mm
Saw feed speed: 130 m/min
Scoring saw: 2,2kW
Scorer saw blade: 180 4,6 45 mm
Side press: Automatic Holzma patented side press system
Pressure beam: Automatic , with programmable pressure
Clamps: 7 Sclamps, 75/275/475/1050/1850/2650/3450 Programmable
Programmable panel beam: stepless 1-80 m/min.
Air cushion tables: 4 tables
Table dimensions: 2.170650 mm

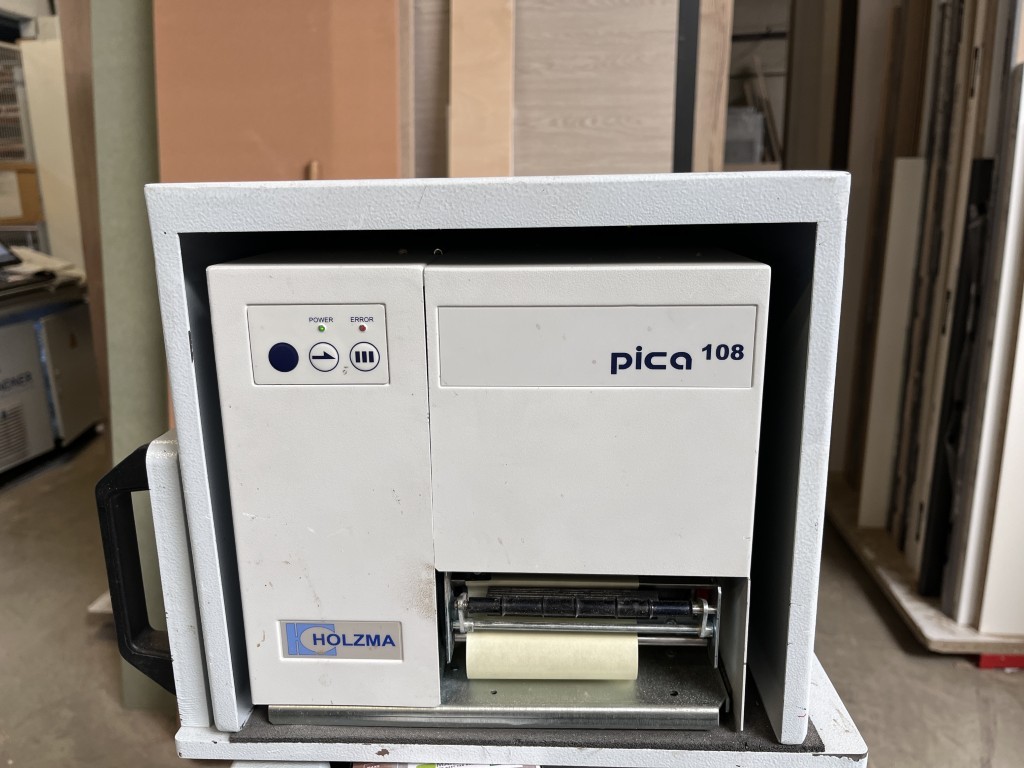

Label printer: Pica 108

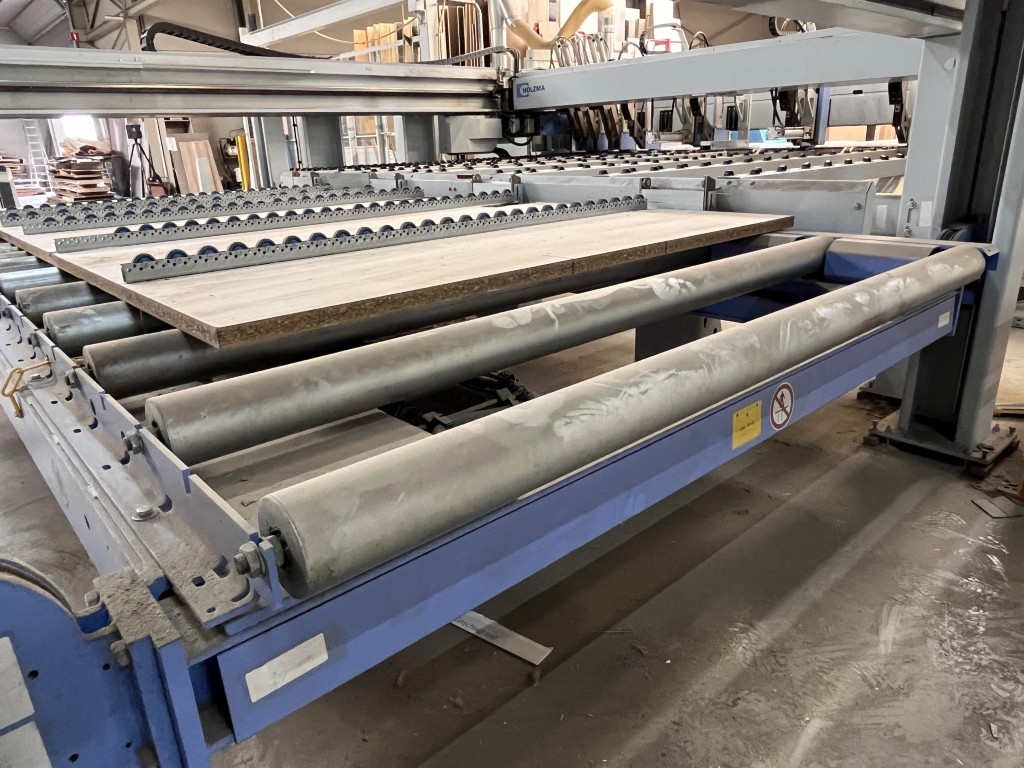

Loading: Rearside automatic lift table . Dimensions: 4.300 2.200 mm, fitted with heavy duty rolls
Destacking: Panel surface protection destacking with thickness measuring
Dust extraction: 250 mm
Required air extraction volume: 5.500 m³/ h
Condition: Till Q2-2026, thge machine can be inspected in production
Before machine will be taken out of production by our engineers, all will be thoroughly checked
Dimensions: 6.800/9.422/4.660 mm
seller offer No. resale resale-20752
