Cizallas hidráulicas LVD CS 40/6

sheet width: 4100 mm
plate thickness: 6.35 mm
thickness at Niro-steel: 4.00 mm
cutting angle: 0.5 - 2.5 °
cutting gap adjustment: 0.05 - 0.8 mm
no. of strokes: 9 - 26 Hub/min
back stop - adjustable: 10.0 - 750 mm
down holder: 22 Stk.
oil volume: 200 ltr.
engine output: 7.5 kW
weight: 8000 kg.
range L-W-H: 5145 x 2200 x 1750 mm
From a maintenance workshop
Very well-maintained / good condition
With very few operating hours ()
Current list price approx. 60.000 euros
Special price upon request

Features:
- Robust electro-hydraulic, slide-guided sheet metal shear
- LVD control panel centrally located on the front of the machine (left)
- Electro-hydraulic cutting angle adjustment
Includes digital display of actual values
- Manual cutting gap adjustment
via handwheel from the front (left)
Includes analog value display
- Electro-motorized backgauge with ball screws
Includes digital actual position display
Rapid traverse is possible

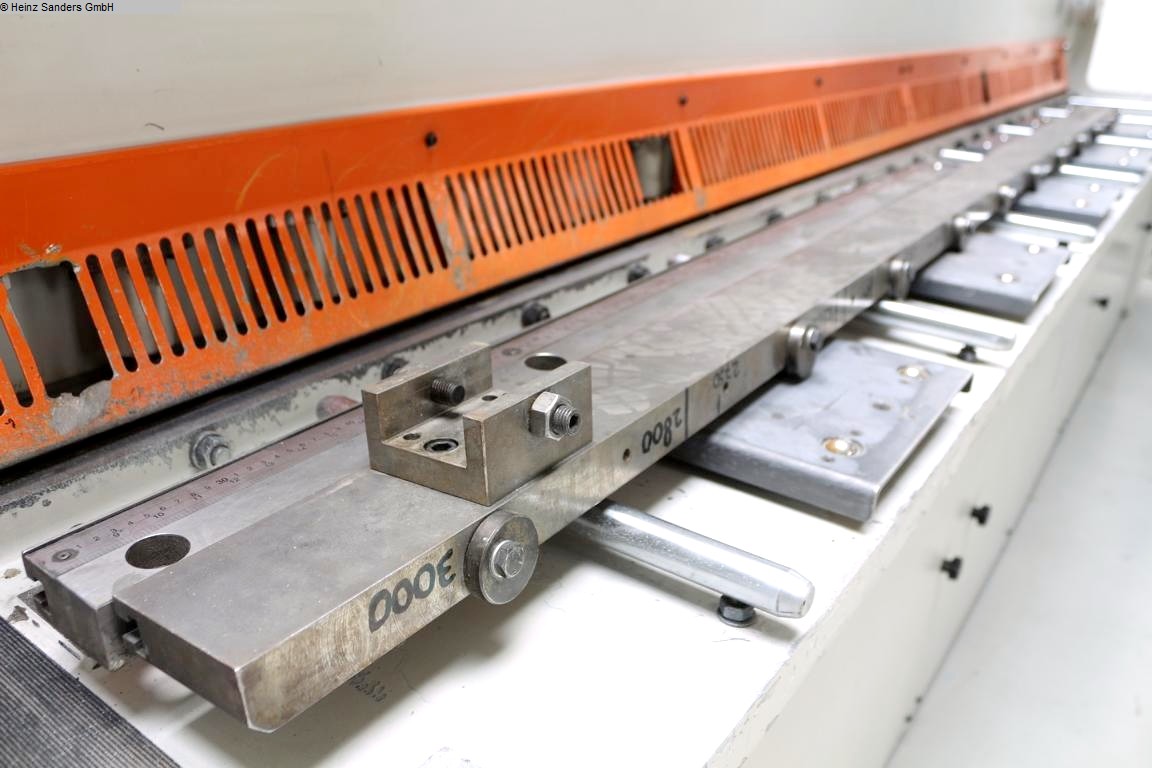

- 1x extra-long side stop 3,000 mm, with support foot
- 1x long support arm
- Ball-bearing recessed handles in the support table
- Front finger guard

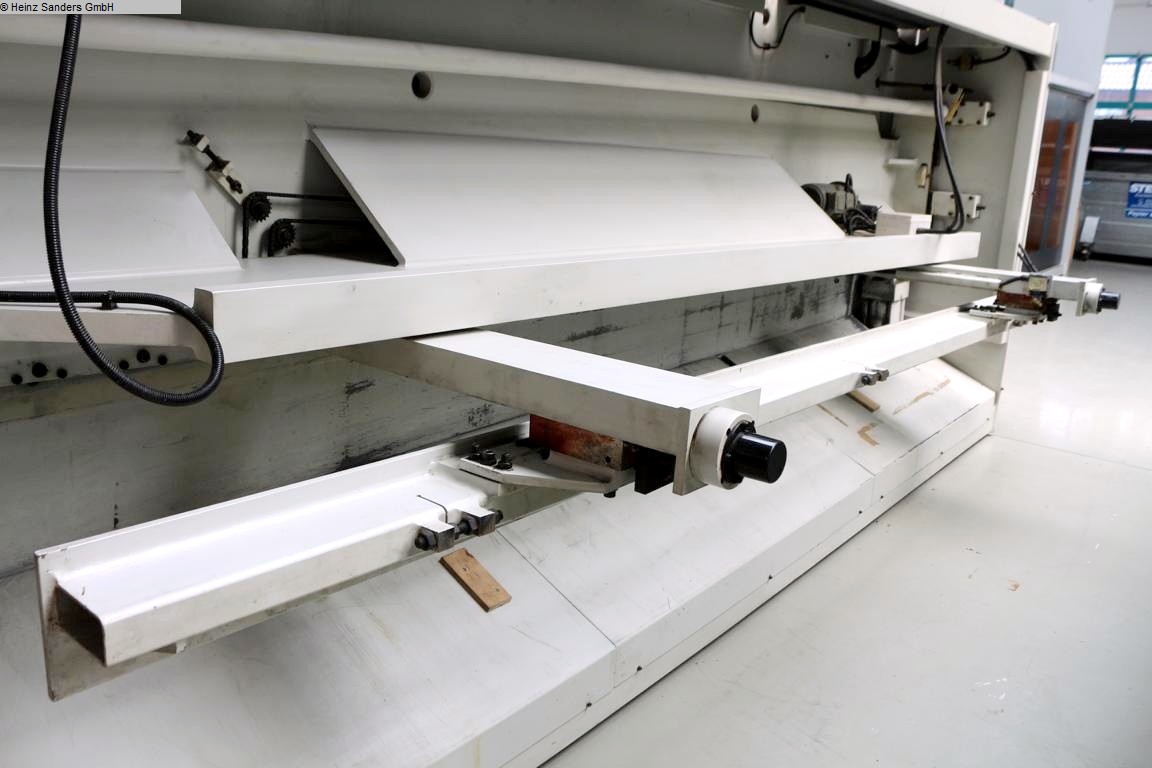

- Rear sheet metal chute
- Safety device - rear (protective grille)

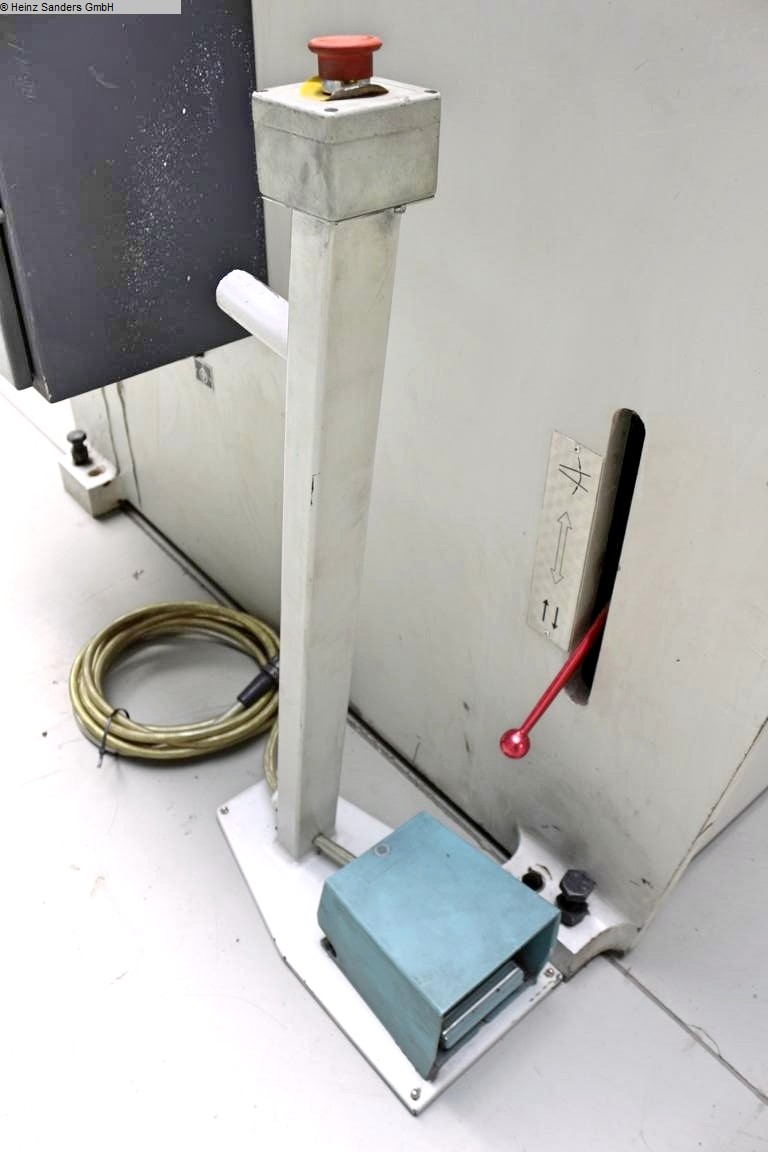

- 1x freely movable foot switch
- Machine lighting at the front (custom-built)
- Operating instructions



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1125-9325432
