Centros de torneado CNC MORI SEIKI MT2000Z/1000

Turning diameter: 550 mm Turning length: 1020 mm Ex-Mercedes-Benz F1 Motorsport – Excellent condition

Mori Seiki MT2000Z/1000

5-axis turning / milling center

Year of manufacture 2001

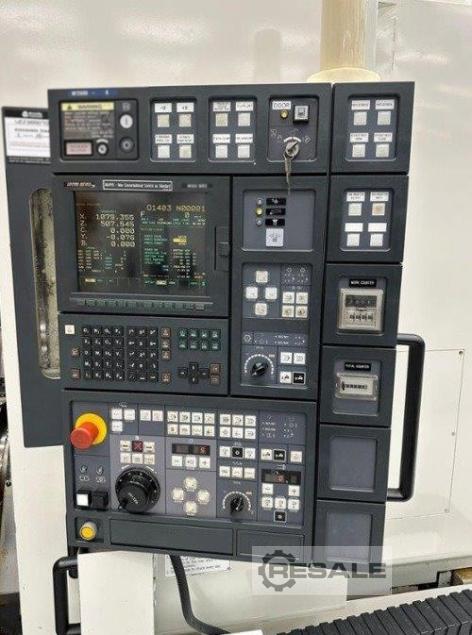

MSG 502 MAPPS Control (Dialog)

Circumferential diameter over bed 850 mm

Circumferential diameter over carriage 600 mm

Max. turning diameter 550 mm

Max. turning length 1,020 mm

Max. spindle speed 4,500 rpm.

C-axis 0.001°

Upper tool carriage – single tool for turning/milling/drilling with automatic tool change

X-axis travel (transverse) 565 mm

Z-axis travel (longitudinal) 1,077 mm

Y-axis axis travel (vertical/off-center) 160 mm (+/- 80 mm)

B-axis swivel range +/- 120°

Milling spindle drive power 15 kW

Milling spindle speeds up to 6,000 rpm.

Tool holder CAPTO C6

40-cavity tool magazine

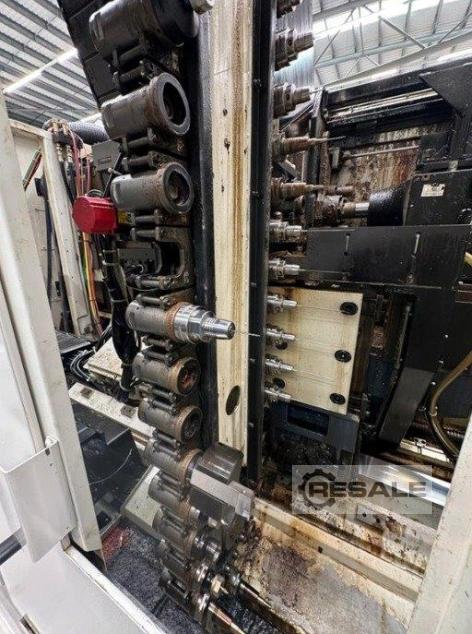

Lower Tool Carriage – 12-Station Turret with Live Tools

Tool drive power 7.5 kW

Tool speeds up to 4,000 rpm.

Tailstock

Chip conveyor

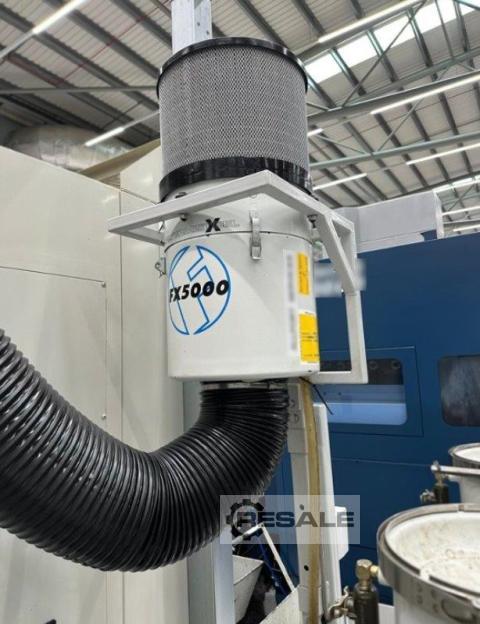

Oil mist extraction

Offer number L-4943

seller offer No. resale L-4943
