Tornos CNC MORI SEIKI NLX 2500 SY / 1250

turning diameter: max. 356 mm
turning length: 1.255 mm
control: M 730 BM MAPPS IV
greates pass round over bed: 920 mm
Swing dia. over traverse guideway: 742 mm
distance between spindles: 1.511 mm
Main spindle::
turning speed range - main spindle: 4.000 min/-1
power capacity - main spindel: 18,5 / 15 kW
spindle nose: JIS A2-8
spindle bore: 91 mm
max. bar capacity: 80 mm

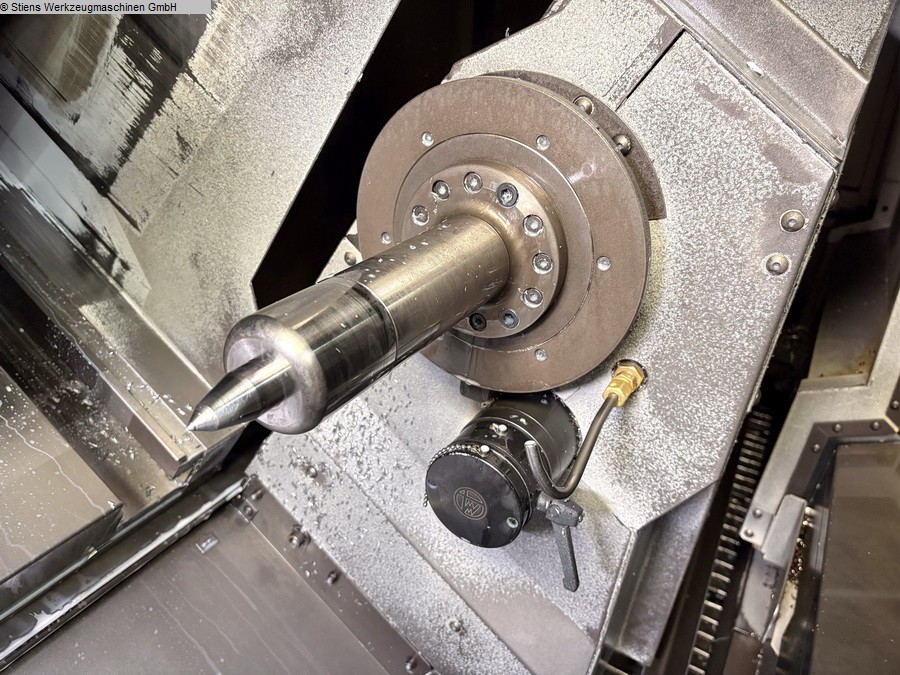

Subspindel::
Spindle speed range subspindle: 6.000 min/-1
power capacity - Sub spindle: 11 / 7,5 kW
spindle bore: 43 mm
axis stroke::
x-travel: 260 mm
z-travel: 1.345 mm
Y - Axis: +/-50 mm
rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min

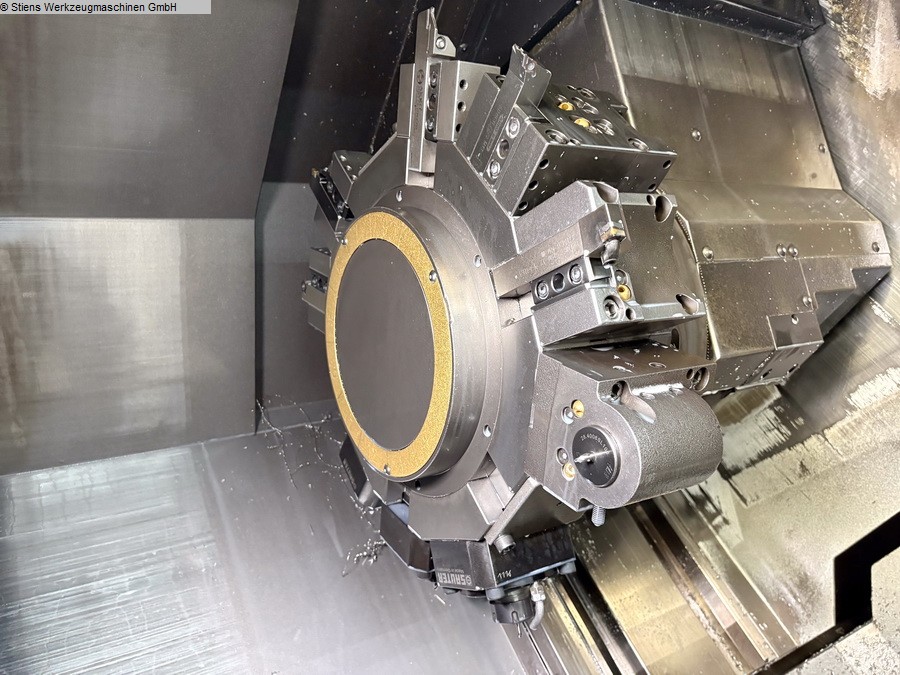

turret::
number of toolpositions: 12 pos.
Schank height for square tool: 25 mm
Drill shank diameter: 50 mm
turret change time: 0,27 sec.
Driven Tool Positions::
Spindle speed - driven tools: max. 6.000 min -1
power capacity - driven tools: 5,5 / 3,7 kW
total power requirement: 50 kVA
weight of the machine ca.: 7,8 t
dimensions of the machine ca.: 6,0 x 3,0 x 2,3 m
Documents:
Chip conveyor:
Coolantsystem:
hydraulic system:
C-axis:
Y-axis:
driven tool positions:
work light:

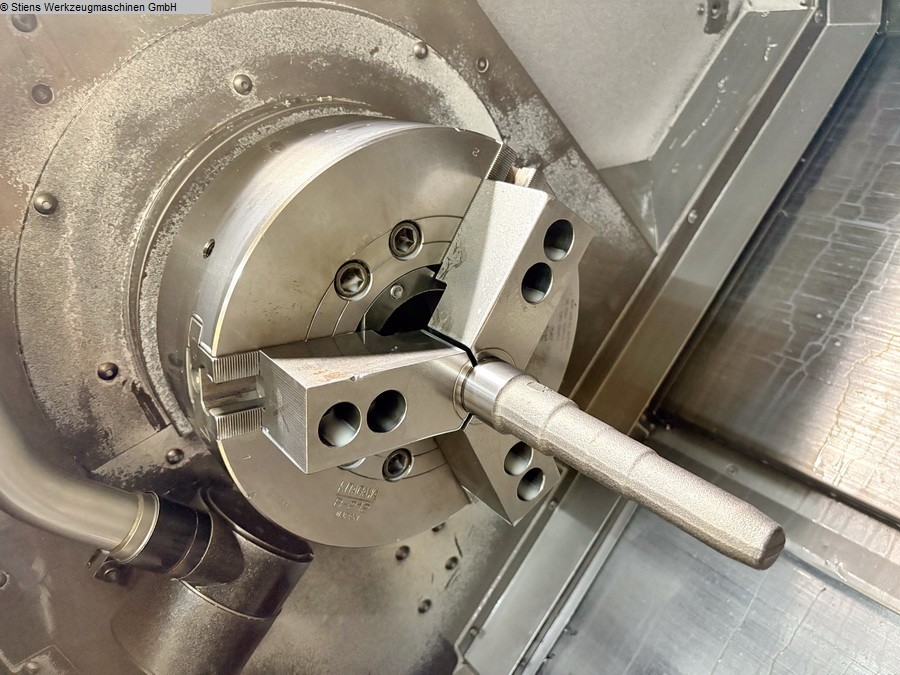

hydraulic chuck: 2x
exhaust fan:
tool setter: 2x
CNC - Turning- and MillingCenter
DMG MORI SEIKI - NLX 2500 SY / 1250

- Subspindle
