Centros de torneado CNC OKUMA Multus U 3000 2SW/1500

turning diameter: 650 mm
turning length: 1500 mm
control: OSP-P300SA -L
Main Spindle::
main spindle speeds:: 4200
spindle motor: 32/22 kW
diameter of main spindle: A2-8 mm
travel -x axis: 644 mm
travel -z axis: 1600 mm
travel -y axis: 300 (+/- 150) mm
rapid traverse: 50 / 40 / 50 m/min
milling spindle: 12.000 U/min
spindle motor: 22/15/11 kW
spindle bore: 130 mm
c-axis: 360 °
b-axis: 240 °
2nd Spindle::
Subspindle Power: 22,4 kW
spindle turning speed range: 5000 U/min
W-axis (spindle longitudinal): 1584 mm
spindle nose: A2-6
total power requirement: kW
CNC turning & milling center - equipped with:
- CNC control OSP-P300SA-L THINC Control, Full 5-Axis,
- Contouring B-Axis Milling Spindle (12,000 RPM, CAPTO C6)
- Y-Axis
- LOWER TURRET (STATIC)
- BIG BORE (3.1” BAR CAPACITY – MAIN SPINDLE)
- 2-SPEED GEARBOX
- ROYAL QG-80 COLLET CHUCK (MAIN)
- ROYAL QG-65 COLLET CHUCK (SUB)
- C-AXIS SYNC (BOTH SPINDLES)

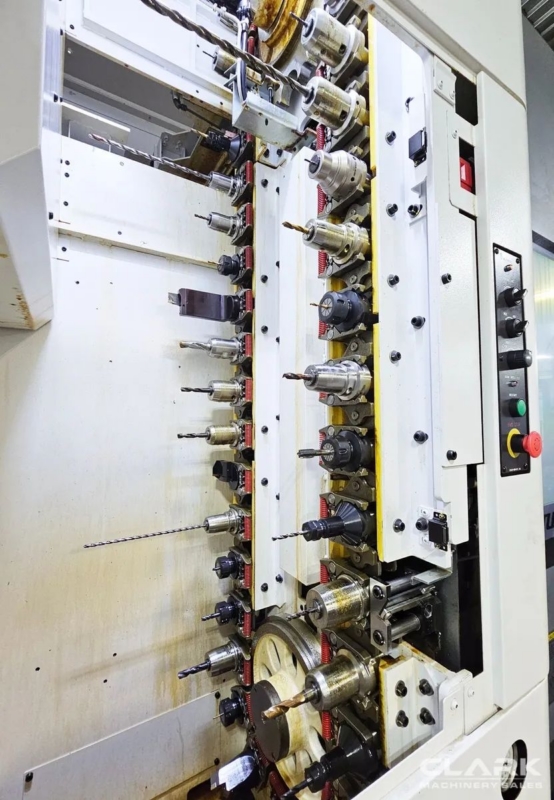

- 80-TOOL POSITIONS (CAPTO C6)
- RENISHAW RMP600 AUTO-GAUGING PROBE
- AUTOMATIC TOOL PRESETTER
- CHIP CONVEYOR
- MP SYSTEMS (VF-8) HIGH-PRESSURE COOLANT UNIT
- NIAGARA SHOWER COOLANT

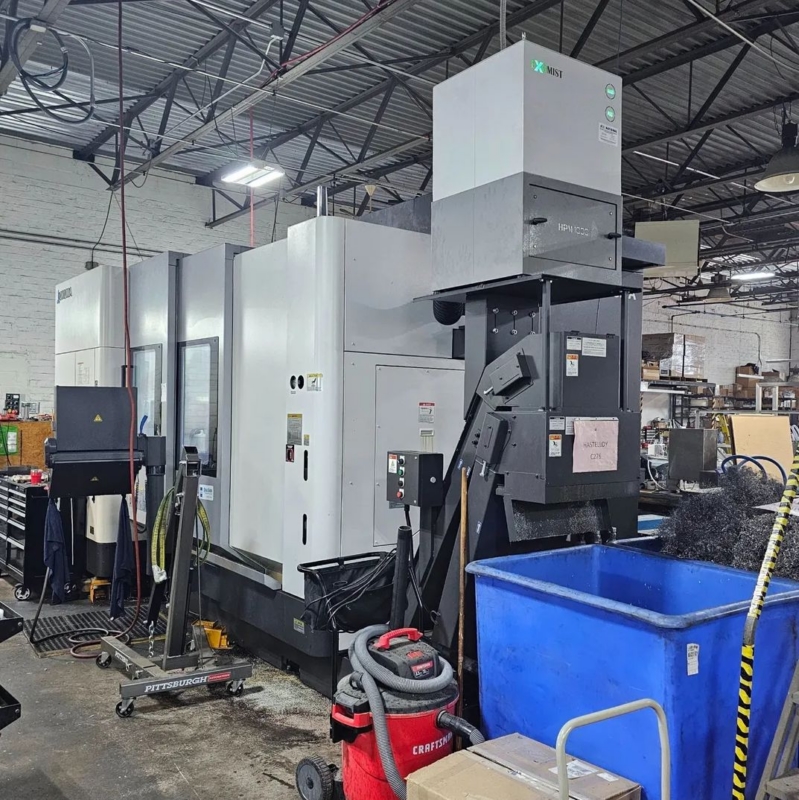

- EXO-MIST MIST COLLECTOR
- Y-AXIS GAUGING WITH SLOPE GAUGING
- C-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
- Z-AXIS AUTO ZERO OFFSET FUNCTION (BOTH SPINDLES)
- SUPER NURBS (X+, Y+, Z+, C+, B)
- ADVANCED ONE-TOUGH IGF
- MULTI-EDGE LATHE TOOL INDEX FUNCTION
- THERMO FRIENDLY CONCEPT (SPINDLES & CASTING)
- NEGATIVE TOOL RADIUS COMPENSATION
- GEOMETRUC ERROR COMPENSATION
- GEOMETRIC ERROR GAUGING
- TOOL CENTER POINT CONTROL II
- STRIAGHTNESS COMPENSATION
- COLLISION AVOIDANCE SYSTEM
- (8) SETS OF SPARE M-CODES
- SPINDLE FLUCTUATE
- FIXTURE TRACKING
- SYNCHRO TAPPING
- SPINDLE SYNC TAP
- ARC THREAD CUT
- 3D ANIMATION
- ANIMATION
- HI-CUT PRO

approx 50 CAPTO C6 TOOL HOLDERS
CUTTING TIME – 1876 HOURS
