sierras madera usadas para la venta (1,071)

Striebig vertical panelsaw Compact 5207 C – 2005 Manufacturer: Striebig Type: 5207 Compact TRK M-Nr.: 30215 Year: 2005 Motor: 3.0 kW – 3 400V 50Hz Diameter: 250mm (ID 30 mm) Bore: 30 mm RPM: 5.250 rpm Dimensions: Max. saw length: 4.600 mm Max. saw width: 2.070 mm Max. saw depth: 1.958 mm Saw dept: 60 mm Machine length: 5.826 mm m Machine height: 2.838 mm Machine dept: 1.428 mm Product support bottom: Rolls Product support small work pieces: Yes Length measuring system: analog Saw turning: manuel Saw movement: manuel Machine support: Self-supporting A-frame Dust extraction: ø100 mm Saw position fixation: manual Equipped with: Emergency stop Motor brake

DeWalt 1600 Manufacturer: Dewalt Type: 1600 Max. Saw heigth: 100 mm Max. Saw length: 610 mm Saw: ø350 mm Saw spindle: Ø30 mm Motor: 3 kW Toerental: 2.650 rpm Dust extraction: ø100 mm Weight: 115 KG

Striebig Automat 6220AV verticale platenzaag Merk: Striebig Type: Automat 6220AV Bouwjaar: 1991 M-Nr.: 20851 Max. Zaaghoogte: 2.100 mm Max. Zaaglengte: 5.300 mm Max. Zaagdiepte: 80 mm Zaagblad diameter: 300 mm Zaagas: 30 mm Motor: 4.4/5.5 KW Zaag toerental: 4.750 tpm. Rollen support: Rollen Stroken opleg: Ja Meet systeem: analoog Zaagkop draaien: manueel Zaagbeweging: manueel Machine frame : wandzaag Afzuiging: ø100 mm Zaagwagen fixatie: manueel Afmetingen: 6.5 x 2.5 x 1.3 m Conditie: functioneel gecontroleerd

MARTIN T74 Radio Control – sliding table saw, with 4-ax CNC control; parallelogramtable as 5. ax integrated in central control, plus 3-ax Scoring Saw Manufacturer: MARTIN Type: T74 AUTOMATIC – Radio Control Year: 2008 M-Nr.: V484794 YouTube:

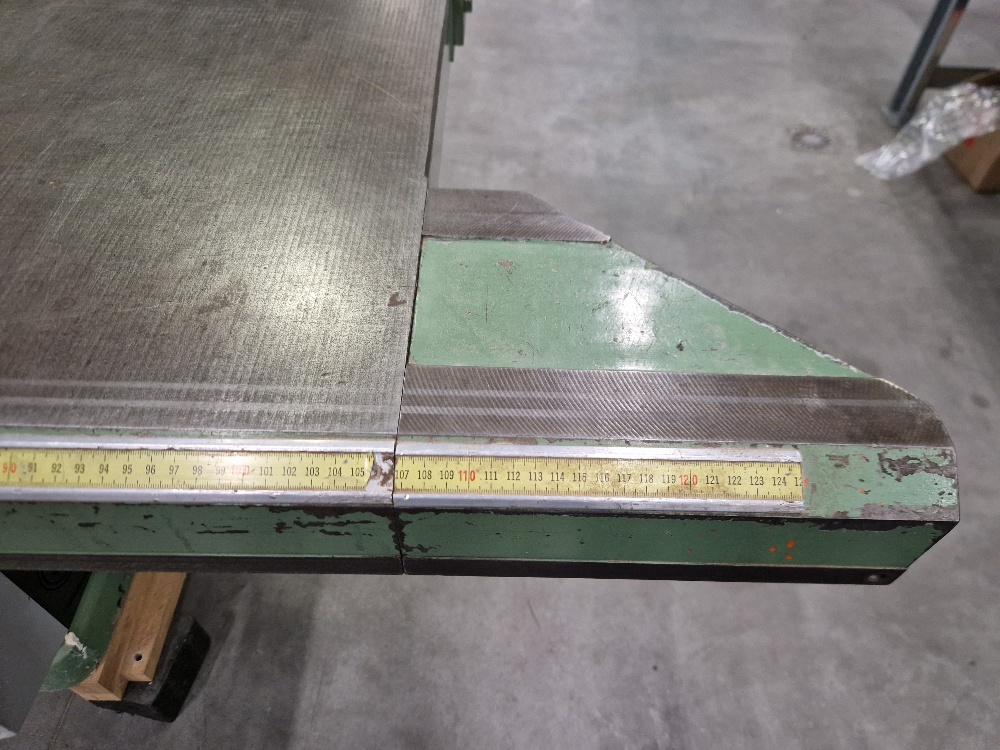

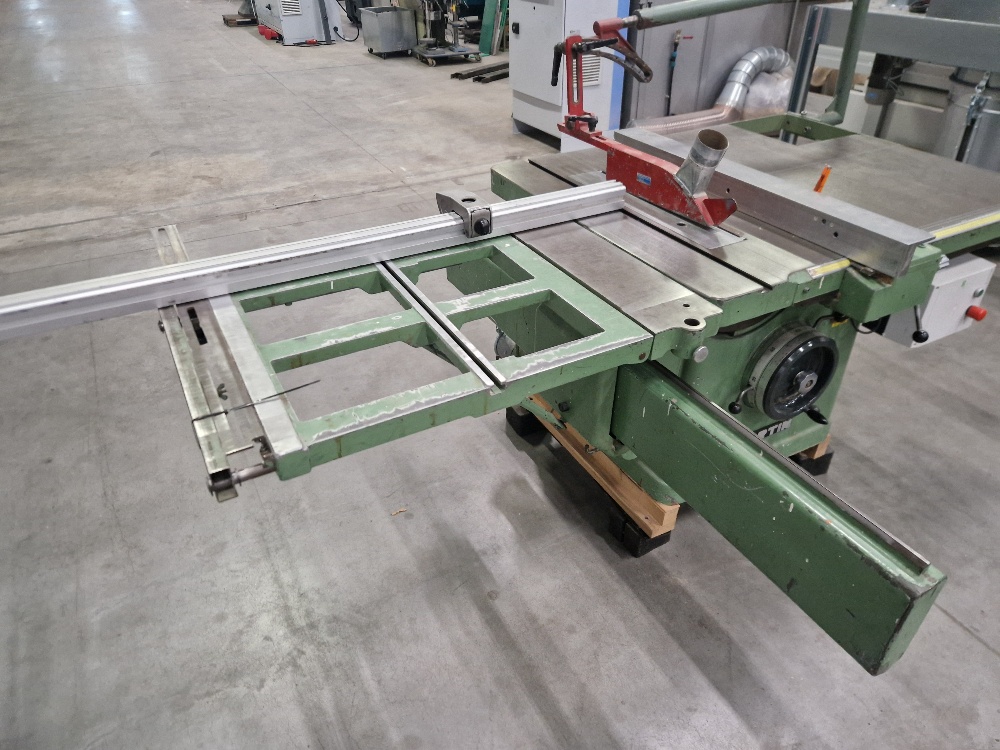

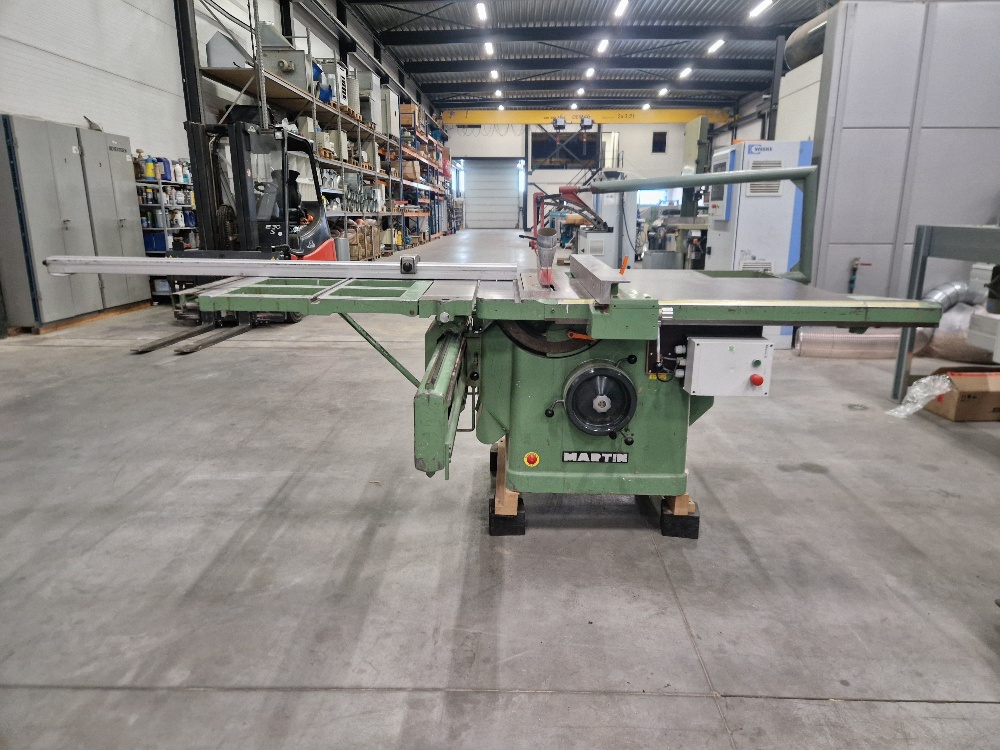

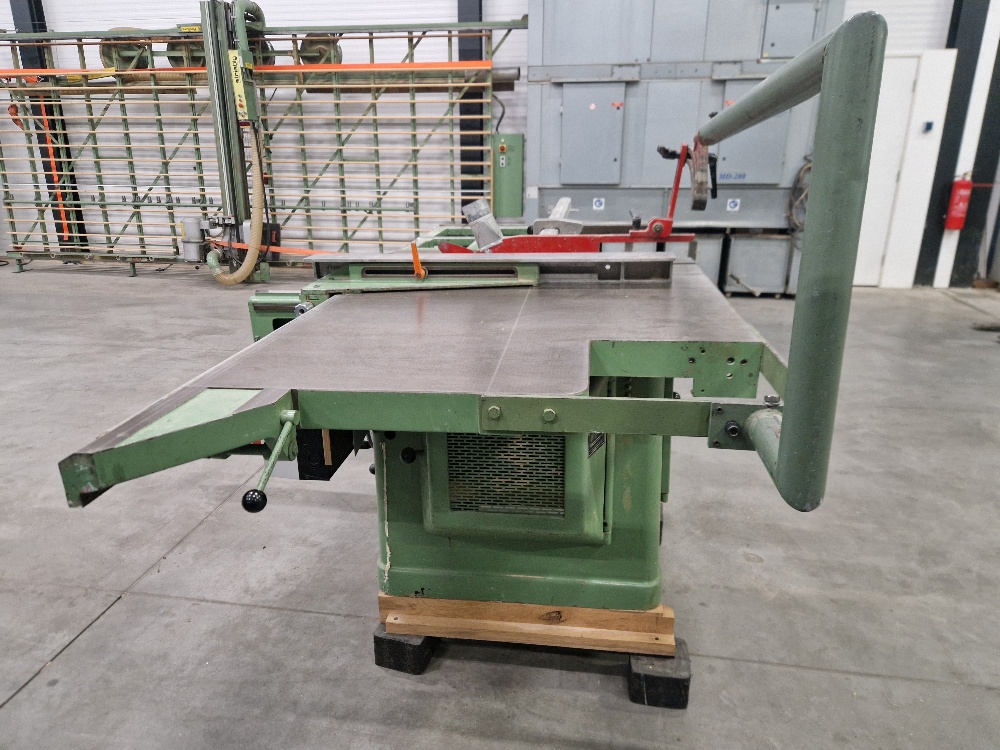

Martin T17 with tilting saw Manufacturer: Martin Type: T17 Year: 1972 M-Nr.: V95358 Table Size: 1030 x 1050 mm. Table Heigt: 800mm Sliding Table: Ja Main saw: 4 kW RPM: 2800 – 4000 – 5500 tpm Saw Blade Arbor: ø30 mm. Saw Blades: ø450 mm Cutting Heigt: 147mm Blade tilting: 0 – 45° Cutting width: 1.050 mm

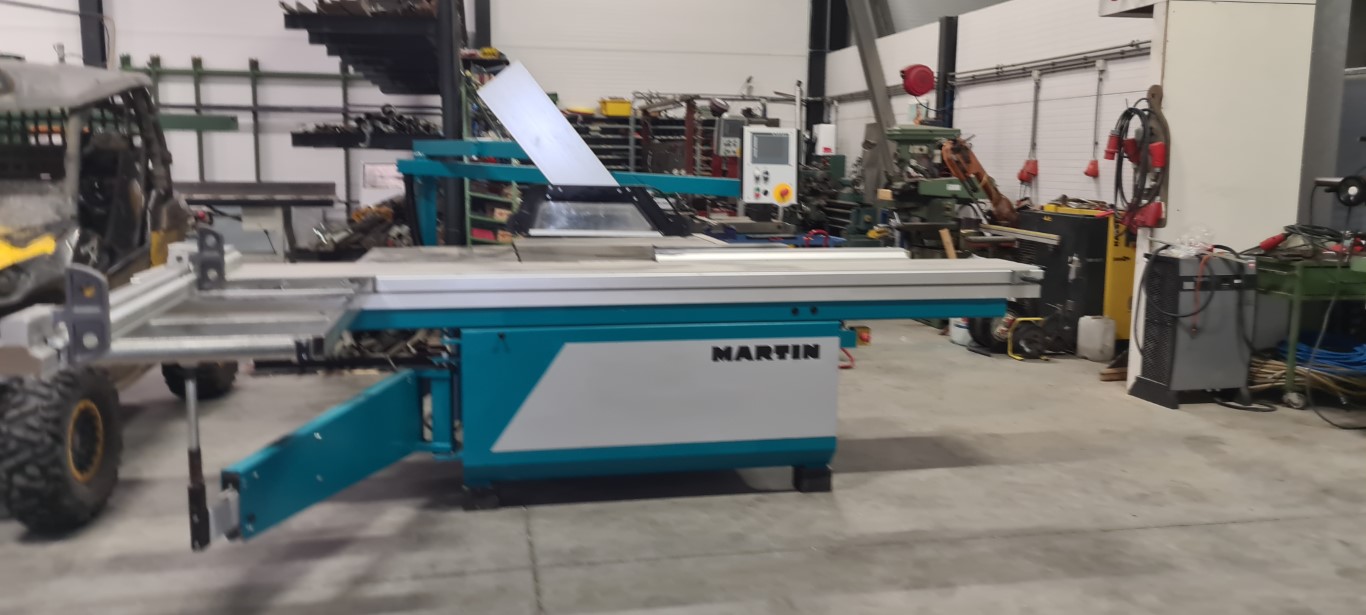

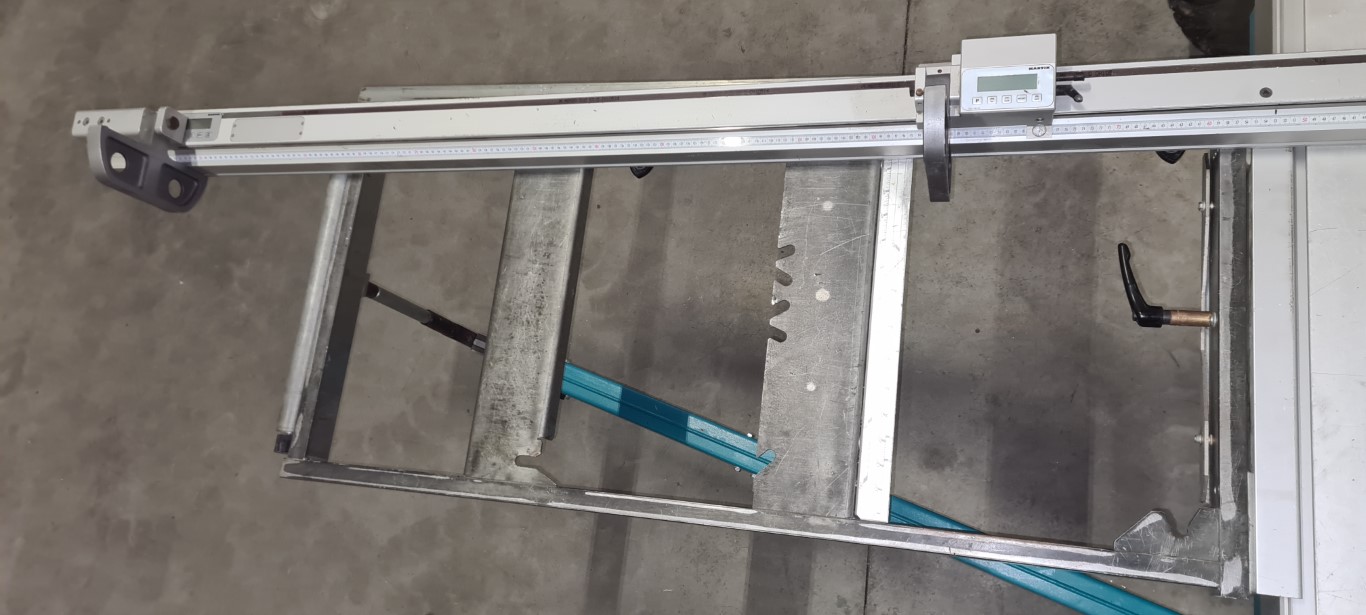

Martin T60C-automatic panel saw Manufacturer: Martin Type: T60 Classic M-Nr.: V482223 Year: 2008 Martin T60C V482223:

Centauro CL900 Manufacturer: Centauro M-Nr.: 2064 Year: 1996 Motor: 5.5 KW with electro-pneumatic brake Table dimensions: 1.100800 mm Wheel: 900mm Saw height: 550 mm Max saw widt: 850mm Saw band length: 6.190 – 6.380 mm Saw band width: 30 – 50mm Tilting/blade: 45° Working height: 960 mm Dust extraction: ø120 mm Weight: 925 KG Noise: 82,3 dB(A)

Striebig vertical panelsaw Compact 5220 Manufacturer: Striebig Type: 5220 Compact fitted with TRK dust extraction M-Nr.: 41596 Year: 2010 Motor: 3.0 kW – 3 400V 50Hz Diameter: 250mm (ID 30 mm) Bore: 30 mm RPM: 5.250 rpm Dimensions: Max. saw length: 4.600 mm Max. saw width: 2.200 mm Max. saw depth: 2.100 mm Saw dept: 60 mm Machine length: 5.826 mm m Machine height: 2.980 mm Machine dept: 1.466 mm Product support bottom: Rolls Product support small work pieces: Yes Length measuring system: analog Saw turning: manuel Saw movement: manuel Machine support: Self-supporting A-frame Dust extraction: ø100 mm Saw position fixation: manual Equipped with: Emergency stop Motor brake

AVOLA Gamma 60R Manufacturer: Avola Type: Gamma 60R Year: 2001 M-Nr.: 35001 Table dimensions: 1.5001.500900 mm Swivelling:Tilting: 0 tot 180° with digital reading Neigen: 0-45° electric tilting with digital counter Max. Saw heigth: 220 mm-90°; 160 mm/45°; 110 mm/30° Max. Cutting length: mm Rolltables: 400 mm sideward movement, resulting in 400 mm increased cutting length Saw: Ø 500/600mm, 3.000 rpm Saw spindle: Ø 30mm Motor: 8,8 kW – Direct-drive, 400V, 50 Hz, Nom. 18A RPM: 3.000 rpm Duo-feeders: Left- and Right hand side, top driven rolls Length measuring: Left & Right length measuring wheels positioned straight under the Duo-Drive feeders, with unlimited length measuring Length stoppers: Manual stoppers Left 4 meter and right 1.5 meters, or opposit. Dust extraction: ø150 mm at 20,5 m/s,

MARTIN T74 Radio Control – sliding table saw, with 4-ax CNC control and 5. ax integrated and 3-ax Scoring Saw Aggregate Manufacturer: MARTIN Type: T74 AUTOMATIC met 3–as voorrits en parallelogram tafel Year: 2007 M-Nr.: V471539 YouTube: Touchscreen: 10.4″ touchsreen full colour, ate eye level, swivelling Table Size: 1.350 x 1.500 mm in grey cast iron; table extension 600400 with storage Table Heigt: 900mm Sliding Table: 3.300mm Main saw: 5.5 kW Saw Blade Arbor: Main saw blade arbor: 30 mm Ø; two 10 mm drive pins Saw Blade replace: ProLock” quick change system Saw Blades: Ø 250 – 500 mm; saw blades up to Ø 400 mm can be lowered below table; saw blades up to Ø 400 mm can be used with scoring blades Cutting Heigt: CNC-controlled max. 170 mm when Ø500 mm Blade tilting: CNC-controlled 0 – 46° Cutting Width: CNC-controlled, max. 1.350 mm; can be lowered under table level in i ...

Martin T75PreX (246° tilting) and RadioCompens (length compensation for angular cuts) Manufacturer: Martin Type: T75PreX Year: 2012 M-Nr.: V519664 Control: 10.4″ Touch-Screen at eye-level, turning-swivelling with blocknote holder 3-ax CNC-controlled plus 4th and 5th manual axes integrated in centra control system Table Size: 1.350 x 1.500 mm in grey cast iron; table extension as standard, Table Heigt: 900mm Sliding Table: 3.700mm Main saw: 9.5 kW frequency controlled Saw Blade Arbor: Ø30 mm main saw blade arbor, 2 pcs 10 mm drive pins Saw Blade replace: ProLock” quick change system Saw Blades: Ø 250 – 550 mm; saw blades up to Ø 400 mm can be lowered below table; saw blades up to Ø 400 mm can be used with scoring blades Cutting Heigt: 204 mm. Blade Width: -46° tot +46° Cutting Width: 1.350 mm Scoring Blades: 3-ax electric controlled scoring saw aggregate Cross cut table: Para ...

Homag SawTeq B-300 flexTec equipped with Yaskawa D200 Robot panel manipulator Manufacturer: Homag Type: B-300 flexTec/Profi HPP300/43/43/F M-Nr..: 0-240-69-1263 Year: 2020 Control: Cadmatic 5 Ardis Datensteuerung Labelling: Pica II im Druckbalken YouTube:

MARTIN T73 AUTOMATIK, Parallelogramtisch, angetriebener Rollwagen, 3-Achs Steuerung Mark: MARTIN Type: T73 AUTOMATIC Baujahr: 2001 M-Nr.: V424244 Tischabmessung: 1.350 x 1500 mm. Tischhöhe: 900mm Besäumtisch: 3.300mm Hauptsäge: kW Sägeblattwelle: ø 30 mm. mit zwei Mitnehmerstifte Sägeblattwechsel: Schnellwechselsystem ProLock” Sägeblatter: Ø 250 – 500 mm; bis Ø 400 mm unter Tisch versenkbar; Schnitthöhe: 170 mm. (Sägeblatter. 500 mm.) Sägeblatteschwenkung: 0 – 46° Schnittbreite: 1.350 mm Parallelanschlag: Anschlaglineal in eloxiertes Aluminium; Endstellung; Automatisch unter Tischebene absenkbar Längenanschlag: Digitaler Längenanschlag aus eloxiertes Aluminium mit Martin 2-Punkt Anschläge Steuerung: NC-Steuerung mit LCD-Anzeige der Breite, Höhe- und SchrägeWinkel, plus 2 digitale Längenanschläge Bildschirm: LCD Bedienpult auf Augenhöhe, wegschwenkbar mit Tablea ...

Striebig Standart II 6220A verticale platenzaag Marke: Striebig Typ: Standaart II 6220A Baujahr: 1972 M-Nr.:

Striebig Standart III 6220A TRK Manufacturer: Striebig Type: Standaart III 6220A TRK Year: 1998 M-Nr.: 28532 Max. Cutting Heigt: 2.100 mm Max. saw width: 5.300 mm Max. Dept/- panelwidth: 80 mm Saw blade diameter: 300 mm Saw Blade Arbor: 30 mm Motor: 4.4 KW Saw RPM: 4.750 rpm Product support bottom: Rolls Sawwall: closed HPL panels Product support small work pieces: Yes Measurement system: analog Turning sawhead: Manual Sawing motion: Manual Machine frame : stand-alone A-frame Dust extraction: TRK system Saw truck fixation: Manual Dimensions: 6.5 x 2.5 x 1.3 m Condition: functioneel gecontroleerd

BSM P450 CE Manufacturer: BSM Type: P450CE M-Nr.: 0904088P450 Year: 2009/04 Cutting height (Max): 135mm Saw diameter (max): ø450 mm Saw blade inner-ø: ø30 mm Saw width (max): 800mm Saw blade tilting: 0-45° Motor: 5,5 kW Weight: 320 kG Including: Table extension rearside

Holzma HPL380/43/22 Profi Manufacturer: Holzma Type: HPL380/43?22 Profi M-Nr..: 0-240-06-8971 Year: 2010 Machine control: Holzma CAD Matic 4 – Professionel, 2D/3D, Ethernetanschluss Windows XP embedded 19″ TFT touchscreen DVD, USB Power: ca. 28 KW – 40A – 3 Ph/50Hz Saw length: 4.300 mm Dept/- panelwidth: 4.300 mm Main saw: 18 KW Bookthickness: 95 mm Max. saw thickness: 82 mm Saw feed speed: 130 m/min Scoring saw: 2,2kW Scorer saw blade: 180 4,6 45 mm Side press: Automatic Holzma patented side press system Pressure beam: Automatic , with programmable pressure Clamps: 7 Sclamps, 75/275/475/1050/1850/2650/3450 Programmable Programmable panel beam: stepless 1-80 m/min. Air cushion tables: 4 tables Table dimensions: 2.170650 mm Label printer: Pica 108 Loading: Rearside automatic lift table . Dimensions: 4.300 2.200 mm, fitted with heavy duty rolls Destacking: Panel surface protecti ...

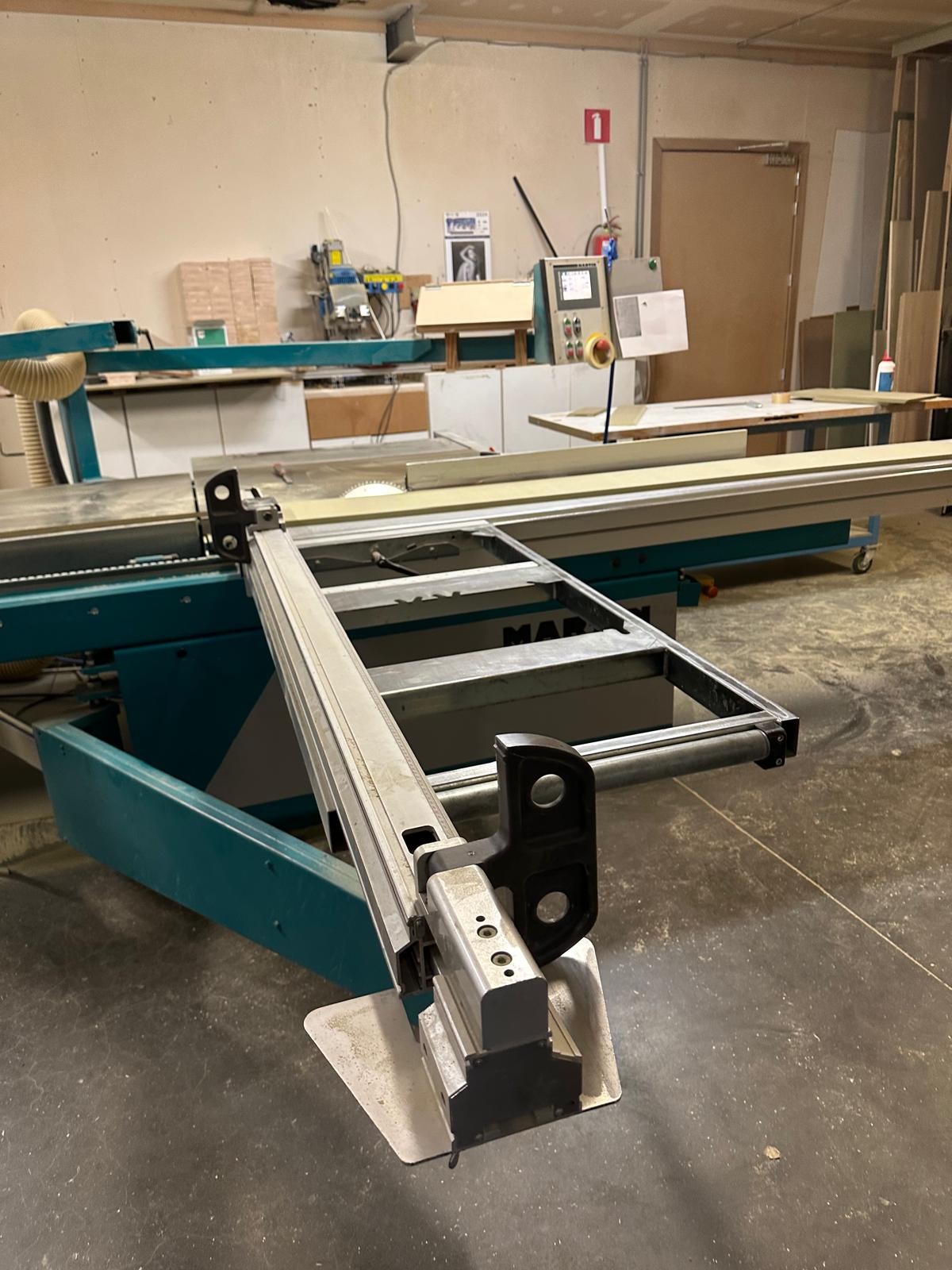

Martin T60C-Automatic panel saw Manufacturer: Martin Type: T60C-AUT M-Nr.: V474295 Year: 2007 Control panel: Eye-level integrated in dust extraction cover 2-ax control + 3rd-ax integrated in central control, but handwheel setting (Saw height, tilting, width) Mainsaw: ø400 mm, bookthickness; 0-130 mm, tilting 0° – 46° RPM: 4.000/4.800/6.000 rpm Motor: 5.5 KW Scoring saw: Yes 3 Ax-controlled Sliding table: 3.300 mm Width: 1.250 mm Side table: steel, galvanised, with angle pre-fix 0º, 22,5º, 30ºen 45º; dimensions: 1.340650 mm Cross cutfence: 2.200 – 3.300 mm with digital reading, 2 flipstops on bearing guided rollers and fine-setting Dustextraction: Top: ø100 mm, bottom: ø120 mm Weight: 1.400 KG Condition: fully functional – in good condition

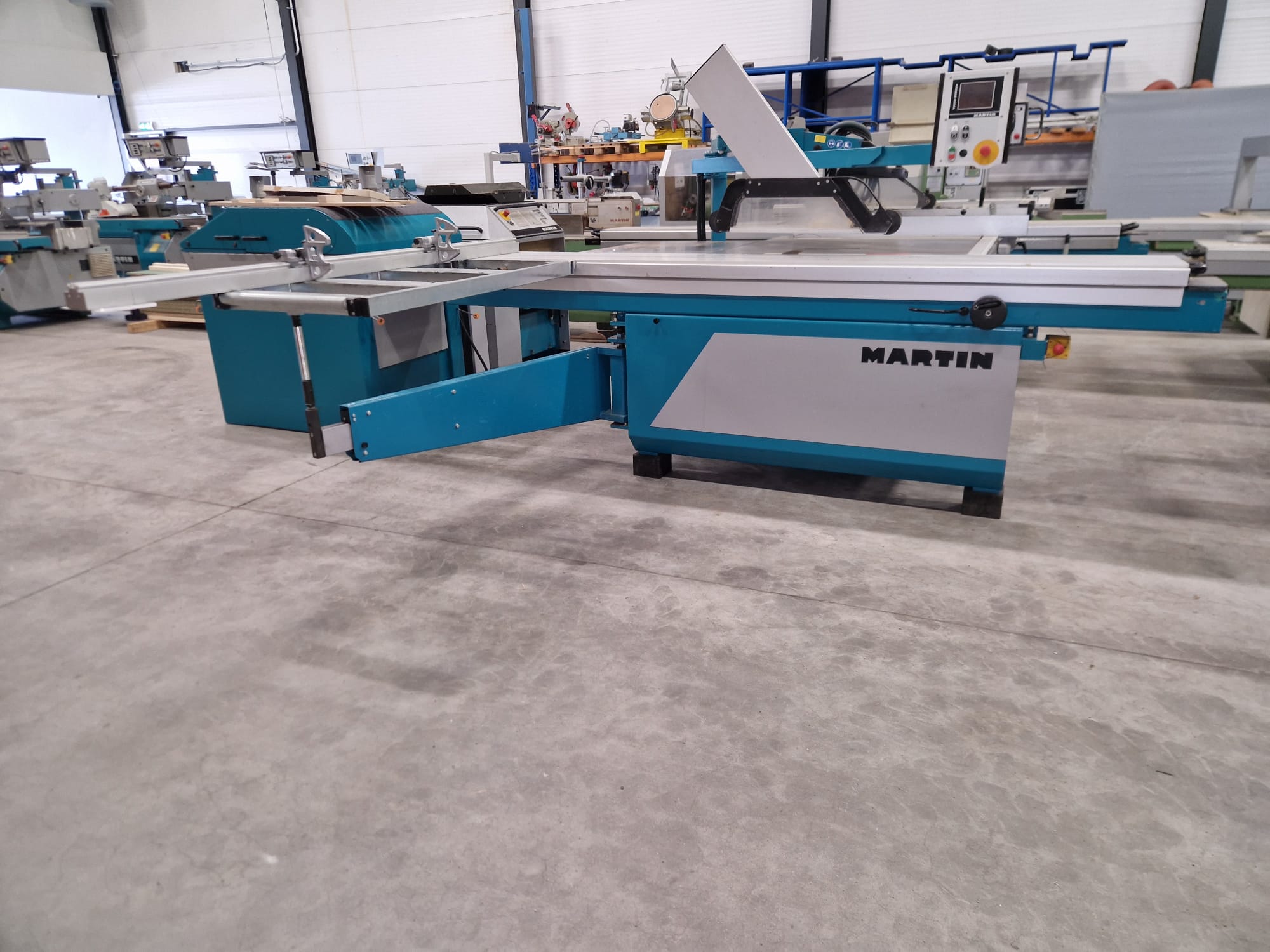

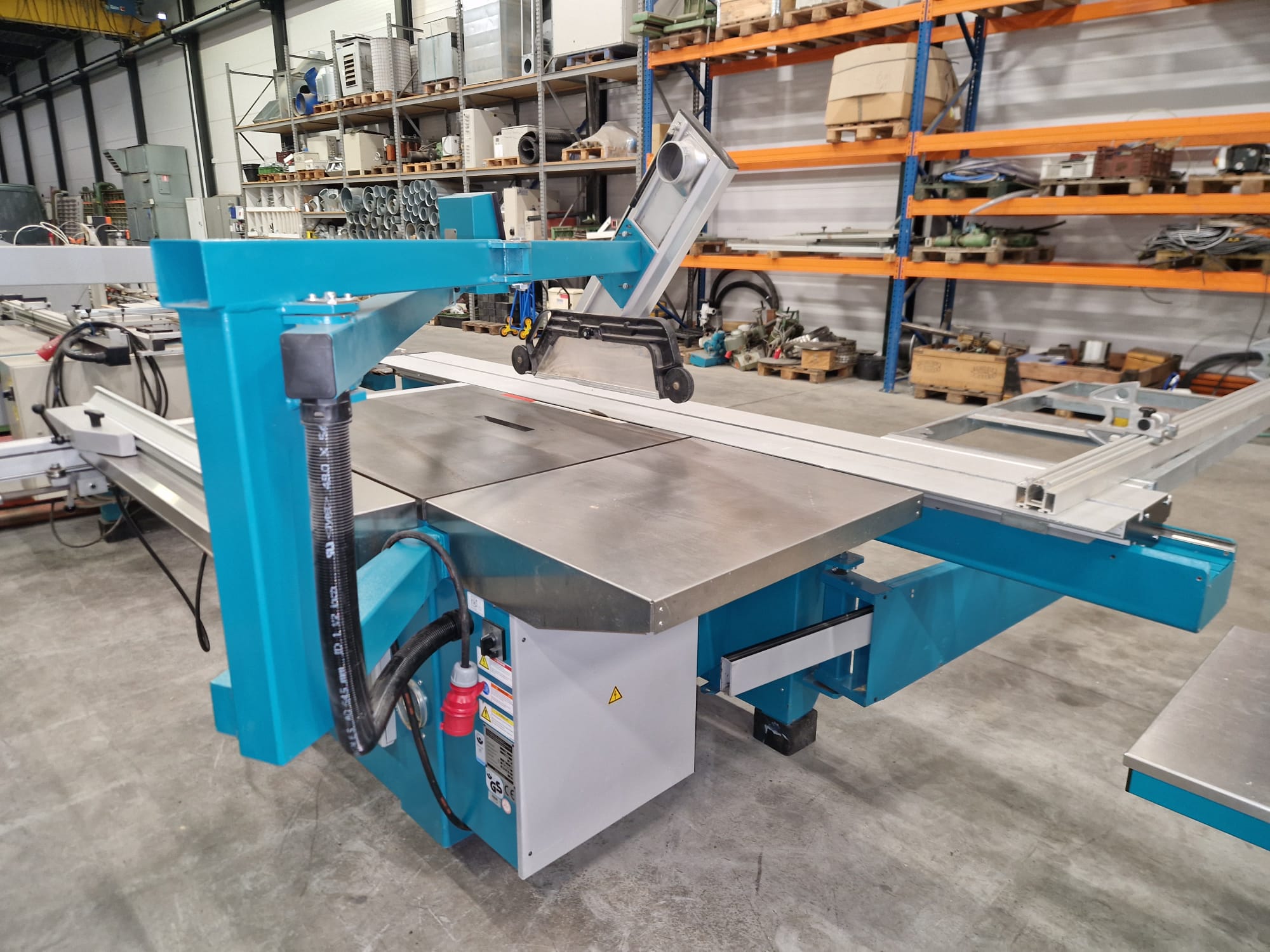

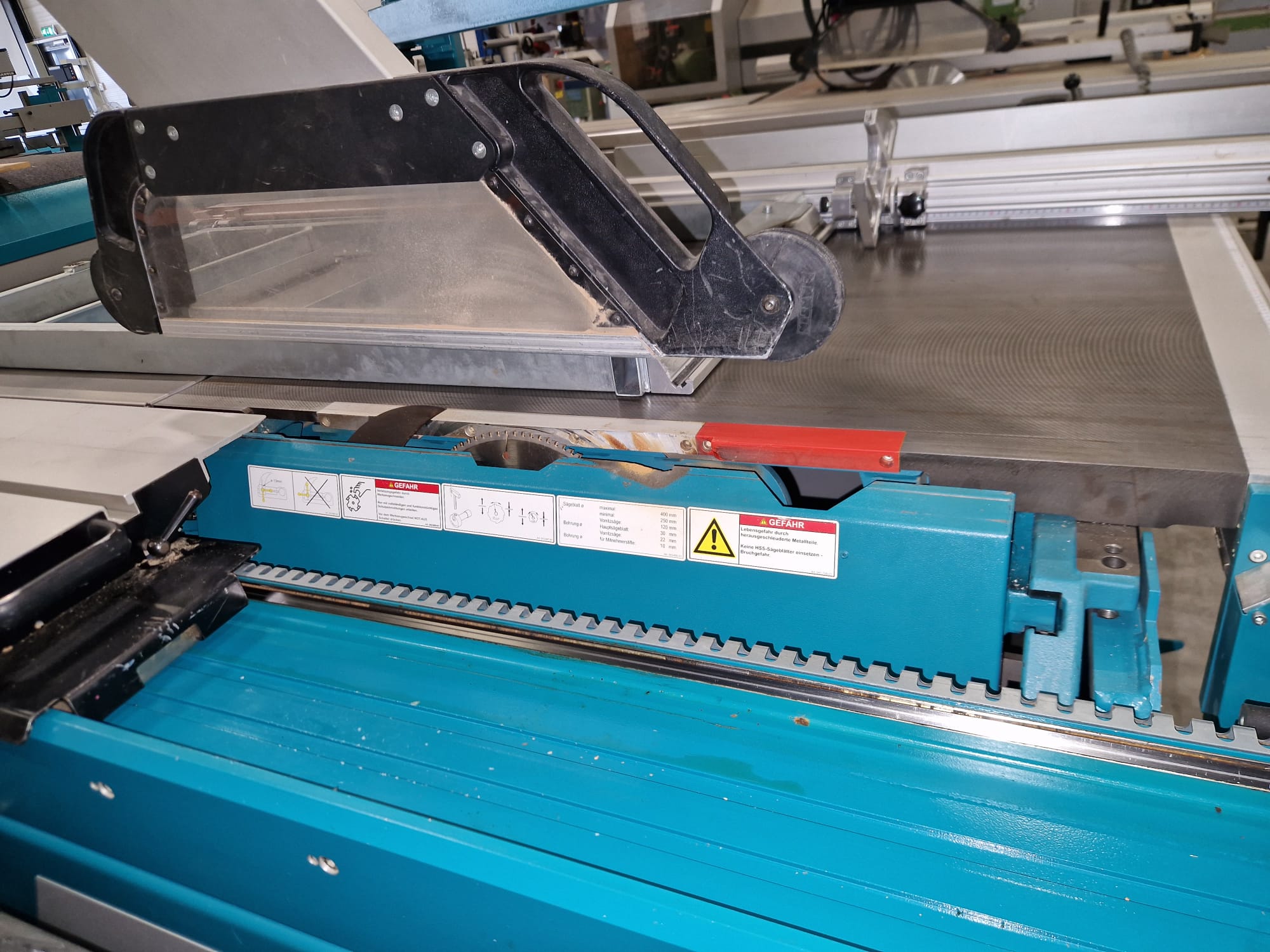

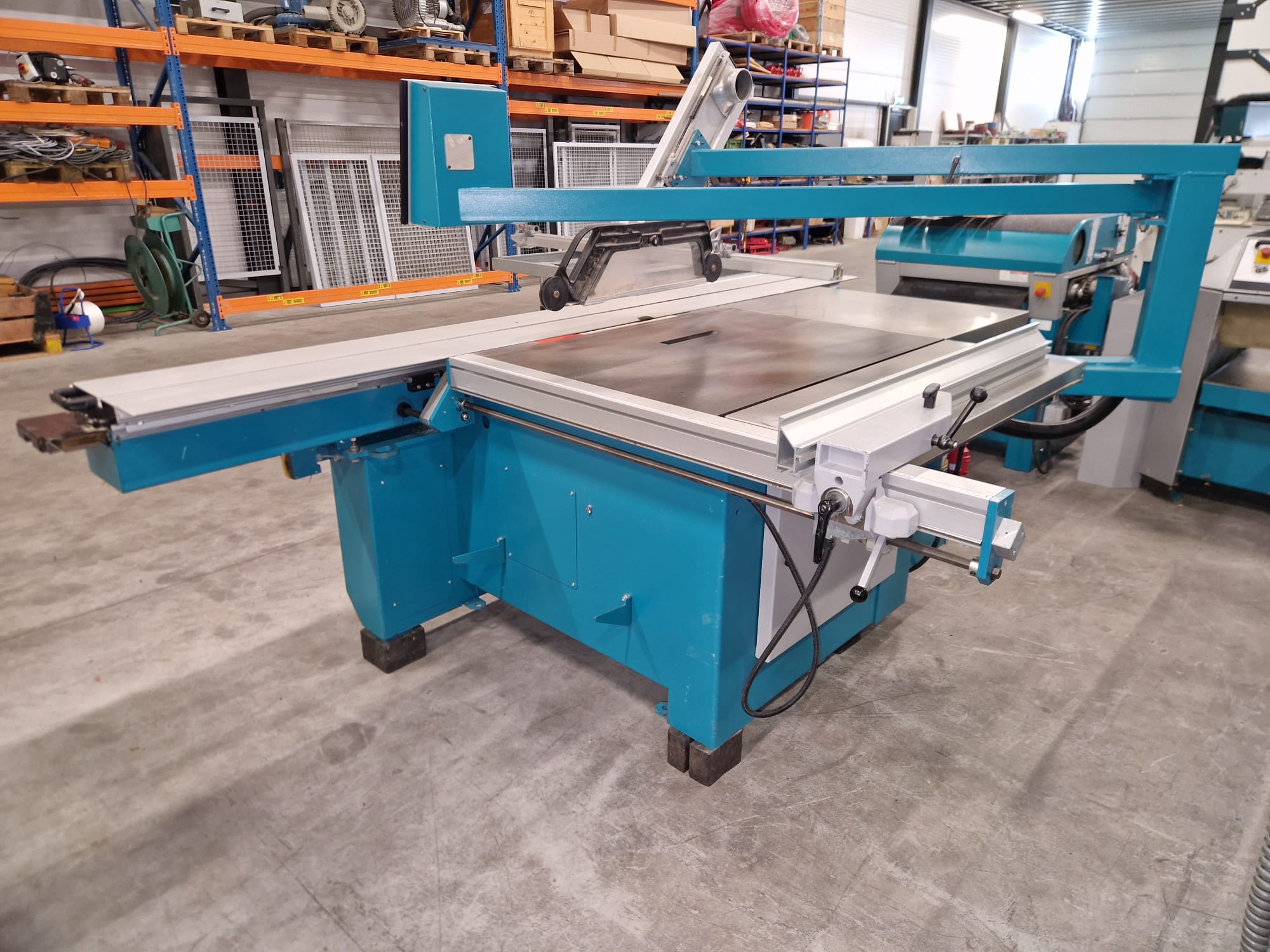

Martin T60 Classic panel saw Manufacturer: Martin Type: T60C M-Nr.: V447804 Year: 2007 Control panel: Eye-level integrated in dust extraction cover 2-ax control + 3rd-ax integrated in central control, but handwheel setting (Saw height, tilting, width) Mainsaw: ø400 mm, bookthickness; 0-130 mm, tilting 0° – 46° RPM: 4.000/4.800/6.000 rpm Motor: 5.5 KW Sliding table: 3.000 mm Width: 1.250 mm Cross cut table: Steel, galvanized with fixed angle stops 0º, 22,5º, 30ºen 45º; dimensions: 1.340 650 mm Cross cutfence: 2.200 – 3.300 mm with analog tape measurement, flipstop with magnuifying glass Dustextraction: Top: ø100 mm, bottom: ø120 mm Weight: 1.400 KG Condition: fully functional – in good condition

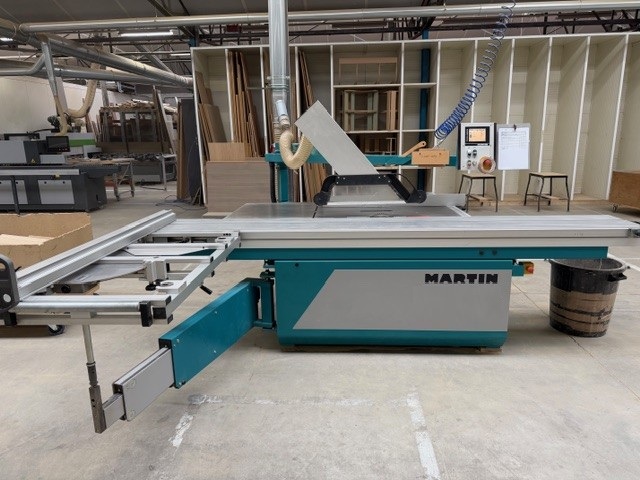

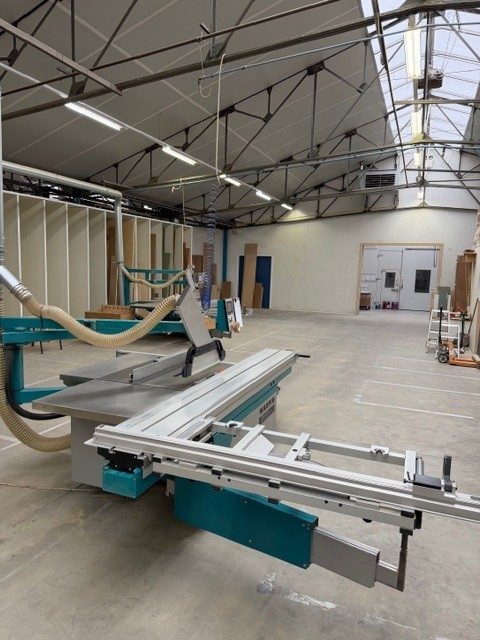

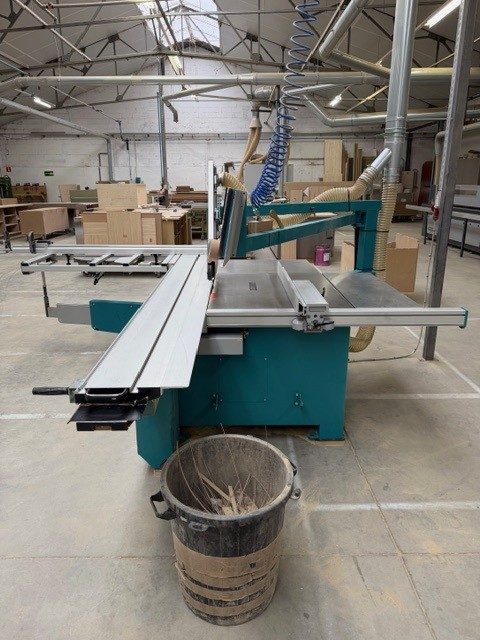

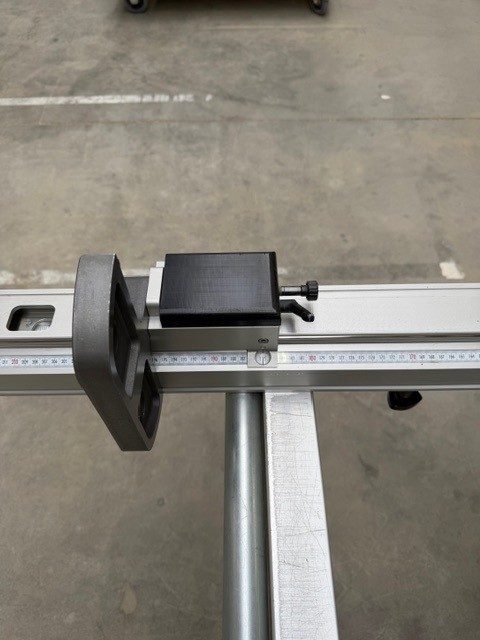

Martin T60C-Automatik Formatkreissäge Marke: Martin Type: T60C-AUT M-Nr.: V477921 Baujahr: 2007 YouTube:

SCM Prima N67 AE032853 2010 Manufacturer: SCM 2010 Type: Prima N67 M-Nr..: AE032853 Year: 2010 Machine control: PLC Manager 100, PC Wincut software – Windows embedded 17″ TFT screen YouTube:

HOLTEC mobile package cross cut saw, type HF 121

PRINZ mobile package cross cut saw, type Proficut

Línea de resiestación Stenner VHET 105, con desapilamiento, entrada, salida y apilamiento System TM

Línea de triturador Söderhamn, compuesta en, - Entrada de troncos con alimentador escalonado, - Transporte de troncos con alimentación de entrada, - Garra de trituradora Soderhamn 240-15, - Transportadora de salida, - Sistema de transportadores de carrusel, - Armarios eléctricos y unidades de control, - Sistema de transportadores de virutas y residuos

HIT automatic edger line with multiple cross cutting and Bongioanni multi ripsaw, Consisting of:, - S-conveyor for separating the boards, - Automatic infeed system, - Automatic optimization LM-Optim, - HIT autmoatic multiple edger, type ASM200, 3 moveable saws, passage width 750 mm, - Outfeed roller conveyor with splitting, - Cross chain transport, - HIT automatic multiple cross cut saw, 3 moveable saws + one fixed saw, - Feed system, - BONGIANNI multi ripsaw, type MH 650-190, double arbor, cutting height 190 mm, max. width 650 mm, - Outfeed system, - Schiepe automatic stacker, - Zimac automatic stacker, Full line in excellent condition.

Línea de sierra de cinta horizontal de troncos SCHULTE, tipo HB 12, - Max. log diámetro 1250 mm, - Longitud de corte de hasta 8 m, - Potencia del motor 37 kW, - Carro hidráulico de troncos, - Configuración de espesor de corte Mudata
