Estantes para ruedas STOW 11,2m Pal Rack System 5 m hoch

11.2m Stow Pal Rack Pallet Rack

Highly stable, industrial pallet racking system from the premium manufacturer Stow, designed for the safe and standard-compliant storage of heavy Euro pallets.

Manufacturer: Stow
Type: Pal Rack System
Shelf length approx. 11,200 mm
Column height: approx. 5000 mm
Stand depth: approx. 1100 mm

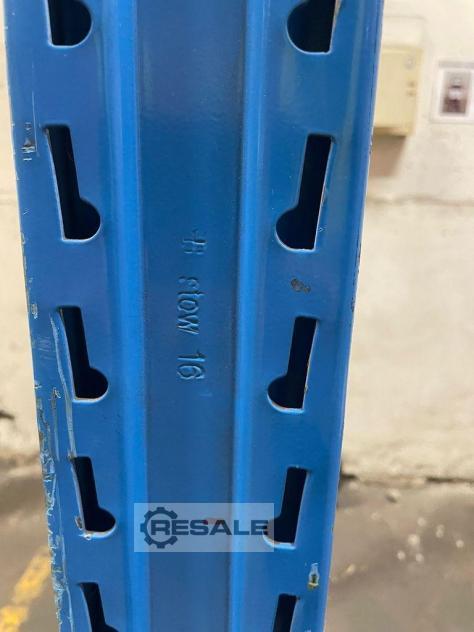

Stand type: PLFB 16P (robust, torsion-resistant profile design)
Clear field width: 3,600 mm (optimised for exactly 4 Euro pallets next to each other)
Number of fields: 3
Number of storage levels: 4 levels per field (floor space + 3 truss levels)
Truss type: PNB 0436 (3,600 mm length)
Max. pallet weight: 1,000 kg (evenly distributed)
Permissible shelf load: 4,000 kg per pair of trusses
Permissible field load: 20000 kg
Stand surface: blue lacquered (RAL 5015)
Storage capacity: 16 Euro pallets per field / 48 Euro pallets total capacity

Safety plausibility: At maximum loading of the 3 crossbeam levels, this results in an actual bay load of 12,000 kg. The system thus runs absolutely safely far below the static load limit (20,000 kg).

Scope of delivery:

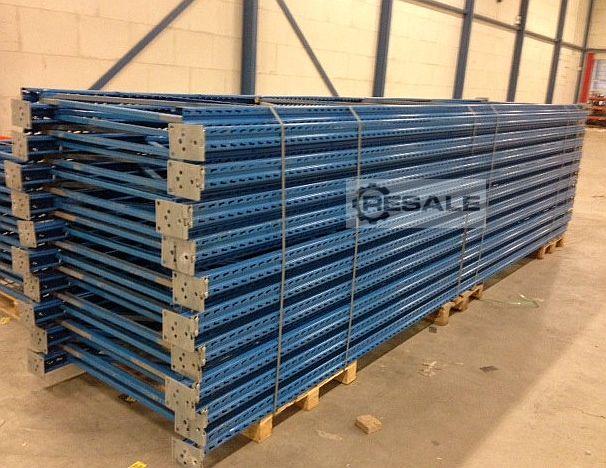

4 x stand 5000 x 1100 mm bay load 20000 kg blue

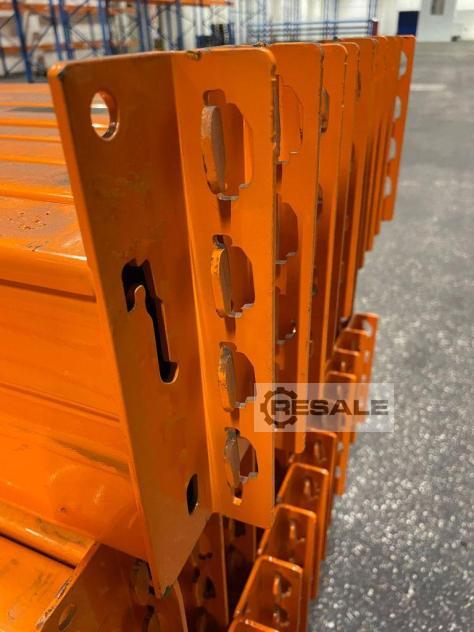

18 x crossbeam 3600 mm incl. locking pins shelf load 4000 kg orange

More items - new and used - can be found in our shop!
International shipping costs on request!
seller offer No. resale 66269
