cepilladoras usadas para la venta (517)

Capacity: 230 x 120 mm.Spindles: 4bottom 4 kw fence and near 5,5kWtop 5,5 kw Spindle diameter 40 mm Cardan shaft drive, motor 2,2 kWVariable speed 5 - 22 m/minPneumatic pressuresInfeed table 2 m lengte Waxilitpump for bed lubrication, manual Safety hood

Capacity: 220 x 120 mm.Spindles: 5Bottom 4kW, fence 4kW, near 4kW, top 4kW, universal 4kWSpindle diameter: 40 mmMotorised thickness adjustment, motor 1,5 kW digital displayInfeed table1700 mm longSiko reading on the shaft positioningProtective hood with electrical contactExtension 5 x 140 mm

Capacity: 230 x 130 mm.Spindles: 7Bottom 7,5 kW, right 7,5 kW, left 11 kW, right 7,5 kW, top 11 kW, bottom 11 kW, universal 11kWspindles 2, 3, 4 and 5 are 8000 tr/minstraight jointer on 2nd bottom spindleCardan shaft drivePneumatic pressuresIntermediate driven feedroller for short pieces0,8 m infeed straightening tablemanual bed lubricationSpindle diameter: 50 mm.5 driven rollers in tableFeed: 6 - 36 m/min, motor 7,5 kWmotor height adjustment

Capacity 230 x 120 mm 5 spindles: Bottom 7,5 kW? Fence / Near 11 kW ? Top 7,5 kW ? Bottom 5,5 kWSpindle speed 6000 rpmVariable feed speed 6 to 24 m/min, motor 4 kW Straightening table 2000 mmDriven table rollerMechanical/digital read-out Centralised lubrication CE sound/safety hoodInterior lightHopperfeed EM 11, upt to 60 cycles/minWorkpiece length: 350 to 3000 mmWorkpiece width: 20 to 230 mmWorkpiece thickness: 12 to 70 mmAir requirement: 8 bar, connection DN8Extraction requirement: 840 - 9600 m3/h, air speed 30 - 34 m/sTooling not included

Capacity: 230 x 130 mm.Number of shafts: 9Bottom 7.5 kW, right 7.5 kW, left 7.5 kW, right 7.5 kW, left 7.5 kW , top 7.5 kW, bottom 7.5 kW, top 7.5 kW, bottom 7.5 kWKardan drivePneumatic pushersFront surface tableFeed rollers for short workpiecesManually operated pump for bed lubricationShaft diameter: 50 mm.Powered rollers in the tableFeed: 6 - 36 m/minMotorized height adjustment

Capacity: 260 x 130 mm.Spindles: 5Shaft diameter 40 mmBottom 4 kW, right/left 7,5 kW, top 5,5 kW, bottom 4 kWCardan shaft drivePneumatic pressuresFeed speed variable 5 - 24 m/min, motor 3 kWMotorised height adjustment of top presssure beamInfeed table 2200 mm lengthtools not included

Four-sided planerWorking height: 740-750 mmMax working width: 305 mmMin working width: 50 mmMax workpiece height on 2 sides: 310 mmMax workpiece height on 4 sides: 160 mmMin workpiece height: 17 mmFeed speed steplessly adjustable: 10-60 m/minmotors: bottom 11 kW, top 11 kW, right 7.5 kW, left 11 kWfeed motor: 7.5 kWmotor height adjustment: 1.5 kWspeed 5,500 rpmdriven top and bottom feed rollers

width of the table: 400 mmlength of the table: 2450 mmfence can be tilted4 knive cutterblockmotor 3 kW

Maximum feed width: 800 mmMaximum feed height: 230 mmVariable feed speed: 8 - 20 m/minPlaning head with 4 bladesExtraction diameter: 200 mmMotor 5.5 kW

Useful width: 520 mmMax pass: 300 mm Motorised table rise and fallAnti-kick-back safety device4-knife cutterblockMotor 4 kW

Capacity: 180 x 100 mm.Spindles: 4Bottom with referencing 4kW, fence 3kW, near 3kW, top 4kWMotorised thickness adjustment4 cutterblocks Chaindrive 6 - 12 m/minInfeed table 1m70. long

Capacity: 230 x 125 mm.Number of axes: 4Axis diameter 40 mmBottom 6.3 kW, right/left 7.5 kW, top 7.5 kWMobile axis for various widthsPneumatic pressersVariable feed speedMotorized height adjustment of the top barFeed table 2000 mm lengthKnife heads included

Short infeed table (700 mm) with 2 driven feedrollers above and 1 driven feedroller in the infeed tableIn the machine 4 driven feedrollersHardened table (with exception of the infeed table)Separate controll cabinet and electrical cabinetAutomatic bed lubricationPneumatic pressuresOutfeed table with height adjustment 0/0,5/1 mmSound enclosure with electromagnetic securityCapacity: width 20 - 230 mm x height 8 - 160 mm (with cutting circles resp. 140 and 163 mm)Feedspeed: 6 - 36 m/min, motor 7,5 kWNumber of spindles: 8Spindle diameter: 50 mmSpindle speed: 6000 rpmBottom 7,5 kW, outboard bearingFence 7,5 kWNear 11 kWFence 11 kWTop 15 kW, outboard bearing, straight jointerBottom 22 kW, table prepared to take wooden inserts in case of ripping (tool diameter up to 250 mm)Top 11 kW, table prepared to take wooden insertsBottom 11 kW, outboard bearing, straight jointer

Este 5s LEADERMAC Compact LMC-530C fue fabricado en 2022. Cuenta con una anchura de trabajo de 15 a 300 mm y un grosor de trabajo de 10 a 150 mm, lo que lo hace adecuado para diversas aplicaciones de la carpintería. Con múltiples husillos y un control táctil Schneider 5.7" EASYSET, esta máquina ofrece capacidades avanzadas. Considera la oportunidad de comprar esta cepilla de madera LEADERMAC Compact LMC-530C. Contáctanos para más detalles.

Este GRIGGIO G 240P/5U se fabricó en 2007. Cuenta con una anchura máxima de cepillado de 240 mm y una altura de 160 mm, permitiendo piezas de hasta 240 x 160 mm. Equipado con cinco husos, incluyendo un eje de giro universal, y velocidades de eje de hasta 6000 rpm. La máquina permite ajustes suaves de la alimentación hasta 30 m/min. Pesa 4100 kg con unas dimensiones de 440x220x180cm. Contacta con nosotros para más información sobre esta máquina.

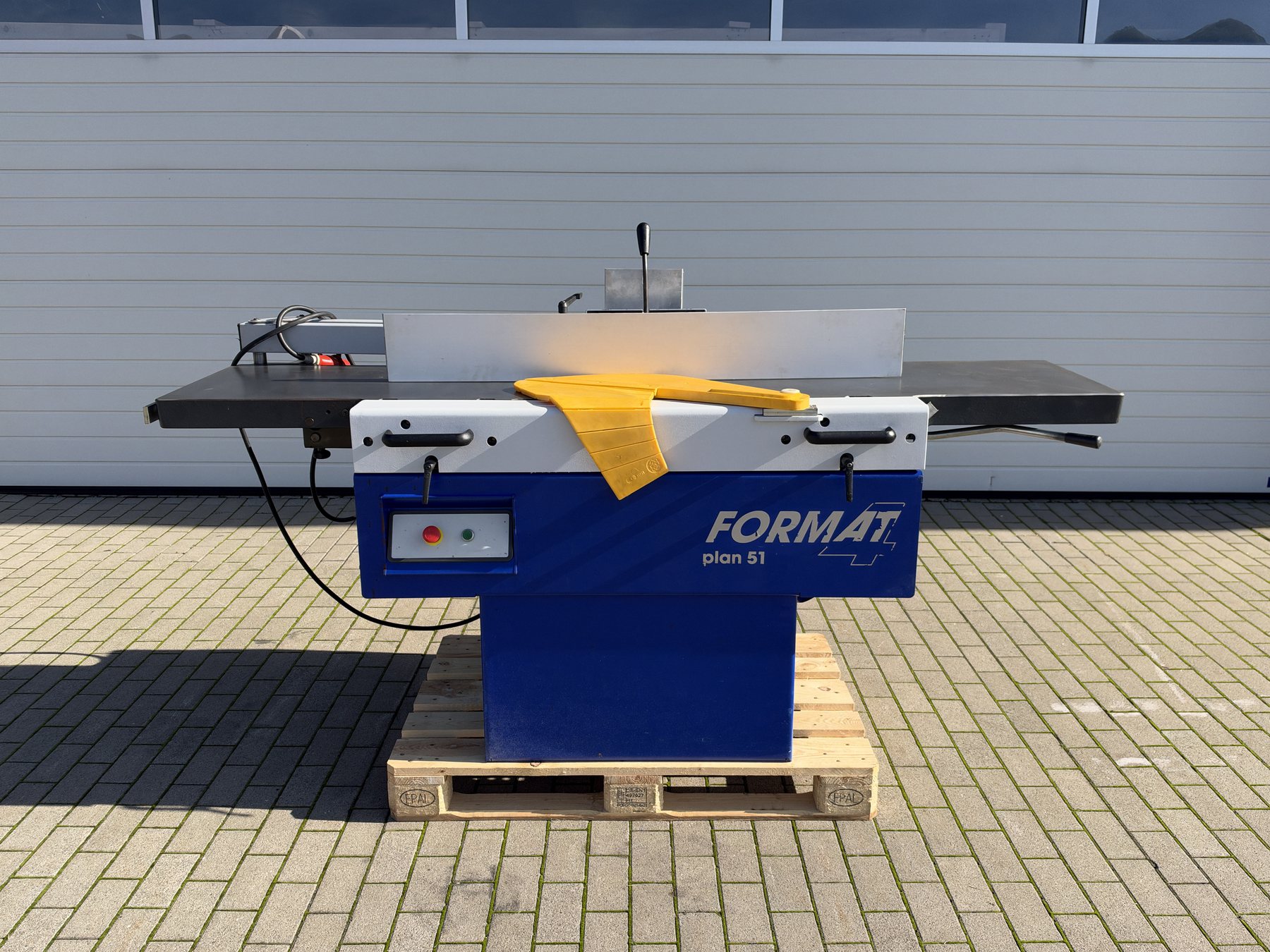

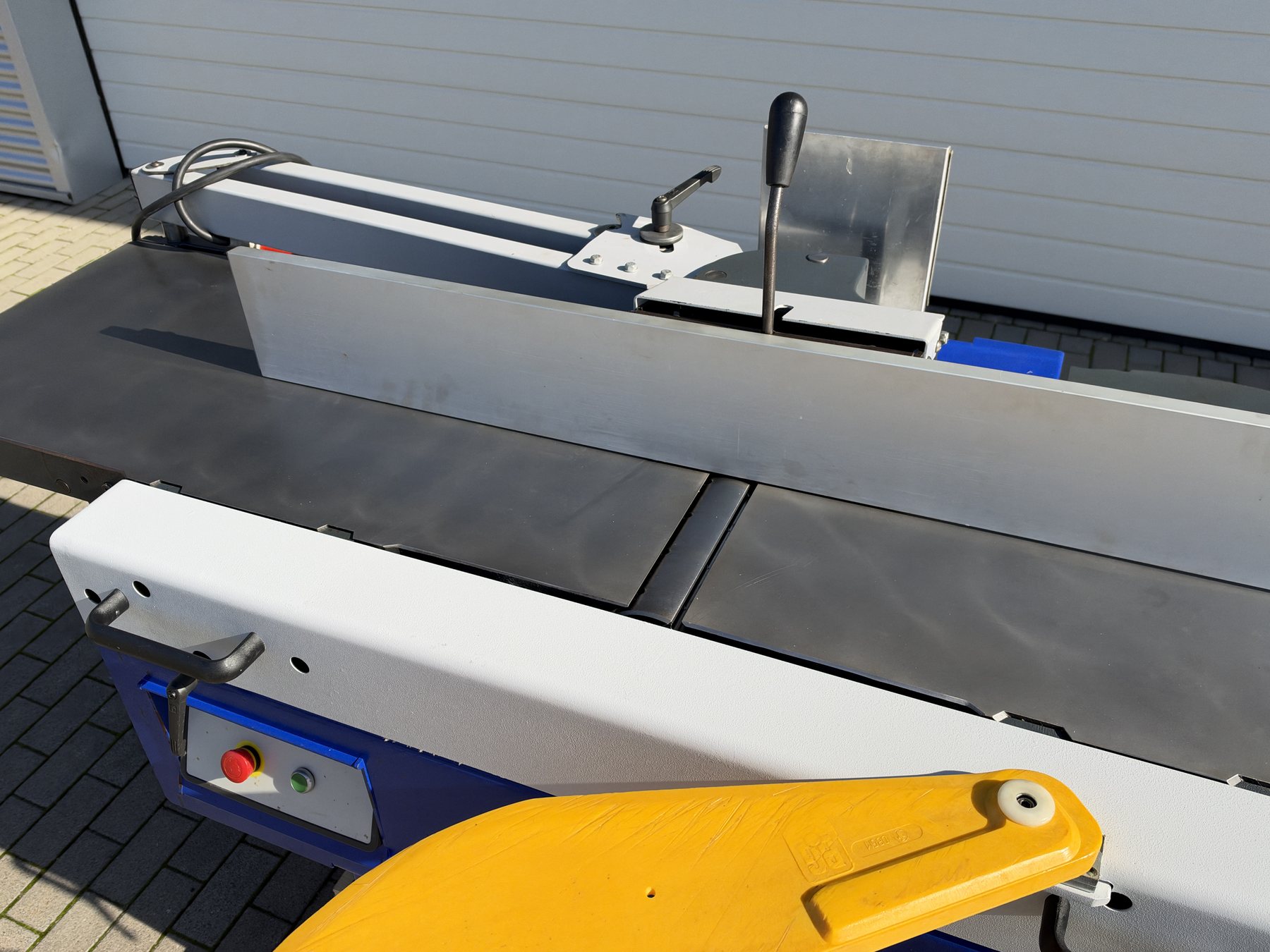

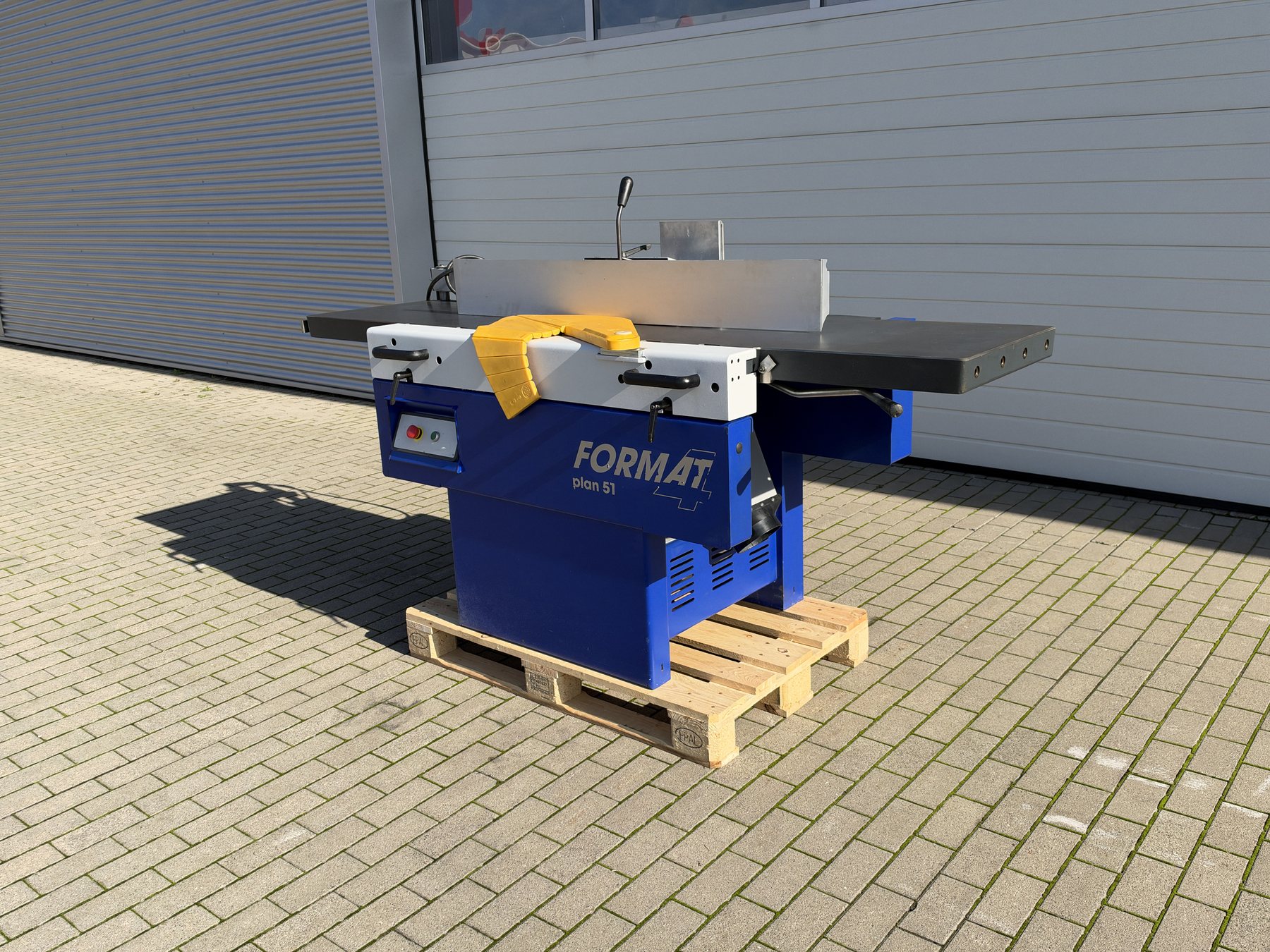

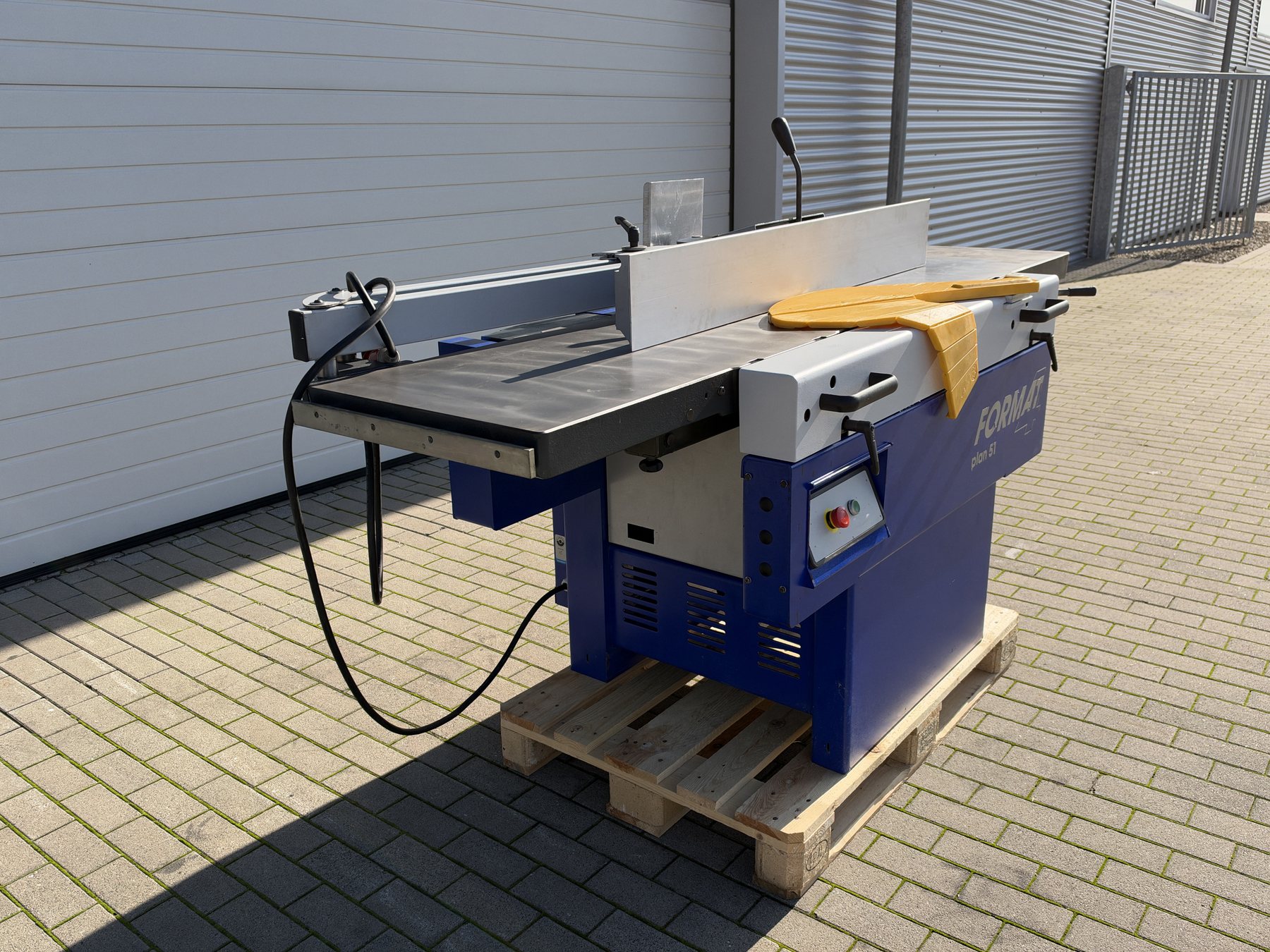

Second-hand Format 4 Type Plan 51 surface planer for planing timber workpieces. Technical data: Motor: 10 kW Blade shaft: Reversible blades Z4 Working width: 510 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany

Weinig Unimat 23 E + Uniplan 23 planing line, including a return conveyor. An NC-controlled line for planing and profiling window scantlings, including glazing bead cutting or other planing tasks, with automatic return of the workpieces to the operator. Technical data: Spindles: 4 + 2 Working width: 230 mm Working height: 120 mm Spindle 1: 7.5 kW / 50 mm / 8,000 rpm Spindle 2: 11 kW / 50 mm / 8,000 rpm Spindle 3: Shared motor with spindle 2 / 50 mm / 8,000 rpm Spindle 4: 7.5 kW / 50 mm / 8,000 rpm Spindle 1 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Spindle 2 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Feed rate: 5–24 m/min Control: Nexus PC control system NC axes: Unimat 2 & 3, Uniplan 1 Condition: Gebraucht Location: Tauberbischofsheim, Germany

Weinig Profimat 23 automatic planing and moulding machine for four-sided planing and profiling of timber, with a mobile spindle. Technical data: Spindles: 5 Spindle 1: Bottom / 5.5 kW / 40 mm Spindle 2: Right / 5.5 kW / 40 mm Spindle 3: Left / shared motor with #2 / 40 mm Spindle 4: Top / 7.5 kW / 40 mm Spindle 5: Bottom / 4 kW / 40 mm Working width: 230 mm Working height: 120 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany

SCM ‘Profiset 60 EP’ four-sided planer, in as-new (second-hand) condition, for professional use in woodworking. The machine was only switched on once for a test run and has never been used since. Technical data: Spindle 1: Bottom / 4 kW / 40 mm Spindle 2: Right / 5.5 kW / 40 mm Spindle 3: Left / shared motor with #2 / 40 mm Spindle 4: Top / 4 kW / 40 mm Spindle 5: Universal / 4 kW / 40 mm Spindles: 5 Working width: 230 mm Working height: 120 mm Feed: 3 kW Planing table length: 2,000 mm Condition: Neuwertig Location: Tauberbischofsheim, Germany

Key data: 410 mm, 240 mm, 3 kW

GRIGGIO FS 410 - Año de construcción 2001 - Disponible inmediatamente

Key data: 4 , 220 mm, 120 mm

Guilliet cepillo de cuatro lados Tipo KXR Construido en 1990 Ancho de cepillado máximo 220 mm Altura máxima de planeado 120 mm Longitud de la tabla de entrada aproximadamente 2000 mm 4 cabezas de cepillo, cabezas de cepilladora de aluminio Fuerzas motoras aproximadas. Eje de preparación 5 kW Onda derecha e izquierda juntas 5 kW Eje superior 5 kW Velocidad de avance infinitamente variable de 4,5 a 27 m/min. Motor de alimentación 1,5 kW Diámetro del husillo 40 mm Diámetro de la cabeza de cepillo: 120 mm Peso aprox. 1800 kg Dimensiones aproximadas. 3400 mm x 2300 mm x H 1900 mm

Key data: 630 mm, 300 mm, 5 kW

El T45 engrosado de Martin con varilla de cuchillo Tersa Ancho de cepillado aprox. 630 mm Altura de planeado de 2,8 a 300 mm ajustable eléctricamente, lectura por pantalla digital con precisión de 1/10 mm con control de posicionamiento En el sistema de control también existe la posibilidad de ajustes incrementales, es decir, puedes almacenar, por ejemplo, 1 mm allí y luego cambiar la altura del plano en 1 mm pulsando repetidamente el botón de arranque sin tener que establecer una nueva altura absoluta cada vez. Además, 99 valores fijos también pueden guardarse como programa. Motor de transmisión 5,5kW con freno automático Tersa de 4 cuchillos con cuchillos nuevos Velocidad de avance 6 + 12 m/min Rodillo de alimentación con goma Rodillo extraíble de goma Mesa de máquina cepillada guiada por cuatro husillos roscados y guías para una estabilidad óptima Versión  ...

Second-hand automatic planing and grooving machine, part of a Weinig Hydromat 2000 pre-planing line, with feed mechanism (tilting destacking). The machine has already been dismantled and is ready for loading. The images contain AI-generated sample images for illustrative purposes. The illustration may contain errors. Technical data: Spindles: 5 Spindle 1: Bottom / 11 kW / 50 mm / 6,000 rpm Spindle 2: Left / 11 kW / 50 mm / 6,000 rpm / Jointer Spindle 3: Top / 18.5 kW / 50 mm / 6,000 rpm / Jointer Spindle 4: Bottom / 11 kW / 50 mm / 6,000 rpm / Jointer Spindle 5: Right / 11 kW / 50 mm / 6,000 rpm Working width: 175 mm Working height: 80 mm Feed: 15 kW / 100 m/min Control: CNC memory system Max. workpiece length: ~ 6,000 mm Condition: Gebraucht Location: Prag, Tschechien

working width: 510 mm; cutter head: strip knive; number of blades: 2; surface table length: 2600 mm; adjustment table: hydraulic; Hollow and pointed joints adjustment: ja; read out table hight: Scala; read out Hollow and pointed joints: Scala; fence tilting: yes; motor power: 5,5 kW; motor brake: yes, automatic; machine length: 2600 mm; machine width: 1000mm; weight: 1050 kg;

planing width: 520 mm; planing shaft type: tersa; number of blades: 4; sourface table length: 3000 mm; table adjustment: electrically; read out table height: digital; sourface fence adjustable: yes; motor power: 7 kW; suction connection: 120 mm; machine length: 3005 mm; machine width: 1460 mm; weight: 870 kg; - Dressing tables made of gray cast iron- The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and - - the knife shaft remains the same in every adjustment position- Large precision aluminium dressing fence, slightly tiltable 90 - 45 °- The inclination of the stop is easily readable from the operator side- As standard with auxiliary stop for safe planing of even narrow workpieces- Large four-knife shaft, precision-mounted- Quiet running with precision aggregate and heavy cast iron execution- Powerfu ...

working width: 180 mm; working height: 120 mm; working spindles: 4; spindle following: down, right, left, up; motor power spindle down: 3,7 kW; motor power spindle right: 3,7 kW; motor power spindle left: 3,7 kW; motor power spindle up: 5,5 kW; adjustment spindle down: -; adjustment spindle right: -; adjustment spindle left: manual; adjustment spindle up: electric; cutter heads: turn cutter; feed speed: 2; feed pressure: feather; current consumption: 38 A; motor brake: automatisch; suction connection: machine length: machine width: weight:
