máquinas e instalaciones para la ingeniería de procesos usadas para la venta (7,463)

General SKU029F122 MakeEMDE Industrie- Technik Nassau TypeKH-300 + MDRD-120 + C-250 No.A 106.0212 Year of construction2006 Mounted in frameWith 2 containers (dia. 800mm), type C-250 Main Features MaterialStainless steel Specified Features - Powder filler Lifting + tilting machine/Container emptying station/vibro feeder (1x) Powder fillers Powder filler/Container emptying station/vibro feeder (1x) Dosingscale 15 KG Capacity250 Ltr. Dosing with vibro feederscheck With motor0,55 KW, 230/400 Volt MaterialStainless steel 1.4301 (304) General LocationBarneveld Mounted on wheelscheck With switchgear, With vibro feeder type MDRD-120 Floorspace2,1x2,0 m Total height2,1 m Weight920 kg Extra information Containers in stainless steel 1.4301 (304)Generic medicinesTea, herbs & coffeeStarchPowder fillersSpicesCatalysts & fillersDiscountFood additivesSugarSolid pharmaceuticsDy ...

General SKU279X360 MakeFluitec TypeContiplant Pilot No.69371 Year of construction2019 Mounted on legsOn frame Pressure Working pressure30 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume0.4 Ltr. Specified Features - Stainless Steel Reactor Reactorcheck Capacity4x 0,1 l. Top connectionscheck Outletcheck With jacketvolume each 0,3 l. With jacketcheck Stainless Steel Reactors MaterialStainless steel 1.4571 (316Ti) General LocationBarneveldGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalGreen FridayRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesSolventsDetergent & surf.Other pharmaceuticsCosmeticsFood additivesSugarLubricants & oleoDairyAnimal feedStainless Steel ReactorsOther feedConfectionerySolid pharmaceuticsBeveragesDyes & pigmentsBiopharmac ...

General SKU309X465 MakeHaagen &: Rinau TypeUnimix No.300975/2290 Year of construction1996 Mounted on legscheck Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialStainless steel Volume2000 Ltr. Motor30 KW Specified Features - Processing vessel Closed stirring vessel3x Capacity3320 l.(2000 l.)/ 2885 l.(1600 l.) /1445 l. (1200 l.) Dished bottomcheck Slope bottomcheck Dished top sidecheck Flat top sidecheck With covercheck ManholeDN400 Top connectionscheck With jacket2x volume 400 l., 165 l. and 95 l. Max. temperature151°C With anchor stirrercheck With paddle stirrercheck With dissolver stirrercheck Motor18kW, 1450 rpm (EX) With homogenisercheck Motor30kW, 2950rpm (EX) MaterialStainless steel 1.4541 (321) With jacketcheck General LocationBarneveld With switchgear( as is) Floorspace7x2,5 m Total heig ...

General SKU249Y198 LocationBarneveld MakeComi-Condor Main Features MaterialStainless steel Motor0.75 KW Inlet diameter15 mm Specified Features - Basket centrifuge Basket centrifugecheck Perforated basketcheck Basket sizesø 150 x 250 mm Max. loading weight5 kg Liquid outletDN25 Motor0,75 kW 400 V 1350 rpm (Ex) With variable speed drivecheck Max. basket speed3000 rpm MaterialStainless steel 1.4306 (304L) General Serial2371 TypeTaurus No.2371 Mounted on foundation platecheck Mounted on wheelscheck With switchgear(as is) Floorspace0,7 x 0,6 m Total height0,9 m Weight300 kg Extra Specificationsdia 250mmBasket centrifugesGeneric medicinesFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersFeed additivesE-waste & metalFood additivesSugarConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorgan ...

General SKU013X039 MakeHeinkel LocationBarneveld TypeHF-300 Main Features MaterialStainless steel Motor1.35 KW Inlet diameter300 mm Specified Features - Basket centrifuge Basket centrifuge:Inverting filter centrifuge: Basket sizesdia. 300 mm Max. loading weight8,2 kg Hydraulic drivecheck With hydraulic unitcheck Max. basket speed3464 rpm MaterialStainless steel 1.4571 (316Ti) General No.1013/12 Year of construction1985 With switchgear(as is) 1,2x0,4x1,5m 250 kg and 0,6x0,4x0,8m 100 kg Floorspace1,70 x1,10 m Total height2,10 m Weight1000 kgBasket centrifugesGeneric medicinesFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersFeed additivesDiscountE-waste & metalFood additivesSugarConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorganicPowdered foodsHeinkelCentrifuges > Basket centrifugesInd ...

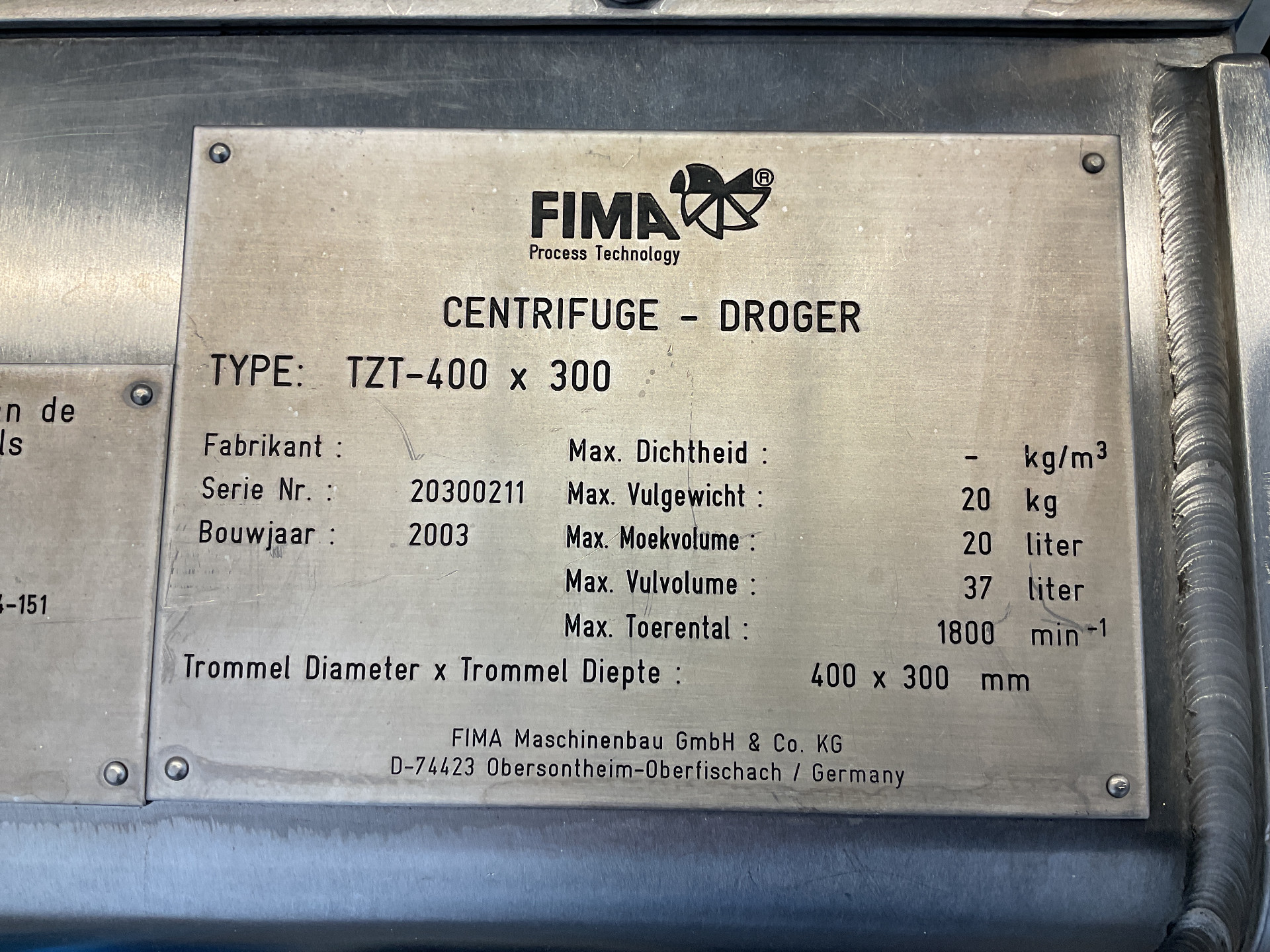

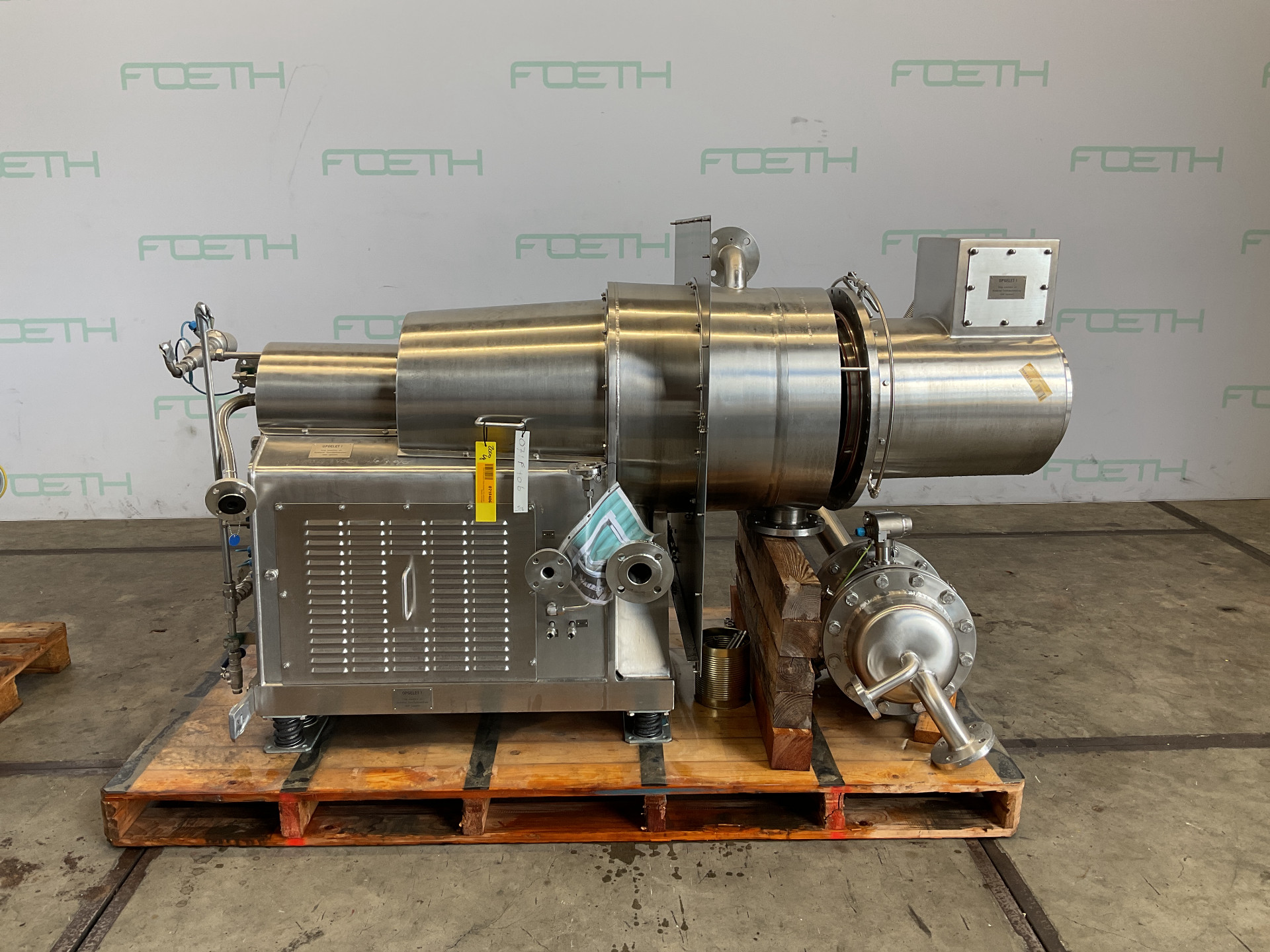

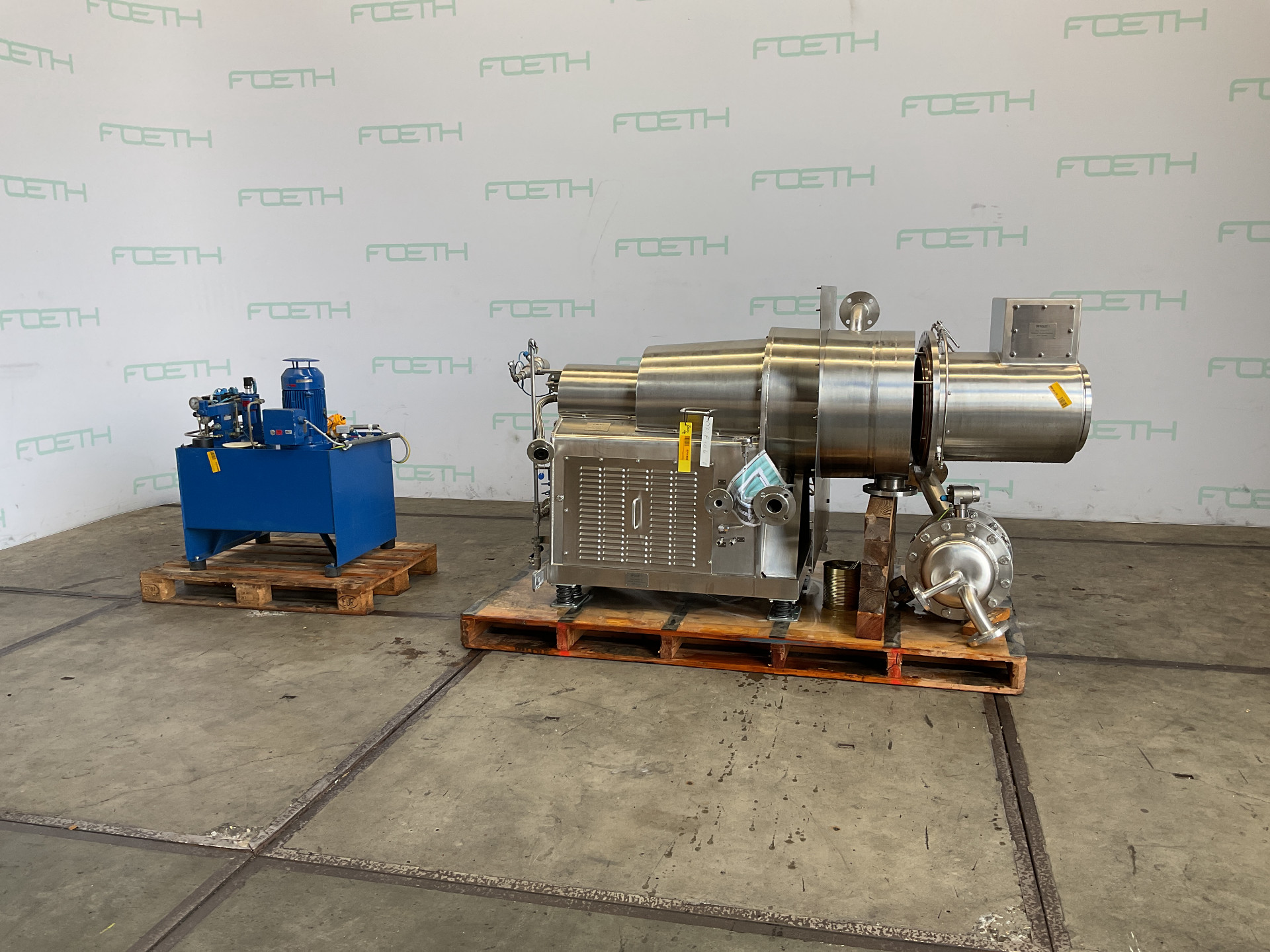

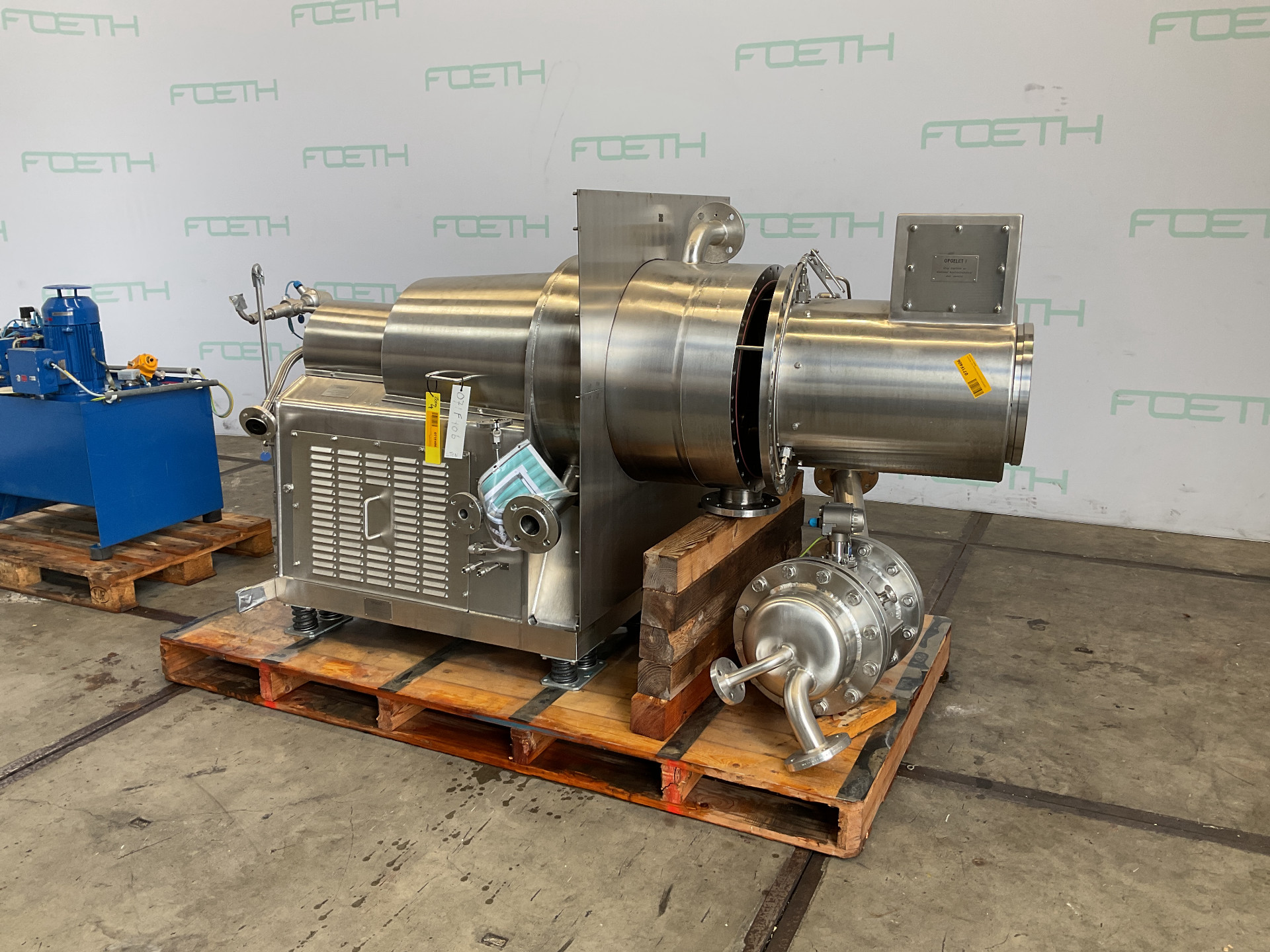

General SKU071F406 MakeFima Process GmbH LocationBarneveld TypeTZT-400x300 Main Features MaterialHastelloy Motor7.5 KW Inlet diameter400 mm Specified Features - Basket centrifuge Basket centrifugedryer Perforated basketcheck Capacity37 Ltr Basket sizesdia. 400x300mm Max. loading weight20 kg Motor7,5 KW, 400 Volt (Ex) Max. basket speed1800 Rpm With jacketcheck MaterialStainless steel 2.4602 (Hastelloy C-22) With jacketcheck General No.20300211 Year of construction2003 Mounted on framecheck Floorspace2,5x1,1 m Total height1,3 m Weight2000 kg ATEX designedcheckBasket centrifugesGeneric medicinesFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersFeed additivesDiscountE-waste & metalFood additivesSugarConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorganicPowdered foodsFima ProcessCentrif ...

General SKU043R201 LocationBarneveld MakeEllerwerk TypeWFZ 630 No.90.005 Main Features MaterialHastelloy Motor22 KW Inlet diameter630 mm Specified Features - Basket centrifuge Basket centrifugeBasket on horizontal shaft Basket sizesDia. 630x230mm Wall thickness10mm Max. loading weight100 Kg With scrapercheck Hydraulic operatedcheck Liquid outletwith filtrate cyclone Motor22 kW, 380 Volt (Ex) Max. basket speed2000 rpm MaterialStainless steel 2.4602 (Hastelloy C-22) General Year of construction1991 ATEX designedcheck Extra Specifications- :Inverting bag centrifuge:Basket centrifugesGeneric medicinesFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersFeed additivesDiscountE-waste & metalFood additivesSugarConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorganicPowdered foodsEllerwerkCentrifu ...

General SKU117W596 MakeKrauss Maffei TypeVZO-125/2,5 No.9708 Year of construction1984 LocationBarneveld Main Features MaterialStainless steel Motor30 KW Inlet diameter1250 mm Specified Features - Basket centrifuge Basket centrifuge(1x) Perforated basketcheck Basket sizesdia. 1250x630mm Wall thickness12mm Max. loading weight485 KG With scrapercheck Hydraulic operated(motor hydr. unit 0,55 KW 220/380 Volt Ex) Liquid outlet165x165mm Motor17,0/30,0 KW, 390 volt (Ex) Max. basket speed950 Rpm MaterialStainless steel 1.4571 (316Ti) General Floorspace2,4x1,8 M Total height2,8 M Weight5070 ATEX designedcheckBasket centrifugesGeneric medicinesFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersFeed additivesDiscountE-waste & metalFood additivesSugarConfectionerySolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals &  ...

General SKU328X701 MakeGeiger Maschinebau AG TypeD-1200-K/3SWFK No.6040 Year of construction2007 LocationBarneveld Pressure Working pressure pans2.7 Bar Main Features MaterialMild steel Volume1200 Ltr. Motor2.1 KW Specified Features - Dissolver With covercheck Capacity1200 l. Pan sizesDia. 1200x1300 mm Outletcheck With mechanical liftingcheck MaterialMild steel General CEcheck Extra Specificationscapacity:&:nbsp:3900 l/hchain hoist, load cap. 3 ton.hydraulic unit, 0,55kW, 230/400V.work pressure till 200 bar1 pan (press vessel) is includedDissolversPlastic & polymersSolventsDetergent & surf.Food additivesLubricants & oleoDairyAnimal feedBeveragesDyes & pigmentsPaints & coatingsOils & fatGeigerMixers > DissolversIndustries > Chemical > Plastic & polymersIndustries > Chemical > SolventsIndustries > Chemical > Detergent & surf.Industries > Food & Feed > Food additivesI ...

General SKU328X703 MakeGeiger Maschinebau AG TypeD-1200-K LocationBarneveld Pressure Working pressure pans2.7 Bar Main Features MaterialMild steel Volume1200 Ltr. Motor2.1 KW Specified Features - Dissolver With covercheck Capacity1200 l. Pan sizesDia. 1200x1300 mm Outletcheck With mechanical liftingcheck MaterialMild steel General Total height5,0 m CEcheck Extra Specificationscapacity:&:nbsp:3900 l/hchain hoist, load cap. 3 ton.hydraulic unit, 0,55kW, 230/400V.work pressure till 200 bar1 pan (press vessel) is includedDissolversPlastic & polymersSolventsDetergent & surf.Food additivesLubricants & oleoDairyAnimal feedBeveragesDyes & pigmentsPaints & coatingsOils & fatGeigerMixers > DissolversIndustries > Chemical > Plastic & polymersIndustries > Chemical > SolventsIndustries > Chemical > Detergent & surf.Industries > Food & Feed > Food additivesIndustries > Chemical > ...

General SKU328X699 MakeGeiger Maschinebau AG Type1200-HSK Year of constructionD-1200-K/3SWFK LocationBarneveld Pressure Working pressure pans2.7 Bar Main Features MaterialMild steel Volume1200 Ltr. Motor2.1 KW Specified Features - Dissolver With covercheck Capacity1200 l. Pan sizesDia. 1200x1300 mm Outletcheck With mechanical liftingcheck MaterialMild steel General Total height5,0 m CEcheck Extra Specificationscapacity:&:nbsp:3900 l/hchain hoist, load cap. 3 ton.hydraulic unit, 0,55kW, 230/400V.work pressure till 200 bar1 pan (press vessel) is includedDissolversPlastic & polymersSolventsDetergent & surf.Food additivesLubricants & oleoDairyAnimal feedBeveragesDyes & pigmentsPaints & coatingsOils & fatGeigerMixers > DissolversIndustries > Chemical > Plastic & polymersIndustries > Chemical > SolventsIndustries > Chemical > Detergent & surf.Industries > Food & Feed > F ...

General SKU328X702 MakeGeiger Maschinebau AG TypeD-1200-K/3Sw No.5480 Year of construction1995 LocationBarneveld Pressure Working pressure pans2.7 Bar Main Features MaterialMild steel Volume1200 Ltr. Motor2.1 KW Specified Features - Dissolver With covercheck Capacity1200 l. Pan sizesDia. 1200x1300 mm Outletcheck With mechanical liftingcheck MaterialMild steel General CEcheck Extra Specificationscapacity:&:nbsp:3900 l/hchain hoist, load cap. 3 ton.hydraulic unit, 0,55kW, 230/400V.work pressure till 200 bar1 pan (press vessel) is includedDissolversPlastic & polymersSolventsDetergent & surf.Food additivesLubricants & oleoDairyAnimal feedBeveragesDyes & pigmentsPaints & coatingsOils & fatGeigerMixers > DissolversIndustries > Chemical > Plastic & polymersIndustries > Chemical > SolventsIndustries > Chemical > Detergent & surf.Industries > Food & Feed > Food additivesInd ...

General SKU103Y799 LocationBarneveld MakeBaker Perkins, Stoke on Trent Sizes Screw diameter30 mm Main Features Motor3 KW Inlet diameter30 mm L/D14 Specified Features - Double screw extruder Double screw extrudercheck Screw diameter30mm, Screw length 420mm L/D14 Co-rotatingcheck Number of heating zones:3 (6x 200 Watt per zone) + die heater Electric heatingcheck Water coolingcheck DC-motor3,0 KW, 180 Volt With variable speed drivecheck Feeding with metering screwdia. 32mm Used ontoner General TypeMPC/V30 Mach.No.65034 Year of construction1985 Floorspace2,0 x 0,9 m Total height2,0 m Weight820 kg Extra SpecificationsMoC: screw housing The material 1.0762 or 44SMn28 is an unalloyed quenched and tempered steel. Technical specs Extra informationMoC: screw housing The material 1.0762 or 44SMn28 is an unalloyed quenched and tempered steel.AgrochemicalsPlastic & pol ...

General SKU255X226 LocationBarneveld MakeKrauss Maffei Main Features MaterialStainless steel Motor31.3 KW Specified Features - Peeling centrifuge Peeler centrifugecheck Capacity172 l Basket sizesø 1000 x 500 mm With hydraulic unitcheck With variable speed drivecheck Max. basket speed1520 rpm With hydraulic unitcheck Motor1,8—18—31,3 kW (Ex) MaterialStainless steel 1.4552 General TypeHZ1000/1.6 PH Year of construction2007 Mounted on framecheck With switch(as is) With switchgear(as is) Floorspace2,68 x 2,85 m Total height2,05 m Weight9100 kg Extra information Filter area 1,6 m² Generic medicinesPeeling centrifugesBiotechnologyCatalysts & fillersFeed additivesCosmeticsFood additivesSolid pharmaceuticsDyes & pigmentsBiopharmaceuticalAPIMinerals & inorganicKrauss MaffeiIndustries > Pharmaceutical > Generic medicinesCentrifuges > Peeling centrifugesIndustries  ...

General SKU243Y170 MakeBühler Serial3068043442 TypeBTSK 30/40D Sizes Screw diameter30 mm Main Features Motor21.2 KW Inlet diameter50 mm L/D53 Specified Features - Double screw extruder Double screw extrudercheck Screw diameter30 mm L/D53 Co-rotatingcheck Number of heating zones:11 Water coolingcheck AC-motor21 kW 360 V Screw speed25—800 rpm Feeding with hoppercheck General Year of construction1998 LocationBarneveld With switchgearcheck Sizes switchgear2,40 x 0,50 x 2,00 m Floorspace2,38 x 0,60 m Total height1,45 m Weight700 kgAgrochemicalsPlastic & polymersCosmeticsAnimal feedOther feedPowdered foodsDouble screw extrudersBühlerIndustries > Chemical > AgrochemicalsIndustries > Chemical > Plastic & polymersIndustries > Chemical > CosmeticsIndustries > Food & Feed > Animal feedIndustries > Food & Feed > Other feedIndustries > Food & Feed > Powdered foodsExtr ...

General SKU204Y005 MakeFlottweg Serial009.006.01 LocationBarneveld CEcheck Main Features MaterialStainless steel Motor75 KW Specified Features - Decanter Decantercheck Screw diameter600 mm Screw length2500 mm InletDN65 Liquid outlet250x800 mm Solids outlet700x800 mm Motor75 kW, 500 V 1483 rpm With hydraulic unitcheck Motor22 kW, 500 V 1465 rpm Max. rotor speed3000 rpm MaterialStainless steel 1.4463 General TypeZ6E-4/454 No.009.006.01 Year of construction1996 With switchgearControl panel (as is): No Electrical panel included Floorspace4,90x1,80 m Total height1,30 m Weight9750 kg Extra SpecificationsDrum speed 3000 rpm, screw differential speed 1-31 rpm,&:nbsp:Weir diameter 398 mm, drum inner diameter 620/420 mm,&:nbsp:max working temperature 100°C, &:nbsp:max sediment density 1,5 kg/dm3,with spare screw, spare parts, hydraulic pump,&:nbsp:Angle inclination 8 ...

General SKU223T197 MakeFlottweg-Dekanters (DE) TypeZ 32-3/401 No.902336 Year of construction1991 LocationBarneveld Main Features MaterialStainless steel Motor20 KW Specified Features - Decanter Decantercheck Screw diameter320 mm Screw length934 Inletø 45 mm Liquid outletcheck Solids outletcheck Motor20 kW (400 V, 2940 rpm) Max. rotor speed5000 rpm MaterialStainless steel 1.4408 General Floorspace2,1 x 1,3 m Total height0,8 m Weight1400 kgDecantersStarchBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersPaper & otherOrganicsE-waste & metalAnimal feedDyes & pigmentsPlastic & rubberMinerals & inorganicConsumer wasteFlottwegCentrifuges > DecantersIndustries > Food & Feed > StarchIndustries > Chemical > BiotechnologyIndustries > Chemical > AgrochemicalsIndustries > Chemical > Plastic & polymersIndustries > Chemical > Catalysts & fillersIndustries > Recycli ...

General SKU223T196 MakeFlottweg Dekanter (DE) TypeZ3L No.F 831 Year of construction1981 LocationBarneveld Main Features MaterialStainless steel Motor22 KW Specified Features - Decanter Decantercheck Screw diametermax. 420 / min. 226 mm Screw length900 mm Inletdia. 46 mm Liquid outletcheck Solids outletcheck Motor22 kW (400 V, 2940 rpm) Max. rotor speed4000 rpm MaterialStainless steel 1.4307 (304L) General With switchcheck With switchgear(as is) Floorspace2,3x1,3 m Total height1,9 m Weight2350 kgDecantersStarchBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersPaper & otherOrganicsE-waste & metalAnimal feedDyes & pigmentsPlastic & rubberMinerals & inorganicConsumer wasteFlottwegCentrifuges > DecantersIndustries > Food & Feed > StarchIndustries > Chemical > BiotechnologyIndustries > Chemical > AgrochemicalsIndustries > Chemical > Plastic & polymersIndu ...

General SKUR0090 MakeSchröder &: Co (D) Typemanufacturer plate is missing No.30-392 LocationBarneveld Main Features MaterialStainless steel Volume2 Ltr. Motor2.2 KW Specified Features - Miscellaneous mixer Capacity2 l Inletø 25 mm Outletø 25 mm With motor2.2 kW 230 Volt With variable speed drivefrequency controller Miscellaneous mixers Mixercheck Capacity2 l MaterialStainless steel General Mounted on wheelscheck With switchgearcheck Floorspace1,3 x 0,4 m Total height1,4 m Weight260 KgGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersMiscellaneous mixersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeveragesDy ...

General SKU295P592 LocationBarneveld MakeAZO Maschinenfabrik GmbH (DE) Main Features MaterialStainless steel Volume340 Ltr. Motor3 KW Specified Features - Miscellaneous mixer Mixercheck Capacityca. 340 Ltr MaterialStainless steel General Year of construction:Unknown, manufacturing tag is missing: Floor space1,4x1,1 M Total height1,8 M Weight430 KG Extra Specificationsvessel dia.940mm, with hopper D750xd200xh500mm, inlet dia. 200mm manually operated, outlet valve dia.215mm pneumatical operated,&:nbsp:the housing is covered with stainless steel on the insideGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersMiscellaneous mixersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAn ...

General SKU397X1096 MakeQVF Glasstechnik LocationBarneveld CEcheck Pressure Working pressure0.5 Bar Working pressure jacket0.6 Bar Vacuum possible jacketcheck Main Features MaterialGlass Volume221 Ltr. Motor0.75 KW Specified Features - Glass-lined Reactor Reactorcheck Capacity221 l. Dished bottomcheck Dished top sidecheck Top connectionsDN25 OutletDN25 — DN40 With jacket15,5 l. Max. temperature180 °C With propellor stirrercheck Motor0,75 kW (400 V 1400 rpm (Ex)) Speed mixing shaft270 rpm With jacketcheck Glass Reactors MaterialGlass General No.GT 60770 Year of construction2004/2007 Mounted on legscheck Floorspace1 x 1 m Total height1,88 mGeneric medicinesOintmentsGlass-lined ReactorsFine chemicalsOther chemicalGreen FridayBiotechnologyOther pharmaceuticsCosmeticsSolid pharmaceuticsBiopharmaceuticalAPIQVF GlasstechnikIndustries > Pharmaceutical > Gener ...

General SKU290X388 MakePfaudler Werke LocationBarneveld CEcheck TypeAE100 Pressure Working pressure6 Bar Vacuum possiblecheck Working pressure jacket6 Bar Vacuum possible jacketcheck Main Features MaterialGlass Volume100 Ltr. Motor1.5 KW Specified Features - Glass-lined Reactor Reactorcheck Capacity138 l., (100 l.) Vessel sizesDia. 600x500 mm Dished bottomcheck Dished top sidecheck Top connectionscheck OutletDN80 with outlet valve With jacketvolume 43 l. Max. temperature-25°C/+200°C With propellor stirrercheck Motor1,5 kW, 500 volt, 1405 rpm, (Ex) Speed mixing shaft22-219 rpm With jacketcheck Glass Reactors MaterialGlass - Enamel (WWG-9115) General No.126445 Year of construction2003 Floorspace0,90x0,90 m Total height2,4 m Weight560 kg ATEX designedcheckGeneric medicinesOintmentsGlass-lined ReactorsFine chemicalsOther chemicalGreen FridayBiotechnolo ...

General SKU343X790 MakeBüchi glasuster TypeEcoclave 075 No.30639 Year of construction2001 Mounted on legscheck Pressure Working pressure6 Bar Main Features MaterialGlass Volume1 Ltr. Specified Features - Glass-lined Reactor Reactorcheck Capacity1 l Vessel sizesDia. 120x150 mm Top connectionscheck With jacketcheck With propellor stirrerCyclone 075 Motor230 V Speed mixing shaft100-3000 rpm With jacketcheck Glass Reactors MaterialBorosilicate Glass 3.3 General LocationBarneveld With switchgearcheck Floorspace0,55x0,55 m Total height1,0 m CEcheck Extra information Extra SpecificationsWith Büchi pressflow gas controller, type BPC, temp controller and table - magnetic drive Generic medicinesOintmentsGlass-lined ReactorsFine chemicalsOther chemicalGreen FridayBiotechnologyOther pharmaceuticsCosmeticsSolid pharmaceuticsBiopharmaceuticalAPIBüchiglasusterIndustri ...

General SKU339W1248 MakePfaudler TypeL 25 No.64061 Year of construction1998 LocationBarneveld Pressure Working pressure25 Bar Vacuum possiblecheck Working pressure jacket16 Bar Main Features MaterialGlass Volume30 Ltr. Motor1.5 KW Specified Features - Glass-lined Reactor Reactorcheck Capacity30 l., (25 l.) Vessel sizesDia. 560x430 mm Dished bottomcheck Dished top sidecheck ManholeDN400 Top connectionscheck OutletDN50, With manual valve With jacket15 l. Max. temperature-10°C/+200°C With propellor stirrercheck Motor1,5 kW, 230 volt, 1405 rpm, (Ex) Speed mixing shaft150-1500 rpm With jacketcheck Glass Reactors MaterialGlass - Enamel (WWG-9115) General Floorspace0,70x0,70 m Total height1,90 m Weight700 kg CEcheck Extra information Extra Specificationswith bottom outletvalve Generic medicinesOintmentsGlass-lined ReactorsFine chemicalsOther chemicalGree ...

General SKU251U336 MakePfaundler LocationBarneveld TypeCH 4000 Pressure Working pressure3 Bar Vacuum possiblecheck Number of vertical pressure tanks1 Main Features MaterialGlass Volume4440 Ltr. Pressure3 Bar Vacuumcheck Specified Features - Pressure vessel Notified bodyTÜV Capacity4440 Ltr. Vessel sizes1400x3200 mm Dished topcheck Dished bottomcheck ManholeDN500 Top connectionsDN100, DN80, DN50 OutletDN100 Max. temperature-20ºC/+150ºC MaterialGlass - Enamel (WWG-9115) General No.66058 Year of construction2000 Mounted on legscheck Floorspace1,5x1,5m Total height4,1m Weight1790 kgGeneric medicinesPressure vesselsFine chemicalsOther chemicalRubberBiotechnologyPlastic & polymersCatalysts & fillersOther pharmaceuticsCosmeticsAnimal feedAPINew arrivalsPfaudler-werkeIndustries > Pharmaceutical > Generic medicinesTanks > Pressure vesselsIndustries > Chemical >  ...

General SKU424X1320 MakeDriam LocationBarneveld TypeDriacoater DRC 1200 Main Features MaterialStainless steel Specified Features - Coating pan Coating pancheck Coating installationcheck Capacity158 l. Batch sizemax. 120 kg Pan diameter1200 mm Pan depth800 mm Motor4 kW, 400 V With frequency controllercheck Pan speed1,5—22 rpm With fancheck With spraying arm(99—592 ml/min) With dosing pumpcheck Motor0,37 kW, 400 volt MaterialStainless steel 1.4301 (304) General No.KD89670 Year of construction2003 With switchgear(as is) Floorspace1,60 x 1,80 m Total height1,90 m Weight2150 kg Extra information with 2x HERMANN WALDNER tanks: 130 l.: pressure: -1/0,5 bar, temp.: 0 / 100 °C StarchCoating pansSugarConfectionerySolid pharmaceuticsDriamIndustries > Food & Feed > StarchCoating pans > Coating pansIndustries > Food & Feed > SugarIndustries > Food & Feed > Confecti ...

General SKU268N301 MakeWilhelm Schmidt TypeGEX 1000 No.93.0127 Year of construction2007 LocationBarneveld Pressure Working pressure1 Bar Number of vertical pressure tanks1 Main Features MaterialStainless steel Volume1080 Ltr. Pressure1 Bar Specified Features - Pressure vessel Capacity1080 l. Vessel sizesø 800 x 2300 mm Dished topcheck Dished bottomcheck Max. temperature—60 / 50 °C MaterialStainless steel General Floorspace2,9 x 0,9 m Total height0,9 m Weight300 kgGeneric medicinesPressure vesselsFine chemicalsOther chemicalRubberBiotechnologyPlastic & polymersCatalysts & fillersOther pharmaceuticsCosmeticsAnimal feedAPIWilhelm SchmidtIndustries > Pharmaceutical > Generic medicinesTanks > Pressure vesselsIndustries > Chemical > Fine chemicalsIndustries > Chemical > Other chemicalIndustries > Chemical > RubberIndustries > Chemical > BiotechnologyIndustries > Ch ...

General SKU268N282 LocationBarneveld MakeWilhelm Schmidt TypeGEX 1000 No.93.0126 Pressure Working pressure1 Bar Number of vertical pressure tanks1 Main Features MaterialStainless steel Volume1080 Ltr. Pressure1 Bar Specified Features - Pressure vessel Capacity1080 l. Vessel sizesø 800 x 2300 mm Max. temperature—60 / 50 °C MaterialStainless steel General Year of construction2007 Floorspace2,9 x 0,9 m Total height0,9 m Weight300 kgGeneric medicinesPressure vesselsFine chemicalsOther chemicalRubberBiotechnologyPlastic & polymersCatalysts & fillersOther pharmaceuticsCosmeticsAnimal feedAPIWilhelm SchmidtIndustries > Pharmaceutical > Generic medicinesTanks > Pressure vesselsIndustries > Chemical > Fine chemicalsIndustries > Chemical > Other chemicalIndustries > Chemical > RubberIndustries > Chemical > BiotechnologyIndustries > Chemical > Plastic & polymersIndustries ...

General SKU104U694 MakeZiemann Ludwigsburg No.507690/10 Year of construction1986 Mounted on legscheck Pressure Working pressure0.05 Bar Main Features MaterialStainless steel Volume120 Ltr. Motor1.6 KW Specified Features - Stirring vessel Closed stirring vesselcheck Capacity120 l. Vessel sizesø 500 x 500 mm Dished bottomcheck Flat top sidecheck Outlet± ø 30 mm With paddle stirrerEkato, type: SD 30.126 Motor0,66/1,3 kW, 380 V (Ex) MaterialStainless steel 1.4541 (321) General LocationBarneveld Floorspace1,1x0,8 m Total height2,1 m Weight400 ATEX designedcheckGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesSolventsDetergent & surf.Other pharmaceuticsCosmeticsFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharm ...

General SKU249Y200 LocationBarneveld CEcheck Pressure Working pressure0.4 Bar Vacuum possiblecheck Working pressure trays3.5 Bar Main Features MaterialStainless steel Volume305 Ltr. Surface1.5 m2 Specified Features - Tray dryer Tray dryercheck Stainless steel housingcheck Stainless steel trayscheck Heating surface1,5 m² Drying chamber capacity305 l Max. temperature95 °C Number of trays7 Tray sizes510 x 500 mm Distance between the trays50 mm Max. temperature95 °C With 1 doorcheck Connection for the vacuum pumpcheck With vacuum pumpLeybold Motor0,55 kW (380 V, 1350 rpm) MaterialStainless steel 1.4435 (316L) General MakeDe Lama Serial0218 TypeDLDR/V Year of construction2003 With switchgear(as is) Floorspace1,60 x 1,05 m Total height2,00 m Extra information Extra SpecificationsWith tray holder and trolley, touchscreen control 1.5m3 drying surface, cap ...
