máquinas para el estiramiento y soplado de moldes usadas para la venta (173)

Máquina de extrusión BEKUM BA 200 para moldeo por soplado Tipo: BA 200/ S123 Año: 1990 Culata acumuladora de 8L 1 jefe y 1 estación Material procesado: PE Capacidad de producción: 500 kg/h Tipo de extrusor: Acumulador Número de extrusoras: 1 Diámetro del tornillo: 120 mm Relación L/D: 24 Control de grosor: Sí Alimentación de materiales Carrera inicial: 710 mm Fuerza de sujeción: 800 kN Hay 2 máquinas

Máquina de moldeo por soplado BEKUM BA52 Tipo: BA 52 / S 801 Año: 1993 1 estación Fuerza de sujeción: 450 kN Control BEKUM original Tipo de extrusora: S 701 Culata reacondicionada de 6 litros con acumulador Cabeza y tornillos reconstruidos Volumen máximo de la botella: 60 litros Dimensiones del molde (L x Anor x E): 1200/750/2 x 150-300 (mm)

Máquina de moldeo por extrusión y soplado KAUTEX KCC30 / Extrusora Año: 2012 Número de horas de funcionamiento: 33000 horas 1 posición Robot Kautex Fuerza de sujeción: 300 KN Diámetro del tornillo: 90 mm Cabezal de acumulación de 4 KG (HDPE) Dimensiones de la bandeja: 530 x 700 mm Distancia entre bandejas: 1000 mm Dimensiones máximas del molde: 870 x 650 x 765 mm Comando: Comando de soplado Tipo de cabeza: Cabeza vertical con acumulador hidráulico Volumen máximo del envase: 30 litros Diámetro del troquel: 90, 150, 170, 190 o 220 mm Presión máxima: 220 bar Consumo de aire: 95 M3/h Presión de aire: 6 - 10 bar Potencia instalada: 20 KW Número de zonas de temperatura: 5

Máquina de moldeo por soplado de PET - MAG PLASTIC La solución de soplado ideal para botellas de PET Año : 1994 Tipo : SSB 40 Voltaje de entrada : trifásico 400 V Frecuencia : 50 o 60 Hz ± 5% Potencia total instalada : 86 kW (Opción 102 kW) Peso: Aproximadamente 5000 kg Número de moldes: 4 Fuerza de cierre : 250 KN Carrera total de apertura : 120 mm

Fuerza de cierre 500 kN. Extrusora 90/24D. Cabezal de la batería 8 ltr. Placas de cerradura 700 x 800 mm. Apertura mín./máx. 650/ 1200 mm. 380 V 50 Hz

Año 1999 Tonelaje: 180 t Dimensiones de la bandeja: 1020 x 1600 mm Altura máxima del molde: 2000 mm Ancho máximo del molde: 1200 mm Espesor mínimo del molde: 840 mm Carrera máxima de apertura del molde: 895 mm Diámetro del tornillo: 120 mm Relación L/D: 28 Peso máximo extruible en PE: 19000 Gr Volumen máximo inyectable: 25 litros Número de puntos de regulación del parisón: 100 Diámetro mín./máx. del troquel: 190/450

Año 1990 adaptado a 2006 Tipo: S80 Potencia: 100 kw Fuerza de sujeción: 80 toneladas Paso entre columnas: 1400 x 800 mm Dimensiones de la bandeja: 1800 x 1200 mm Espesor mínimo del molde máx.: 800 – 1200 mm Ancho máximo del molde: 1200 mm Altura mínima del molde máx.: 500 – 1100 mm Apertura total de las bandejas: 2000 mm Diámetro mínimo de la matriz: 150-350 mm Servocontrol hidráulico: 6 distribuidores Servocontrol neumático: 17 distribuidores Diámetro del tornillo: 100 mm 23LD Rendimiento de material: 360 kg/hora Reglamento Parison: MOOG 400 puntos Varillas de soplado: posición baja Peso de acumulación: 8KG/HDPE

Máquinas bien mantenidas. Extrusora 50/20D. Doble cabezal 100 mm puntada.

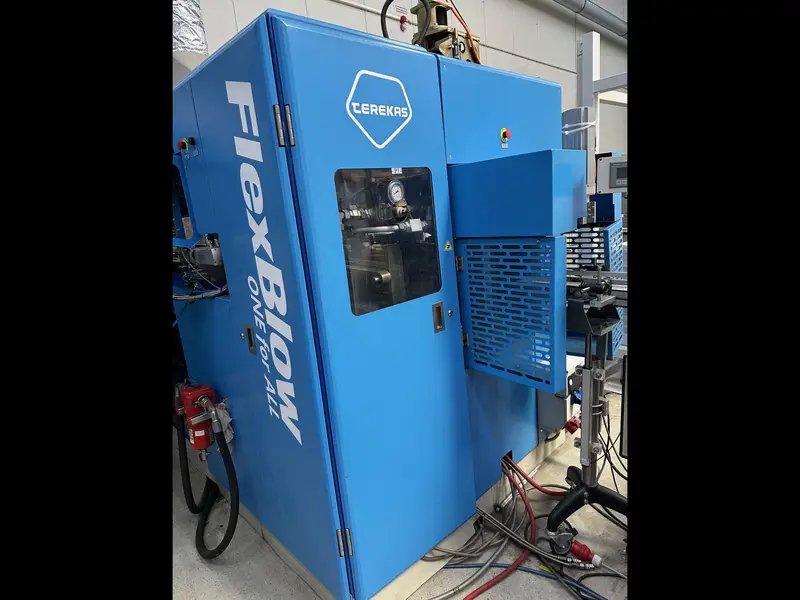

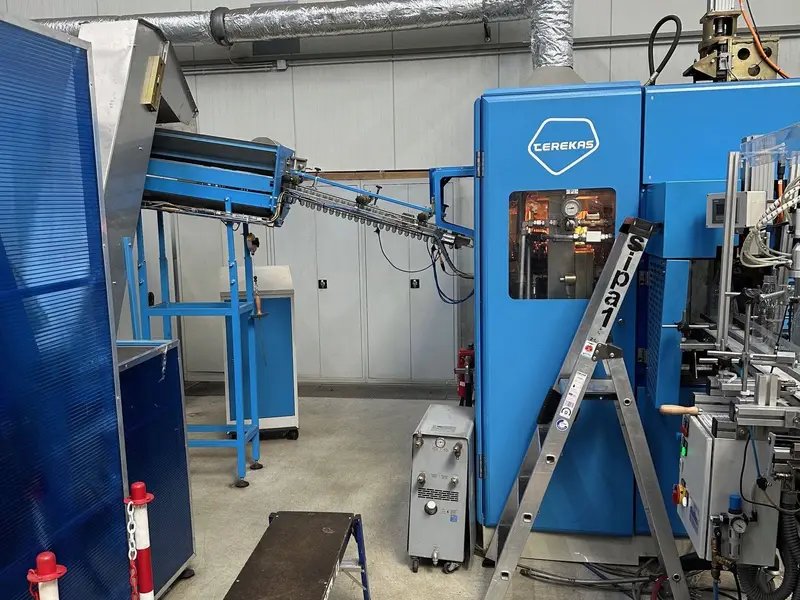

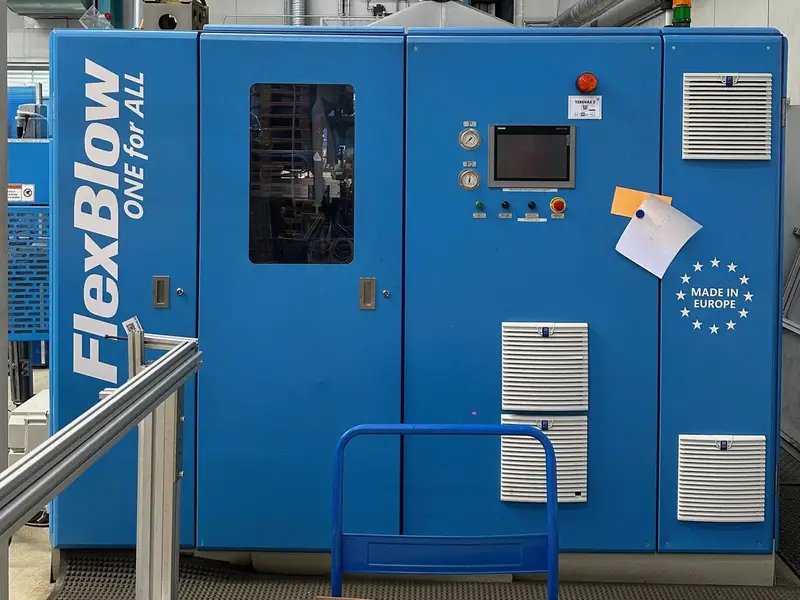

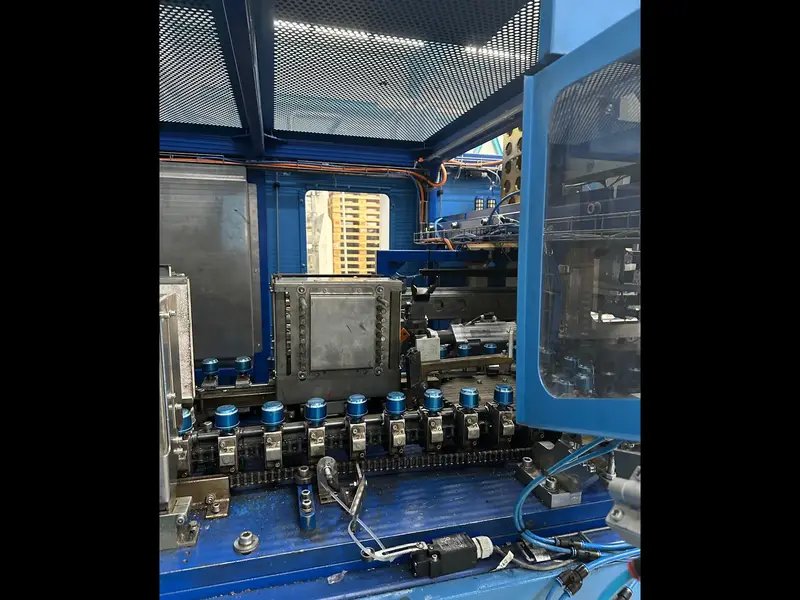

Used Blow Molding Machine Terekas up to 5L 1000 bph This used blow molding machine from Terekas, model FlexBlow 1, is designed for demanding PET bottle production, offering advanced flexibility and efficiency. With a maximum bottle capacity of up to 5 liters and a throughput of up to 1,000 bottles per hour, the system is engineered for operations that require consistent product quality across multiple neck finishes and formats. The FlexBlow 1 utilizes a linear blow molding architecture, equipped with a single cavity, making it ideal for short production runs, frequent changeovers, or pilot lines. It integrates seamlessly into existing filling and packaging lines, thanks to its modular design and compatibility with multiple container types. The preform feed system includes a tipper, unscrambler, and loader, all designed to ensure reliable, jam-free supply of preforms into the production c ...

Máquina de moldeo por soplado usada KOSME KSB 4L hasta 6800 bph La máquina de moldeo por soplado KSB 4L está diseñada específicamente para producir botellas PET. Cabe destacar que ofrece una solución robusta y compacta para la producción de alto desempeño. Su diseño es tanto innovador como técnicamente sencillo. Como resultado, garantiza una eficiencia óptima y una alta relación calidad-precio. Con cuatro cavidades, produce efectivamente hasta 6.800 botellas por hora. Además, permite formatos de 0,1 a 2,5 litros. La estructura sólida y bien organizada del KSB 4L proporciona a los operadores flexibilidad y un mantenimiento reducido

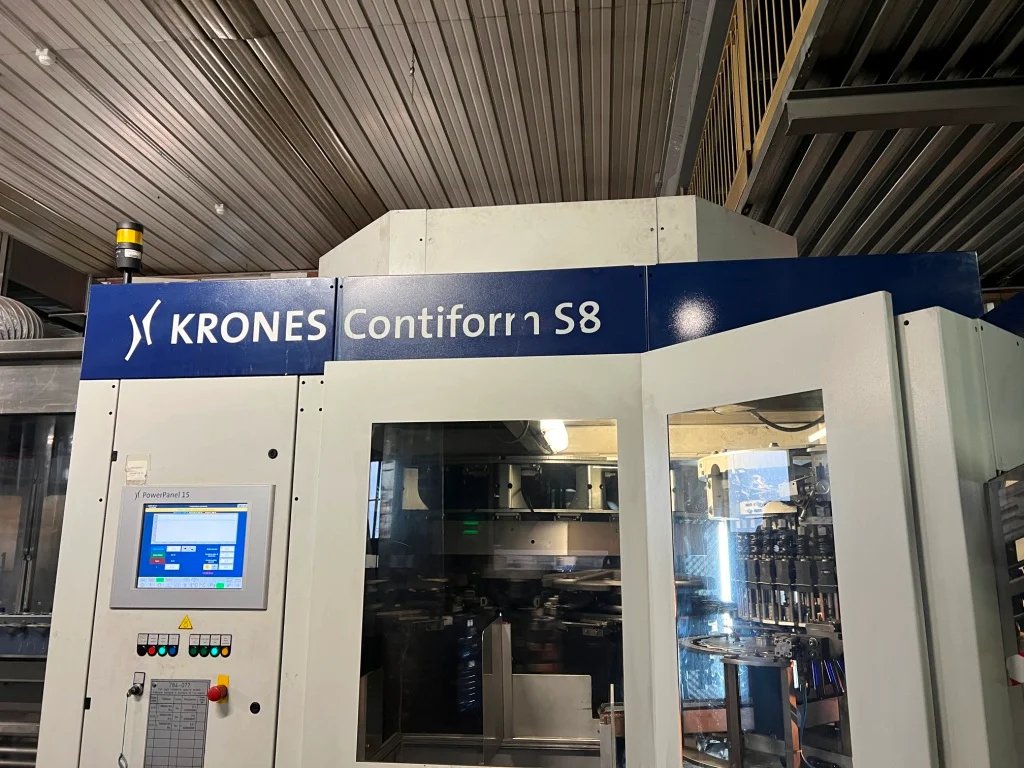

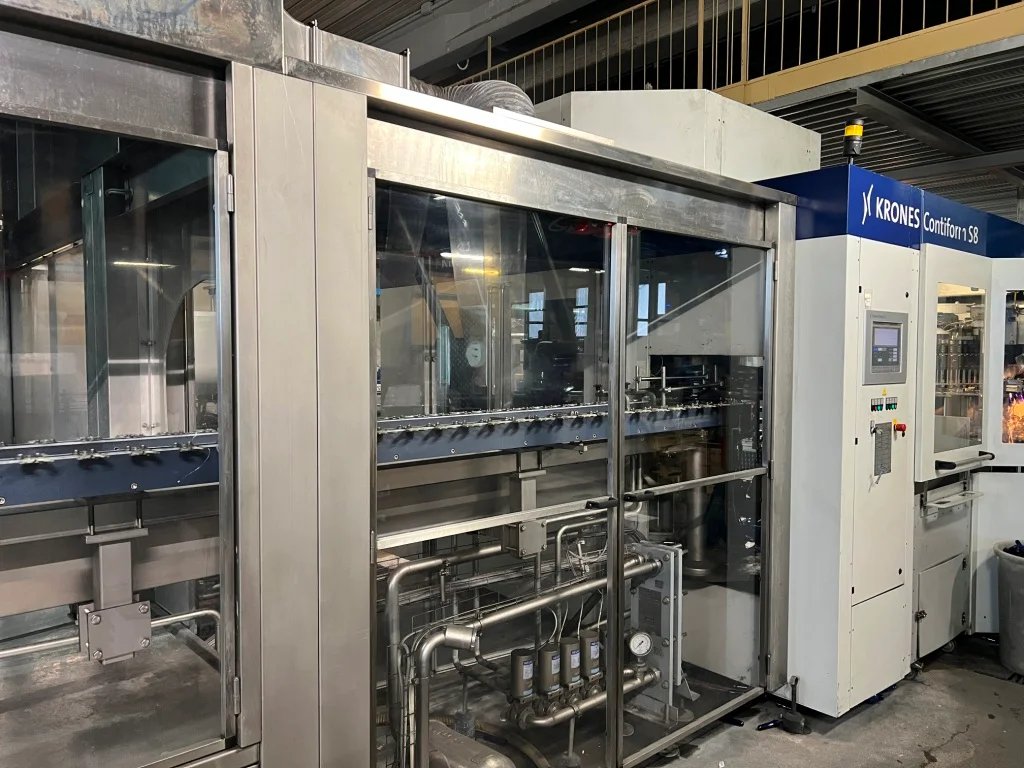

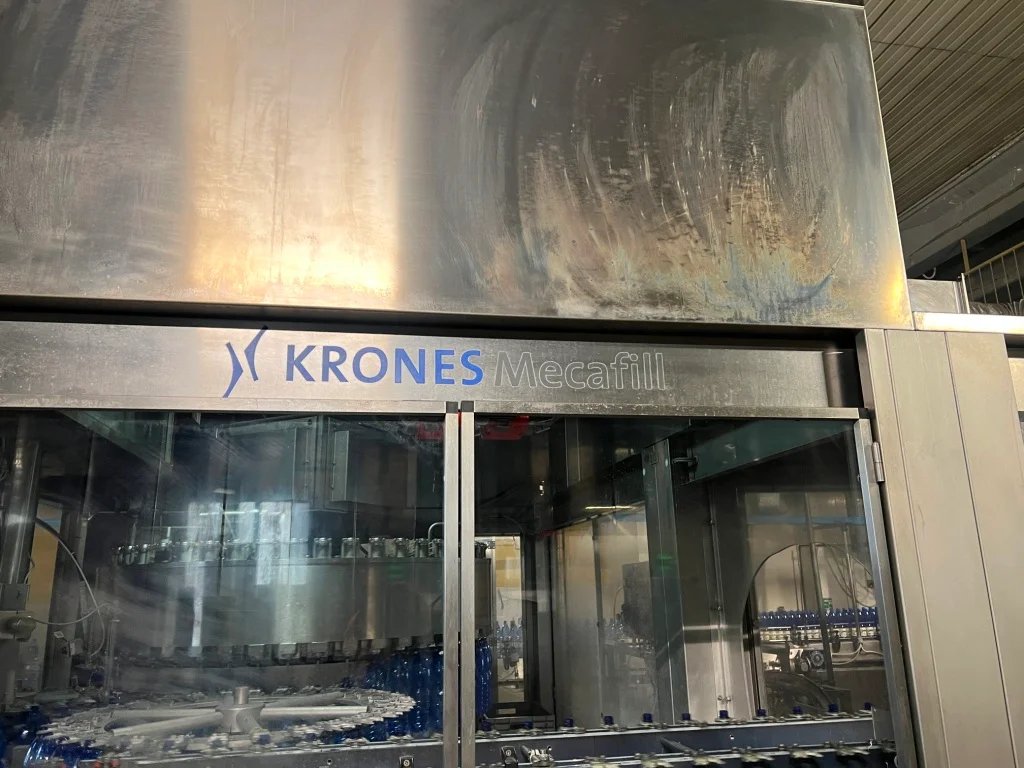

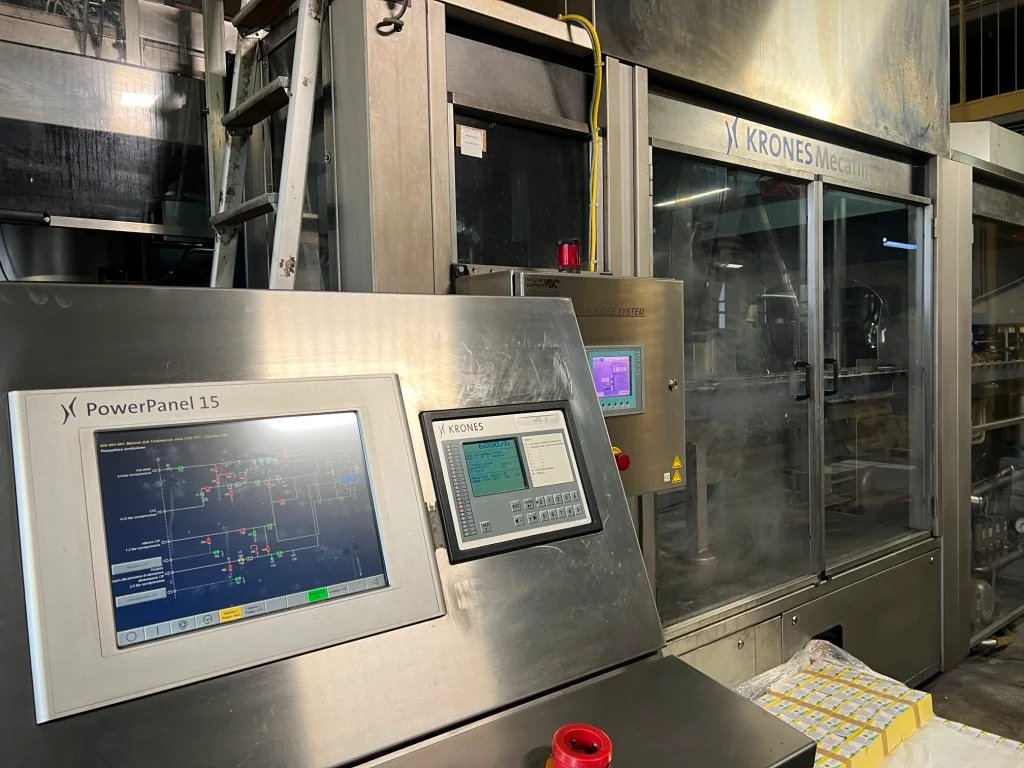

Combiblock KRONES contiform S8 + mrecafill usadoEspecificaciones técnicas y datos de rendimientoEsta unidad de moldeo combinado Krones Contiform S8 está integrada con un relleno Krones Mecafill y un tapador Krones, ofreciendo un rendimiento fiable para la producción moderna de bebidas. Diseñado para el manejo de botellas PET, soporta formatos comunes de agua estática y con gas sobre una plataforma rotatoria compacta. Como parte de una línea de embotellado de segunda mano o como estación combi independiente, ofrece una ingeniería robusta y una producción constante para operaciones industriales de envasado. Fabricante: Krones Modelo: Contiform S8 (combinado con Mecafill

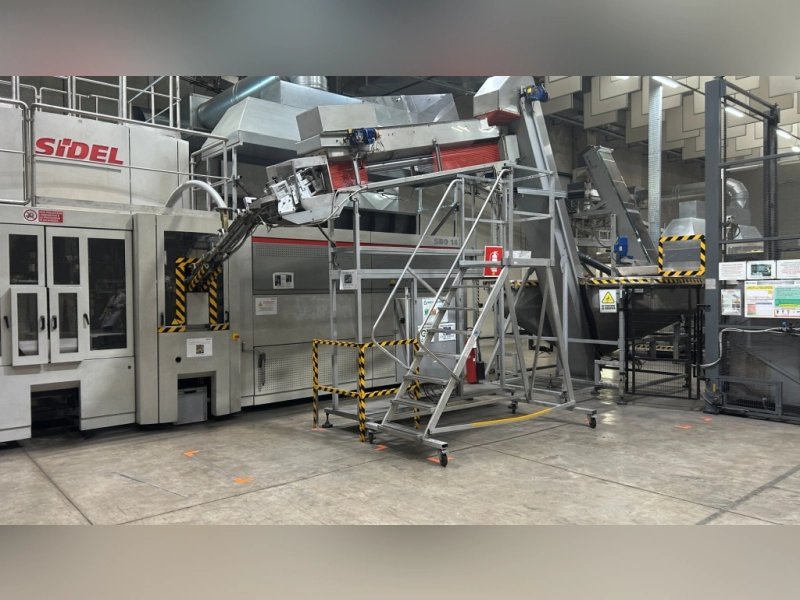

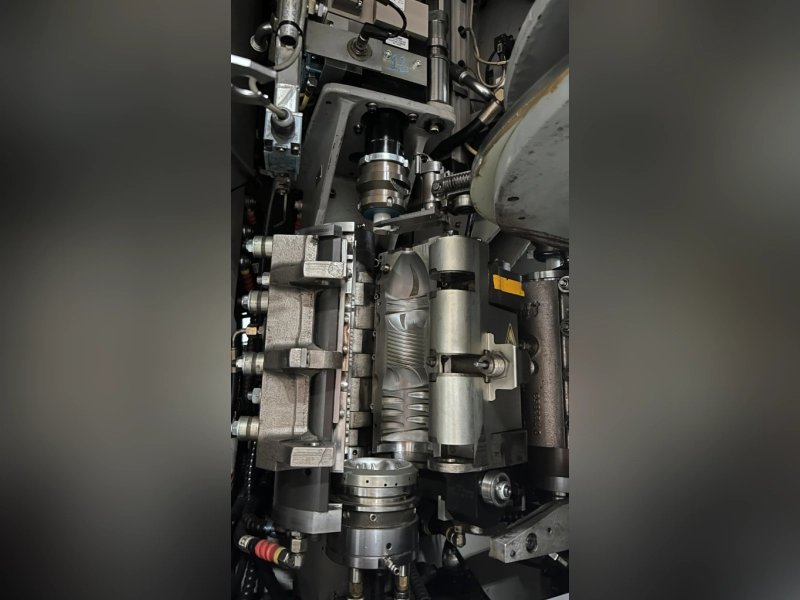

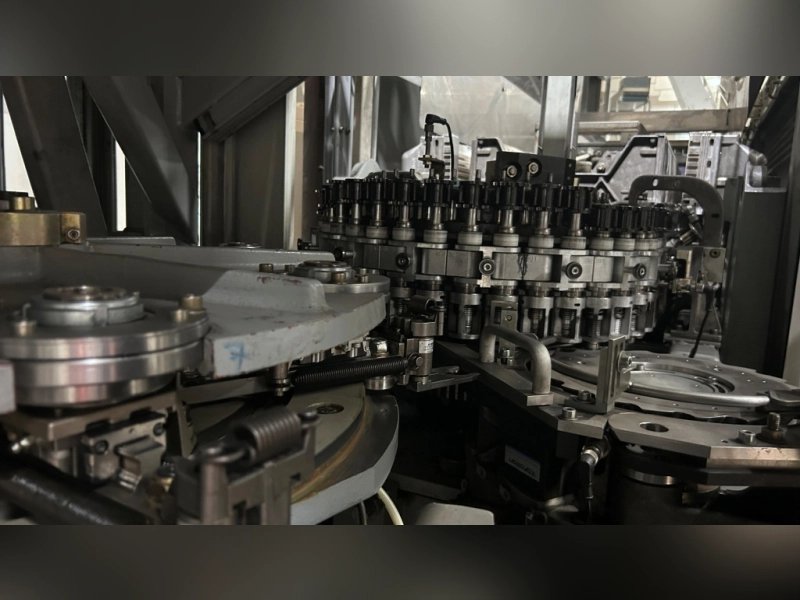

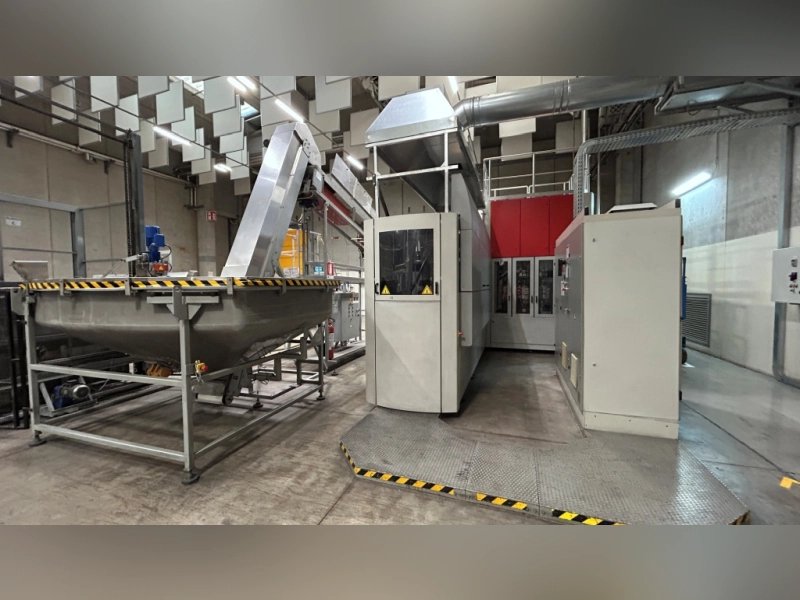

Blow Molding Machine Sidel SBO 14 This used Sidel SBO 14 blow molding machine is a proven rotary system engineered for high‑efficiency PET bottle production. Built in 1999, it delivers up to 18,000 bottles per hour and is well suited for beverage production and industrial packaging applications on used bottling lines. With 14 molds and robust mechanical design, it offers consistent performance for large formats such as 1.5L, making it a reliable choice for second hand PET bottling operations across water, soft drinks, beer, wine, spirits, milk, and edible oil segments. Manufactured by Sidel engineering, this model integrates smoothly within complete bottling lines or as a standalone blow molder feeding downstream filling, capping, and labeling equipment. It is available as seen, or fully overhauled and guaranteed, providing flexibility depending on your project timeline and budget.  ...

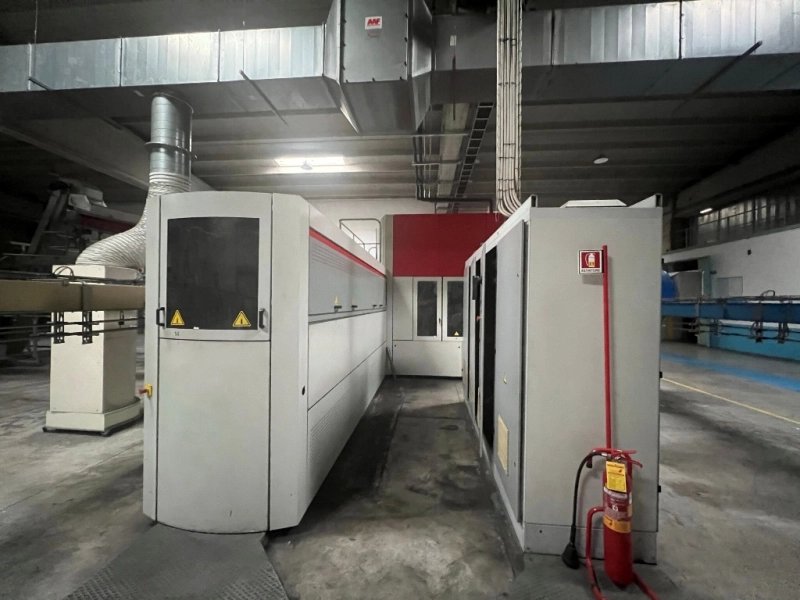

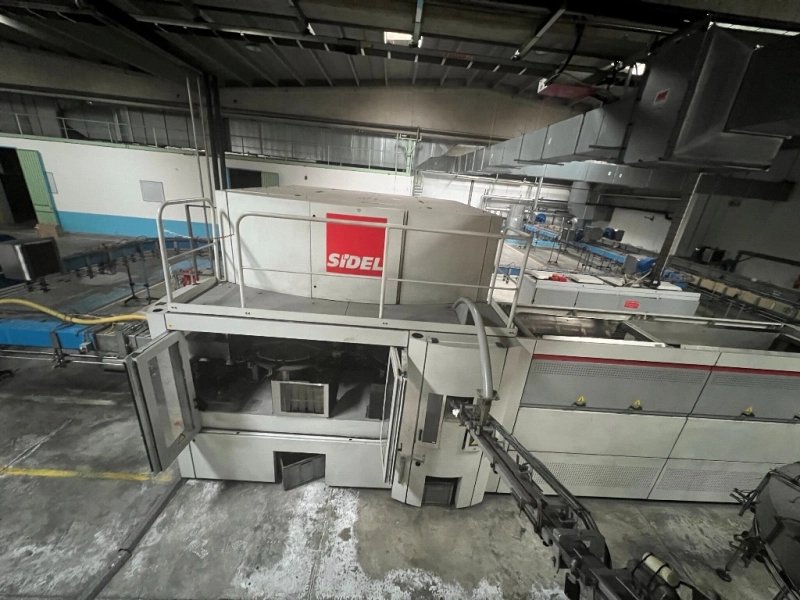

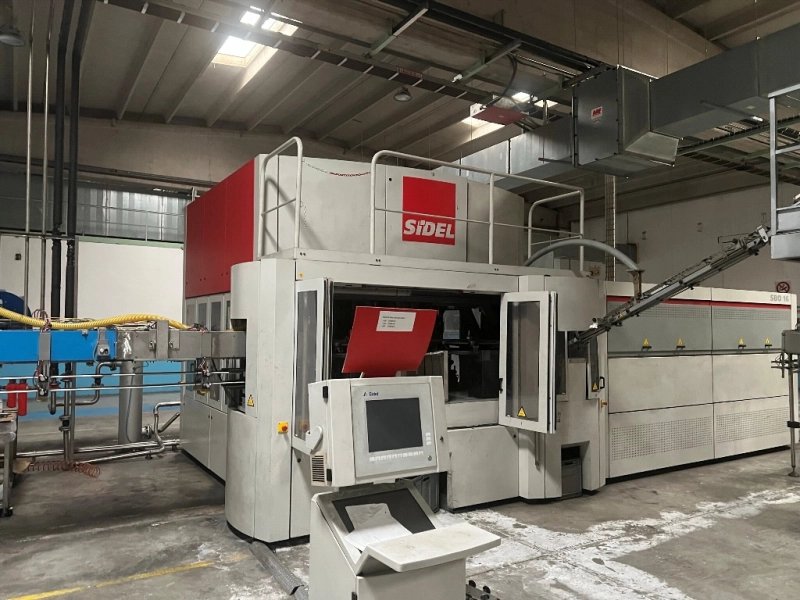

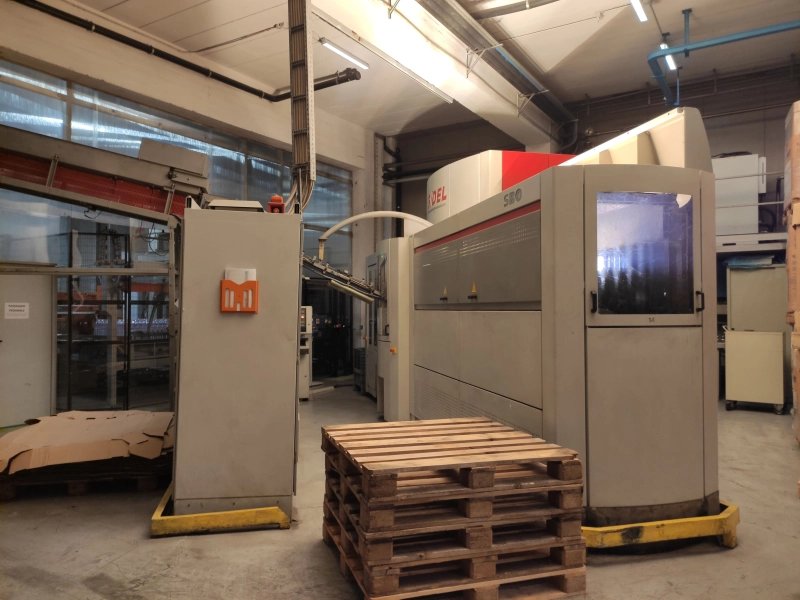

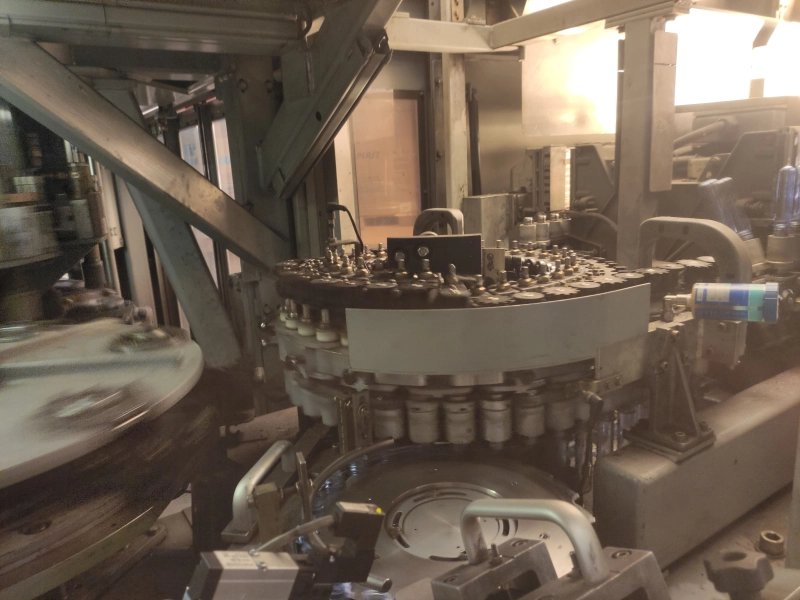

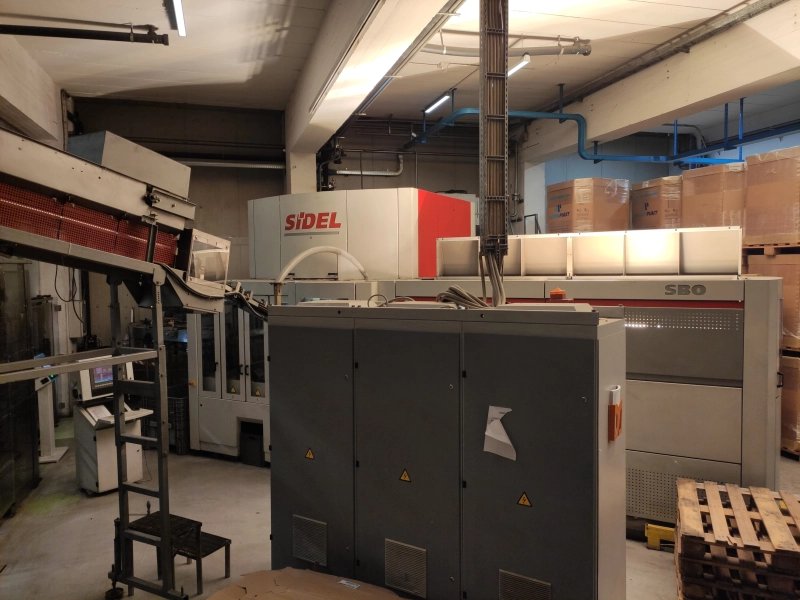

Used Blow Molding Machine SBO 16 S2 This used Sidel blow molding machine is an industrial-grade solution for high-speed PET bottle production in beverage and food packaging. Overhauled and guaranteed, it offers reliable performance for manufacturers seeking to expand capacity or upgrade an existing used bottling line. Designed for PET containers with a current setup for 1.5L formats, it is suitable for beverage production including water, soft drinks, beer, wine, spirits, milk, and oil. The Sidel engineering platform ensures consistent blowing quality and robust operation in demanding industrial packaging environments. Manufactured by Sidel, this second hand SBO 16 S2 features 16 cavities and a nominal speed of 25,000 bph, making it a strong fit for medium-to-high throughput operations. Its rotary architecture and counterclockwise working direction support smooth handling and efficient c ...

Used Blow Molding Machine SIPA SFR12 18000 bph General Features of the SIPA SFR12 Blow Molding Machine The Used Blow Molding Machine SIPA SFR12 18000 bph performs PET container stretch blow molding and SIPA manufactured it in 2007. As a result of its SFR12 configuration, which includes 12 cavities, the system reaches a nominal speed of 18,000 bottles per hour. Consequently, it delivers high production efficiency across multiple formats. Specifically, this machine processes volumes from 0.25 to 2 liters. Therefore, it fits seamlessly into high-speed bottling lines, particularly in the mineral water and soft drink industries. Moreover, thanks to its compact layout, it optimizes floor space usage. Preform Compatibility and Technical Specifications This machine processes preforms with 3-start Alaska neck finishes and supports weights ranging from 12 to 34 grams. In particular, operators can  ...

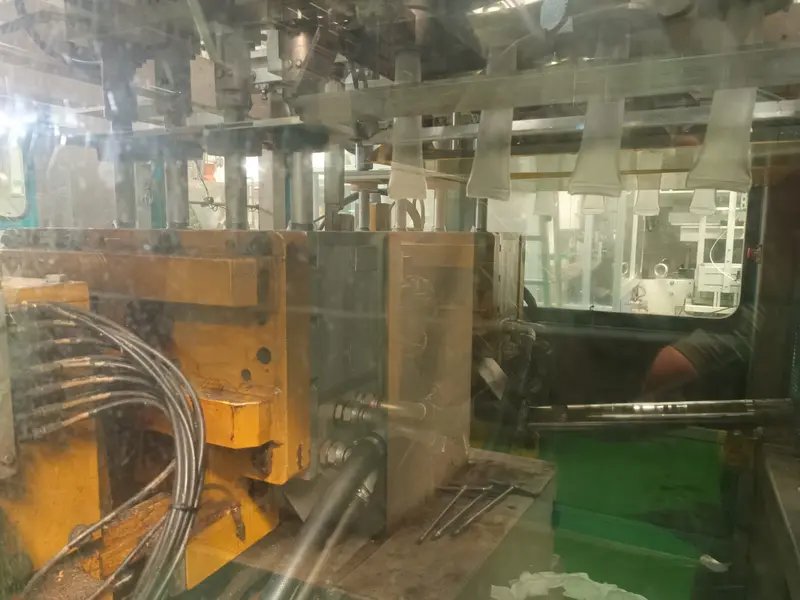

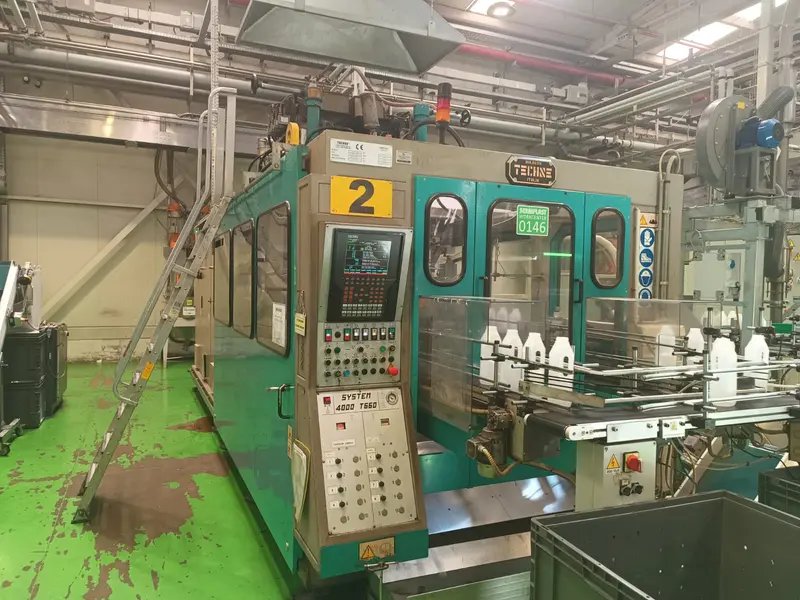

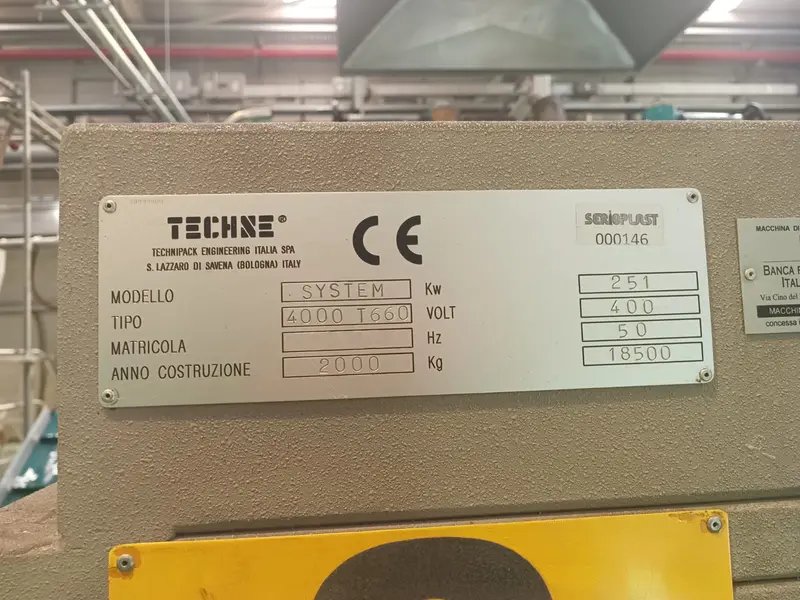

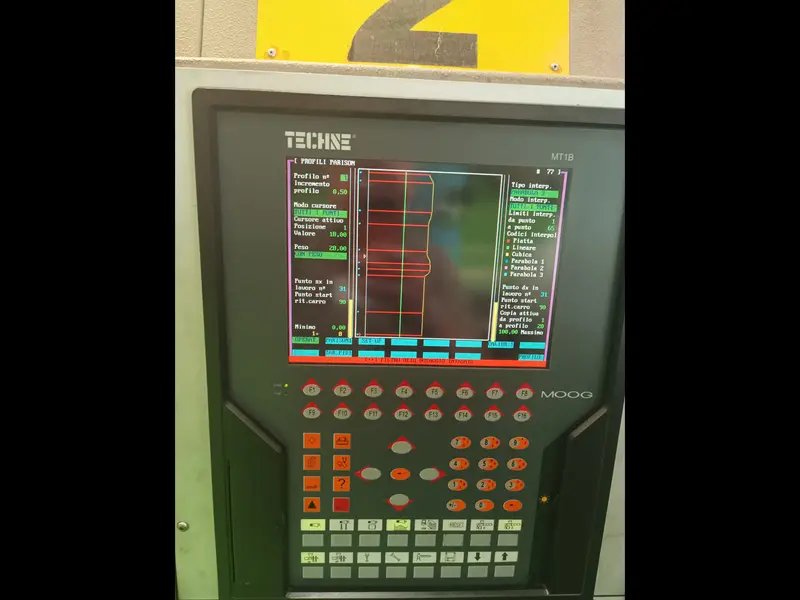

Used HDPE 4+4 Blow Molding Machine TECHNE SYSTEM up to 2700 bph This HDPE Blow Molding Machine offers a highly specialized system for blow molding containers made of high-density polyethylene (HDPE). This machine handles bottle formats up to 2 liters and produces up to 2700 bottles per hour (bph). Moreover, the system uses a 4+4 configuration, meaning four upper and four lower cavities, which optimize production with a symmetrical and highly efficient design. You can access this machine starting mid-October. Main Technical Features of the HDPE Blow Molding Machine TECHNE SYSTEM To ensure high precision in shaping bottles, the blow molding system provides a cavity spacing of 150 mm. Additionally, the machine includes a double carriage, which allows you to control the production cycle optimally and minimizes downtime. In particular, this Blow Molding Machine accommodates containers up to 2 ...

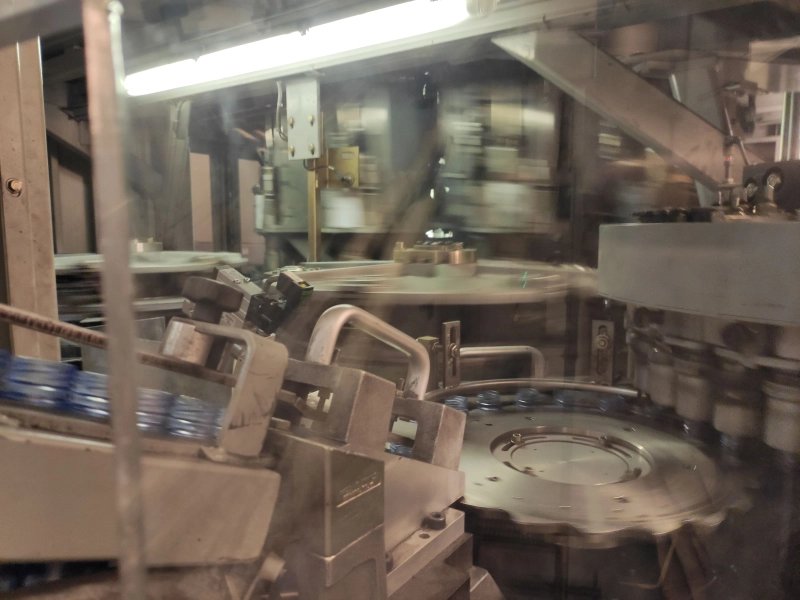

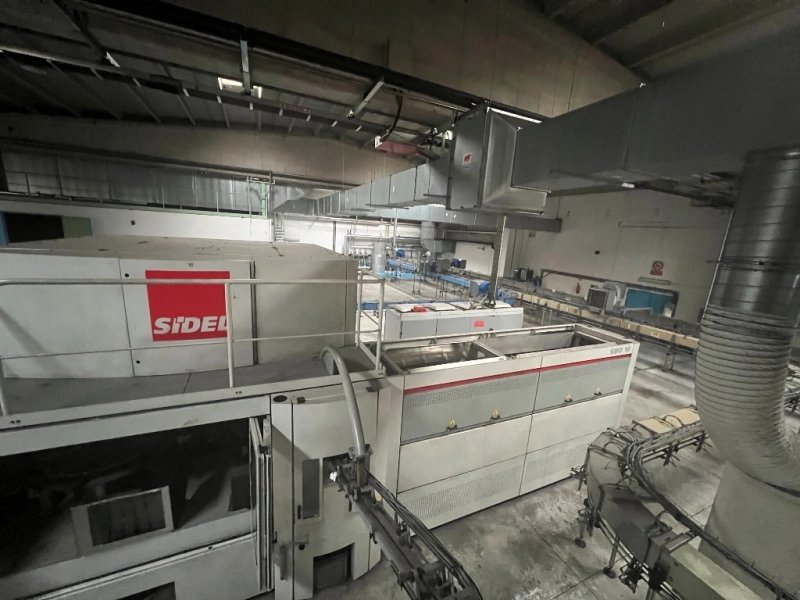

Used Blow Molding Machine SBO 16 S2 This used Sidel blow molding machine model SBO 16 S2 delivers high-performance PET bottle production for modern beverage and industrial packaging operations. Manufactured in 2001 and fully overhauled with warranty, it offers a nominal capacity up to 25,000 bph, making it a strong fit for second hand and used bottling line upgrades. The rotary platform with 16 molds supports continuous operation and stable quality for 1.5L bottle formats, with flexibility to adapt to other sizes via dedicated molds. Designed for PET containers, this machine aligns with beverage production requirements across a wide range of products including still and sparkling water, CSD, wine, beer, milk, oil, and spirits. Sidel engineering ensures robust build quality, while the Siemens PLC and Sidel HMI provide reliable automation and operator-friendly control. This blow molder is  ...

Used Revised Sipa Rotary Blow Molding Machine 2008: A Comprehensive Overview Are you in the market for a reliable blow molding machine? Look no further than the used Sipa Rotary Blow Molding Machine 2008. In this article, we will delve into the details of this machine, exploring its features, specifications, and benefits. Whether you are a seasoned professional or just starting in the industry, this article will provide you with valuable insights into the Sipa SFR8. Table of Contents Introduction Overview of the Sipa Rotary Blow Molding Machine 2008 Features and Specifications Benefits of the Sipa SFR8 Applications Maintenance and Care Tips for Choosing a Used Machine Safety Features and Manuals Current State and Availability 1. Introduction Blow molding machines play a crucial role in the production of various plastic containers. The Sipa Rotary Blow Molding Machine 2008, also known as  ...

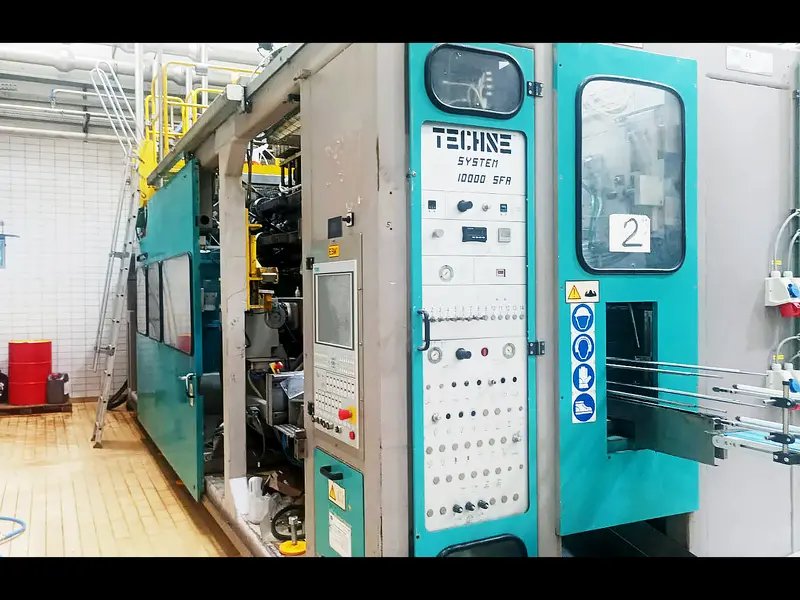

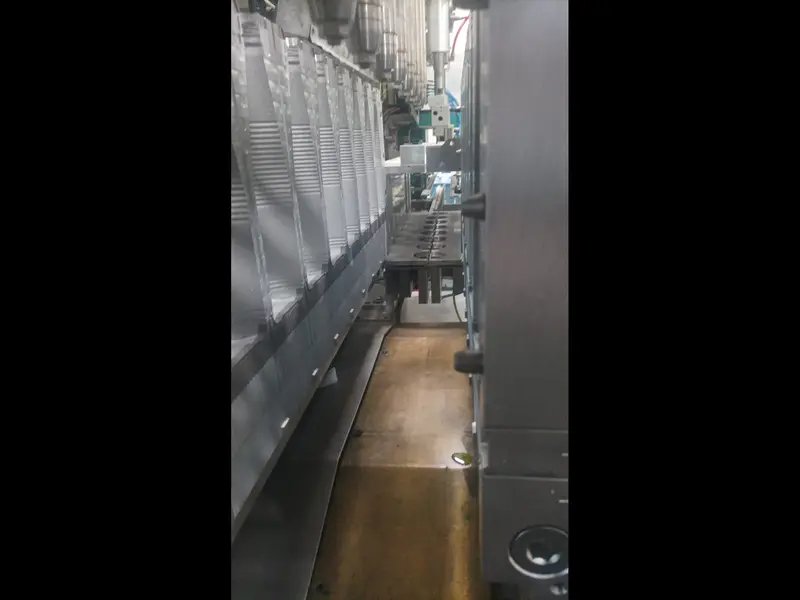

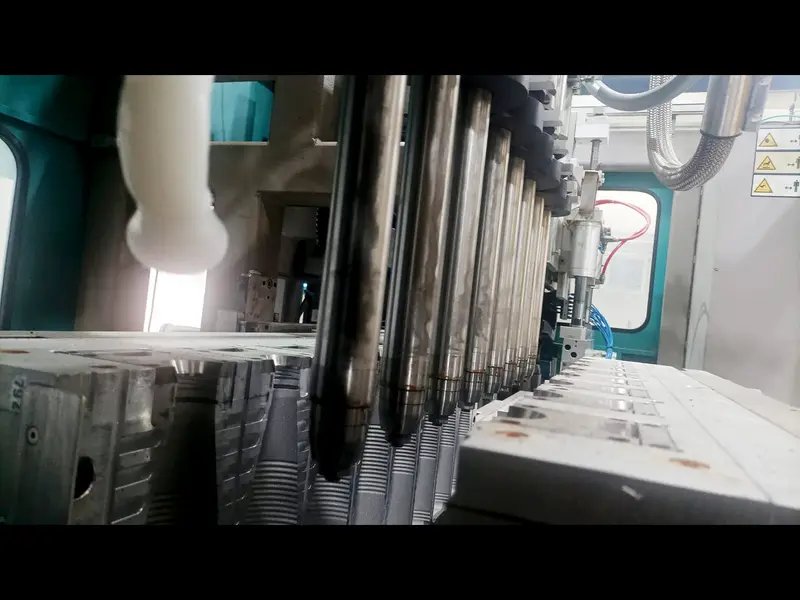

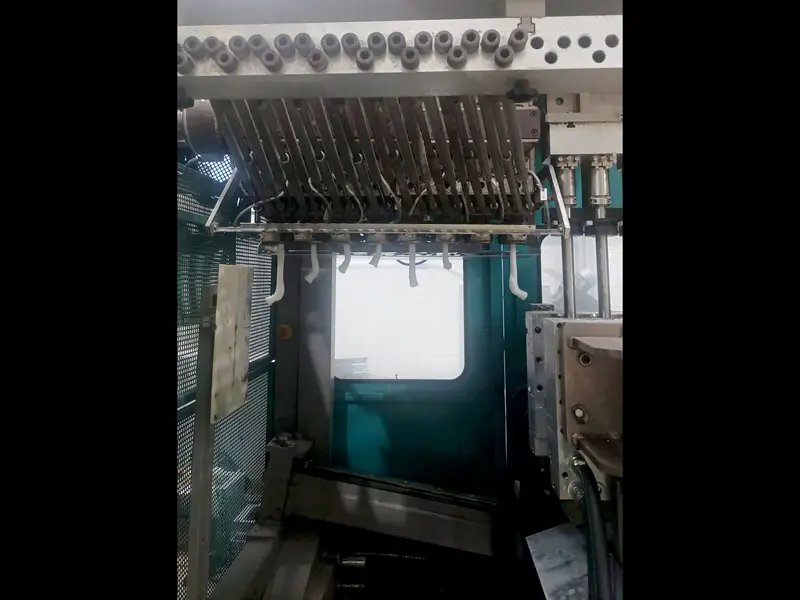

Used HDPE Blow Molding Machine TECHNE 10000SFA up to 1690 bph The Used HDPE Blow Molding Machine TECHNE 10000 SFA up to 1690 bph advances the field of HDPE container blow molding machines significantly. TECHNE manufactured this machine in 2002, equipping it with cutting-edge technology and technical specifications that make it high-performance and reliable. Capacity and Implemented Technologies of the HDPE Blow Molding Machine TECHNE The HDPE Blow Molding Machine TECHNE produces containers with a capacity of up to 1 liter. Additionally, it uses coex-3 layers technology to ensure container quality and consistency. The machine features an 8-cavity extrusion head with a center distance of 105 mm, allowing for efficient production of 8 bottles per cycle. Furthermore, the linear cold blade cutting system and pneumatic pick-and-place system enhance operational efficiency further. Efficiency an ...

Prensas usadas preforman PET ENGEL 2004: Año: 2004 Condición: Buena Prensas usadas que forman PET ENGEL: Modelo: MacPET 4550-320 maszyna nº 52890 Año: 2004 Velocidad: Preform 24,5G aprox. 21,900 pcs/hrs Preform 29,0G aprox. 20,100 pcs/h Número de moldes: 72 Código: W 111 Más detalles: https://bottlingscout.com

Soplador PET usado Sidel 10.14 2013: Año: 2013 Condición: Buena Soplador PET de segunda mano: Modelo: SBO 10/14 Año: 2013 Velocidad: 7,500 BPH Rotary 10 cavidades Incluido el hopper Ascensor incluido Incluido el Orientator Inspector incluido Protecciones de seguridad Código: W 113 Más detalles: https://bottlingscout.com
