máquinas talladoras de engranaje usadas para la venta (197)

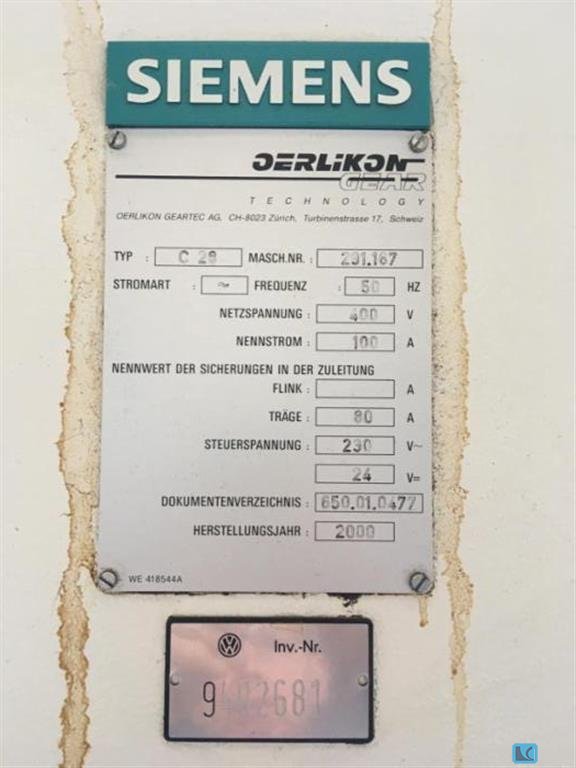

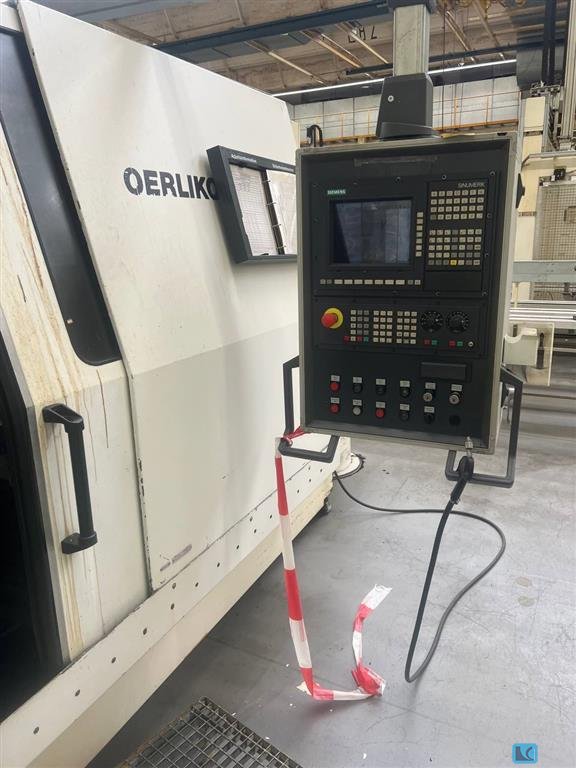

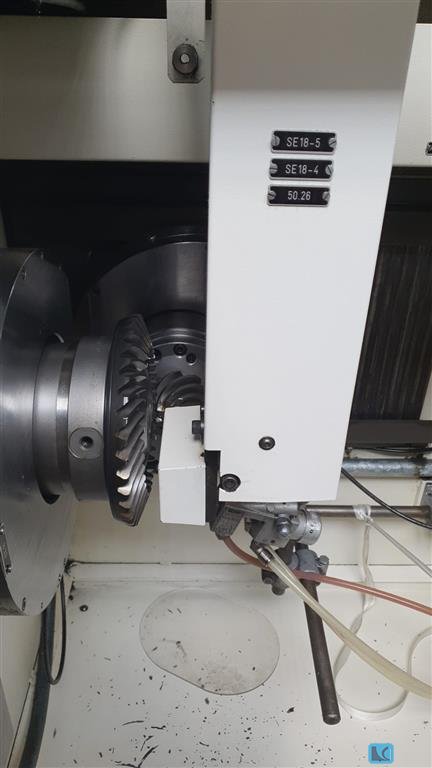

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

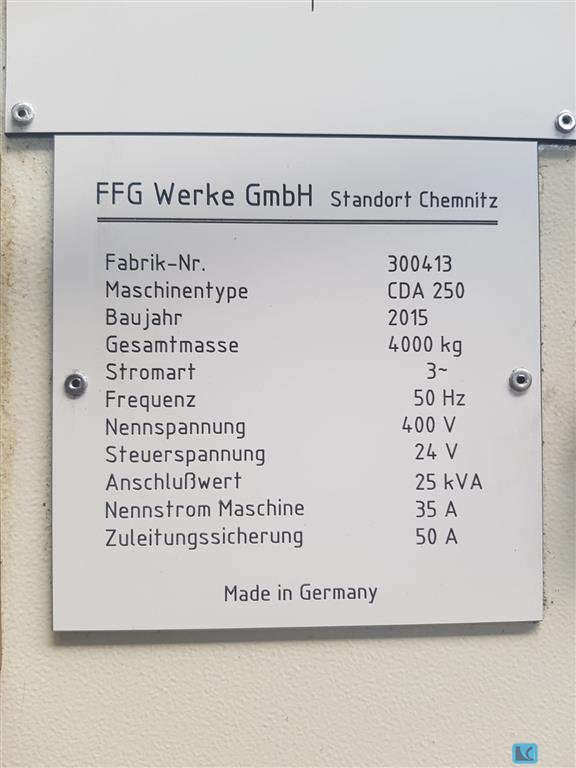

max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm

weight of the machine ca.:4 t

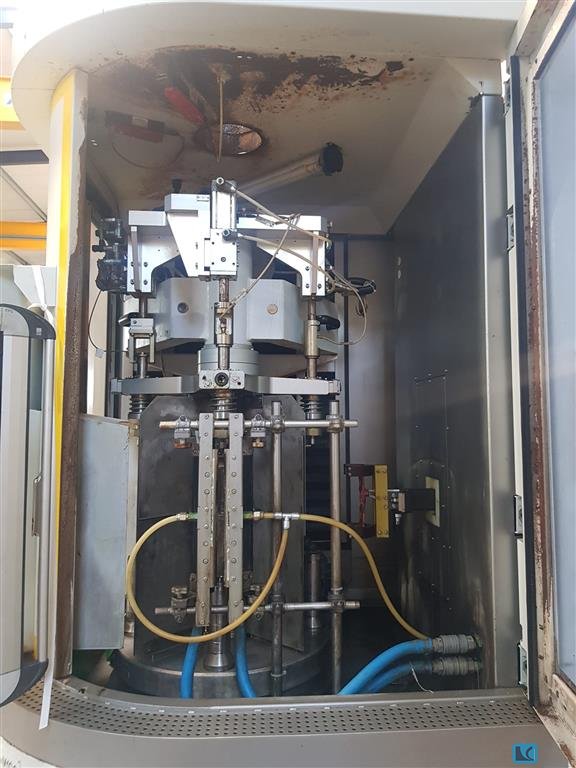

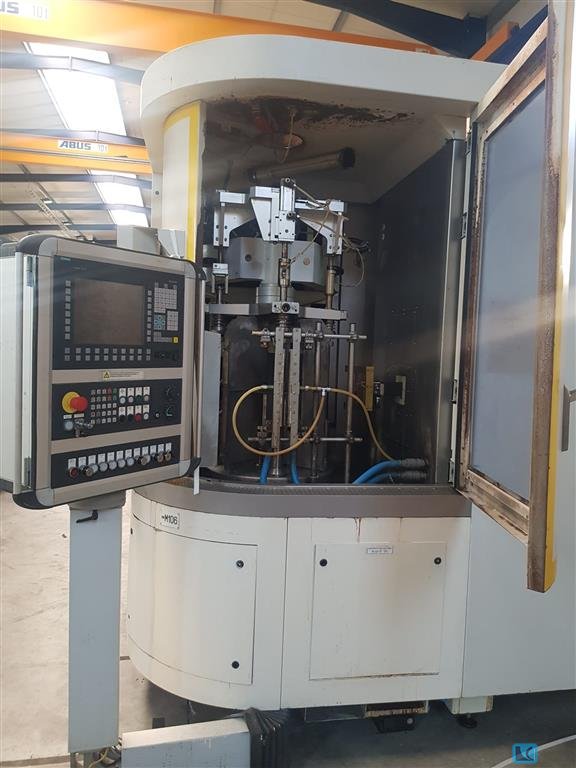

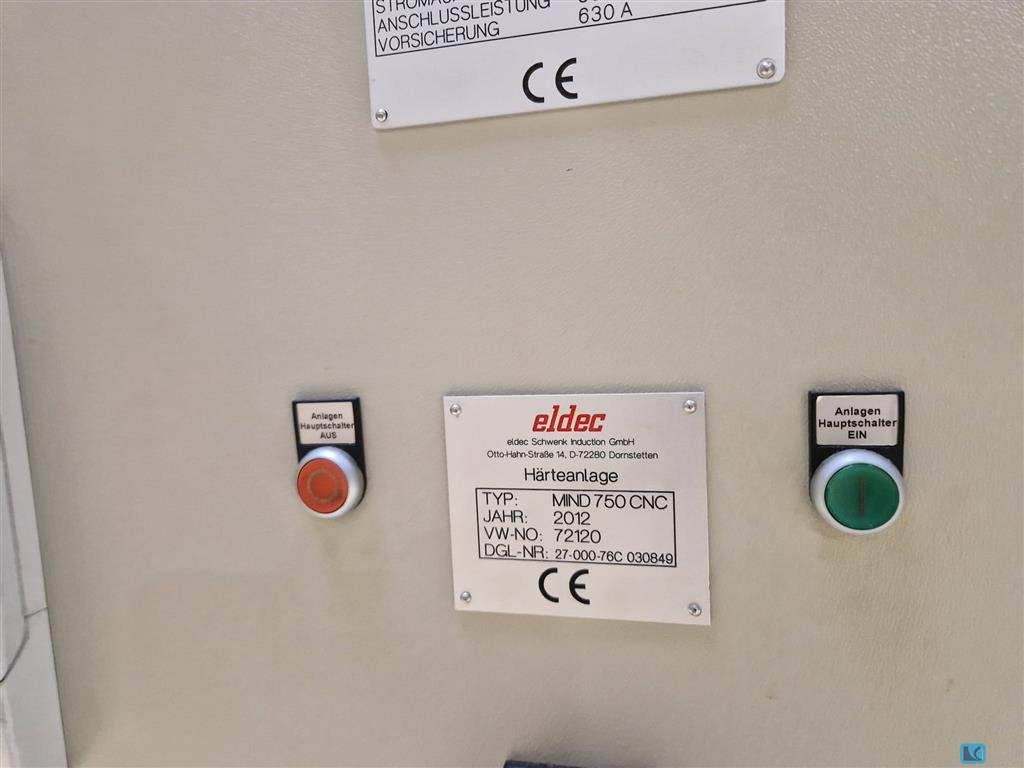

total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024

max. wheel diameter:200 mmgear width:60 mmmax. module:7 weight of the machine ca.:15 ttable diameter:180 mmtable turning speeds:100 U/minhob turning speeds:750 U/minMachine in good condition, without feed, without automationAvailable 24.08.2024

max. wheel diameter:900 mmmax. module:10 weight of the machine ca.:8200 kos.hob dia. - max.:190 mmcutter length max.:320 mmmilling spindle speeds (infinitely variable):13-80 U/minworkpiece length - max.:750 mmmax. workpiece diameter:150 mmCounter holder milling mandrel is missing

max. wheel diameter:280 mmmax. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/mintool length:210 mmCBN

max. wheel diameter:200 mmgear width:50 mmmax. module:6 table diameter:168,14 mmboring diameter:65,532 mmweight of the machine ca.:11 ttable turning speeds:0-1.000 U/minlength of stroke min./max.:0-70 mmno. of strokes:180-1.800 StückThis machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required.

max. wheel diameter:210 mmtotal power requirement:60 kWweight of the machine ca.:8 tdimensions of the machine ca.:2,85 x 2,60 x 1,80 mgrinding slide feed:700 mmgrinding slide feeds:1-15.000 m/minmax. workpiece weight:150 kgcentre height:260 mmgrinding wheel diameter:240 mm

rotor dia:30-500 mmhobbing length:500-1000 mmtotal power requirement:80 kWweight of the machine ca.:15 tdimensions of the machine ca.:3,6 x 2,5 x 3,0 mmax. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

max. wheel diameter:180 mmmax. module:7 hob turning speeds:200-2000 U/minmin. number of teeth:4 excluding conveyor belt

max. wheel diameter: 6300 mmgear width: 1500 mmmax. module: 40 min. module: cutter diameter max.: 400 x 500 mmtable surface area: 4000 mmtable turning speeds: 9 - 63 U/minmax. angle of teeth: 45 Gradtotal power requirement: 47 kW- standard hob head,- tangential hob head- internal hob head- set of change gears- set of plotsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 900 mmgear width: 500 mmmax. module: 1 min. module: 10 total power requirement: 16 kWweight of the machine ca.: 8.500 kgdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1600 mmgear width: 560 mmmax. module: 16 workpiece weight max.: 7000 kgtable surface area: 1350 mmturning speed range: 16 - 80 U/minfeeds - axial: 0,05 - 1,5 mm/minfeeds - radial: 0,25 - 6 mm/minfeeds - tangential: 0,13 - 4 mm/minelectrics - voltage/frequency: 380/50 V/Hztotal power requirement: 12 kWweight of the machine ca.: 18,5 tdimensions of the machine ca.: 4260 x 2555 x 3170 mm- universal Hob head- tangencial head (extra)- outer steady- change gears- 1 set big and 4x small clamping pods- arbors and approx 20 cutters (diffent Moduls)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 420 mmgear width: 120 mmmax. module: 7 mmmin. module: 0,5 gear hobbing diameter - external: 420 mmgear hobbing diameter - internal: 370 mmtable diameter: 400 mmboring diameter: 125 mmspindle stroke: 120 mmstroke position adjustment: 230 mmstrokes - infinitely variable: 30 / 800 Hub/mindepth feed stepless: 0,016 - 0,063 mm/Hubtotal power requirement: 35 kWweight of the machine ca.: 7,5 tdimensions of the machine ca.: 2,46 x 3,48 x 2,66 mAccessories: - Various replacement wheels and blade holders - DocumentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

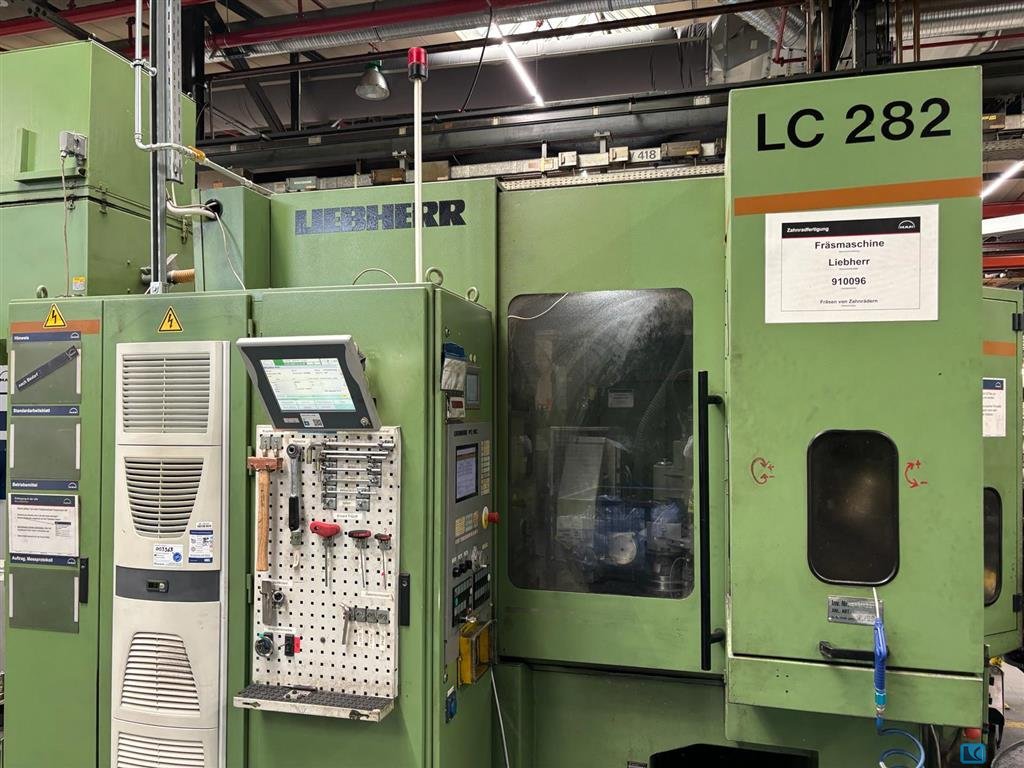

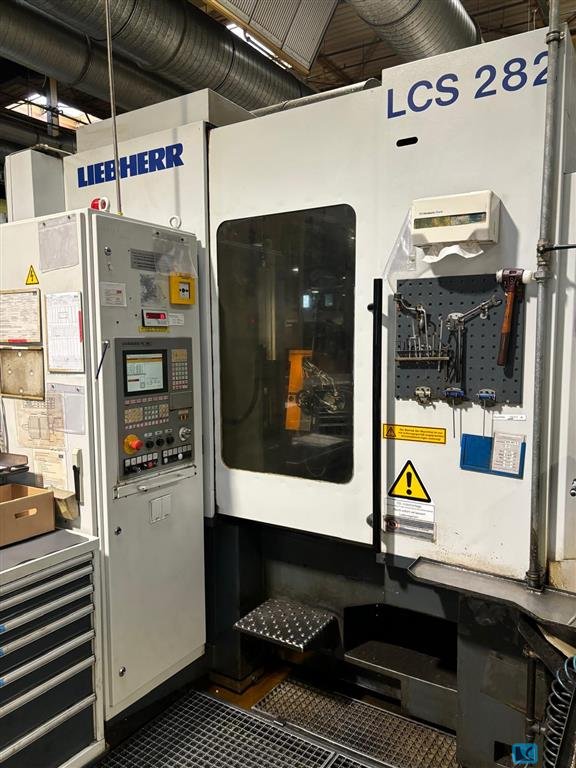

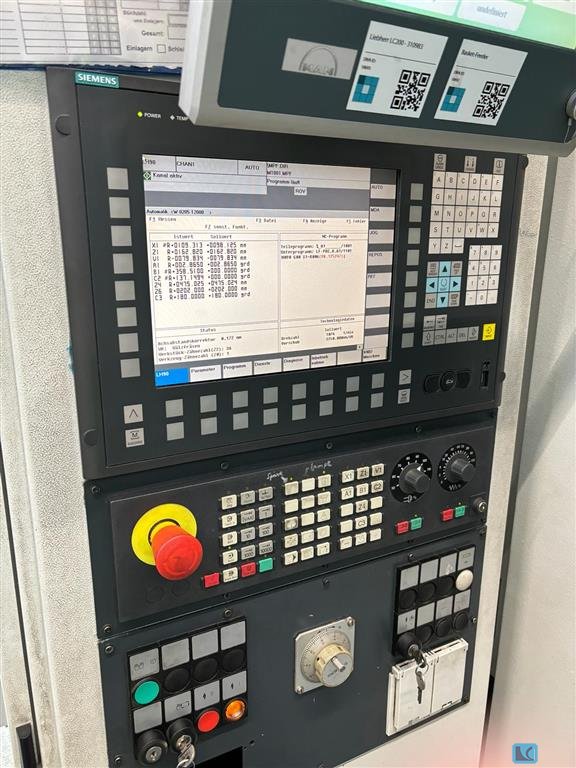

max. wheel diameter: 180 mmtable diameter: 145 mmmax. module: 3-5 mmgear width: 250 mmtable turning speeds: 800 U/minmilling head vertical adjustable: 400 mmMilling axis swiveling range: + / - 45 °max. milling cutter diameter: 90 mmhob turning speeds: 0 - 6000 U/mincutter length max.: 211 mmcontrol: Siemens 840 Dtotal power requirement: 23 kWweight of the machine ca.: ca. 10 tdimensions of the machine ca.: 4,5 x 3,5 x 2,7 mThe LC series is a machine system for the machining of spur and helical gears and cylindrical gear shafts and helical gears and cylindrical gear shafts, which is characterised by its special performance and versatility.Compared to other gear manufacturing processes, gear hobbing is characterised by its characterised by its high consistency of machining results over the entire tool life.Technical data of the machine:Basic specifications:--> Machining type: dry--> Volta ...

max. wheel diameter: 180 mmgear width: ca. 220 mmmax. module: 3 / 5 mmControl: Siemens 840D sl max. radial velocity: 5000 mm/minmax. workpiece diameter: 180 mmtable rotation speed: 800 U/mintable diameter: 145 mmaxial travel: 250 mm mmback rest:: axial travel: 300 mmclamping force max.: 13 kNmilling head:: swivelable +/-: 45 °drive capacity: 23 kWturning speeds: 6000 U/mindiameter of tools max.: 90 mmtool clamping length max.: 211 mmmodule hobbing max.: 3 module profile milling max.: 5 tangential speed max.: 7500 mm/minweight of the machine ca.: 9,5 tdimensions of the machine ca.: 4,5 x 3,5 x 2,7 mEquipment / Accessories:- The machine is equipped for dry milling.- workpiece magazine- parallel gripper: - workpiece weight form-fit max. 15 kg - workpiece length max. 400 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Maximum workpiece outer diameter: 3420 mmMinimum workpiece inner diameter: 630 mmmax. module: 30 mmcontrol: Siemens Sinumerik 840 D Workpiece tooth width - max.: 600 mmtip circle diameter: 440 mmMilling arbour diameter: 80 mmx-travel: 1110 mmy-travel: 1300 mmspindle turning speed - stepless: 18 - 180 U/minrotary table speeds infinitely variable: 0 - 6 U/minRing stength: 500 mmtotal connected load: 100 kVAweight of the machine ca.: 38 tdimensions of the machine ca.: 8,41 x 9,05 x 5,19 mFeed rate: - X-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in 1/min - Tool 18 to 180 - Workpiece table 0 to 6Equipment/accessories: - IFK2 internal milling head - Milling arbor with spacer discs - Chip conveyor - Oil mist extraction - Dry machining only - Technical documentation The data for this ad was created with ModulMWS - the software so ...

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmspindle speeds (infinitely variable): 6000 U/minwork piece spindle speed: 1200 U/mindiameter of tools max.: 230 mmdiameter of tools min: 69,85 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmb-axis: + 90,1 / - 1 °work piece table - Ø: 212,71 mmControl: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mInternal probe Renishaw LP2 (axis X2,Y2)Hoffmann coolant filter system HSF 100SE/K (built in 2008)Tank capacity 2500LVT oil mist filter systemThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmdiameter of tools min: 69,85 mmtooth width max.: 58 mmdiameter of tools max.: 230 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmwork piece table - Ø: 212,71 mmb-axis: + 90,1 / - 1 °Control: 160 i - MB FANUCtotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mWAGURIWith EWAB robot cell (KUKA robot)without coolant filter systemFire extinguishing system without CO2 bottlesCooling oil return with various pumps / collecting basinsThreading device A1/B2 axes with measuring probeClamping device for a pinion shaftExternal spindle oil coolerExtraction system pinion shaftThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmdiameter of tools min: 69,85 mmdiameter of tools max.: 230 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmwork piece table - Ø: 212,71 mmb-axis: + 90,1 / - 1 °Control: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mWAGURIwith EWAB load cell built in 2012(Linear loader)no coolant filter system available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. machining diameter: 3200 mmmax. workpiecediameter: 3200 mmaxial slide way: 2200 mmcontrol: Siemens Sinumerik 840 D table diameter: 2500 mmboring diameter: 800 mmmax. load: 40.000 kgtable rotation speed: 2 U/mingrinding head: grinding head - swivable: +45 / - 45 °turning speed range - grinding wheel: 270 - 2700 U/mintip circle diameter: min. 1500 mmgrinding spindel dia.: 100 mmMax. grinding wheel diameter: 450 mmDressing diameter: min. 250 mmPlaning width: min. 80 mmFast feed speed: axial: 10 m/minFast feed speed: radial: 3 m/minmax. depth of profile: 100 mmtail stock: tailstock travel: 1410 mmtotal power requirement: 225 kVAweight of the machine ca.: 46 tdimensions of the machine ca.: 14,5 x 9,95 x 6,1 mGear Profil-Grinding Machine- CNC Control Siemens 840D- Tailstock- Dressing Unit- Oil Mist suction- CoolantThe data for this ad was created with ModulMWS - the software solution o ...

max. wheel diameter: 3000 mmgear width: 500 mmmax. module: 25 / 40 spindle turning speed range: 250 U/minfeed speeds: max. 4000 mm/minfaceplate diameter: 2000 mmtable bore diameter: 700 mmtable turning speeds: 51 U/minpower capacity - milling spindle: 53 kWdrive motor for milling spindle: - kWaxial adjustment: 1200 mmmilling head swivable ca.: +/- 45 °control: Siemens 840D total power requirement: - kWweight of the machine ca.: 55 t- CNC Control Siemens 840D- Internal Hob Head IFK- External Hob HeadThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 650 mmgear width: 200 mmmax. module: 10 min. module: 1 work accuracy: DIN 6 clamping table diameter: 710 mmtable bore diameter: 150 mmnumber of strokes - stepless: 35,5 - 560 c/minmax. ram stroke: 230 mmfeeds: 3,55 - 40 mm/minradial feed: 0,8 - 9 mm/minwork-spindle diameter: 110 mmtotal power requirement: 28,2 kWweight of the machine ca.: 9 tdimensions of the machine ca.: 3,8 x 2,3 x 2,5 mGear shaping machine for the production of spur gears, forInternal and external gears - Built under licence from LORENZ and identical in construction to LORENZ LS 630complete Modernisation + overhaul in 2012 with:- new painting- new electrical system from Telemecanique- Counter Holder- Chip conveyor- Coolant unit- change gearsNot used in production again after overhaulThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1600 mmgear width: 250 mmmax. module: 20 min. module: 1,5 base circle dia. - max.: 1450 mmbase circle dia. - min.: 150 mmspecimen weight from/to: 4000 kgfeeler adjustment movement - parallel: 1400 mmmax.helical angle: 0 - 90 °wheel diameter with counterstay: 1000 mmfeeler adjustment movement - parallel: 800 mmcentre height: 1150 mmelectrics - voltage/frequency: 400 / 50 V/Hzdimensions of the machine ca.: 2,8 x 2,4 x 2,3 mtotal power requirement: 2 kWweight of the machine ca.: 3 tUniversal Involute and Helix Testing Machine - modernized 1995Machine is suitable for measuring all individual tooth data on straight and helical spur gears, and shaping andshaving cutters. Following tooth data can be t ...

max. wheel diameter: 200 mmgear width: 60 mmmax. module: 5 min. module: 2 workpiece weight max.: 6,0 kgtotal power requirement: 4 kVAweight of the machine ca.: 0,5 tdimensions: 1,35 x 1,55 x 1,7 mLess used Gear deburing machine- 3-jaw chuck ZG 125- One twist in 5- 120 sec.- After test maybe modil 1,25 possible- Working Unit 1, milling function- Working Unit 2, brush function- dust collector- automatic modeThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
