104 INDEX maquina usada para la venta

Esta máquina de torneado horizontal Index MC 400 de 3 ejes fue fabricada en 2008. Ideal para operaciones de torneado de precisión, ofrece una construcción robusta y un rendimiento fiable. Si buscas capacidades de torneado de alta calidad, considera la máquina Index MC 400 que tenemos a la venta. Contacta con nosotros para más información sobre esta máquina.

Este torno INDEX C-42 Speed Line fue fabricado en 2004. Esta máquina fue conectada inicialmente en 2005 y está equipada con un sistema de control Siemens 840. Viene con un alimentador de barras cortas IRCO para una manipulación eficiente de materiales y una mayor productividad. En total tiene 5 ejes, incluyendo Z, X, C, B e Y. Por ello, ofrece una versatilidad inigualable en las operaciones de mecanizado. Con 3 torretas de herramientas y portaherramientas VDI 25, permite cambios precisos y rápidos de herramientas para satisfacer diversos requisitos de fabricación. A pesar de su estado actualmente no operativo, permanece en condiciones excepcionales, ya que ha estado en

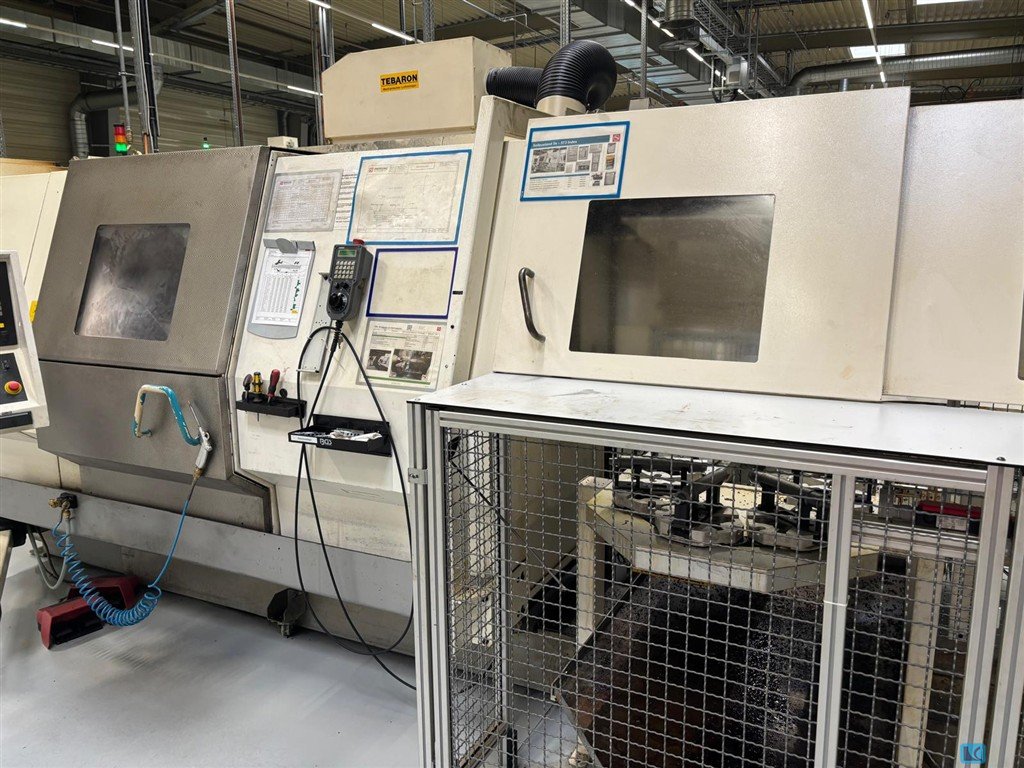

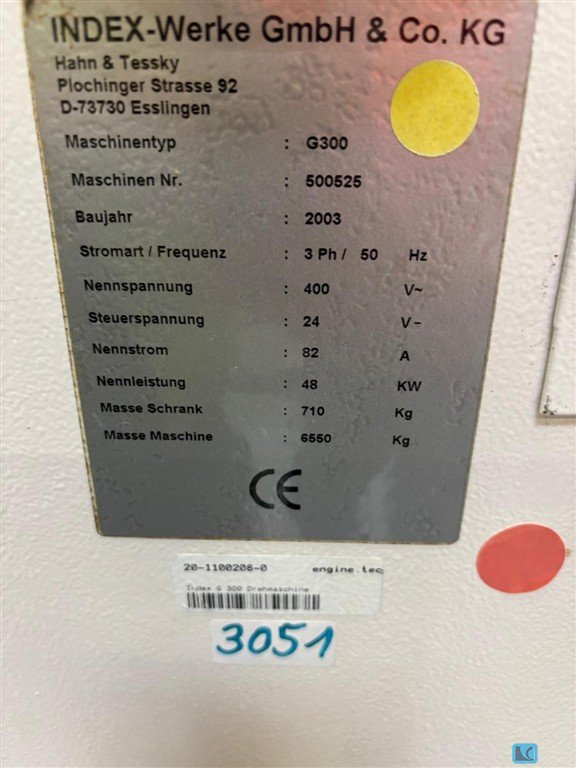

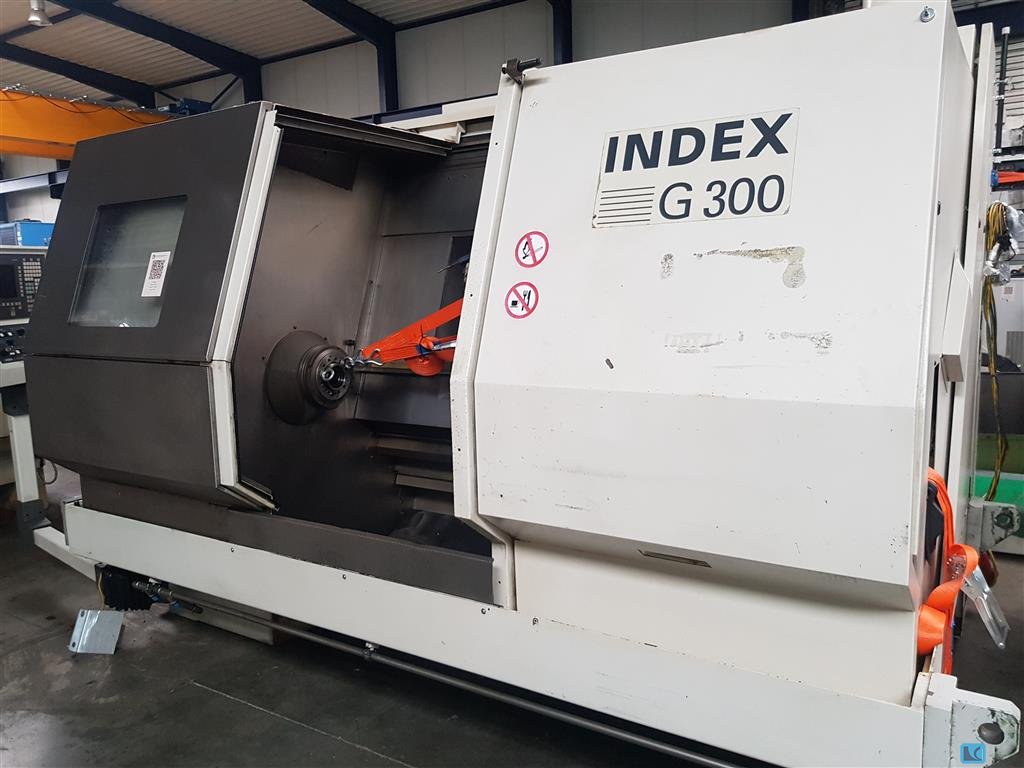

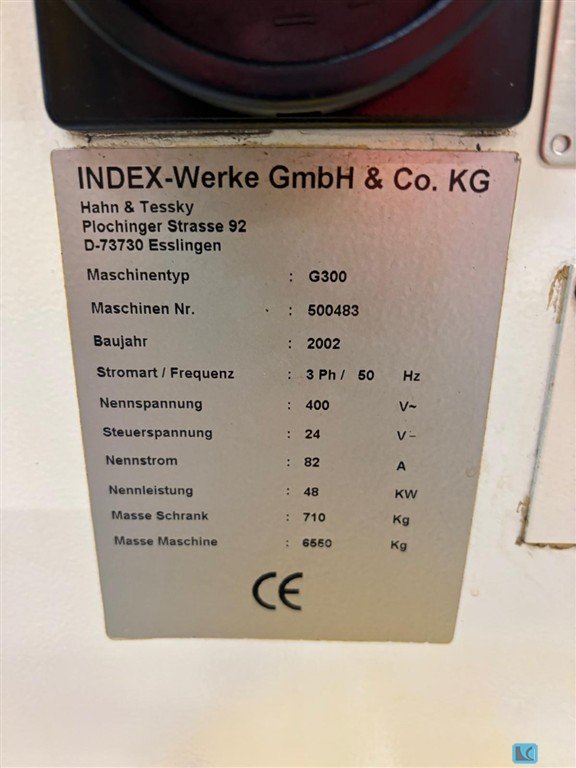

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

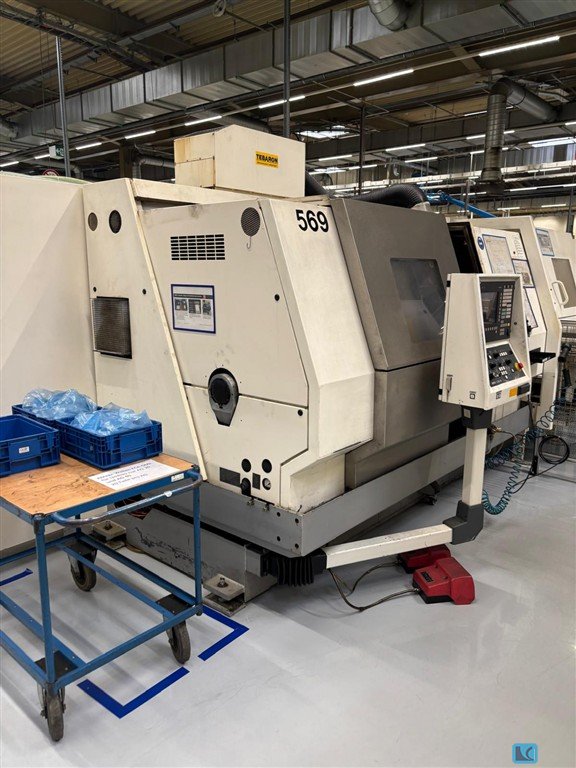

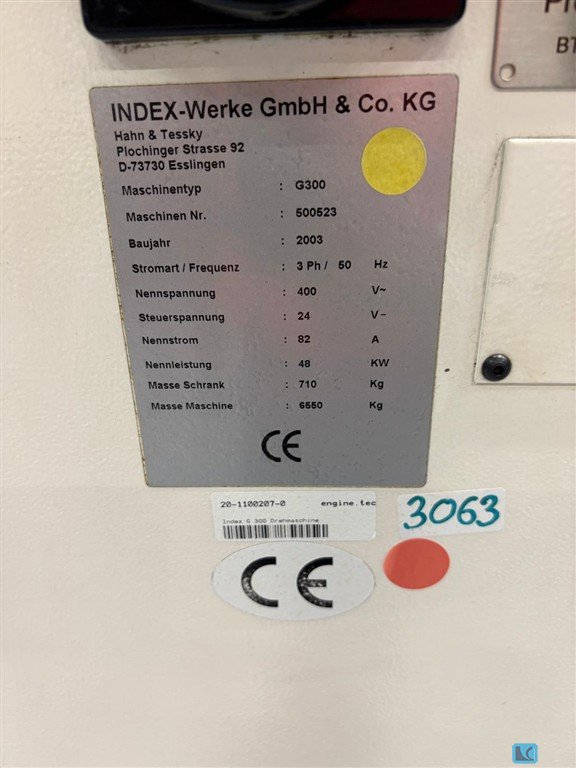

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

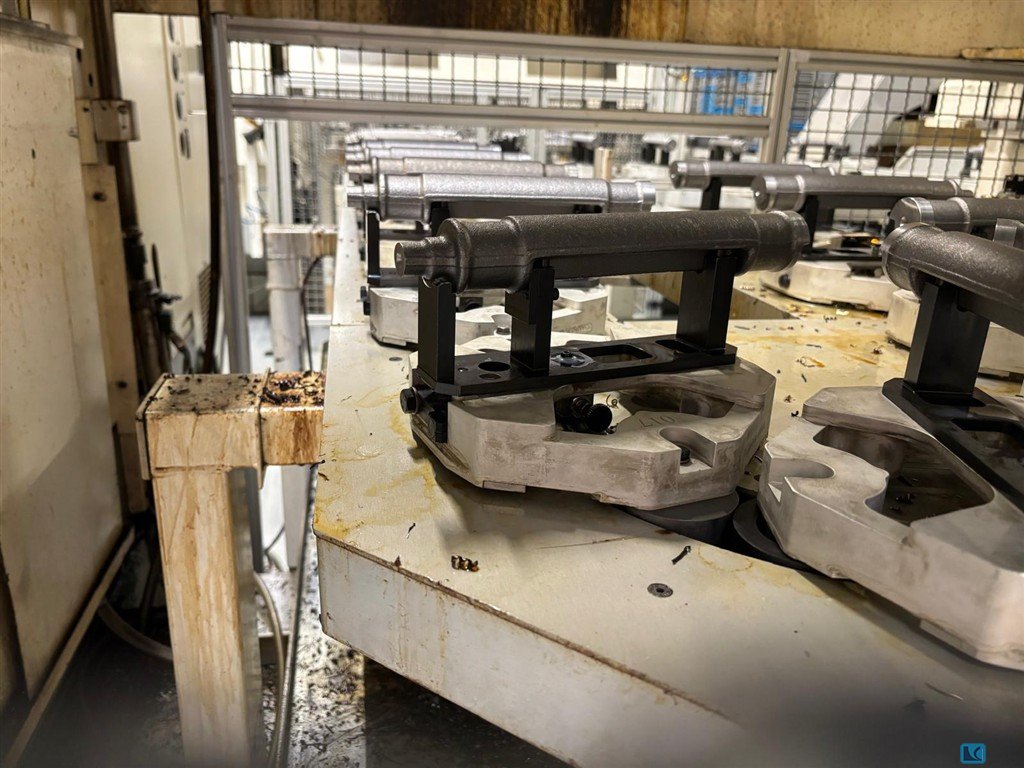

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

Out of valve production

weight of the machine ca.:2,5 t spindle passage:65 mm

turning length:400 mm total power requirement:45 kW weight of the machine ca.:4 t dimensions of the machine ca.:3,58 x 1,91 x 2,05 m spindle passage:45 mm

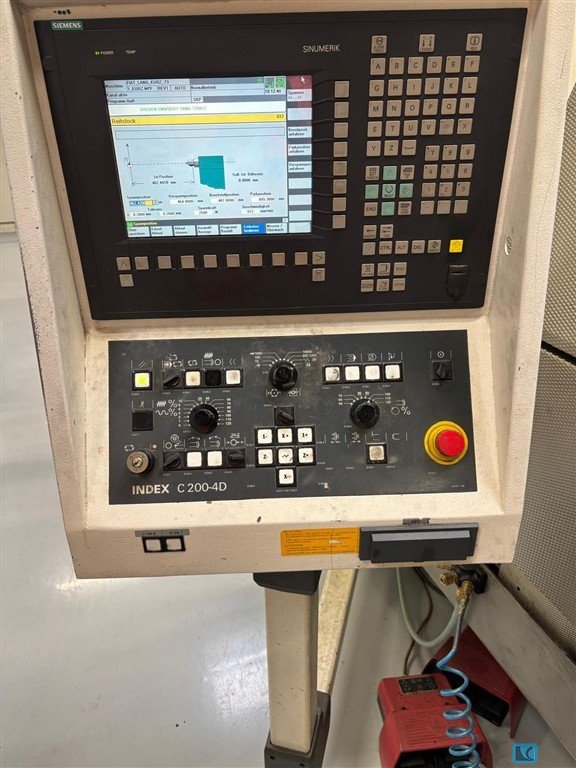

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

turning diameter:200 mm swing diameter:260 mm turning height:200 mm Tool table:1054 x 400 mm Dimensions (L/W/H):2200 x 2300 x 2300 mm weight:3300 kg slide travel radial ( X-axis ):520 mm slide travel axial ( Z-axis ):200 mm no pallet circulating belt, no C-axis, no driven tools

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25. No socket for powered tools!

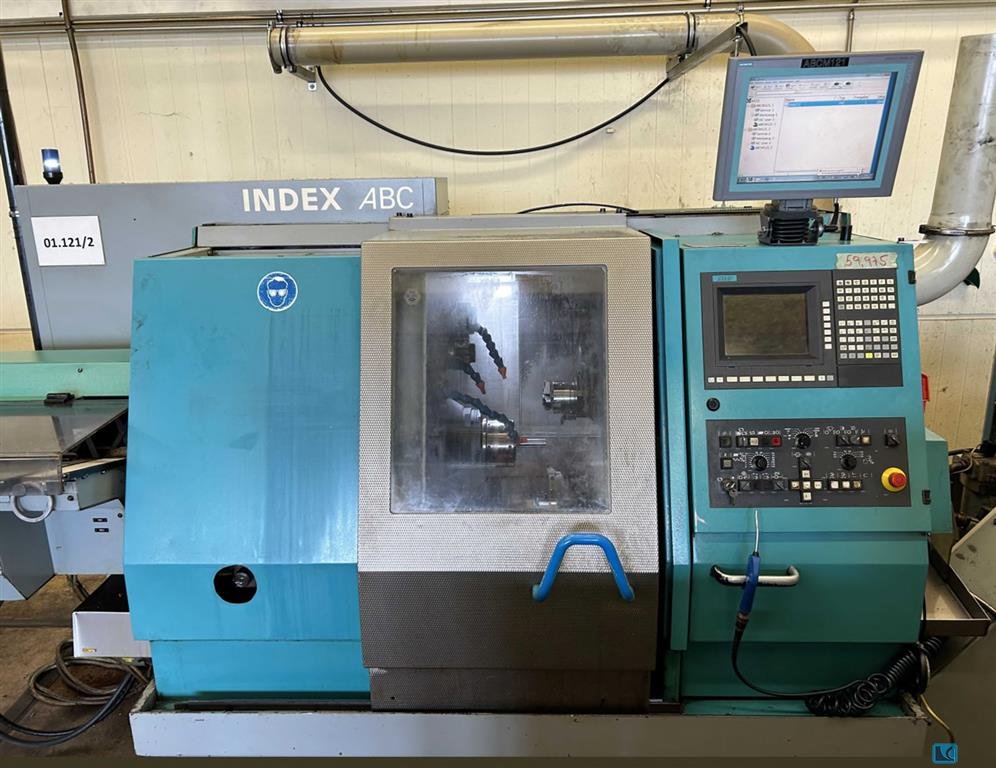

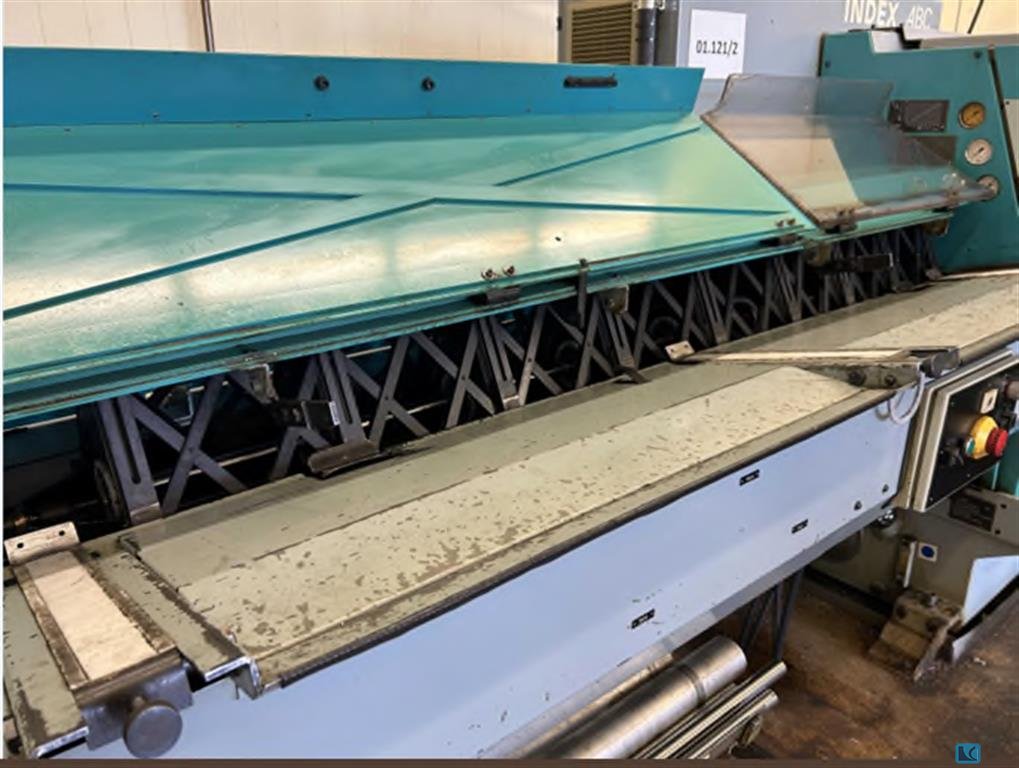

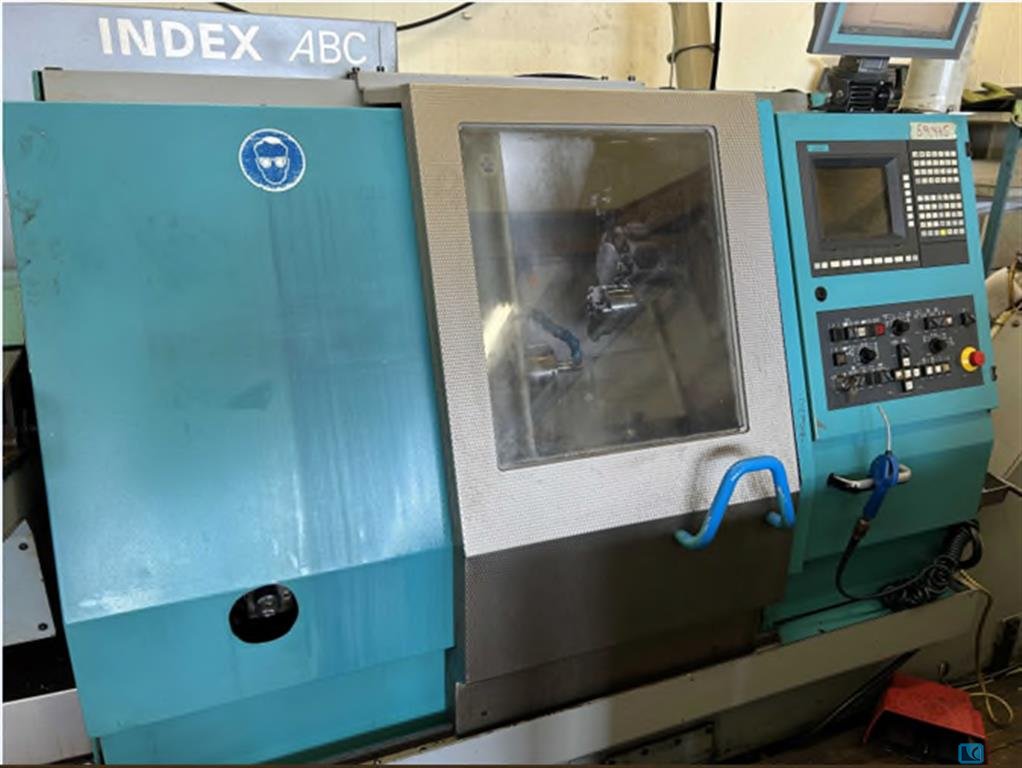

Manufacturer: INDEX Model: INDEX ABC Year of Manufacture: 1997 - With bar feeder and chip removal Electrical Specifications - Power Supply: 3-phase, 50 Hz - Rated Voltage: 400 V - Control Voltage: 24 V - Rated Current: 32 A Synchronous Spindle - Collet Clamping - Max. torque (Md max. 25%): 10 Nm - Max. speed: 4500 rpm - Max. collet diameter: 42 mm - Clamping depth at max. collet diameter: 38 mm - Spindle bore diameter: 15.5 mm - Max. ejector stroke: 36 mm - Max. clamping pressure: 65 bar Synchronous Spindle - Chuck Clamping - Max. torque (Md max. 25%): 10 Nm - Max. speed: 4000 rpm - Max. chuck diameter (external): 75 mm - Max. ejector stroke: 42 mm - Max. jaw stroke: 0.6 mm - Max. clamping pressure: 20 bar Rear Tool Carrier for Backworking Operations - Capacity: up to 5 fixed tools - Capacity driven tools: up to 3 fixed and 2 driven tools - Max. speed (driven tools): 6000 rpm  ...

diámetro de torneado: 110 mm. Longitud de tornado: 450 mm. control: Siemens requerimiento total de potencia: kWpeso de la máquina, aprox. 9000 kg. Dimensiones de la máquina, aprox. m. Los datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.

Diámetro de torneado: 160 mm. Longitud de tornado: 550 mm. control: Siemens consumo total de potencia: kWpeso de la máquina, aprox. 9000 kg. Dimensiones de la máquina. Ca.: mLos datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.

swing diameter: max. 450 mm chucking diameter: 400 mm control: Siemens 840D (Index) Main spindle:: Max. rpm: 4.200 min/-1 power capacity - main spindel: ( 35,5 / 56 ) kW max. Torque: ( 340 / 550 ) Nm C-Axis: 0,001 ° turret:: number of toolpositions: 2x 12 pos driven statition: 2x 12 pos worktool system: VDI 30 max. spindle speed driven tools: 6.000 U/min. power capacity - driven tools: 9,5 kW max. Torque: 40%: 19 Nm Y - Axis: +/- 90 mm B-Axis: +270° / -90 ° axis stroke:: x-axis: 730 mm z-axis: 340 mm y-axis: +/- 90 mm b-axis: +270° / -90 ° feeds:: rapid traverse: X: 40 / Z: 30 m/min pallet changer:: numbers of pallets: 24 pos. size of pallet: 410 x 300 mm max. workpiecediameter: 300 mm max. workpiece weight: incl. Pallet: 25 kg Chain width: 75 mm band speed: 7,5 m/min total power requirement: 56 kW weight of the machine ca.: 9,0 t dimensions of the machine ca.: 8,5 x 6,0 x 2,7  ...

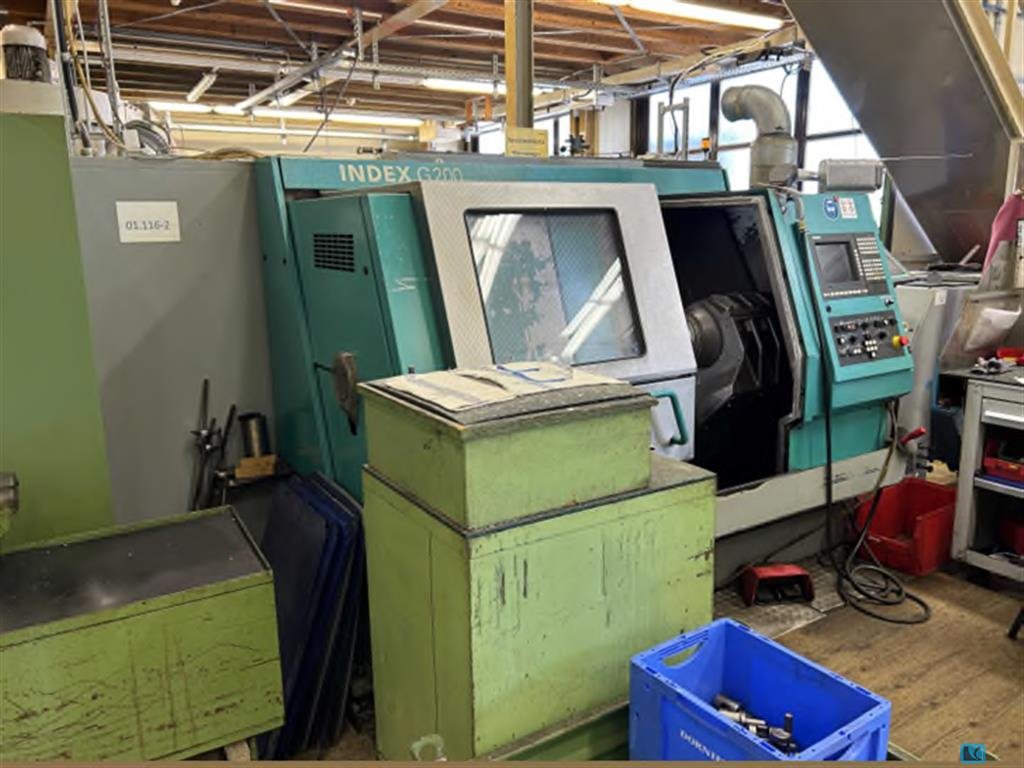

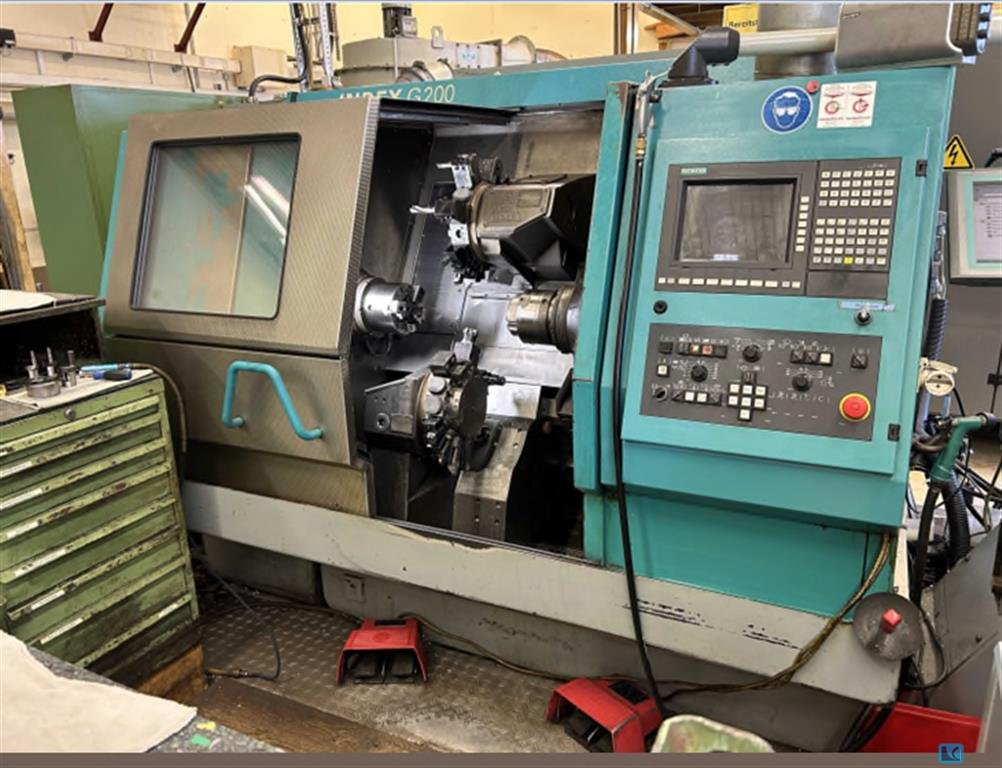

Manufacturer: Index Model:G 200 RATIO LINE Year of Manufacture: 2006 Machine type: CNC Lathe Operating Hours: approximately 115,000 h TECHNICAL DATA Control: Siemens 840D (NCU 573.5, NC memory expansion to 3 MB) C-axis on main and counter spindle Thread cutting without compensation chuck Electronic shaft Additional V24 RS232 in control cabinet Transmit/Tracyl function MDE interface (machine on, machine running, piece counter) Marposs (Brankamp) collision monitoring CMS100 3D machine model for kinematic simulation in CAM programming system Control cabinet cooling unit (2 pieces) Main Spindle D65 Collet holder for pull tension HAINBUCH Counter Spindle D60 Collet holder for pull tension HAINBUCH Stop device Coolant flushing of counter spindle (shut-off valve electric) Foot switch Turret (12 stations) bottom and top Driven tools turret 1 and 2 Control function "live  ...

Manufacturer: Index Model:G 200 RATIO LINE Year of Manufacture: 2003 Machine type: CNC Lathe Operating Hours: approximately 92,000 h TECHNICAL DATA Control: Siemens 840D C-axis on main and counter spindle Thread cutting without compensation chuck Electronic shaft Additional V24 RS232 in control cabinet Transmit/Tracyl function MDE interface (machine on, machine running, piece counter) Marposs (Brankamp) collision monitoring CMS100 3D machine model for kinematic simulation in CAM programming system Control cabinet cooling unit Main Spindle D65 Collet holder for pull tension HAINBUCH Power chuck D210 with quick jaw change Manufacturer Schunk Counter Spindle D60 Collet holder for pull tension HAINBUCH Power chuck D210 with quick jaw change Manufacturer Schunk Stop device Coolant flushing of counter spindle (shut-off valve electric) Foot switch Turret (12 stations) b ...

Manufacturer: INDEX Model: MS42C Year of Manufacture: 1998 ( Machine 1 ) 2002 (machine2 ) Machine 1 : Power supply: 3-phase / 50 Hz Rated voltage: 400 V Control voltage: 24 V Rated current: 125 A Rated power: 69 kW Electrical cabinet weight: 1500 kg Machine weight: 11000 kg Machine 2 : Power supply: 3-phase / 50 Hz Rated voltage: 400 V Control voltage: 24 V Rated current: 100 A Rated power: 72 kW Electrical cabinet weight: 1500 kg Machine weight: 11000 kg Working area Maximum bar diameter (bar feed, external): 42 mm Bar feed positions: spindle positions no. 1, 3, 4, 6 Spindle circle diameter: 320 mm Main spindle (turning spindle) Clamping system: Power clamping with INDEX spring-loaded hollow clamping cylinder and draw tube Maximum clamping stroke: 4 mm Clamping force: 26 kN Drives Main spindle drive (per spindle): Motor type: Variable-speed hollow-shaft A ...

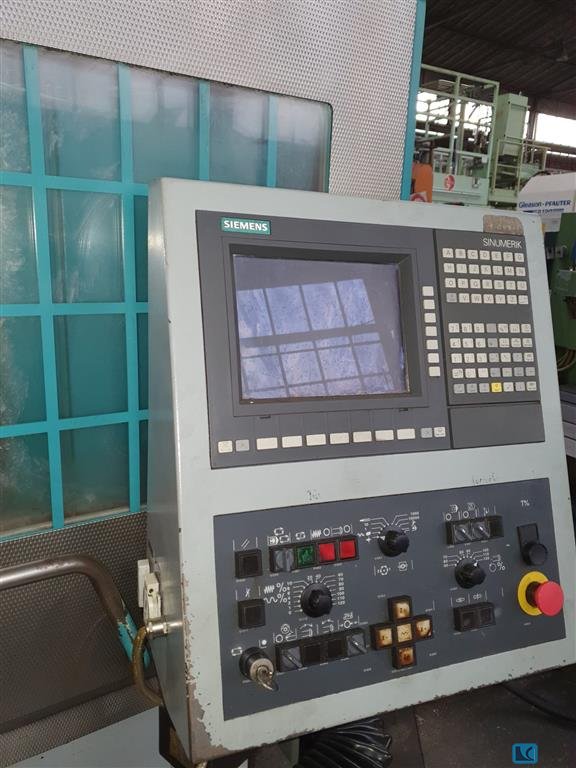

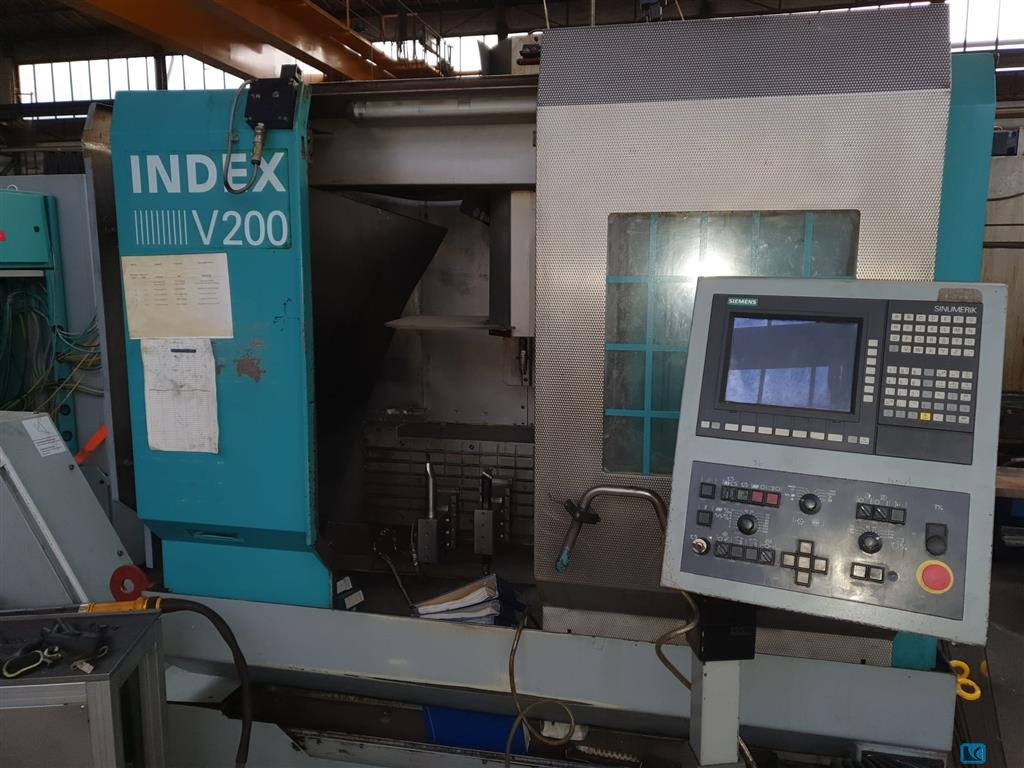

Fabricante: INDEX Modelo: V200 Año de fabricación: 2001 Tipo de máquina: torno automático con cargador de piezas de Schmid Especificaciones eléctricas: Fuente de alimentación: 3 fases Frecuencia: 50 Hz Voltaje nominal: 400 V Voltaje de control: 24 V Corriente nominal: 66 A Potencia nominal: Potencia nominal: 31 kW Peso: Peso del gabinete de control: 440 kg Peso de la máquina: 3.300 kg Encuentra más aquí - / Contacta con nosotros en -

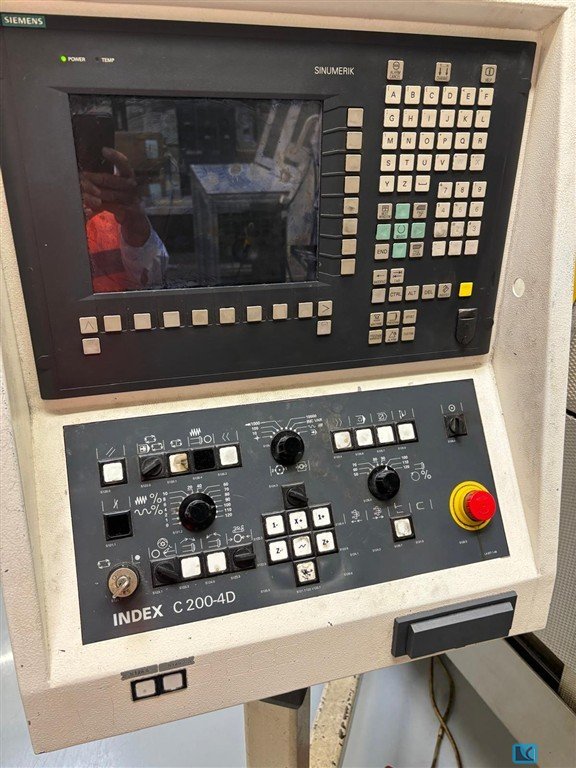

swing diameter: 560 mm turning length: 800 mm control: C200-4D Siemens 840 D Main spindle:: spindle head: 8 DIN 55026/55021 ISO 7027/1 bar capacity: 90 mm spindle diameter in front bearing: 140 mm turning speed range - spindle: ~ 3.500 U/min drive capacity - spindle motor: 100% / 40%: 43 / 57 kW Torque: 275 / 363 Nm Indexing: 2,5 ° C-Axis: 0,001 ° turret:: Number of Turrets: 1 number of toolpositions: 12 pos. Spindle speed - driven tool stations: ~ 6.000 min -1 power capacity - driven tool-stations: 11 kW tool taper: 40 x 63 mm DIN 69880 Torque: 21,5 Nm travel -x axis: 300 mm travel -z axis: 800 mm rapid traverse: X/Z: 30 / 22,5 m/min feed power: X: 7.200 N feed power: Z: 9.000 N Tailstock:: dia. of quill: 65 mm Cone: SK 30 longitudinal travel: 800 mm rapid traverse: 10 m/min total power requirement: 51 kVA weight of the machine ca.: ca. 14 t dimensions of the machine ca.: 7,3 x 4,0 ...

Fabricante: Index Modelo: G 400 Encuentra más aquí - / Contacta con nosotros en -

Fabricante: Index Modelo:MS 25 M Año de fabricación: 1990 Tipo de máquina : Torno, 6 husillos - Husillo principal: 25 mm - Accionamiento: Mecánico - Características y equipamiento: - Cargador de barras (IEMCA) - Cambiador de palets - Transportador de virutas - Herramientas accionadas - Accesorios adicionales incluidos Condición: Usado, en buen estado de funcionamiento. Encuentra más aquí - / Contáctenos en -

7 monturas Index VD30 con interfaz Capto, 3 unidades impulsadas por ella, ¡en perfecto estado!

Torno de curva INDEX B60 - no completo - como dispensador de piezas de repuesto - ver imágenes

ver imagen

Torno de curva INDEX ER60 - ver imágenes Más: máquina de rotación MANURHIN Traminer TR22B

ver imágenes

varios portaherramientas INDEX de acuerdo con la lista
