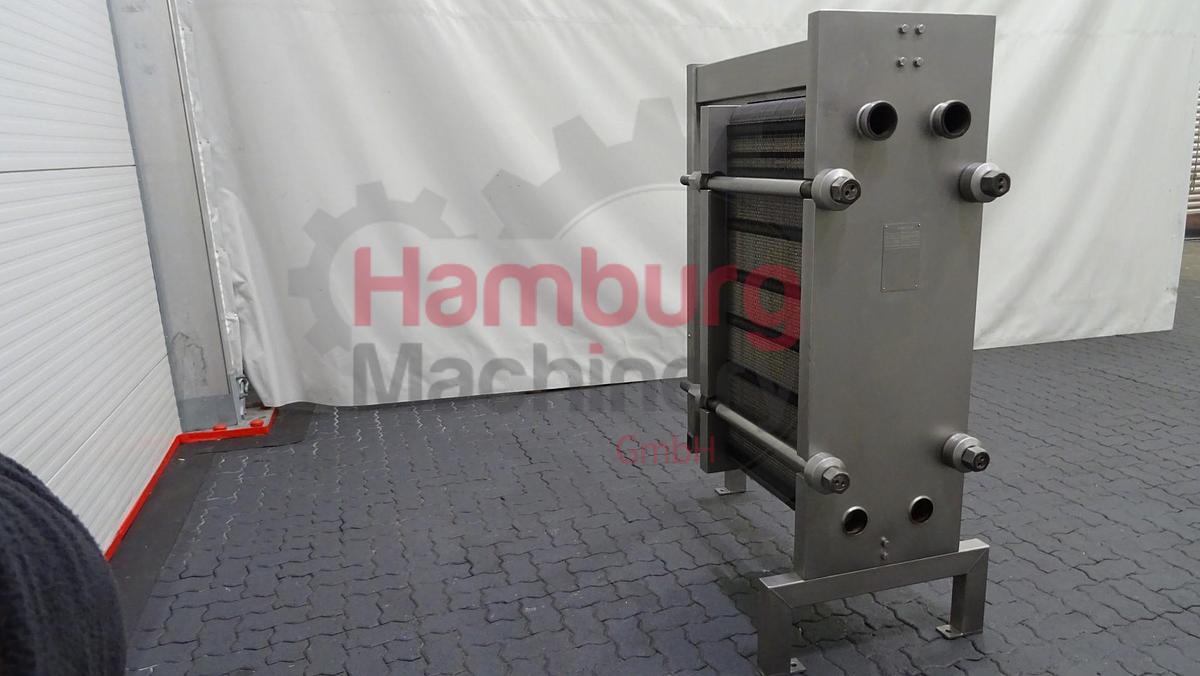

ALFA LAVAL Clip 8-RH

Industrial plate heat exchanger, previously used for ice water cooling applications. Designed for efficient heat transfer between two liquid media, making it suitable for cooling and other temperature-control processes in the dairy, food and beverage industries. The heat exchanger is configured with one section containing 131 plates, providing a total internal volume of approximately 157 liters. The unit is designed for a maximum allowable operating pressure of 16,0 bar and a maximum allowable temperature of 110°C. The connection configuration consists of two header connections at the top and two follower connections, one positioned at the top and one at the bottom., Type of Machine: Plate Heat Exchanger, Volume: 157 Liter, Number of sections: 1x, Number of plates: 131x, Max. working pressure: 16 bar, Premissible Temperature: 110 °C
seller offer No. resale 1666
