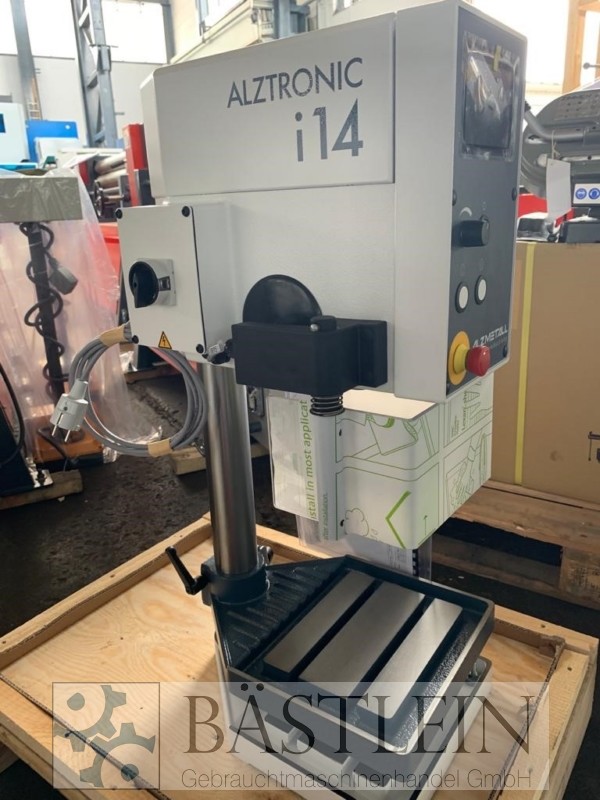

Taladradoras de mesa ALZMETALL ALZTRONIC i14

: 14 mm
: M 10
: MK 2
: 230-4.000 U/min.
spindle stroke: 80 mm
throat: 190 mm
column diameter: 65 mm

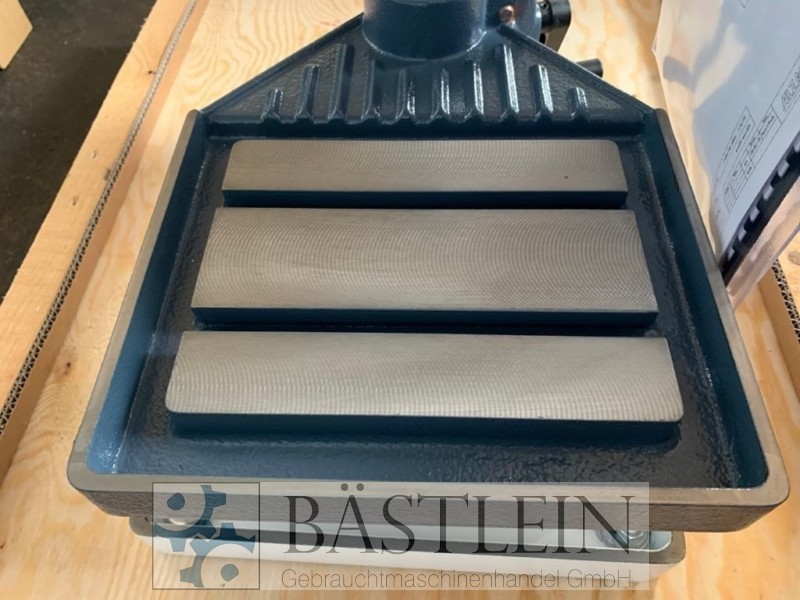

: 300x240 mm
: 2 x 12 x 80 mm
: 75/357 mm
: 300x240 mm
: 2 x 12 x 80 mm
: 437/437 mm
feed: von Hand
: Handkurbel
Machine height: 825 mm
total power requirement: 0,7 kW
weight: 93 kg
Standard equipment:
5 TFT LCD display with touch function: Manual input of spindle speed setpoint
setpoint, actual speed display, integrated drilling depth display with touch
zero point transfer, virtual drilling depth scale in the display, machine status
status indicators and warnings on the display, Service information, Selectable
operator language
operator language: DE/EN/FR/ES/IT/NL/RU.

- AC motor 230 Volt, 50 Hz
- Connection plug ready fitted, cable length 3 m
- Infinitely variable speed adjustment via potentiometer
- Three separate buttons for clockwise rotation - anticlockwise rotation - stop
(spindle stop due to brake function)
- Spindle protection with electrical fuse
- Mushroom pushbutton (latching) for EMERGENCY STOP
- Main switch, lockable
- Control voltage 24 Volt
- Protection class IP 54
- Paint finish: DD textured paint signal white RAL 9003, PANTONE 7545c, black


Item 37.6
MAXIMUM DRILLING DEPTH DISPLAY
as a measuring function for the current drilling depth



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1123-2010574
