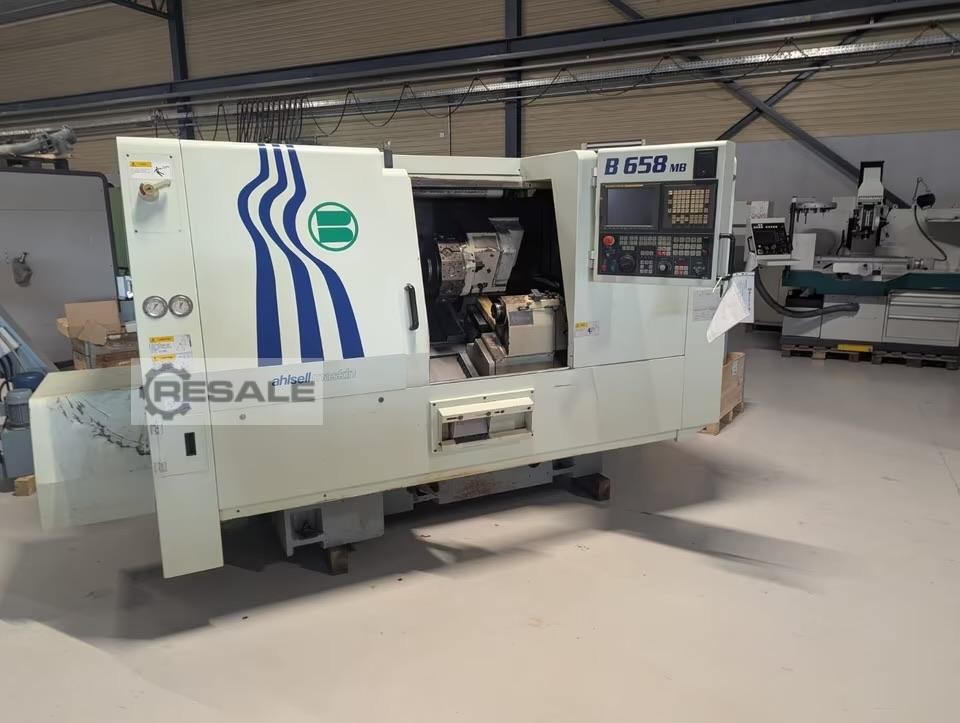

Tornos CNC BIGLIA B 658 MB

Turning diameter: 380 mm Turning length: 650 mm Turning speeds: 3000 1/min CNC lathe with driven tool stations
Manufacturer : Biglia
Model : B 658 MB

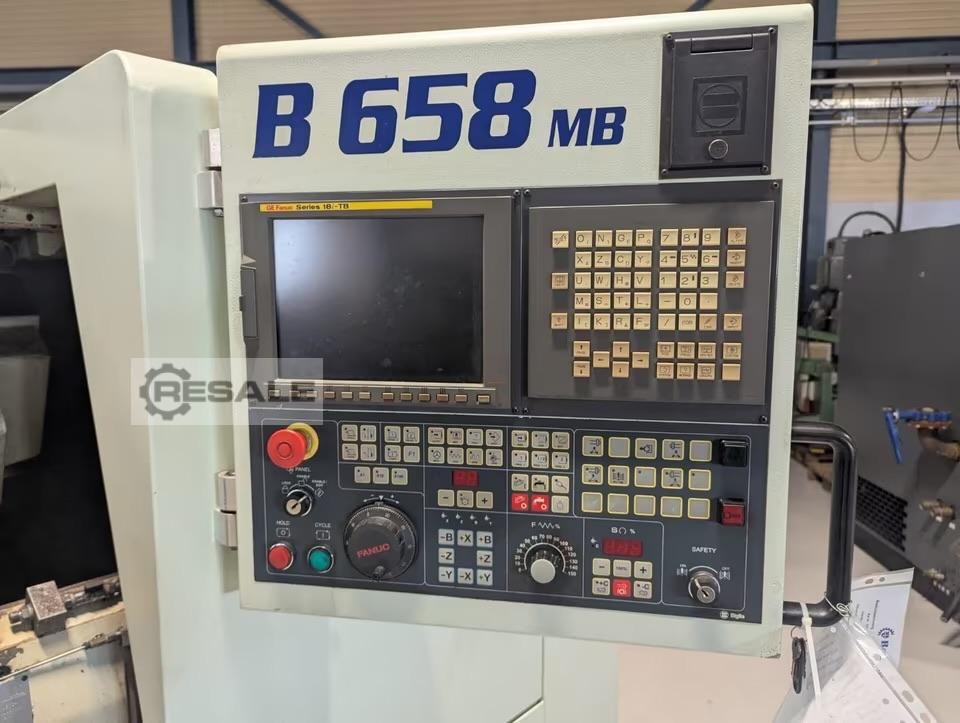

CNC Control: FANUC Series 18i-TB
Year of manufacture : 2004
Condition : good , fully functional
Location : Hultsfred -Sweden
Availability : in stock

Specifications

Maximum turning diameter: 380 mm
Maximum rod diameter: 80 mm
Maximum passage: 620 mm
Maximum turning length: 650 mm
Feed in the X/Z/B axis: 220/650/660 mm
Rapid traverse in the X/Z/B axis: 20/24/12 m/min
Spindle speed: 30-3000 rpm
Spindle bore diameter: 90 mm
Spindle tip height: 1055 mm
Inner diameter of the front bearing: 130 mm
Spindle End: ASA 8"
Spindle drive power: 26/22 kW
Diameter of the lathe chuck: 315 mm
12-position bidirectional turret
Outer lathe chisel shank: 25×25 mm
Shaft of the internal turning tool: ⌀ 40 mm
Indexing of the turret (by 1 position): 0.1 s
Driven tool stations 12 positions
Max. speed driven tool stations: 4000 rpm
Max. torque driven tool stations:3.7 kW

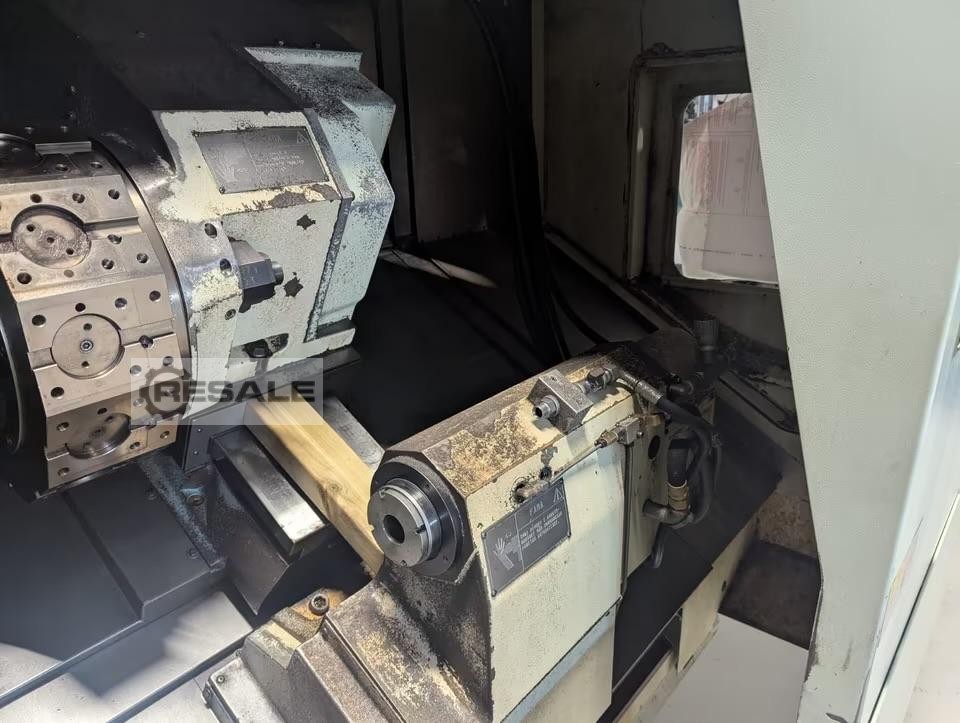

Automatic tailstock
Maximum tension of tailstock: 1080 Kgf
Collet DIN 6343
Coolant tank capacity: R51048693 250 l
Coolant pump R51048693 capacity: 150 l/min
Coolant pump power: 0.73 kW
Noise level: 74 dB(A)

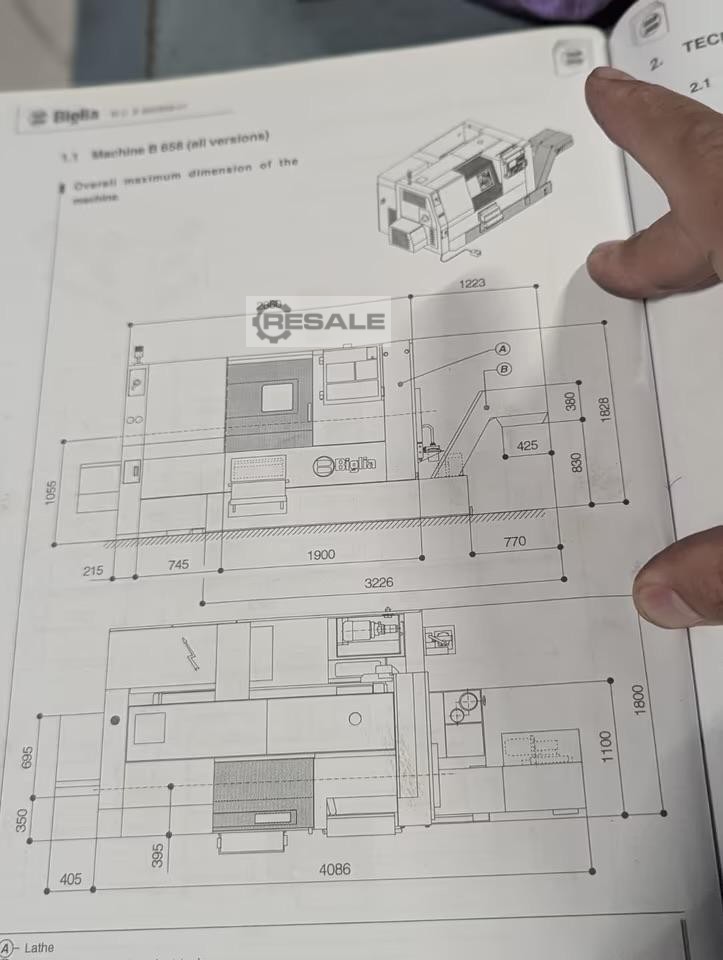

Dimensions (L x W x H): 4000 x 1900 x 1850 mm
Weight of the BIGLIA B658/BM 6000 kg

Additional equipment
Measuring arm ( Touch Setter )

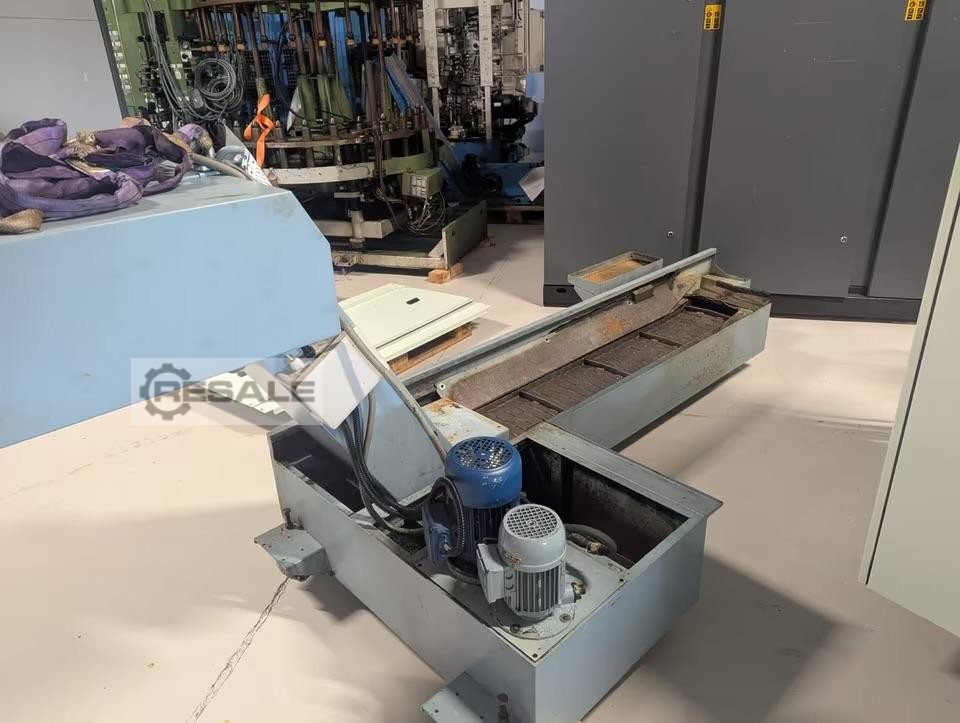

Conveyor
