Fresadoras EMCO F3

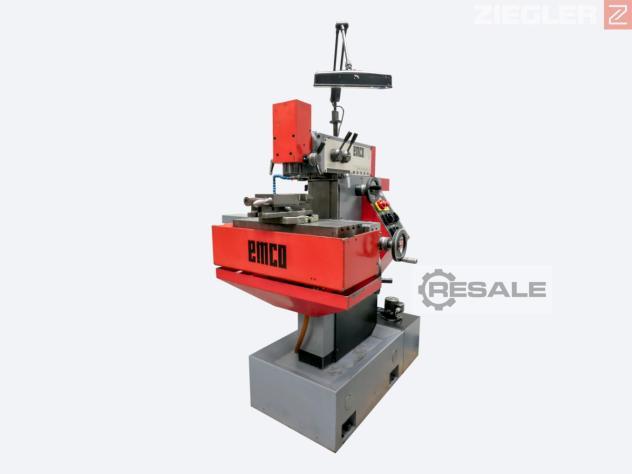

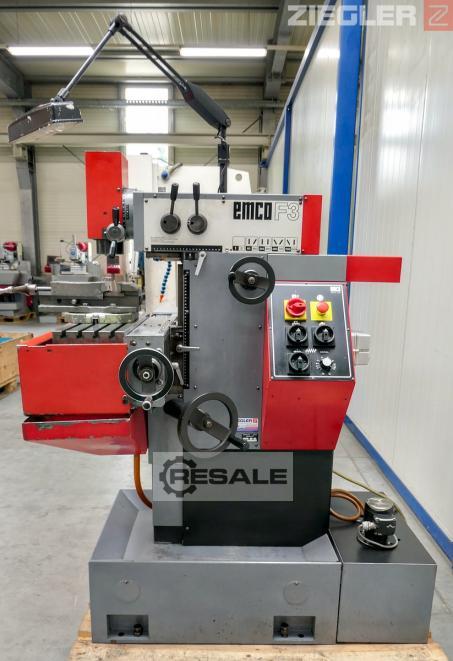

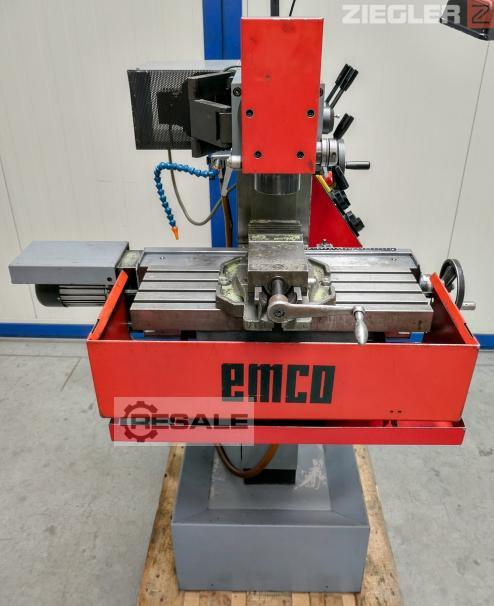

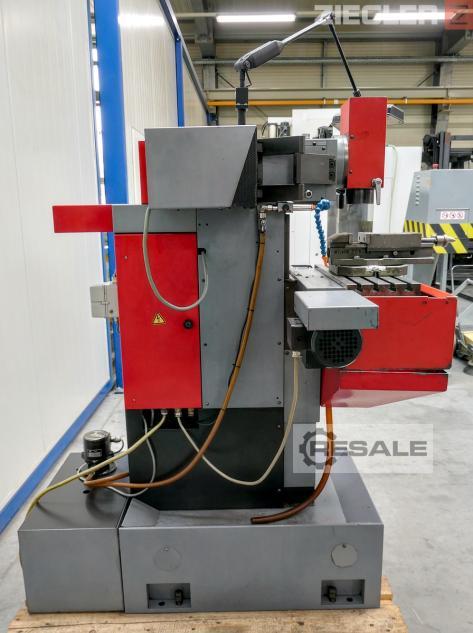

Emco F3 - Milling Machine

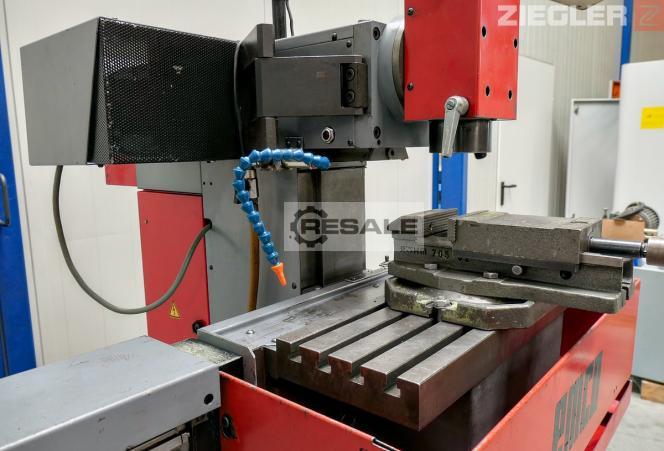

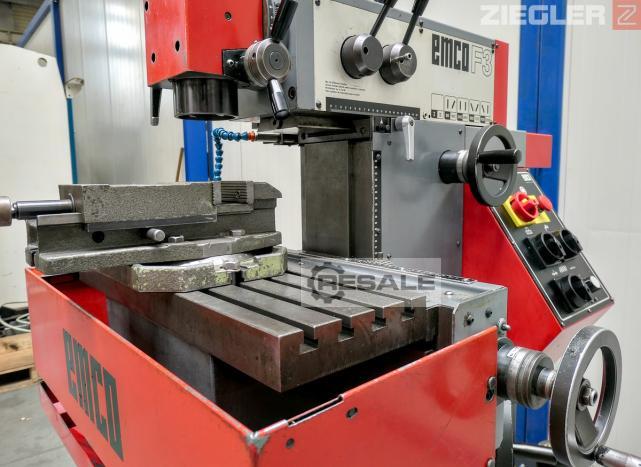

- Vise

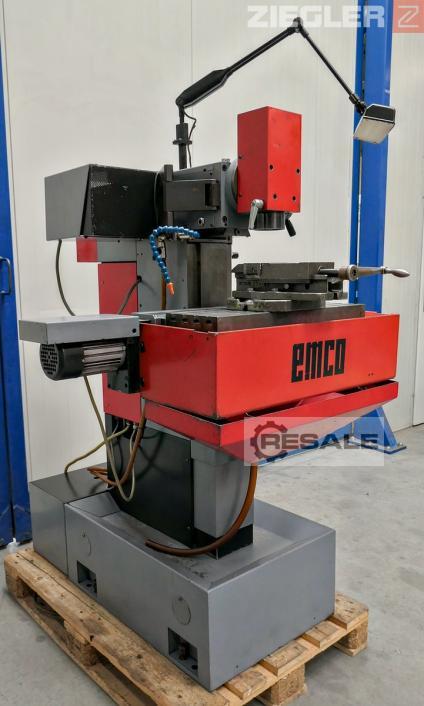

- Workplace lighting
- Coolant device

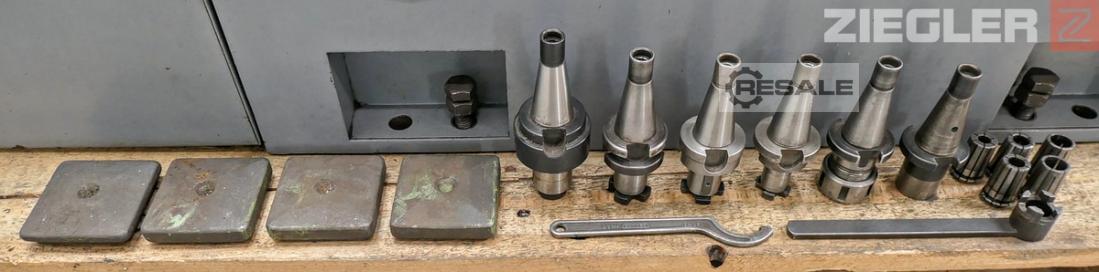

- Tools & Machine Feet

Technical data

Working Range:
- Slide path longitudinal: 300 mm
- Slide path transverse: 200 mm
- Vertical slide path: 350 mm
- Quill stroke for vertical milling spindle: 45 mm
- Vertical milling head swivel: ± 90 °
Clamping surface:
- Table dimensions: 600 × 200 mm
- 4 T-slots: 12 x 21 mm
- Groove spacing: 45 mm
Spindle:
- Tool holder: DIN 2078 / SK30
- Tool clamping: Pull-out screw M12
- Spindle speeds: 80 / 160 / 245 / 360 / 490 / 720 / 1100 / 2200 rpm
Automatic feed for longitudinal slides:
- Feed force: 1600 N (160 kp)
- Speed: 20 - 200 mm/min (infinitely variable)
- Rapid traverse: 1200 mm/min
Coolant Facility:
- Tank capacity: 30 l
- Flow rate: 15 l/min
Three-phase motor:
- Power: 1.1 / 1.4 kW (60% ED)
- Speed: 1400 / 2800 rpm
Dimensions:
- Dimensions WxHxD: approx. 1200 x 1900 x 1400 mm
- Machine weight: approx. 450 kg

seller offer No. resale 100245
