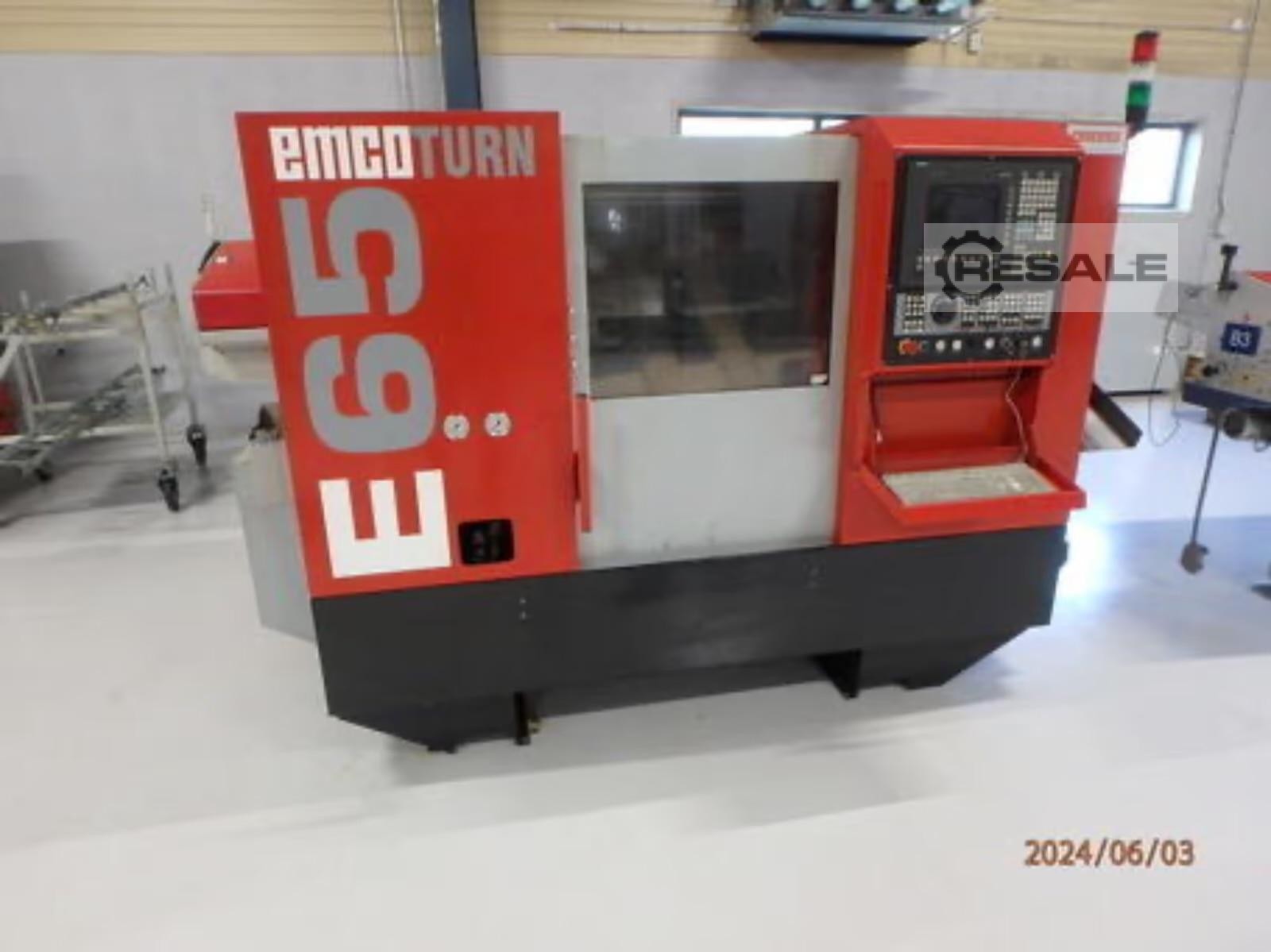

Centros de torneado CNC EMCO Turn E 65

Turning diameter: 310 mm Turning length: 520 mm Type of machine : CNC turning and milling center

Manufacturer : EMCO

Type EmcoTurn E65

Year of manufacture 2007

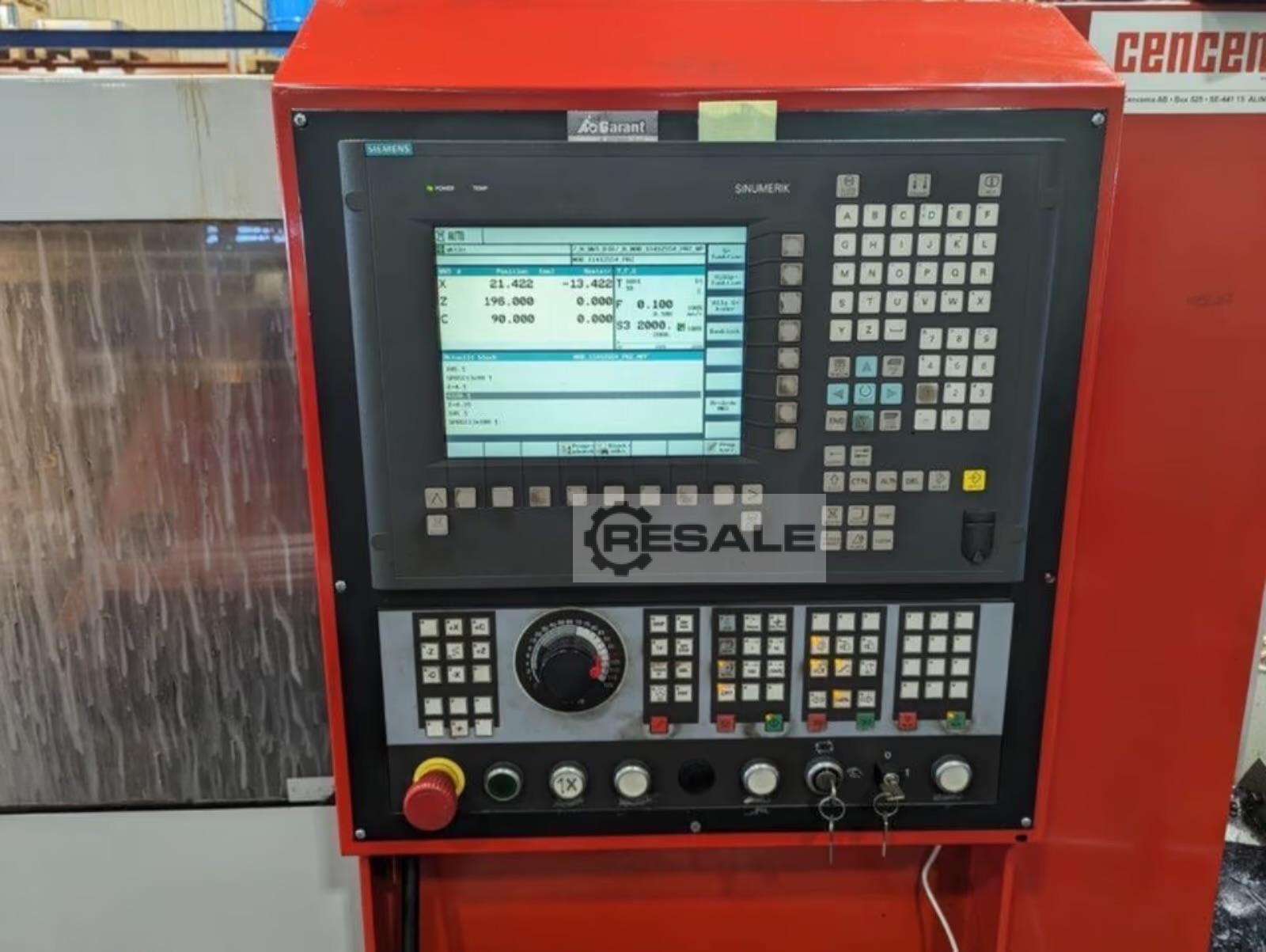

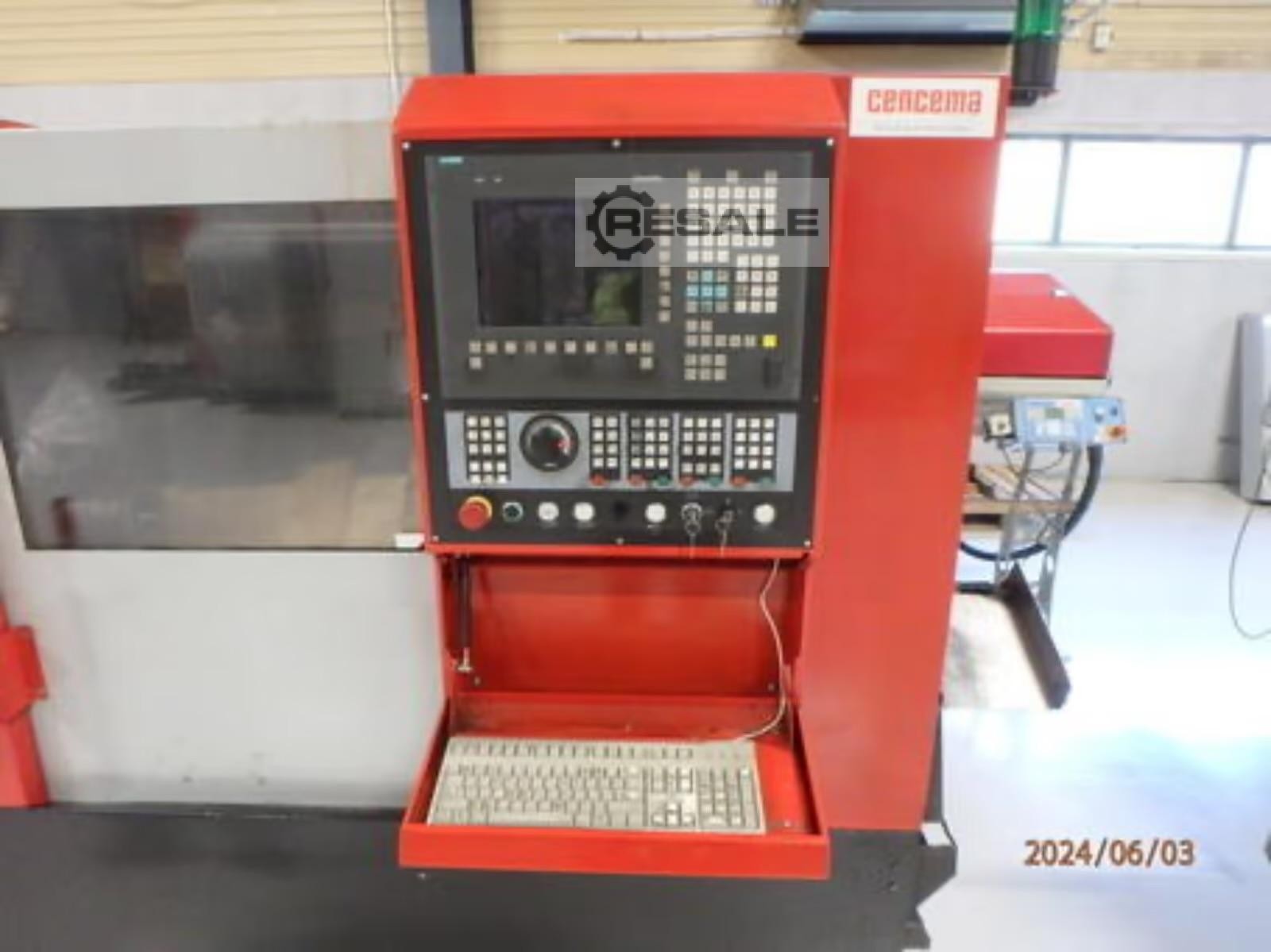

Control system Sinumerik 840 T Siemens

Storage location : Hultfred / Sweden

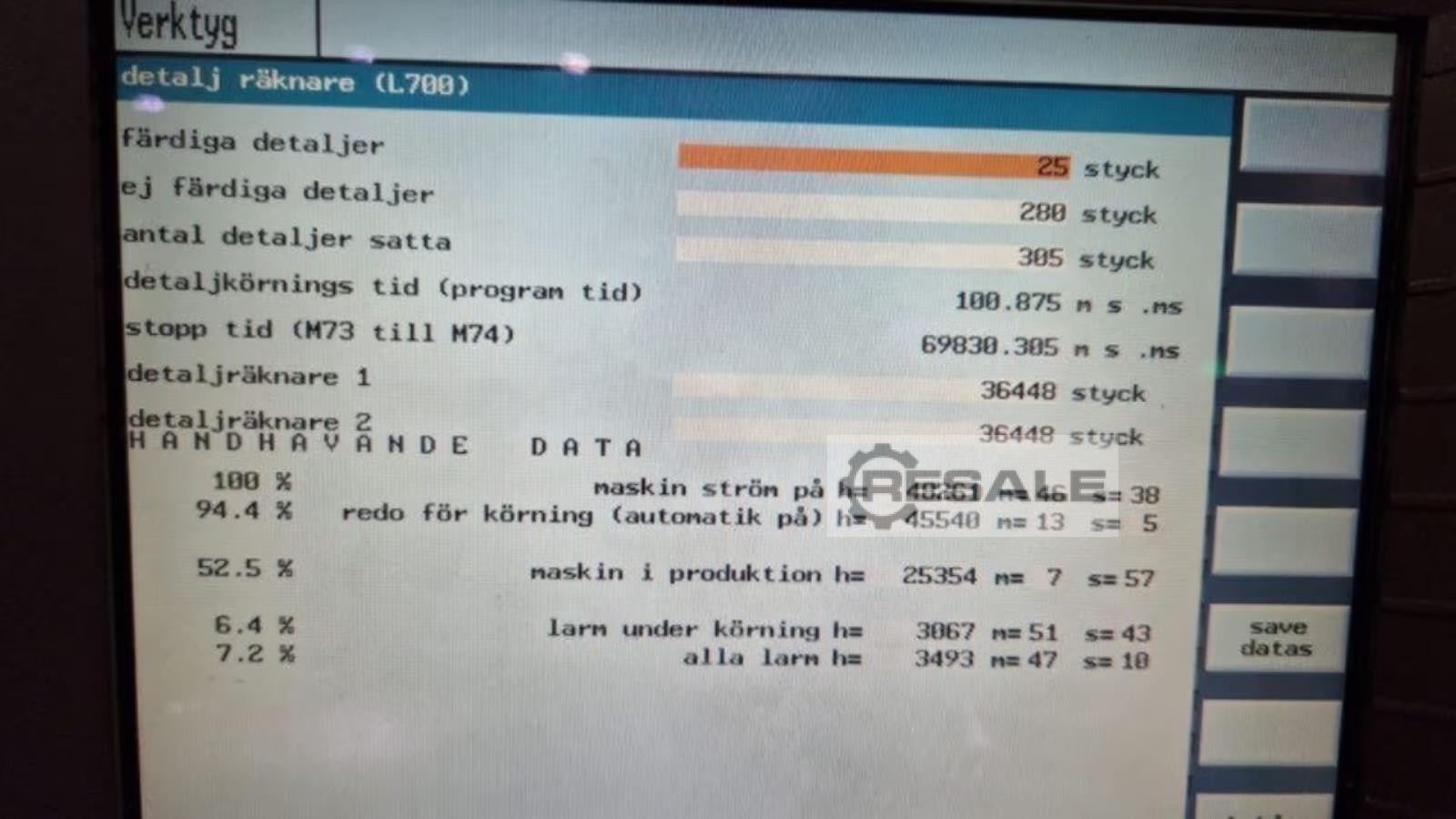

Switch-on hours : 46,000 h

Automatic operation : 25,500 h

Country of origin: Austria

Delivery time end of May 2024

Cargo base free truck loaded

Technical description

Travel:

X-axis : 210 mm

Z-axis : 610 mm

C-Axis : 360°

Max. swing diameter over bed : 540 mm

Max. swing diameter over face slide: 360 mm

Max. turning diameter : 310 mm

Max. turning length: 520 mm

max. rod diameter 65 mm

Center width: 650 mm

Main spindle:

Speed range - main spindle 60 - 4,200 rpm/-1

Drive power - main spindle 18 / 15 kW

Max. torque 192 Nm

Spindle head DIN 55026 / KK6

C-axis 0.001 °

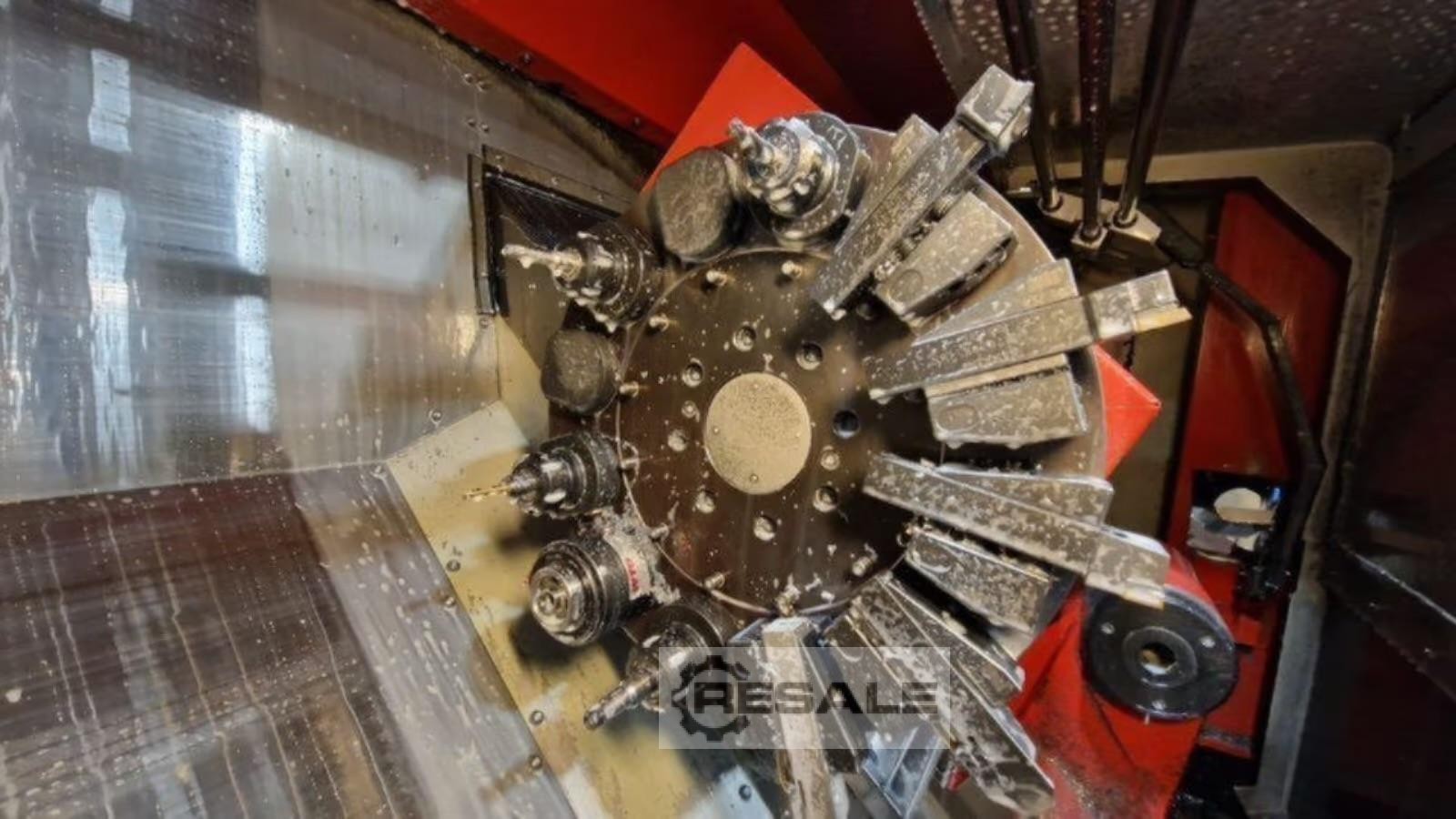

Tool turret: 12 positions

Tool holder VDI 30 DIN 69880

Driven tool stations: 12 pos.

Speed range - applied Tool stations 0 - 5,000 min -1 Drive power max. 5 kW

Max. torque 20 Nm

Feeds: Rapid traverse speed 24 m/min

Feed force ( X / Z ) 5,000 / 7,000 N

Machine weight approx. 4.5 R51048693 t

Space requirements R51048693 approx. 4.9 x 2.5 x 2.0 m

Total connected load 20 kVA

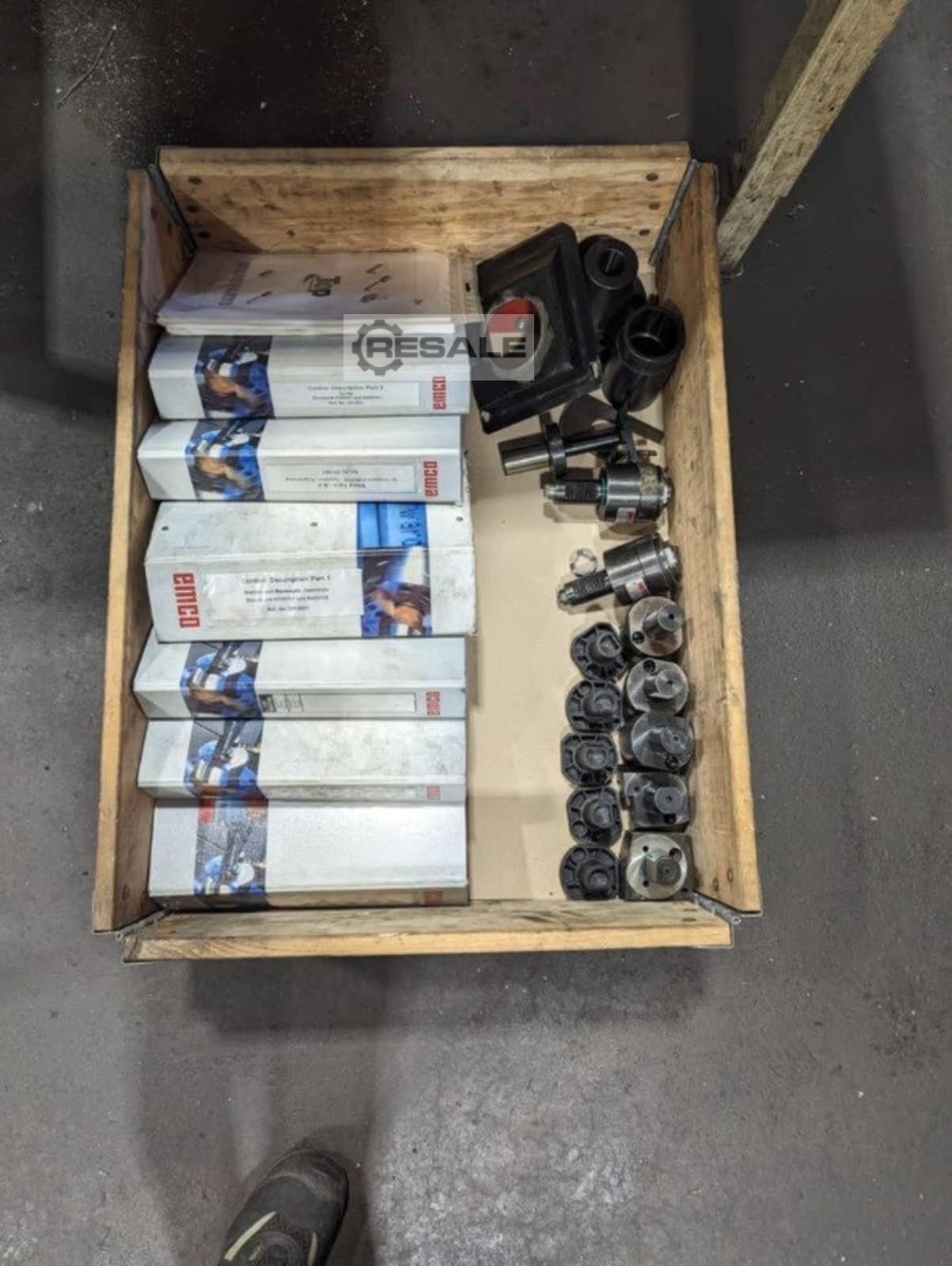

Accessories

Documentation
Conveyor
Coolant device
Tailstock
Collet chuck
Various tool holders, driven + static holders make WTO
Tool Preset ( Touch Setter )

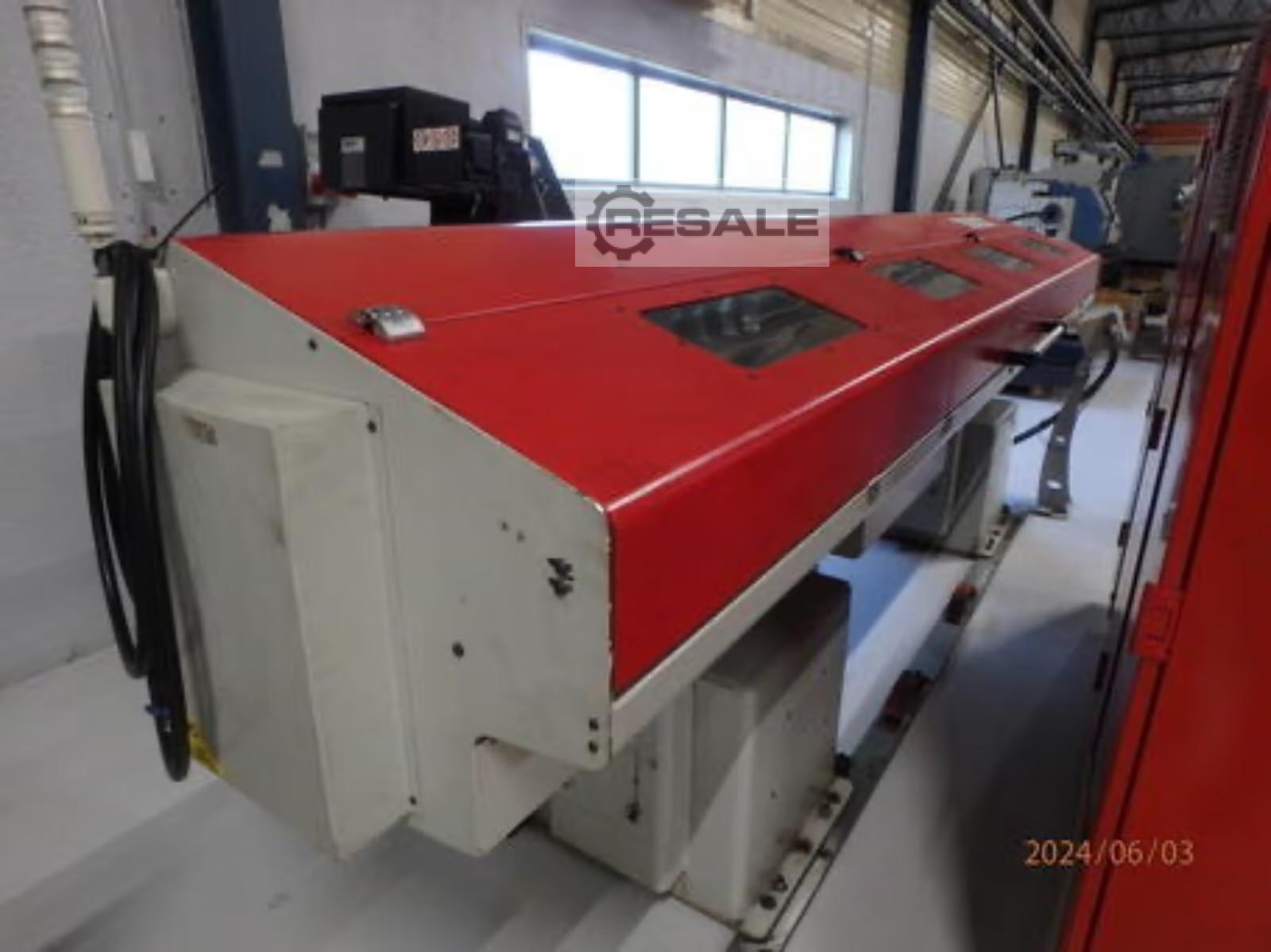

Bar loading magazine 3m

All information has been provided to the best of our knowledge and belief, but we reserve the right to make errors

Subject to prior sale

All prices are net without statutory information. VAT excluding transport
seller offer No. resale 168030947
