Pegadora plegadora JAGENBERG Diana 145-4

agenberg Diana 145-4
Type: Folder Gluer
Year Built: 2000
Condition: Good
Availability: May 2026

General Machine Configuration
Jagenberg Diana 145-4
Large format folder gluer in the 145 cm class
Suitable for corrugated box production, especially for large-size and heavy-duty boxes

Main Units Identified from the Photos

1. Feeder Section
Automatic feeder unit
Suitable for large-format corrugated board feeding
Adjustable side guides

2. Folding and Transfer Section
Extended and wide transfer section
Multi-belt transport system
Stable sheet transport for large box formats

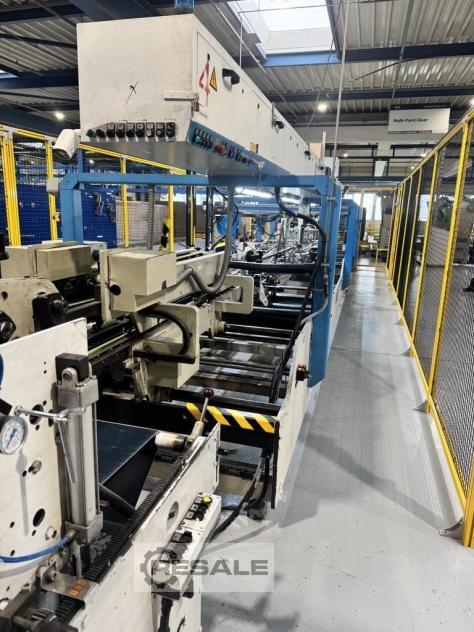

3. Gluing System
Cold glue (PVA) infrastructure available
Valkomelt gluing system
3/4-point gluing capability
Multiple glue gun connection infrastructure

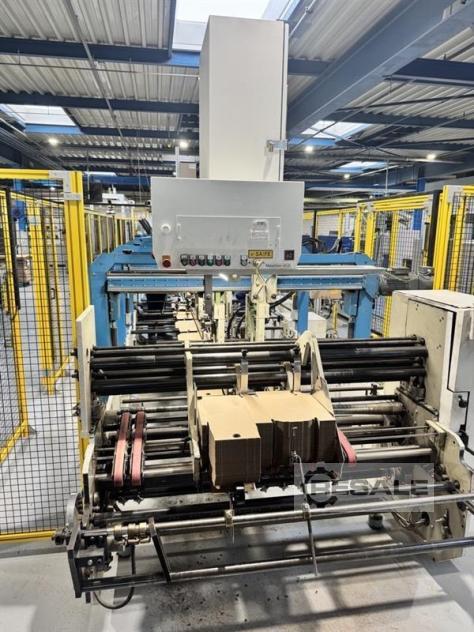

4. 4-Point Folding Unit
Suitable for crash-lock bottom / 4-point carton production
Important feature for value-added box styles

5. Press Section
Long press section
Provides stable pressure after gluing
Suitable for large and thick corrugated board

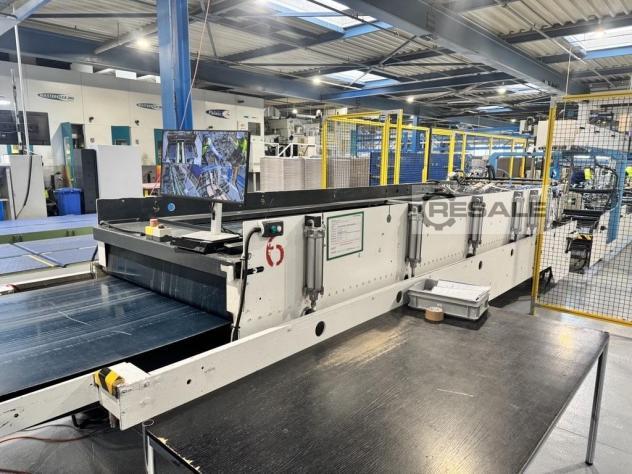

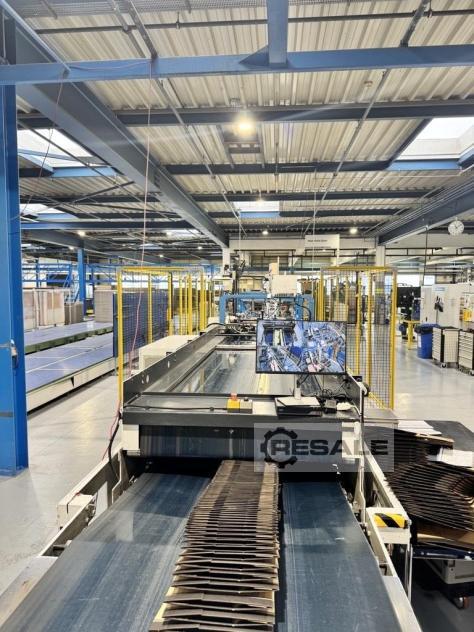

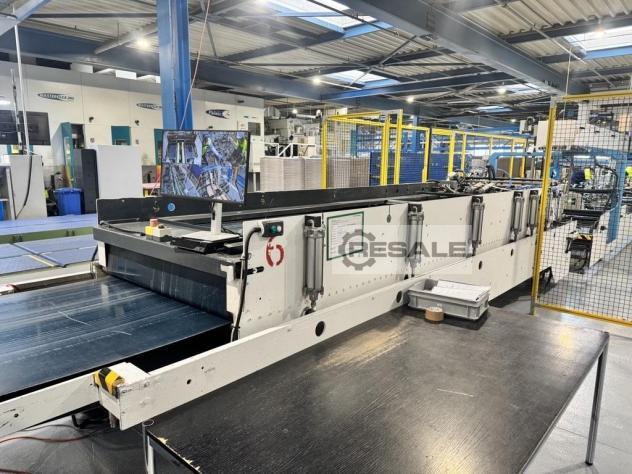

6. Delivery Section
Conveyor-type delivery
Suitable for smooth transfer and bundle preparation

Additional Equipment Confirmed
Jagenberg breaker / separator
Mosca RO MP2 bundler
Linear rail-based manual adjustment elements
Top control / operator panel
Safety equipment such as guards and emergency stop buttons

Electrical Information
Voltage: 3AC 400/230V
Frequency: 50/60 Hz
Control voltage: 24 V DC
Nominal machine current: 78 A
Fuse rating: 80 A

Practical Production Capability
Suitable for the corrugated industry
Can handle different flute types
Can also produce double-wall box styles such as BC and EB flute combinations, as well as other flute types
