Taladradoras JAZON ZXB5150

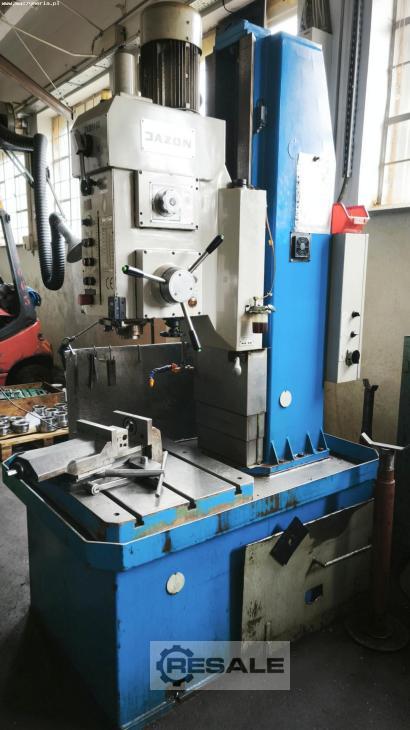

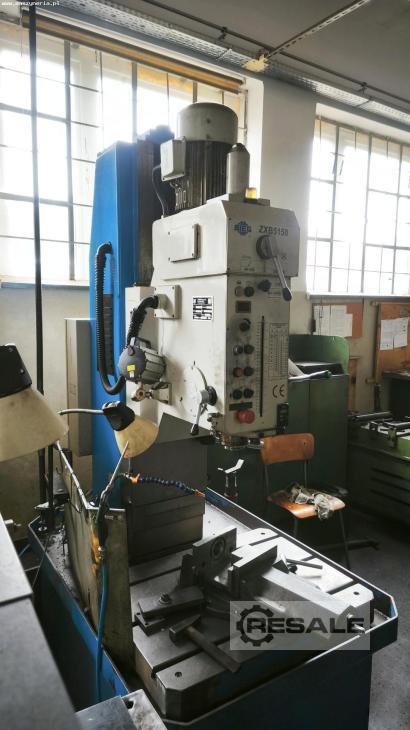

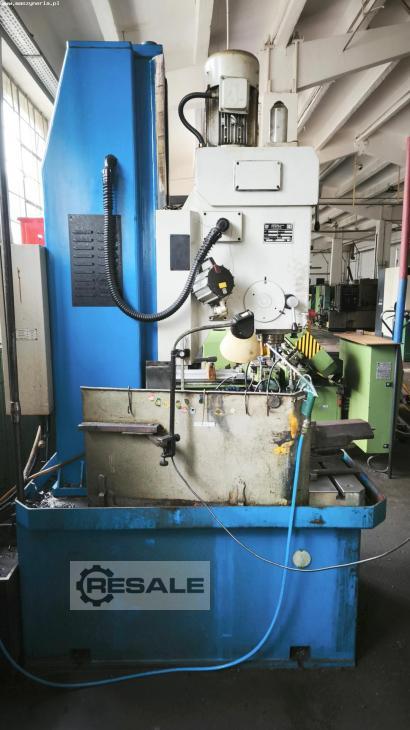

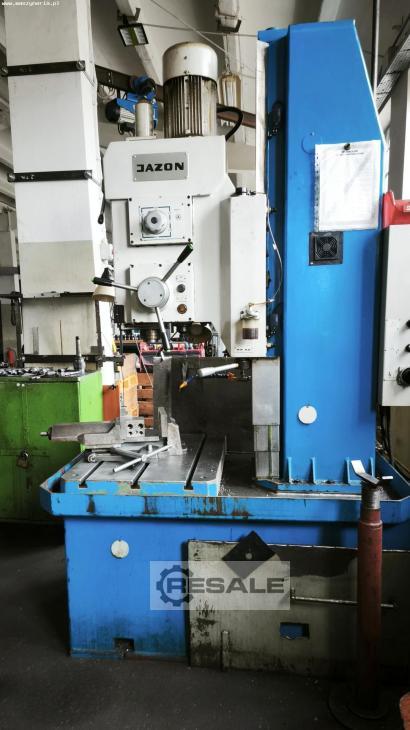

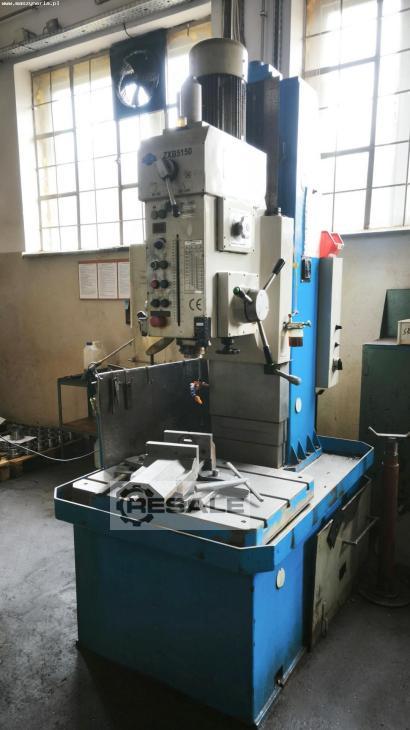

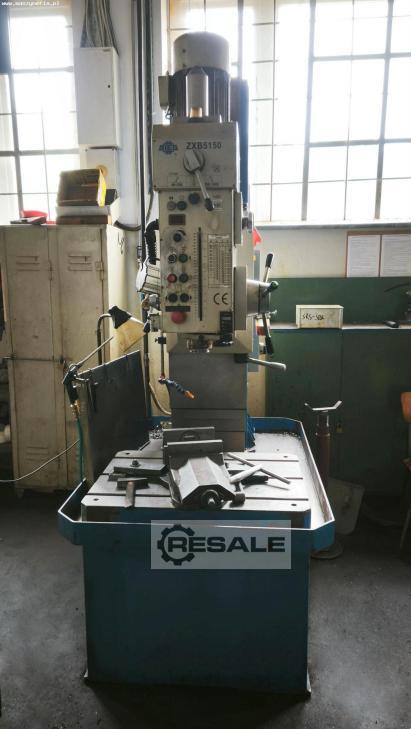

JAZON ZXB5150 vertical drilling machine was built in 2010 in Poland by JAZON Sp. z o.o. The machine is used for precision drilling of holes with a maximum diameter of 50 mm and threading up to 35 mm. The machining process is performed by means of a working head with a powerful spindle, which reaches a speed of up to 1600 rpm. The spindle feed and quill adjustment allows exact adjustment of the working parameters to the type of workpiece, ensuring high precision and repeatability of the performed operations. Workpieces are mounted on a large work table with a length of 800 mm and a width of 600 mm with three T-slots. The workspace is illuminated by a lamp mounted on the frame of the machine. All of this makes the offered JAZON JWK 50 ZXB5150 column drill press the ideal choice for locksmith workshops, tool shops and production plants. The total weight of the machine is 1350 kg.

Technical specifications of the JAZON ZXB5150 drilling machine
- maximum drilling diameter: 50 mm
- maximum threading diameter: 35 mm
- work table dimensions (L x W): 800 x 600 mm
- maximum work table feed: 520 mm
- maximum spindle rotational speed: 1600 rpm
- minimum spindle rotational speed: 40 rpm
- maximum spindle feed: 750 mm
- spindle taper: MT4
- distance from spindle axis to the column: 450 mm
- maximum cutter diameter: 80 mm
- maximum quill extension: 280 mm
- quill feed rate: 0.10; 0.20; 0.30; 0.40 mm/rev
- workspace illumination
- degree of protection: IP44
- total power: 4.98 kW
- total current: 30 A
- power supply: 3x 400 V; 50 Hz
- dimensions (L x W x H): approx. 1490 x 950 x 2370 mm
- weight of the JAZON ZXB5150 machine: 1350 kg

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
seller offer No. resale 169681306
