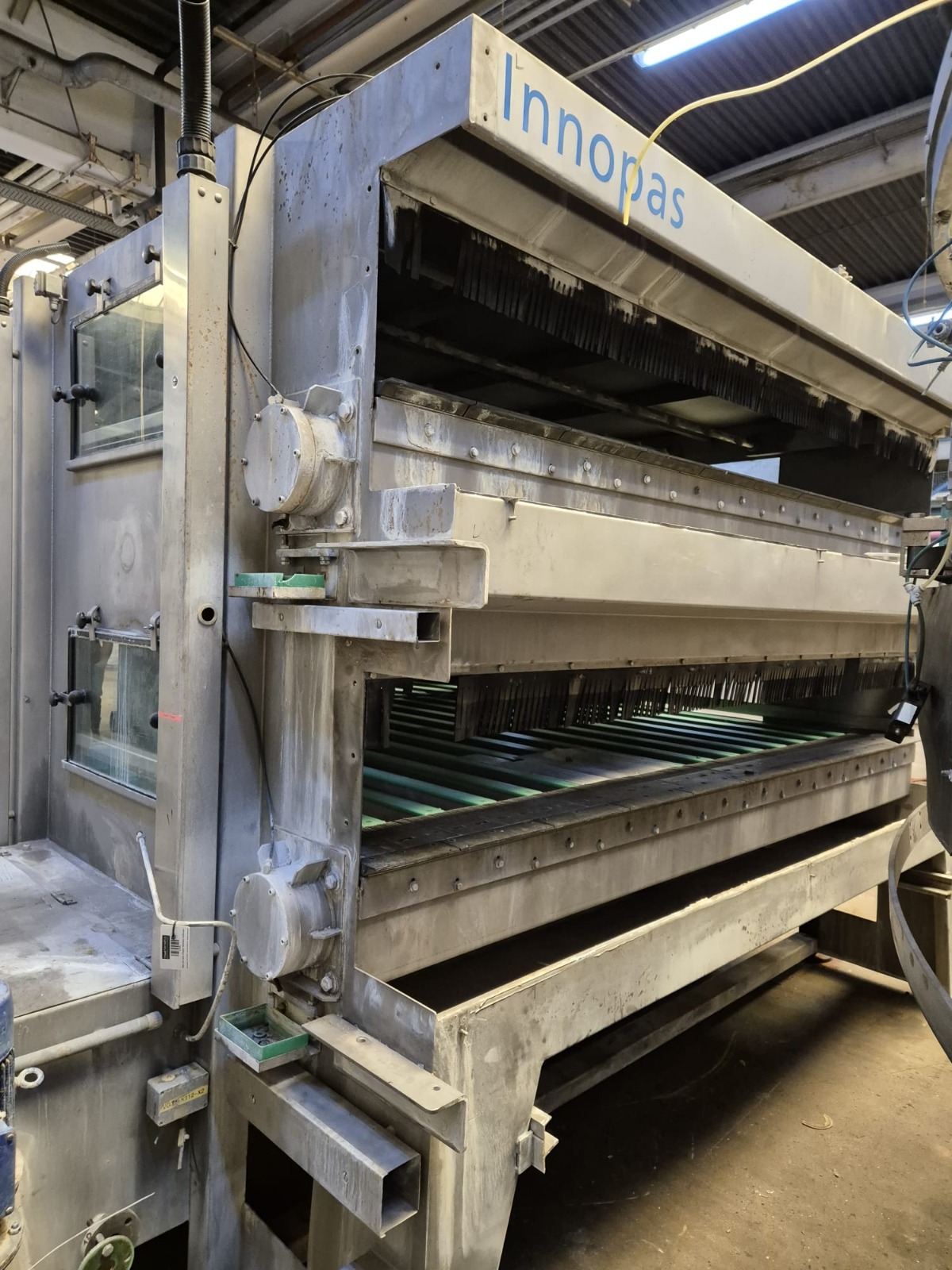

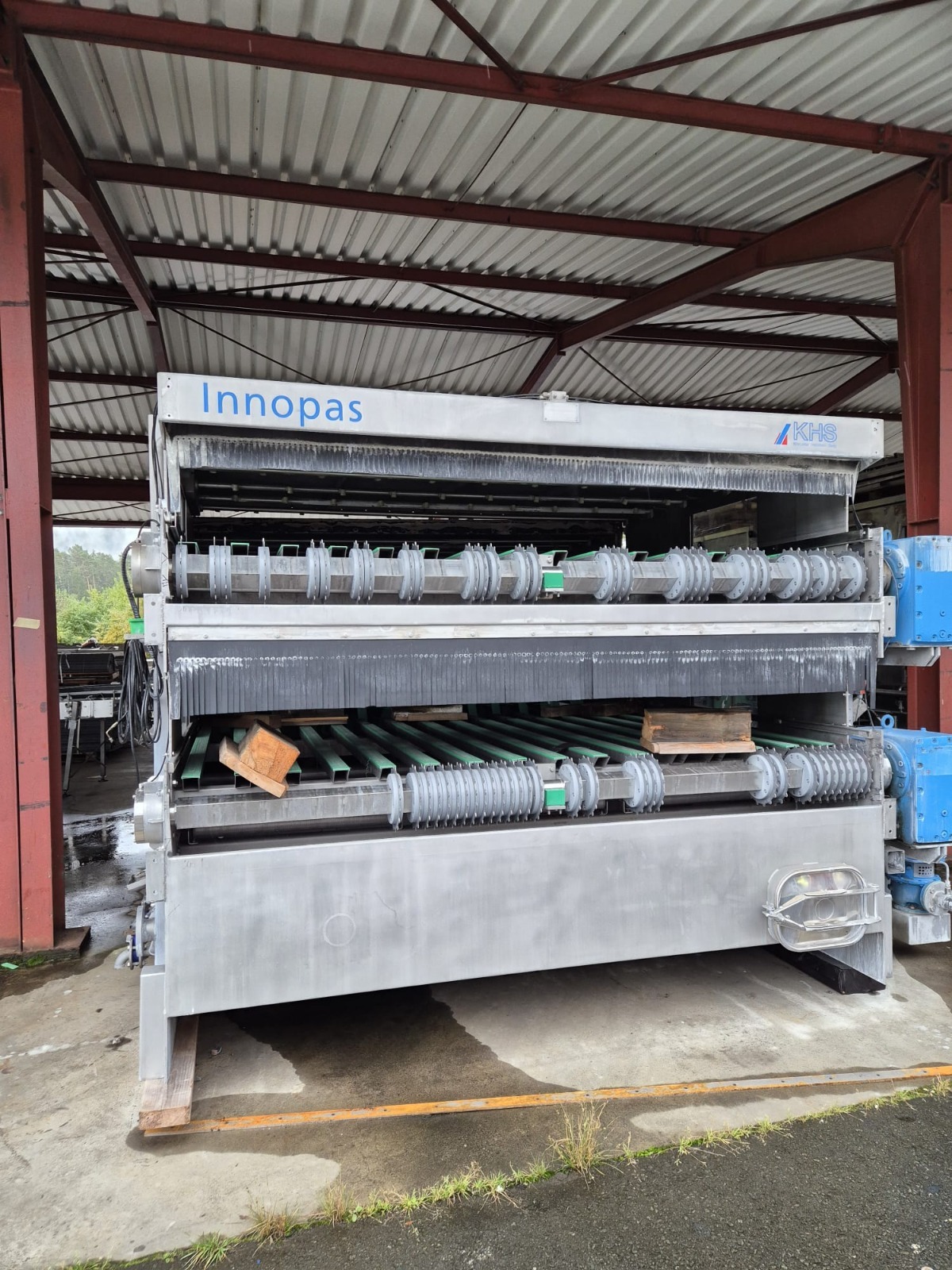

Tunnel Pasteurizer KHS Innopas P II SG 30-200

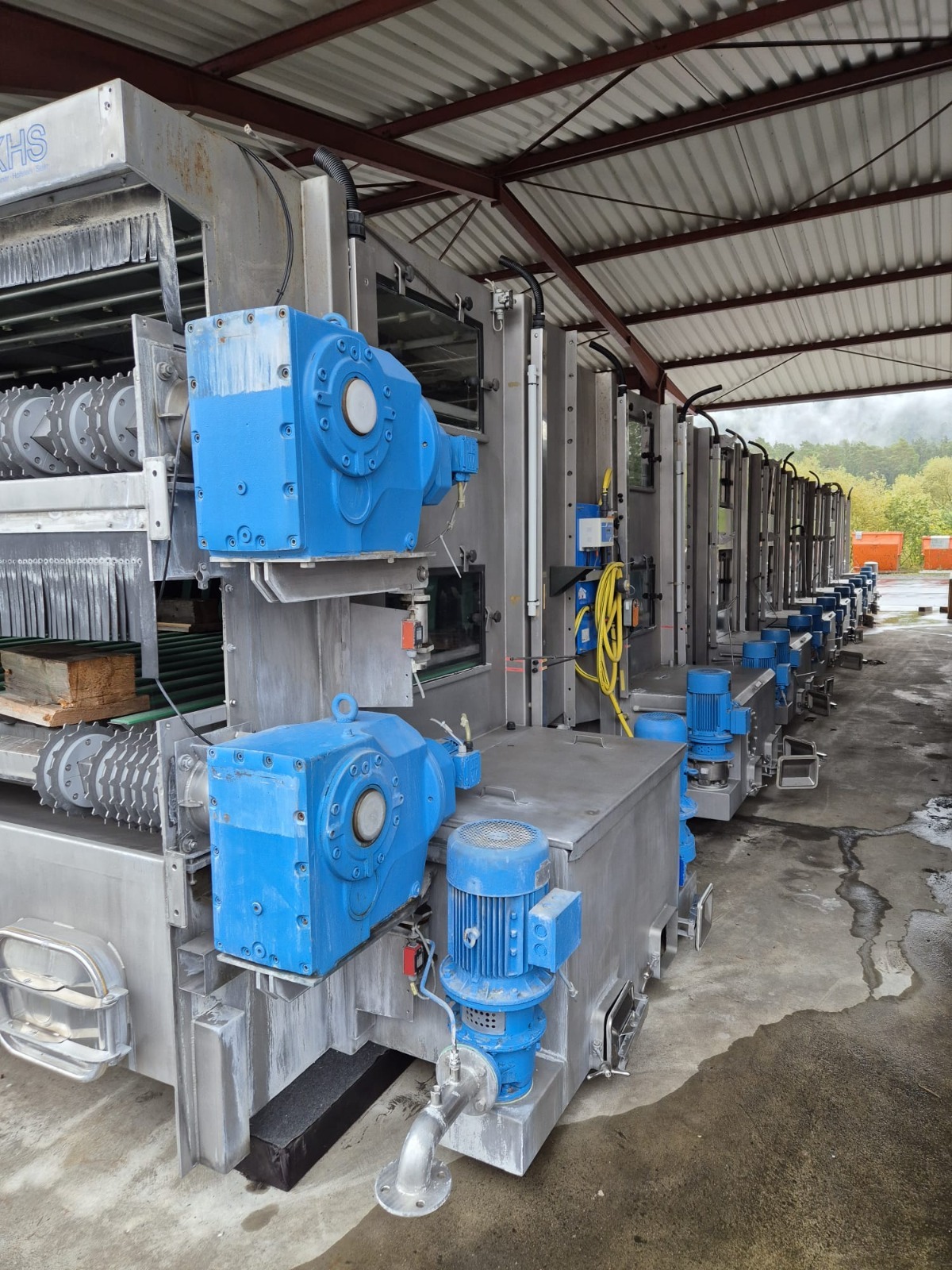

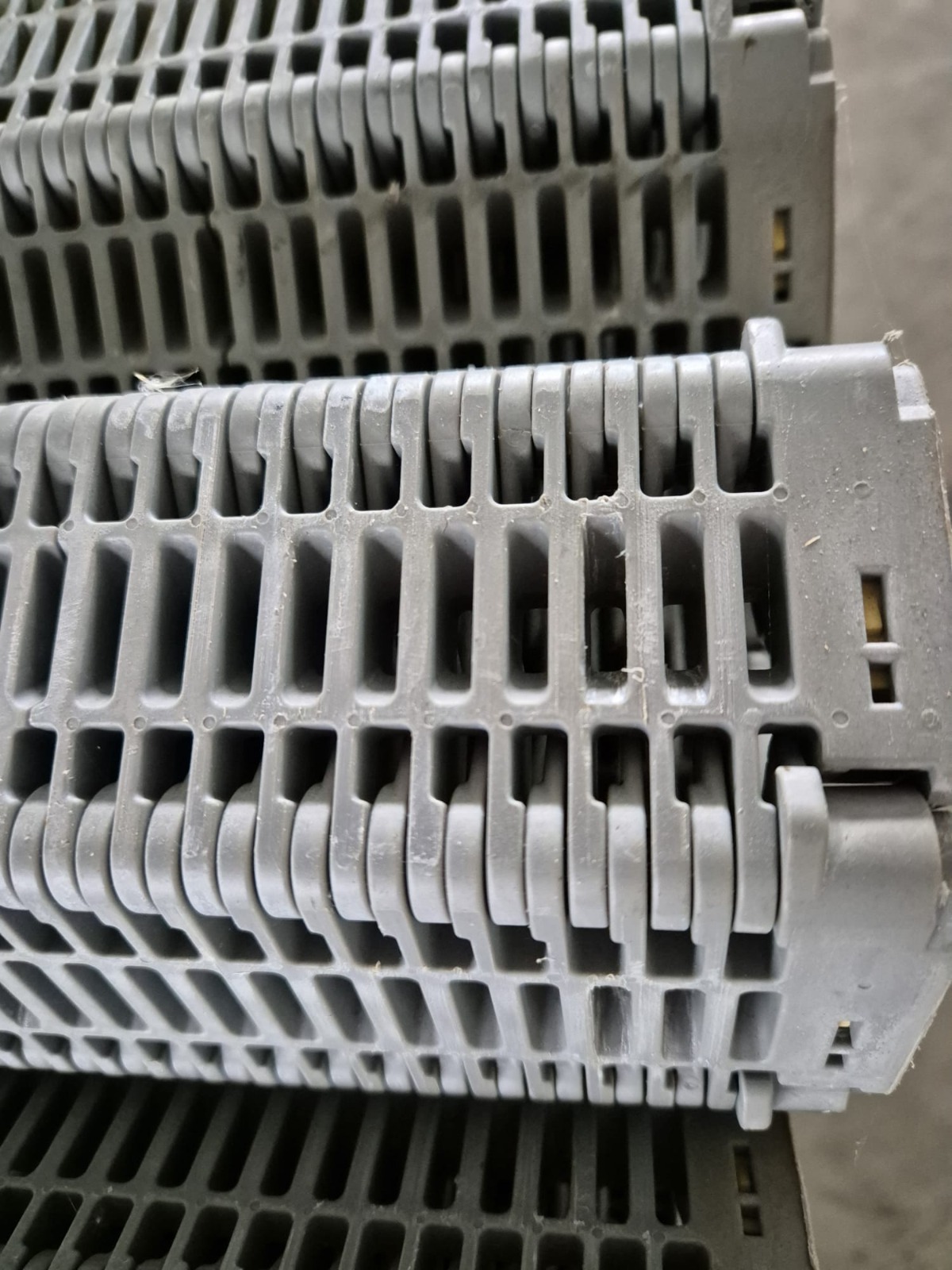

Overview This KHS Innopas P II SG 30-200 is a tunnel pasteurizer for bottled beverages in glass bottles, built in 1996 by KHS (Klöckner Holstein Seitz, Germany). With a treatment area of 113.5 m² across 8 treatment zones (3 of them recuperative), it pasteurizes at approx. 24,000 - 25,000 bottles per hour depending on bottle format, at a maximum pasteurization temperature of 75 °C. For 0.7 l glass bottles the total treatment time is approx. 48.6 minutes (21.2 min heating, 12.3 min pasteurization, 15.0 min cooling) at approx. 5 pasteurization units. The main control is a Siemens SIMATIC S5 PLC; the pasteurization unit setting (temperature diagram) was later upgraded to a Siemens S7 with touch panel. Danfoss frequency drives are fitted. The machine ran at a German mineral water bottling plant until mid-2024 and is now completely dismantled and professionally stored, with the conveyor belt sections and components palletized - ready for immediate collection. Technical data Manufacturer: KHS (Klöckner Holstein Seitz) Model: Innopas P II SG 30-200 Year of manufacture: 1996 Machine type: tunnel pasteurizer Capacity: approx. 24,000 - 25,000 bottles/hour (depending on bottle format) Treatment area: 113.5 m² Treatment zones: 8 (H1-H3, S, P, C1-C3 plus cooling tower zone), 3 recuperative Max. pasteurization temperature: 75.0 °C (0.7 l) / 72.5 °C (0.33 l) Inlet temperature: 15.0 °C; outlet temperature: approx. 32 - 38 °C depending on format Total treatment time: approx. 48.6 min (0.7 l) / 77.1 min (0.33 l) Pasteurization units: approx. 5 PE Machine water content: approx. 14.4 m³ Water consumption at nominal capacity: approx. 1.5 m³/h Heat consumption at nominal capacity (0.7 l): approx. 3,672 MJ/h Installed power: approx. 66.2 kW Electrical connection: 400 V, 50 Hz Dimensions (L x W x H): approx. 21,000 x 4,210 x 2,750 mm Required entry opening: approx. 2.7 x 3.0 m Net weight: approx. 27,500 kg Noise level: ≤ 85 dB(A) according to ISO 3744 Equipment Siemens SIMATIC S5 PLC (main control) Pasteurization unit setting (temperature diagram) upgraded to Siemens S7 with touch panel Danfoss frequency drives Modular plastic conveyor belt with drainage openings, belt sections palletized External pump assemblies and inspection windows Electrical cabinets with main disconnect switch Original KHS documentation (datasheets and drawings) Condition Used. The machine is completely dismantled and stored; belt sections, piping and components are palletized for transport. The machine can be visited on request. Availability Immediately. Location: Germany. Loading by the seller is possible.
