mandrinadoras y centros de mecanizado usadas para la venta (3,214)

spindle diameter:150 mmx-travel:3000 mmy-travel:2000 mmspindle stroke:700 mmdimension of the ram:340 x 340 mmram stroke:700 column travel:1500 mmspindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/mintable surface area:2000 x 2500 mmmax. table load:25000 kgrapid speed:5 / 10 m/minfeed speeds:1 - 5000 mm/mintotal power requirement:100 kWweight of the machine ca.:57 tdimensions of the machine ca.:8,4 x 6,8 x 5,9 mwith CNC SIEMENS 840 Dfull B-axisaerostatic guidewaysfacing head ( 3,2 - 140 rpm )angular milling head 1000 Nmcoolant attahcmnet with internal cooling supply

x-travel:800 mmy-travel:410 mmz-travel:510 mmcontrol:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/mintable surface area:1100 x 450 mmtool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mmmax. tool weight:8 kgpower requirement:7,5/5,5 kWturning speed range:6000 1/minweight of the machine ca.:6,3 tUnder offer is a complete CNC tool shop, which will be given up due to old age of owner.The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine.All measuring devices also come with the machine.Upon request orders for parts to be made can be passed on to new owner.This is a low cost all inclusive opportunity for a "Startup"

x-travel:1100 mmy-travel:600 mmz-travel:510 mmcontrol:Heidenhain iTNC 530 table-size:1050 x 600 mmtable load:500 kgspindle taper:SK 40 turning speeds:10000 1/minpower capacity at 100 % load:9 kWrapid travel x/y/z:24 m/minfeed:24 m/minTool changer:40 SK 40dimensions of the machine ca.:4,3 x 2,6 x 2,25 mweight of the machine ca.:8,8 tPOS mill 1100 vertical machining center in very good condition from 2009Options:- parts measuring M&H receiver without probe- external hand wheel Heidenhain HR 410- Air supply through spindle- air gun- paperfilter system with coolant through spindle 40 bar-

bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device

x-travel:711 mmy-travel:406 mmz-travel:394 mmdistance spindle nose and table:546 - 152 mmtable-size:864 x 381 mmtable load:226 kgturning speeds:15000 1/minpower capacity:11,2 kWmax. torque on the spindle:62 Nmspindle taper:SK 40 Tool changer:18+1 rapid travel x/y/z:61 m/minfeed:30,5 m/minmax. tool weight:5,4 kgmax. tool length:178 mmdiameter of tools max.:64 mmTool change time tool/tool, milling spindle:1,75 sinternal coolant system feed:21 barweight of the machine ca.:2427 kgdimensions of the machine ca.:2,8 x 2,4 mVertical 3-axis machining center POS mill 1100, from year 2009 in good condition.Accessories:- Chip conveyor Knoll- additional coolant filtersystem- Programmable coolan jet- automatic Coolant refillsystem- Airpressure through tool- Measuring probe system WIPS- Synchronized treading- Haas Connect remote control- Media Display- Cooling of electrical cabinet- fixtures and tools  ...

x-travel:800 mmy-travel:510 mmz-travel:510 mmcontrol:Fanuc MSC 518 Spindle RPM:10.000 1/minspindle drive:22/18,5 kWrapid travel x/y/z:32 m/mintable-size:1120 x 600 mmtool changing time:0,9 sectool magazin::30 x BT 40 total power requirement:51 kWweight of the machine ca.:8,8 t

x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor

x-travel:1400 mmy-travel:1200 mmz-travel:1350 mmcontrol:MSX- 701 Mapps III table surface area:800 x 800 mmrapid traverse:50 m/mintable rotating:360.000 x 0,001 B-Achse °table load:2,0 tnumbers of pallets:2 turning speed range:8000 1/minpower capacity - milling spindle:37 kWno. of tools in the magazine:60 Stücktool taper:HSK-A 100 weight:31 tdimensions:5,9 x 3,48 x 3,68 mEquipment:- Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping- Parts program memory 1 MB - Knoll 70 bar high pressure and filter system- Electrostatic oil dust collector LTA- elect. hand wheel- renishaw probe- abso- scale i X/Y/Z- axis- 5 free m- funktions- 48 extra off sets- dual ballscrews on X/Y/Z- axis

x-travel:630 mmy-travel:600 mmz-travel:650 mmcontrol:MSC 502 (Fanuc 16) Spindle RPM:12000 1/minspindle drive:22 / 18,5 kWrapid travel x/y/z:32 m/minPallet dimension:500x500 mmnumbers of pallets:2 table load:0,5 tworking diameter:max. 610 mmNumber of tool station:60 BT40max. tool length:360 mmmax. tool weight:12 kgtool changing time:1,3 secB-axis positioning (non continuous):1 total power requirement:50 kVAweight of the machine ca.:14 tdimensions of the machine ca.:3,3 x 5,8 x 3,2 mspindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options:ATC 60 tool stations, High pressure coolant trough spindle interface,

x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping

x-travel:560 mmy-travel:510 mmz-travel:510 mmcontrol:Fanuc 18i GOP 3 spindle speeds:12000 1/minspindle drive:22 kWrapid travel x/y/z:42 mm/minNumber of tool station:40 BT 40Pallet dimension:2x 400x400 mmtable load:0,5 tworking diameter:max. 580 mmtotal power requirement:56 kVAweight of the machine ca.:8,7 tdimensions of the machine ca.:2,9x4,1 mMemory:125 Memory:320 mNo. of tool offset pairs:64 offsets for parts:6 Macro B:82 var. Control Fanuc 18i M, 40 tool stations, trough spindle coolant Knoll 50 bar, 4th axis, Chipconveyor, twin pallet-changer tool magazine 40 BT 40

x-travel:560 mmy-travel:560 mmz-travel:600 mmcontrol:Fanuc 16 iMA rapid travel x/y/z:84 / 84 / 94 m/minfeeds x/y/z -stepless:50000 mm/minspindle drive:22 kWspindle speed::50 - 14000 1/minmax. torque on the spindle:156 Nmsize of pallet:400x400 mmnumbers of pallets:2 table load:500 kgworking diameter:630 mmworkpiece - installed height:1000 mmchange time of pallets:10 secdistance spindle center to table:80 -640 mmDistance spindle nose - pallet centre:70-670 mmtool magazin::60 x HSK-A 63 tool changing time:1 (4) secmax. tool weight:8 kgmax. tool diameter:70 / 170 mmtool length - max.:360 mmtotal power requirement:64 kVAweight of the machine ca.:9 tdimensions of the machine ca.:15 m²Macro B:600 Variables This well maintained horizontal machining center has a full 4th axis, twin pallet changer, 60 tools magazine for HSK-A 63 toolholders and coolant through spindle 50 bar.An external hydrauli ...

x-travel:560 mmy-travel:510 mmz-travel:510 mmcontrol:Fanuc 18i M power capacity - milling spindle:22 / 18,5 kWspindle turning speed - stepless:12.000 1/minnumbers of tools in magazin:60 BT 40 size of pallet:2x 400 x 400 mmmax. workpiece diameter on pallets:580 mmworkpiece height max.:650 mmfeeds x/y/z -stepless:16.000 mm/minrapid travel x/y/z:32.000 mm/mintotal power requirement:54 kVAweight of the machine ca.:8,7 tdimensions of the machine ca.:2,9 x 3,9 x 2,6 mHorizontal twin - pallet machining center with full 4th axis, 60-tool magazine BT 40 and 50 bar coolant through spindle.

spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

x-travel:560 mmy-travel:560 mmz-travel:600 mmcontrol:Fanuc 16 iMA rapid travel x/y/z:84 / 84 / 94 m/minfeeds x/y/z -stepless:50000 mm/minspindle drive:22 kWspindle speed::50 - 14000 1/minmax. torque on the spindle:156 Nmsize of pallet:400x400 mmnumbers of pallets:2 table load:500 kgworking diameter:630 mmworkpiece - installed height:1000 mmchange time of pallets:10 secdistance spindle center to table:80 -640 mmDistance spindle nose - pallet centre:70-670 mmtool magazin::60 x HSK-A 63 tool changing time:1 (4) secmax. tool weight:8 kgmax. tool diameter:70 / 170 mmtool length - max.:360 mmtotal power requirement:64 kVAweight of the machine ca.:9 tdimensions of the machine ca.:15 m²Macro B:600 Variables This well maintained horizontal machining center has a full 4th axis, twin pallet changer, 60 tools magazine for HSK-A 63 toolholders and coolant through spindle 50 bar.An external hydrauli ...

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment

spindle diameter:160 mmx-travel:6500 mmy-travel:3000 mmW-axis (spindle longitudinal):1000 mmdimension of the ram:400 x 420 mmram stroke:1000 mmbore spindle turning speed range:1 - 2000 U/minspindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/minrapid speed:8/10 m/mintotal power requirement:100 kWweight of the machine ca.:76 tdimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) mwith CNC Steuerung HEIDENHAIN iTNC 530autom. toolchanger 40-pocketsautom. Pickup Station for universal milling head, and facing headrotary table 2500 x 2500 mm , max load 25 to.1500 mm longitudinal movementfloor plate 4000 x 2000 mmmeasuring probe, chip conveyor and coolant attachment

x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing

spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling

Máquina compacta de taladro de precisión con accionamiento infinitamente variable (850 vatios, 230 V) y pantalla digital de velocidad. Equipada con un indicador de posición digital (DRO) para los ejes, una mesa transversal extendida (cama larga) y una prensa azul montada para máquinas. Incluía: Estructura de la estación de trabajo: Montada sobre un banco de trabajo pesado de madera con un robusto marco de acero, sistema de pared trasera integrada perforada, estanterías, una luz magnética articulada justo al lado de la máquina y una gran luz industrial de dos luces para el lugar de trabajo en la parte superior Soporte para husillo: MK2 Dimensiones: 1300 x 730 x 2040 mm (L/P/H) Auction-ID: A7-51635-4

x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.

Auction-ID: A1-51062-19

Auction-ID: A1-51062-17

230 voltios, 3200 vatios, conexión de agua y trípode, incluyendo un taladro de núcleo diamantado de 250 mm Auction-ID: A1-50903-12

Equipado con una pantalla digital integrada de profundidad y velocidad de perforación, una mesa de perforación masiva, ajustable en altura y giratoria con ranuras en T e inyección flexible de refrigerante. Base pesada para máquina con bomba de refrigerante integrada. Accesorios: Incluyendo un tornillo de banco de perforación pesado y preciso (versión industrial con ranuras guía largas) montado directamente sobre la mesa. Transmisión y velocidad: Variable infinitamente ajustable electrónicamente Auction-ID: A7-51635-3

x-travel: 3000 mmy-travel: 500 mmz-travel: 600 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg

x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

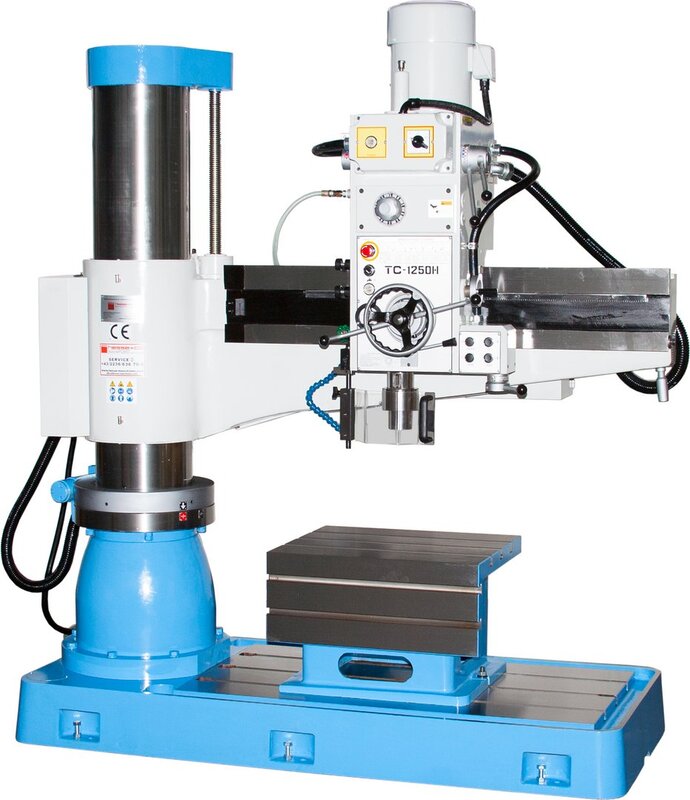

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
