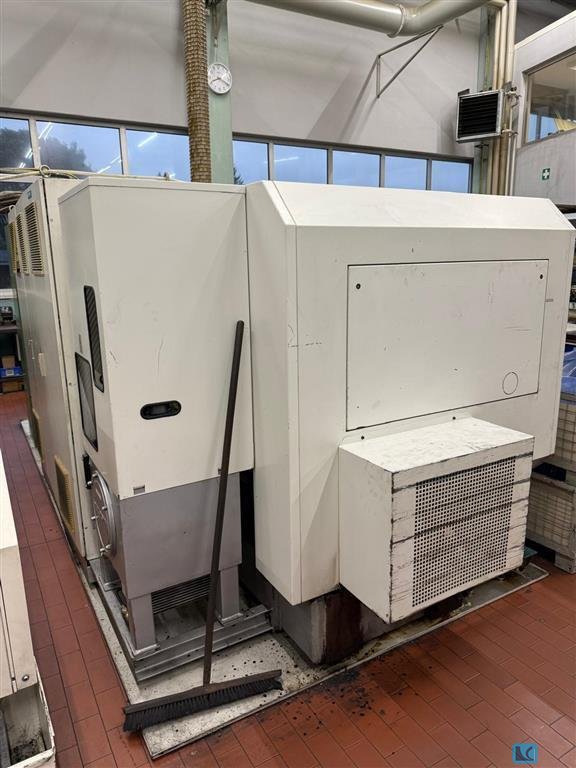

CNC Turning- and Milling Center MONFORTS RNC 500 AC
máquinas para el procesado de metales / tornos
turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI ...
Fabricante: MONFORTS
Modelo:RNC 500 AC
Tipo de máquina: CNC Turning- and Milling Center
Número de artículo: 170386313
Cantidad: 1
Fecha: 28.10.2026
Año de fabricación: 2001
Ubicación: Deutschland
Precio:
Máquina en stock:Sí
Seller-item-No.:1070-100712
turning diameter:500 mm
turning length:1000 mm
control:Siemens 840 D
spindle:42 / 28 kW
spindle turning speed - stepless:31 - 4000 1/min
max. torque on the spindle:345 Nm
c-axis:360000 x 0,001°
feeds -stepless-:0 - 10000 mm/min
rapid traverse:10000 mm/min
turret stations / rotary tool stations:12/12 VDI 40
RPM of rotary tools:2000 1/min
diameter of quill:90 mm
quill stroke:80 mm
tailstock quill taper ISO:SK 30
Tailstock Travel:600 mm
Power rotary tools:3,5 kW
:22,5 Nm
Rotary tool holders:4 ax./ 4 rad.
spindle passage:66 mm
total power requirement:30 kW
weight of the machine ca.:7,5 t
dimensions of the machine ca.:8x 3 x 4 m
turning length:1000 mm
control:Siemens 840 D
spindle:42 / 28 kW
spindle turning speed - stepless:31 - 4000 1/min
max. torque on the spindle:345 Nm
c-axis:360000 x 0,001°
feeds -stepless-:0 - 10000 mm/min
rapid traverse:10000 mm/min
turret stations / rotary tool stations:12/12 VDI 40
RPM of rotary tools:2000 1/min
diameter of quill:90 mm
quill stroke:80 mm
tailstock quill taper ISO:SK 30
Tailstock Travel:600 mm
Power rotary tools:3,5 kW
:22,5 Nm
Rotary tool holders:4 ax./ 4 rad.
spindle passage:66 mm
total power requirement:30 kW
weight of the machine ca.:7,5 t
dimensions of the machine ca.:8x 3 x 4 m
