Bombas SCHEUGENPFLUG DOS P016

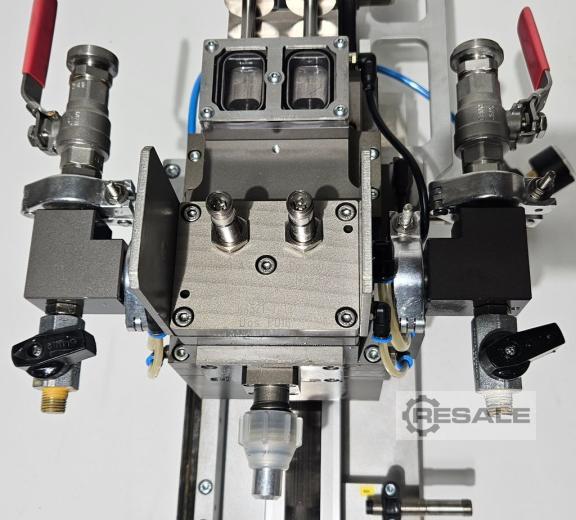

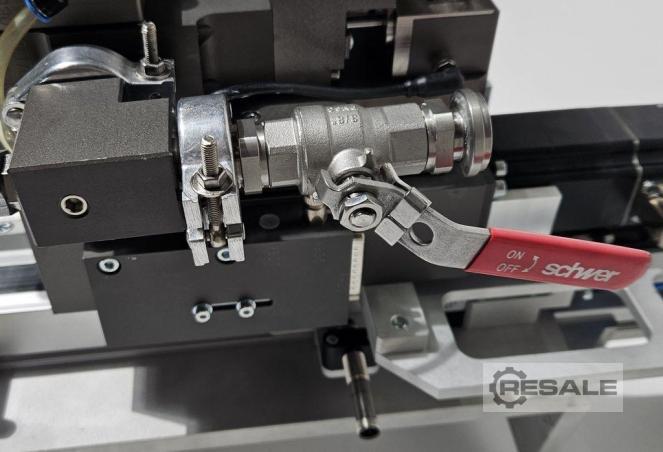

Scheugenpflug DOS P016 Piston Feeder

Piston dosing system DOS P
for a wide range of requirements

The piston dosing systems from Scheugenpflug work according to the principle of volumetric dosing, i.e. here the dosed amount of material is mechanically determined by the geometry and stroke of the associated cylinders. The cylinder is filled with the potting material by feeding it through the corresponding material conveyor system. If a two-component medium is used, the volume of the two cylinders simultaneously determines the ratio of the resin and hardener components to each other. The dosing pistons simultaneously push the two components in separate channels towards the exhaust valve, where they only mix in the static mixing tube to form a homogeneous reactive medium.

The Dos P016 / 050 / 100 / 300 / TCA piston dosing systems are high-precision volumetric dosing systems designed for the processing of 1K and 2K materials and cover a wide range of requirements. Precisely dimensioned dosing cylinders enable the output of reproducible material volumes.

In the case of 2K materials, the parallel emptying of both cylinders into the common mixing tube generates a constant mixing ratio at all times and thus maximum process reliability. At the same time, even pressure, moisture or shear-sensitive potting media can be gently conveyed without having to fear changes in the material. Users also benefit from simple and fast maintenance, long service lives and significantly reduced maintenance costs. With optional features such as valve monitoring, mixing tube heating or dosing head heating, these systems can be flexibly adapted to the respective task.

Your benefits
No dependence of dosing accuracy on temperature, pressure or viscosity
Constant mixing ratio at all times due to parallel emptying of the dosing cylinders
Wide range of applications (material and application)

Key features
Simultaneous squeezing of the cylinders by means of a common lifting mechanism enables homogeneous mixing ratio
Sensory monitoring of the intake and exhaust valves as well as the cylinder filling
Temperature control of the material by mixing tube heating (optional)
Dispensing needle monitoring with camera (optional)

Product data

General
Materials: 1K and 2K
Viscosity: From liquid to highly viscous
Fillers: Filled and/or abrasive media
Operating principle: Volumetric dosing

Features
Constant mixing ratio at 2K
Independent of temperature, material delivery pressure and viscosity of the casting resin
Exactly reproducible and highly precise results
Highest process reliability

Use case

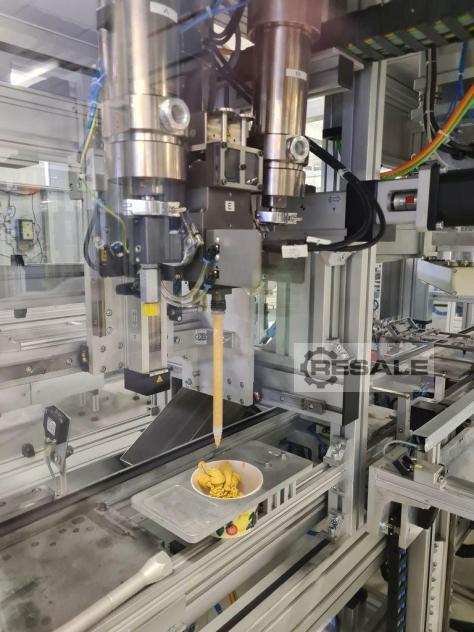

Filling potting, sealing, gluing, application of thermal interface materials, sealing, encapsulation (Glob Top)

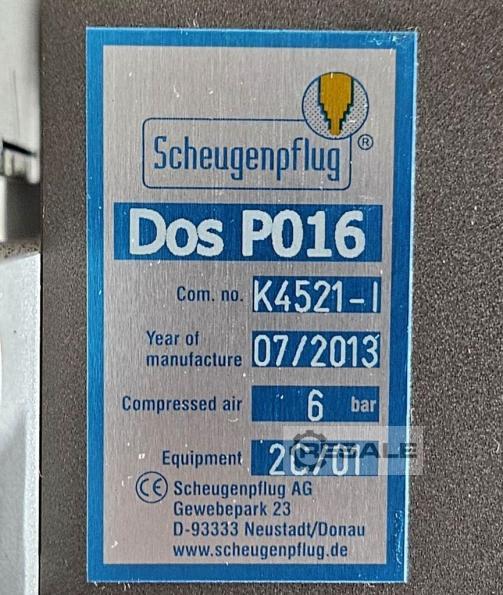

DOS P016
Max volume/shot 2K at 1:1 ratio
1K: 0.06/17 ml
2K: 0.1/32 ml
Dosing speed max.1 [ml/s]: 2
Dosing accuracy at max. stroke [%]: < 0.5
Heatable up to max.2 [°C]: 80

Outlets:
1C: 1-4, 6, 8
2C: 1-4
Weight: 14 kg

Dimensions (W x H x D)
290 x 350 x 230 mm

Video on how it works

"Everything from a single source: We will be happy to offer you suitable bank financing for your project."
komplett-konzept.leasingo.de

You can find more feeders - new and used - in our shop!
International shipping costs on request!
seller offer No. resale 35716
