Sierras de cinta SILOMA OL 420A NC

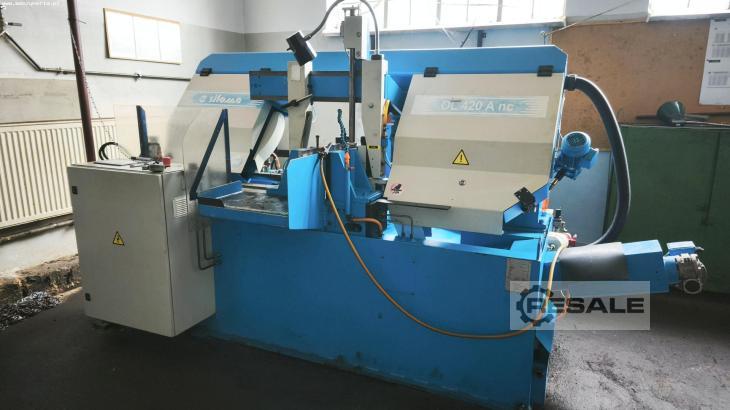

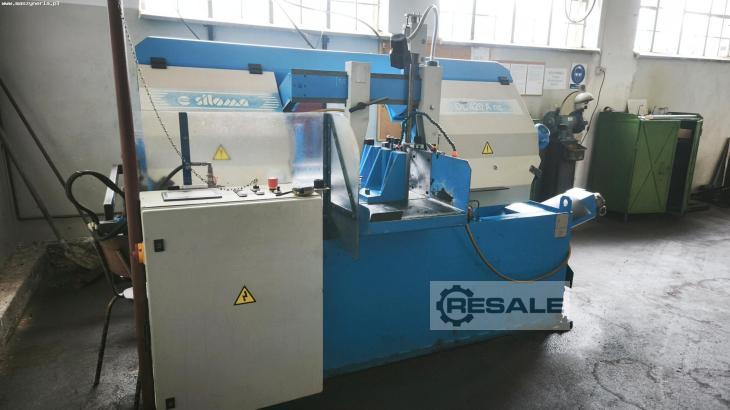

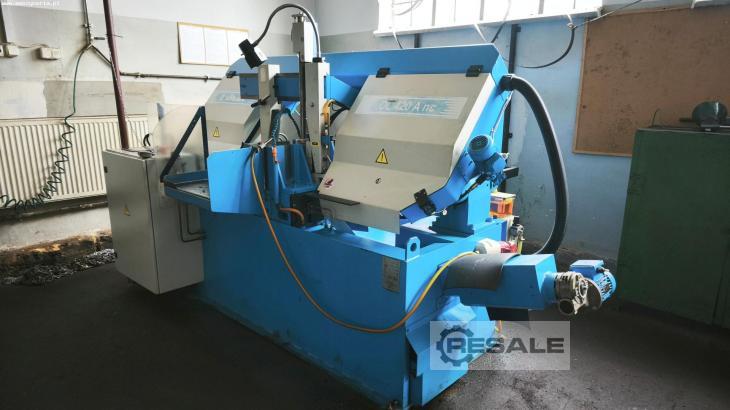

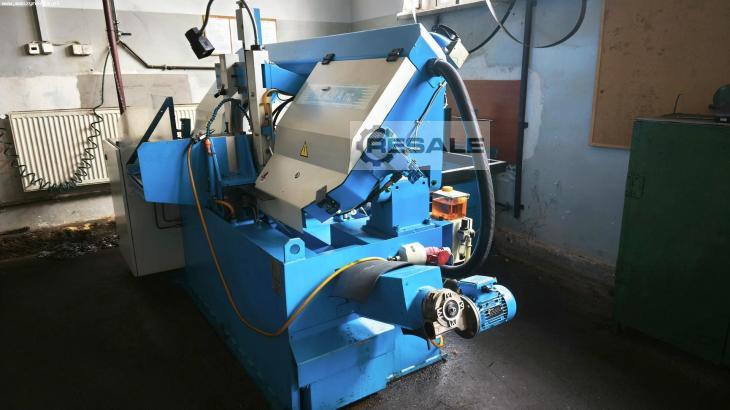

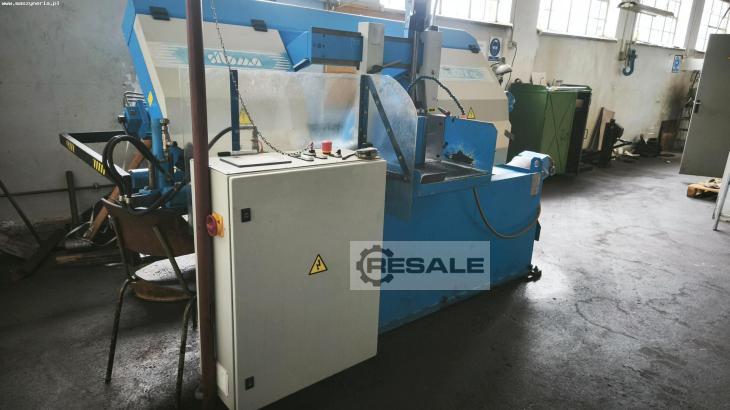

SILOMA OL 420A NC metal band saw was built in 2018 in Bulgaria by SILOMA JSC. The machine is designed for precision cutting of workpieces with round, square and rectangular cross-sections at 90° angle. It also enables bundle cutting, i.e. the simultaneous machining of several workpieces in one working cycle. This makes the SILOMA OL 420A NC the perfect choice for professional production plants specialised in series and mass production.

Cutting is performed by a reliable saw blade, driven by a powerful electric motor. The cutting speed is adjustable in the range from 15 to 100 m/min. All operating parameters are programmed in the intuitive NC controller with touchscreen display, which facilitates operation, provides access to key information and allows quick programming of work cycles. The SILOMA OL 420 A NC band saw weighs 2500 kg.

Technical specifications of the SILOMA OL 420A NC band saw machine
- NC controller
- operator panel with touch screen and memory for 99 work programmes
- cutting angle: 90°
- cutting capacity at 90°
circular cross-section: 420 mm
square cross-section: 420 x 420 mm
rectangular cross-section: 420 x 440 mm
- cutting capacity of material bundles
maximum bundle cross-section: 440 x 170 mm
minimum bundle cross-section: 185 x 65 mm
- material feed: 480 mm
- cutting speed: 15-100 m/min
- saw blade dimensions: 4670 x 41 x 1.3 mm
- cooling system tank capacity: 50 l
- hydraulic system tank capacity: 40 l
- motor power: 7 kW
- cooling system motor power: 0.12 kW
- hydraulic system motor power: 0.75 kW
- conveyor motor power: 0.18 kW
- power supply: 400 V; 50 Hz
- dimensions (L x W x H): 2720 x 2370 x 1600 mm
- weight of the SILOMA machine: 2500 kg

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
