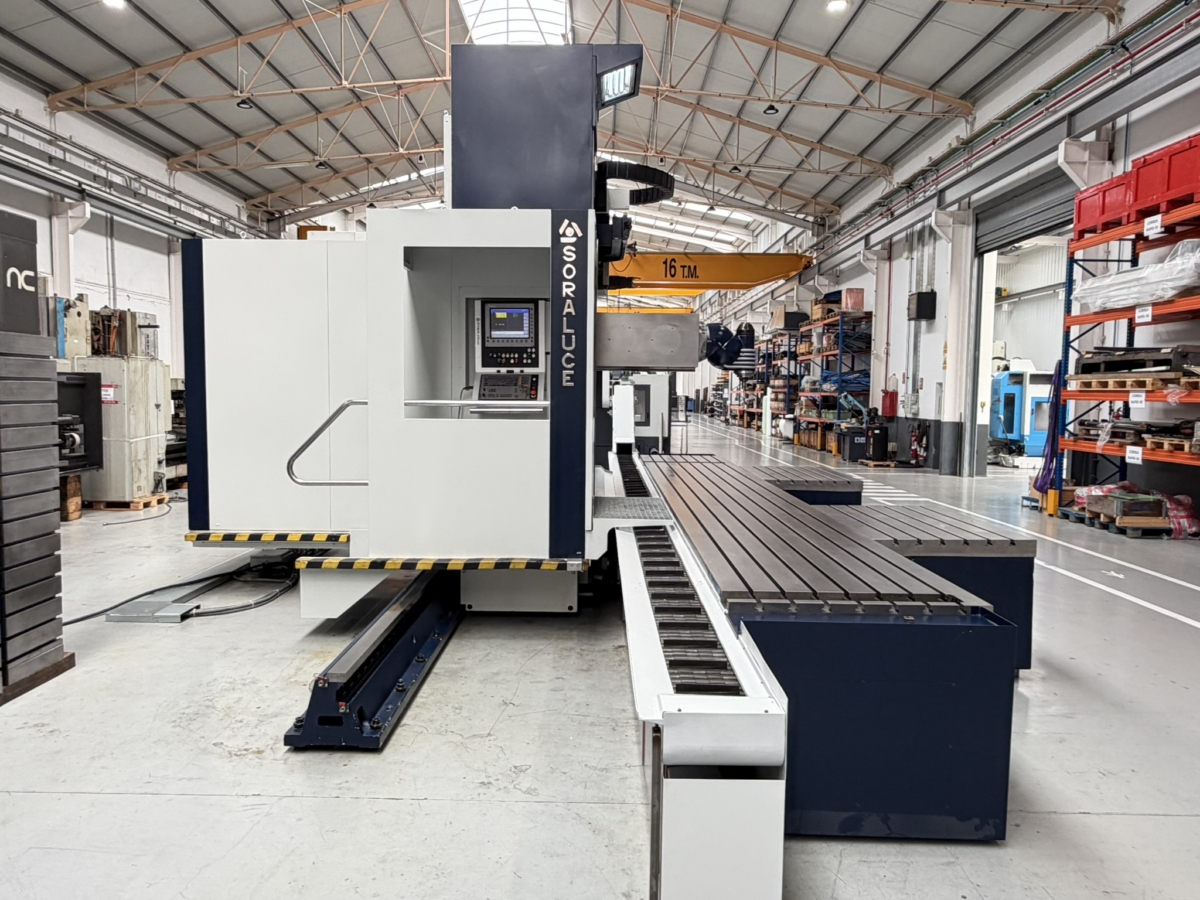

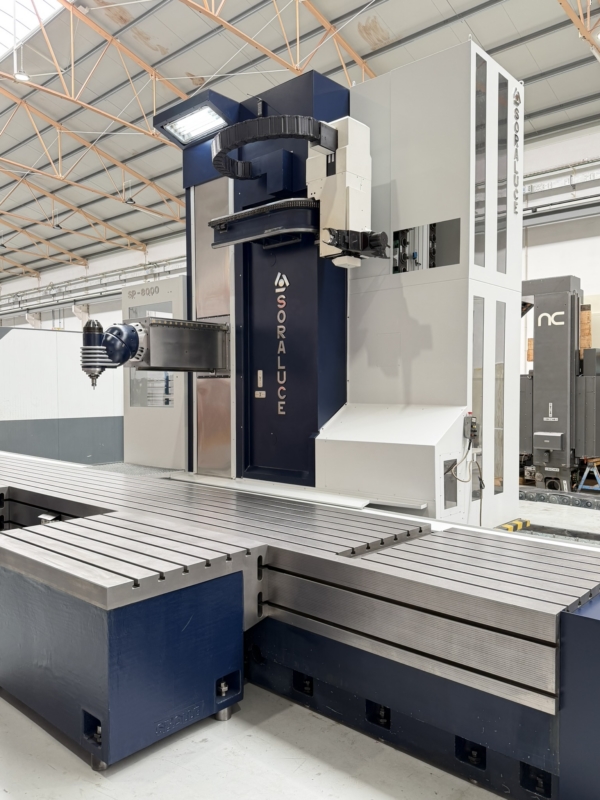

SORALUCE SP 8000
máquinas para el procesado de metales / fresadoras / Fresadoras de columna móvil
x-travel: 6.500 mmy-travel: 1.500 mmz-travel: 2.000 mmSize of table plate: 10.000 x 1.100 mmtable weight: 2,5 Kg /m² Kgfeeds: 25.000 mm/minmilling head: 2,5 tool taper: ISO 50 DIN 69871 number of spindle speeds: 20 - 4.000 U/min/rpmtransmission ratio: 2 spindle drive: 30 kWTools changer: 60 ...
Fabricante: SORALUCE
Modelo:SP 8000
Número de artículo: 170326248
Cantidad: 1
Fecha: 15.10.2026
Año de fabricación: 2008
Ubicación: Auf Anfrage
Precio:
Máquina en stock:Sí
Seller-item-No.:1120-331
x-travel: 6.500 mm
y-travel: 1.500 mm
z-travel: 2.000 mm
Size of table plate: 10.000 x 1.100 mm
table weight: 2,5 Kg /m² Kg
feeds: 25.000 mm/min

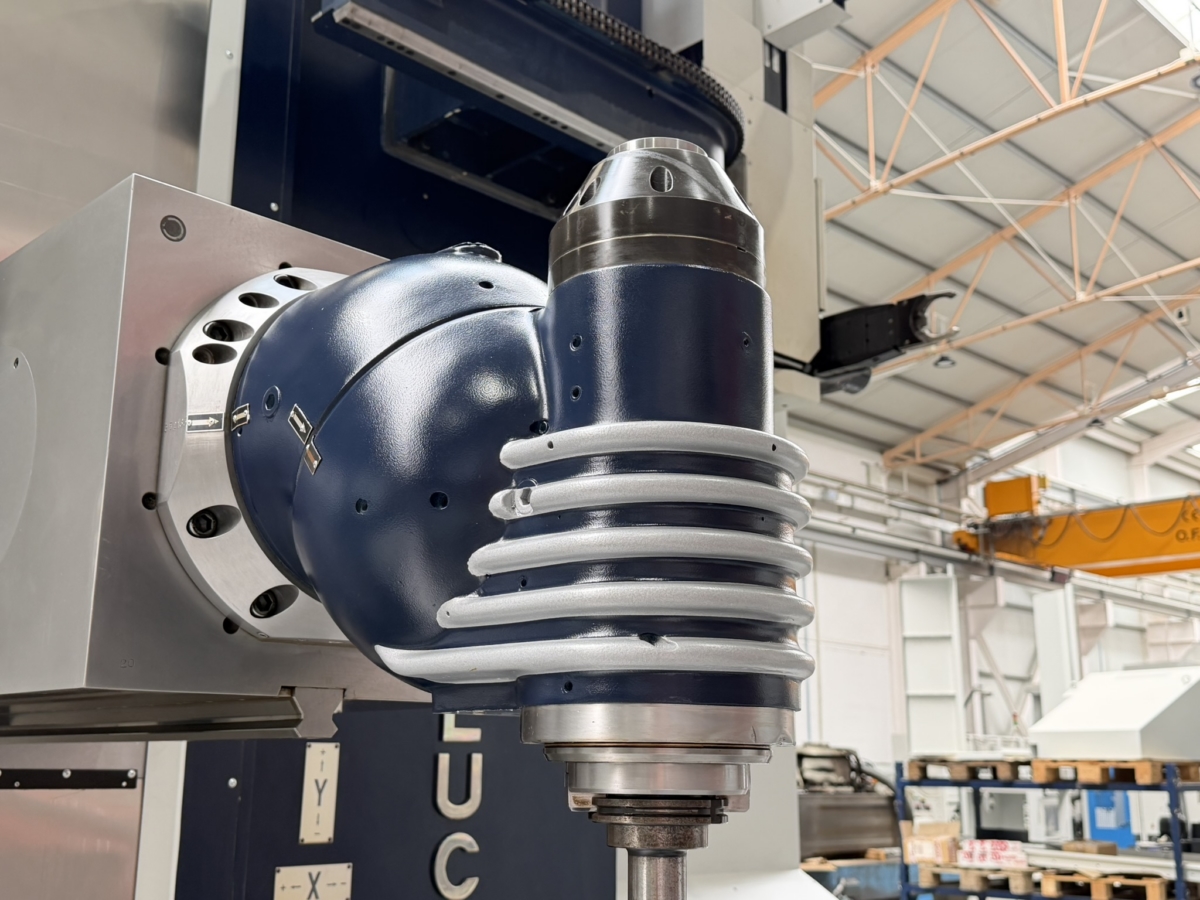

milling head: 2,5
tool taper: ISO 50 DIN 69871
number of spindle speeds: 20 - 4.000 U/min/rpm
transmission ratio: 2
spindle drive: 30 kW
Tools changer: 60 fach/tools
Internal cooling system: 20 bar
chip conveyor: Inkl. kW
handwheel: Heidenhain HR-410
total power requirement: 63 kVA
weight of the machine ca.: 34,5 t
dimensions of the machine ca.: 11.275 x 4.840 x 4.13 mm
Maximum tool diameter with adjacent tool positions occupied: 125 mm
Maximum tool diameter with adjacent tool positions free: 250 mm
Maximum tool length: 400 mm
Maximum tool weight: 20 kg
Additional tank with paper filter
Operator platform
Motor drives: SIEMENS DIGITAL
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
