máquinas rectificadoras usadas para la venta (2,181)

grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min

grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm

Auction-ID: A7-47249-297

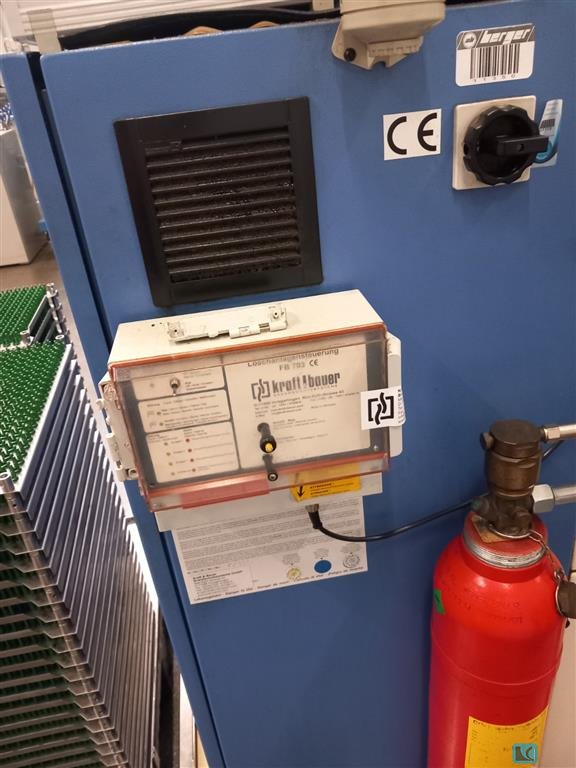

grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

Datos técnicos Fabricante: ZIERSCH Tipo: ZT 48 Año de fabricación: 2018 Número de máquina: 0601566 Superficie de rectificado: 800 x 500 mm Movimiento transversal: 450 mm Movimiento longitudinal: 1200 mm Dimensiones de la rueda de rectificado: 400 x 50 x 127 mm Rango de velocidad: 900 - 2600 rpm Potencia nominal: 17 kW Peso de la máquina: aprox. 4900 kg Conexión: 400 V / 50 Hz Configuración Extracción de niebla de emulsión REVEN X-CYCLONE C-1; Capacidad de extracción 500 m³/h; Año de construcción 2017 Sistema de filtro de correa de papel + rollo de filtro de repuesto disponible Orificios de aire disponibles para eyección Placa de sujeción magnética SAV tipo ZI-243-70-800x400-25 Enfriador de aceite KNUKN Documentación de la máquina disponible Manuales de instrucciones disponibles Auction-ID: A7-46939-40

workpiece diameter:26 mmswing diameter:- mmworkpiece length:66 mmtotal power requirement:12 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,14 x 1,69 x 2,2 mThe machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone.1. Feed Roller2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel:Dia: approximately 120 mmL: app. 880 mm

grinding diameter:300 mmgrinding length:540 mmcentre height:175 mmtotal power requirement:20 kVAcentre distance:1000 mm

grinding diameter:50 mmgrinding length:100 mmcentre height:100 mmcentre distance:200 mm

internal diameter:140 mmtotal power requirement:5,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:2,8 x 2,5 mmax. workpiece weight:15 kgclamping dia. max.:140 mmclamping length:250 mmmax. bore diameter to be ground:0,8-90 mmmin./max. hole to grind:160 mmcentre height:90 mmworkpiece spindle stepless:112-1000 U/min

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

Auction-ID: A7-47249-67

grinding diameter: 350 mmgrinding length: 1000 mmcentre height: 175 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mGENERALÜBERHOLT GENERALÜBERHOLT- Schleifscheibenausrüstung LINKS 500mm- Schleifscheibenausrüstung RECHTS 400mm- Innenschleifeinrichtung 120mm für riemengetriebene Innenschleifspindeln (standard)- CNC-Steuerung FANUC 18i-TA- vorbereitet für Messsteuerung Marposs kombiniert (Minialsar, Positionar)mit E5N- B-Achse- Kel-Set- hydraulischer Pinolenrückzug- Mikroverstellung am Reitstock- Werkstückspindelstock mit schwenkbarem Unterteil- Schleifscheibenausrüstung LINKS 500mm- Schleifscheibenausrüstung RECHTS 400mm- Innenschleifeinrichtung 120mm für riemengetriebene Innenschleifspindeln (standard)- CNC-Steuerung FANUC 18i-TA- vorbereitet für Messsteuerung Marposs kombiniert (Minialsar, Positionar)mit E5N- B-Achse- Kel- ...

Datos técnicos Fabricante: ZIERSCH GmbH Tipo: ZT 715 Año de fabricación: 2013 Máquina nº: 0601269 Superficie de rectificado: 1500 x 800 mm Movimiento transversal: 750 mm Movimiento longitudinal: 1900 mm Distancia de la mesa al centro del husillo: 600 mm Carga de mesa incluyendo imán: 1400 kg Muela de rectificado: 400 x 80 x 127 mm Rango de velocidad: 1000 – 3000 1/min Conexión: 400 V / 50 Hz Potencia nominal: 23,5 kW Peso de la máquina: 11.000 kg Configuración - Máquina CNC de rectificado superficial - Tabla de sujeción magnética SAV - Panel táctil de GOT1000 Mitsubishi - Volante electrónico / unidad de control - Cabina de protección total - Dispositivo de refrigerante - Lubricación central - Sistema de filtro de cinta de papel + rollo de papel de filtro de repuesto disponible - Orificios de aire disponibles para eyección - Placa de sujeción magnética SAV tipo ZI-24 ...

grinding diameter: 350 mmgrinding length: 1000 mmcentre height: 175 mmControl: Fanuc 310is total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control GE Fanuc 310isHand panel for CNC control GE FanucWenger loader optionalTurned part with automatic indexing 1°Grinding head UR 1-2-3Grinding wheel equipment left 500 x 80 mmGrinding wheel equipment right 400 x 63 mmOperating unit for one high-speed internal grinding spindle MFV / MFZHigh-frequency internal grinding spindle MFN 1090Coolant supply through the workpiece spindleDressing unit on the upper tableSwivelling holder for PCD diamond platesBasic module for KEL-TOUCH gate sensor and KEL-BALANCE balancing devicesKEL-TOUCH lead sensor for universal grinding head variants R / RS / UR / URSKEL-TOUCH on the workpiece headstock for internal and external grindingPreparations for Movomatic ESZ 400 or M ...

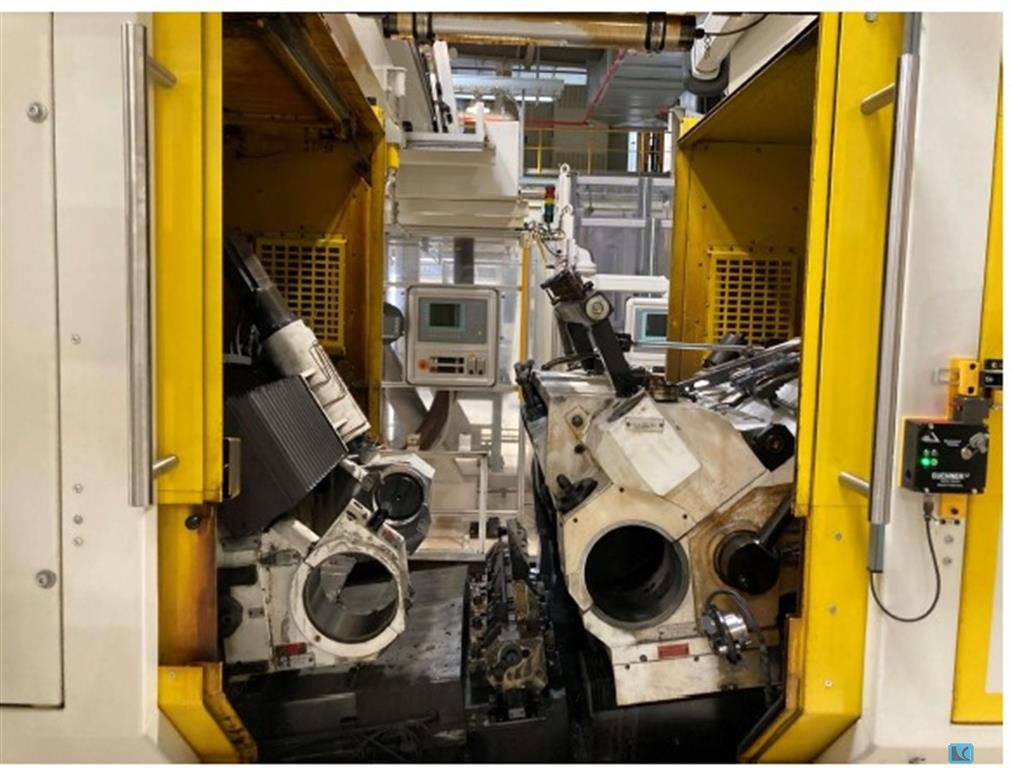

grinding diameter:5-55 mmgrinding length:500 mmtotal power requirement:44 kW-- Intended use and general information --Fully automated external and surface grinding of synchronous ringsCentre height: 200 mmGrinding length: 500 mmGrinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mmDrive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µmWorkpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-DMachine weight: 7,000 kgCentre height: 200 mmGrinding length: 500 mm

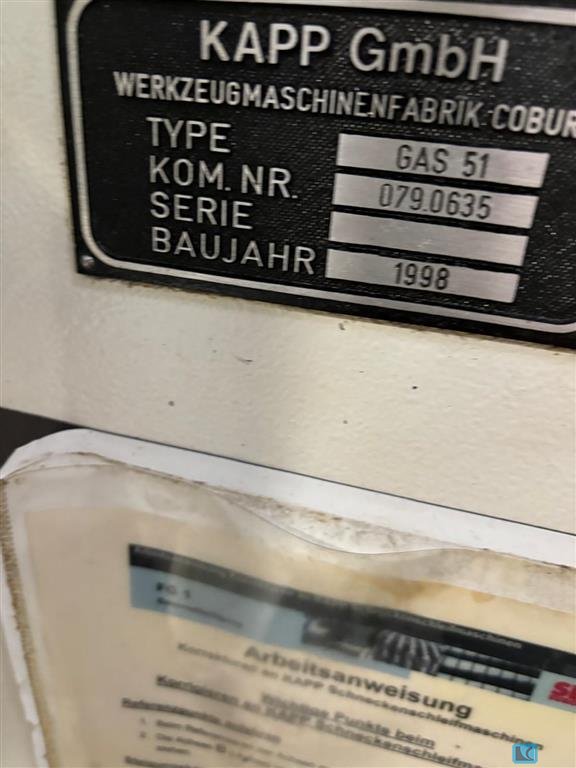

grinding diameter:200 mmgrinding length:320 mmtotal power requirement:3,5 kWweight of the machine ca.:9 tspace required L x W X H:5,28 x 4,5 x 2,4 mmax. wheel dia.:200 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm

max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm

Presión máxima 125 Psi, fuente de alimentación de 10 W, NUNCA UTILIZADA. Dimensiones totales: 900 x 600 x 1500 mm Peso: 50 kg Auction-ID: A7-47248-67

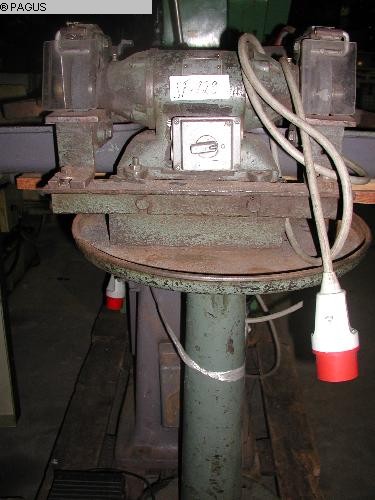

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg

Datos técnicos Fabricante: MSO / Cincinnati Milacron Máquina de rectificar cilíndrica universal tipo R-77 Ancho central 805 mm Longitud de rectificado 800 mm Altura de la punta 130 mm Diámetro de oscilación 250 mm Peso de la pieza entre las puntas: 75 kg Muela de esmerilado 400 x 40 x 127 mm Tensión de funcionamiento 380 V / 50 Hz Configuración Incluye un amplio paquete de herramientas y accesorios Cabeza y contrapala de la pieza de trabajo Equipos hidráulicos y de refrigerante Diversas ruedas de rectificado y bridas de montaje Dispositivos de sujeción, mandrils abrasivos y abrasivos Equipos de medición y herramientas pequeñas Documentación / documentos disponibles Auction-ID: A7-46939-62

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg

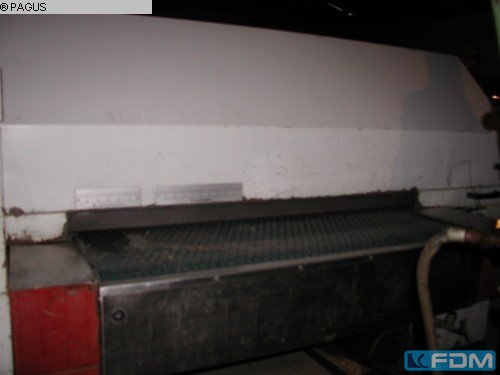

working width:1400 mmWorkpiece thickness max.: 80 mmwork height max.:1000 mmFeed speed:4m/min I Stufe, 8 II Stuf m/min.Required air-pressure:max. 5 barvoltage:50 Hz, 380 Vworkpiece length:320 mmworkpiece thickness min.:1 mmweight of the machine ca.:3500 kgDocuments:vorhanden

workpiece length:350 mmwork piece width:150 mmdiameter:Tellerradius 200 mmtool taper:M32 x 1,5 spindle diameter:32 mmgrinding width:max.450 mmturning speeds:3385 U/minwork table::Höhe 1000 mmworkpiece height max.:100 mmtotal power requirement:1,1 kWweight of the machine ca.:300 kgdimensions of the machine ca.:700 x 800 x 1170 mm

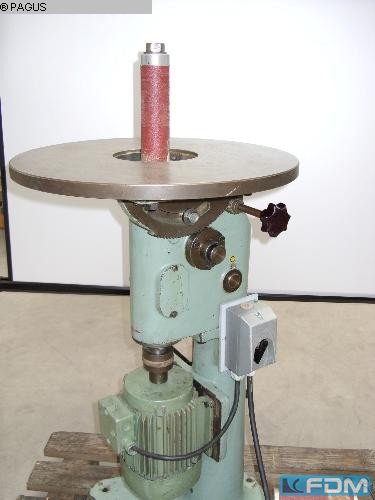

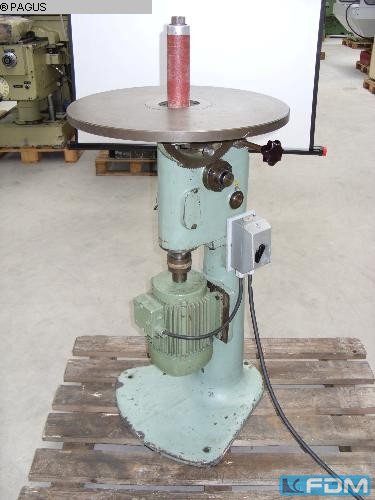

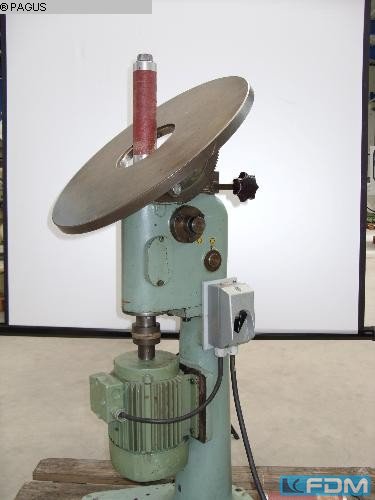

table diameter:520 x 22 mmtable - swivable:45 Gradtotal power requirement:1,6 kWweight of the machine ca.:130 kgdimensions of the machine ca.:520 x 520 x 1200 mmmit SchleifzylinderZubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von SchleifmittelnØ 50, 70 , 90, 120 mm x 223 mmneuer Motor

sanding belt length:max. 470 mmworkpiece dia.:600 mmtable - swivable:0 - 6 Gradtaper:Reitstock Morse 2 turning speed range::1260 - 3100 U/mintable movement:längs 470 mmtool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kWweight of the machine ca.:950 kgdimensions of the machine ca.:1100 x 1100 x 1500 mmDocuments:vorhanden

max. grinding diameter:50 mmgrinding length:250 mmworkpiece length:300 mmtotal power requirement:0,7 kWweight of the machine ca.:330 kgdimensions of the machine ca.:1000 x 1000 x 1400 mm

grinding length:600 mmgrinding width:250 mmworkpiece height:380 mm:Sinumerik max. dia. of grinding wheel:300 mmweight:4000 kgtotal power requirement:12,5 kWgrinding wheels:Ø 400 mmmax. width of grinding wheel:100 mmgrinding wheel hole diameter:127 mmturning speeds:470 - 12030 1/minx-axis:600 mmy-axis:300 mmz-axis:250 mmgrinding range:450 x 200 mmdistance spindle nose and table:500 mmtable load:250 kgdimensions of the machine ca.:2600 x 2100 x 2400 mmswitchgear cabinet:1300 x 800 x 2000 mmhydraulical unit::450 x 350 x 500 mmDocuments:vorhanden

grinding length:1250 mmgrinding width:400 mmworkpiece height:550 mmworkpiece weight:750 kgtable-size:1720 x 400 mmmagnetic clamping plate:1250 x 400 mmdist. center of grinding spindle - table:750 mmturning speed range - grinding wheel:3000 U/minLength movement of the table:1300 mmgrinding wheel size:Ø 400 x 50 x 127 mmswitchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 Vtable load:max. 1100 total power requirement:13,8 kWweight of the machine ca.:6000 kgdimensions of the machine ca.:5000 x 3400 x 2400 mmDocuments:inkl.

internal diameter:315 mmgrinding depth:315 mmswing diameter:420 mmnumber of spindle speeds:32 - 360 U-minwheel box:-drehzahl 100 - 8000 U/minface diameter:500 mmtotal power requirement:12 kWweight of the machine ca.:5900 kgdimensions of the machine ca.:3400 x 1750 x 2000 mm

total power requirement:10,5 kWweight of the machine ca.:4800 kgdimensions of the machine ca.:3000 x 2100 x 2000 mmcentre distance:1200 mmHeight of centres:200 mmgrinding-table stroke max.:X -Achse 1000 mmtable-size:2060 x350 mmz-axis:Querhub 250 mmFeed speed:0,005 - 5 m/min.grinding head - swivable:360 °taper ISO:50 control:Sinumerik System 8 Documents:vorhanden
