Cepilladoras de cuatro lados WEINIG PROFIMAT 23 E
máquinas para el procesado de madera / cepilladoras / Cepilladoras de cuatro lados
5-spindles automatic planer with grooved table WEINIG PROFIMAT 23 E with grooved plane ( removable ) second hand machine n.5 spindles working condition : Excellent CE mark : Yes volt. 380/50 grooved plane ( removable ) with tools : Yes , as in photos Composed by 5 spindles , 4 motors : 1° spindle ...
Fabricante: WEINIG
Modelo:PROFIMAT 23 E
Tipo de máquina: Cepilladoras de cuatro lados
Número de artículo: 169875743
Cantidad: 1
Fecha: 17.07.2026
Año de fabricación:
Ubicación:
Italia
22066 MARIANO COMENSE
Precio:
Su propuesta de precio:
5-spindles automatic planer with grooved table WEINIG PROFIMAT 23 E
with grooved plane ( removable )
second hand machine
n.5 spindles
working condition : Excellent
CE mark : Yes
volt. 380/50
grooved plane ( removable )

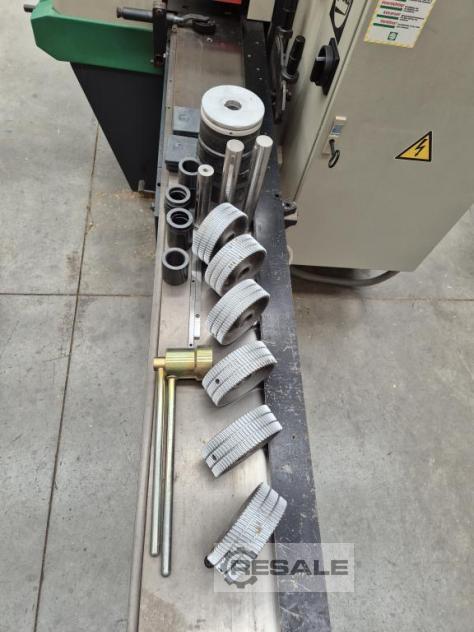

with tools : Yes , as in photos

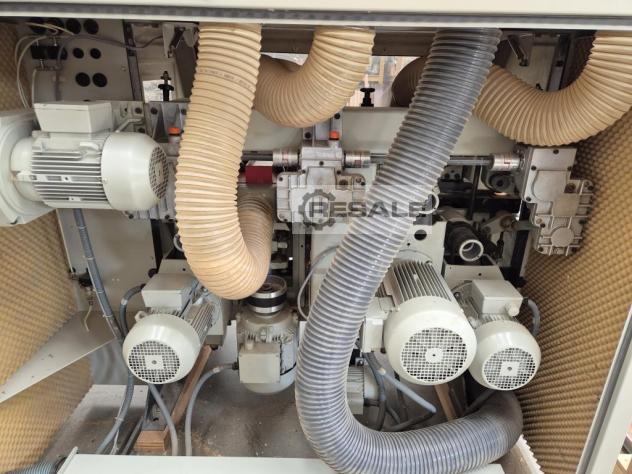

Composed by 5 spindles , 4 motors :
1° spindle : planer . motor power Hp 5,5 ( Kw 4 )
2° and 3° spindles : right and left vertical . motor power Hp 10 ( Kw 7,5 )
4° spindle : thickness planer . motor power Hp 7,5 ( Kw 5,5 )
5° spindle : planer . motor power Hp 5,5 ( Kw 4 )
grooved plane ( removable )
Technical details :
forward motor power Hp 4 ( Kw 3 )
spindle rotation speed rpm 6000
feed speed : from 5 to 24 mt./min
max. useful working width mm. 230
max. useful working height mm. 120
shaft diameter mm.40
inlet length mm. 2000
lubrication system
electric height adjustment
set of service keys / documentation
with grooved plane ( removable )
second hand machine
n.5 spindles
working condition : Excellent
CE mark : Yes
volt. 380/50
grooved plane ( removable )
with tools : Yes , as in photos
Composed by 5 spindles , 4 motors :
1° spindle : planer . motor power Hp 5,5 ( Kw 4 )
2° and 3° spindles : right and left vertical . motor power Hp 10 ( Kw 7,5 )
4° spindle : thickness planer . motor power Hp 7,5 ( Kw 5,5 )
5° spindle : planer . motor power Hp 5,5 ( Kw 4 )
grooved plane ( removable )
Technical details :
forward motor power Hp 4 ( Kw 3 )
spindle rotation speed rpm 6000
feed speed : from 5 to 24 mt./min
max. useful working width mm. 230
max. useful working height mm. 120
shaft diameter mm.40
inlet length mm. 2000
lubrication system
electric height adjustment
set of service keys / documentation
