tornos usadas para la venta (2,952)

Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024

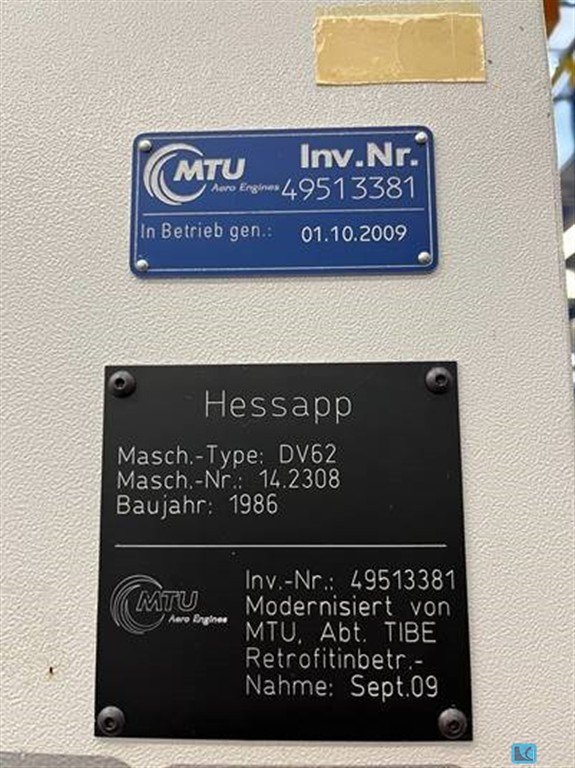

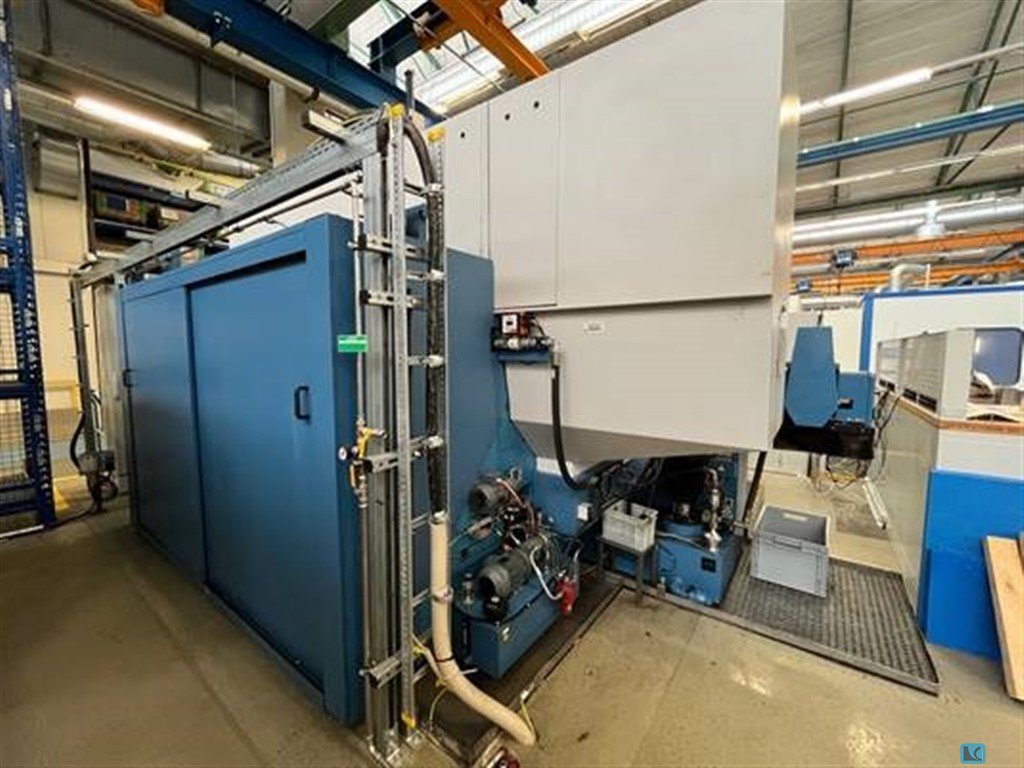

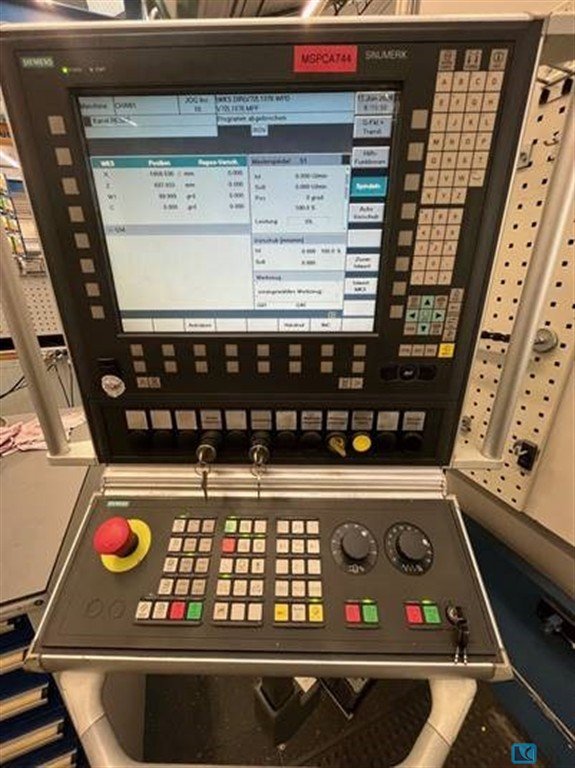

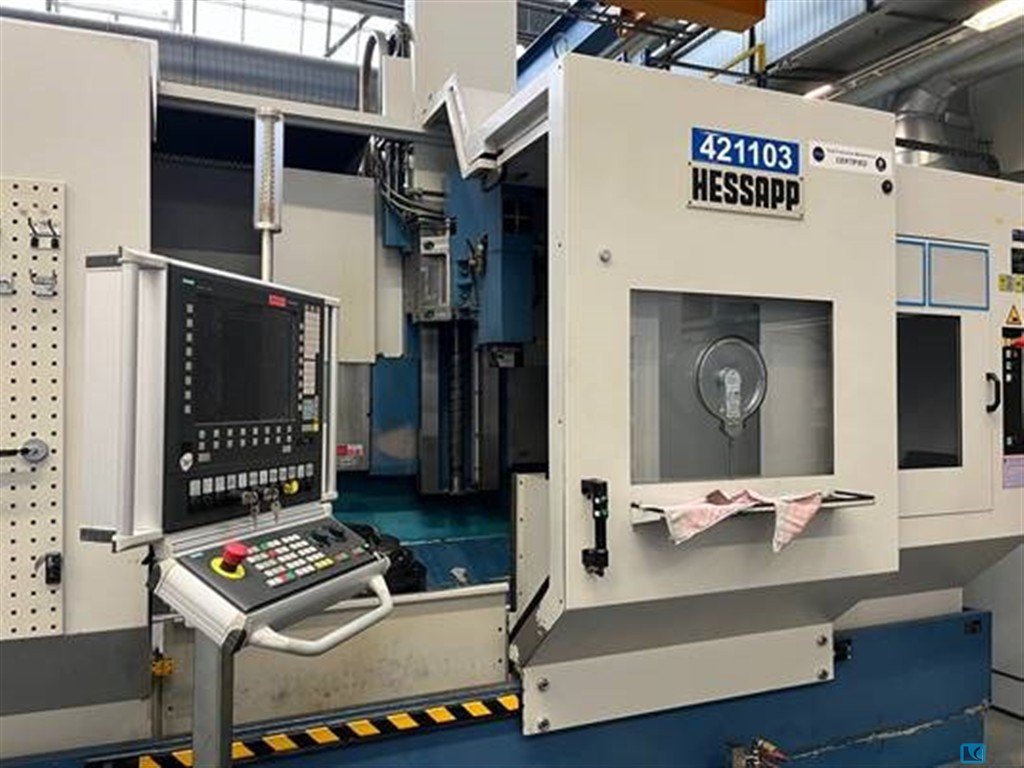

turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-AxisTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser ...

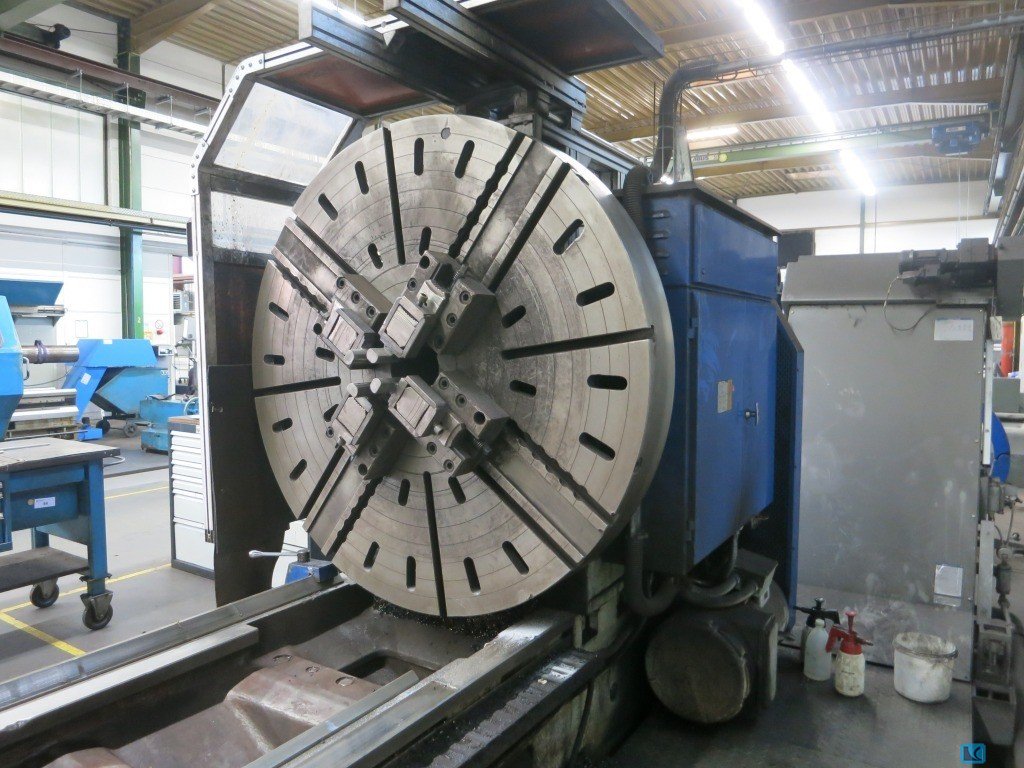

faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

faceplate diameter:1600 mmpower requirement:80 kWweight of the machine ca.:25 tdimensions of the machine ca.:4,4 x 4,62 mmax. workpiece diameter:2000 mmmax. diameter of face turning:1800 mmtool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

turning diameter: 815 mmturning length: 3000 mmcontrol: ECS 2402 swing over bed: 815 mmcentre distance: 3000 mmswing diameter over slide rest: 485 mmspindle bore: 137 mmspindle turning speed range: 1200 U/minrapid traverse: 5 m/minspindle motor: 28 kWtailstock quill diameter: 115 mmtailstock quill stroke: 250 mmtotal power requirement: 30 kWweight of the machine ca.: 7,0 tdimensions of the machine ca.: 5,87 x 2,10 x 2,10 mEquipment: CNC-control E.C.S. 2402 3-jaw chuck 4-jaw faceplate, diameter 700 mm 4-jaw faceplate, diameter 400 mm 3 Steady rests Chip ConveyorWithout boring bar holder and boring bar.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

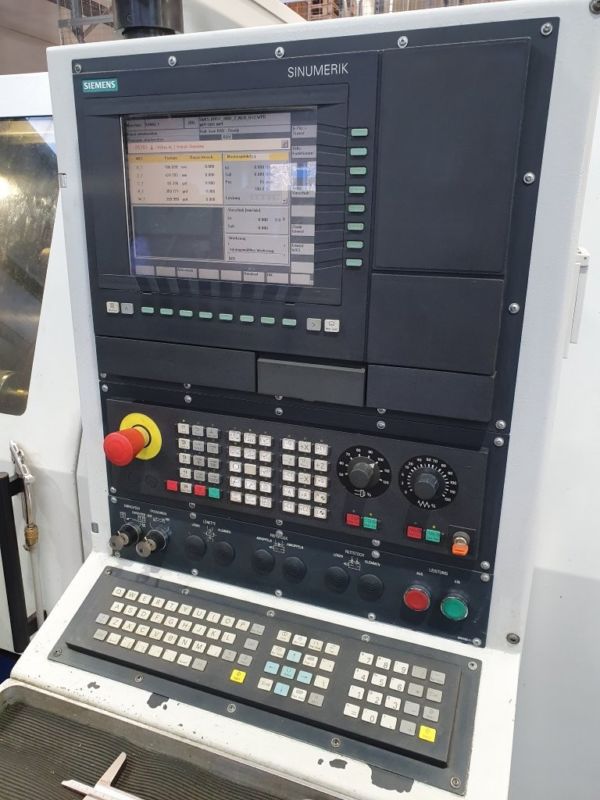

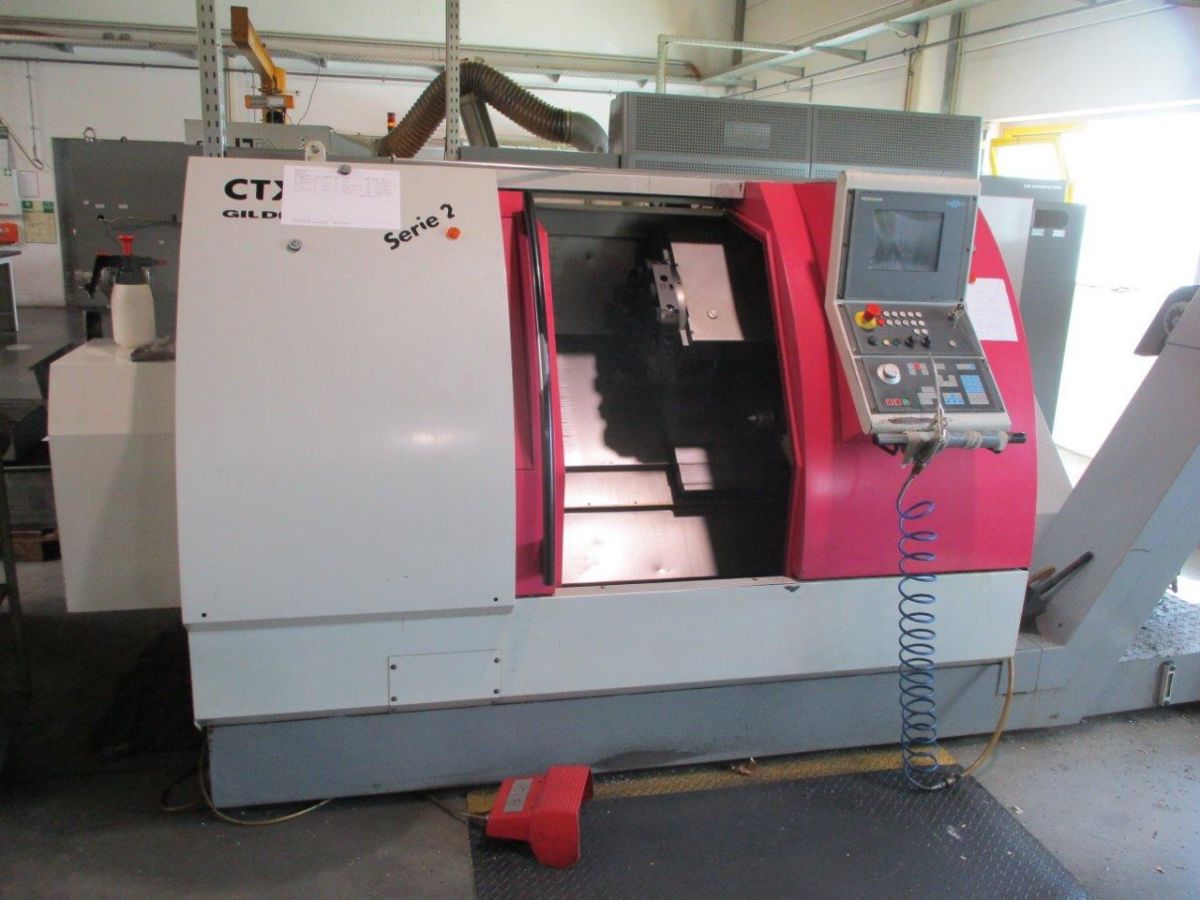

turning diameter: 410 mmturning length: 1250 mmcontrol: Siemens 840 D ShopTurn total power requirement: 60 kVAweight of the machine ca.: 7650 kgdimensions of the machine ca.: 5400 x 2600 x 2100 mCNC lathe DMG CTX BETA 1250 with SIEMENS 840D SHOPTURNSpindle hours: 3956 hMachine under power: 14440 hMax. Swing - Ø: 700 mmMax. turning - Ø: 410 mmClamping length: 1425 mmTurning length: 1250 mmSpindle bore: 95 mmX-travel: 300 mmZ-travel: 1300 mmC-Axis indexing: 360000°Rapid feed X/Z: 30000 mmFeed force X / Z: 4.5 / 7.5 kNMain spindle speed: 4000 rpmPower 100 % ED (40 % ED): 35 (45) kWMax. torque main spindle: 600 NmC-axis speed: 200 min-1C-axis torque: 770 NmTurret positions VDI 40 (DIN 69880): 12 – driven: 12 pcs.Speeds driven tools: 4000 rpmDriven tools power at 2000 rpm: 12 kWMax. torque driven tools: 36 NmTailstock cone: MK 5Tailstock travel: 1200 mmTailstock rapid traverse: 4 m/minHy ...

turning diameter:270 -300 mmturning length:710 mmtotal power requirement:43 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:3,16 x 2,15 x 2,15 mThe machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!

Auction-ID: A7-46309-26

turning diameter:220 mmturning length:310 mmtotal power requirement:17 kWweight of the machine ca.:3,3 tdimensions of the machine ca.:2,25 x 1,63 x 1940 mgreates pass round over bed:430 mmbore diameter:45 mmcentre distance:687 mmslide travel radial ( X-axis ):160 mmslide travel axial ( Z-axis ):310 mmspindle turning speed range:0-6.300 U/min

turning diameter:220 mmturning length:700 / 665 mmtotal power requirement:17 kWweight of the machine ca.:2,6 tdimensions of the machine ca.:2,63 x 1,98 x 1,94 mgreates pass round over bed:430 mmPart length max.:510 slide travel radial ( X-axis ):160 mmbore diameter:45 mmTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m

turning diameter:490 mmturning length:2000 mmtotal power requirement:15/20 kWweight of the machine ca.:3,6 tdimensions of the machine ca.:2,8 x1,85 x 1,9 mIn like new conditionHeidenhain cycle controlTorsion-resistant bed, made of high-quality cast iron with hardened, precision-ground guideways and a glass scale on the X-axisSafety clutch on the Z and X axesSealing air with carbon filter in direct position measuring systemHigh accuracy and rigidity of the lathe spindle thanks to precision spindle bearings, spindle bore Ø 93 mm standard, optional Ø up to 130 mmSolid tailstock, quill Ø 90 mm with internal taper MK5Large overhang above the facing slide for easy accessibility during shaft machining.The machine has Teach-in CNC Programms.Control: MC420.Tool holder: SAUTER.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionChip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system, chip conveyorG300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!

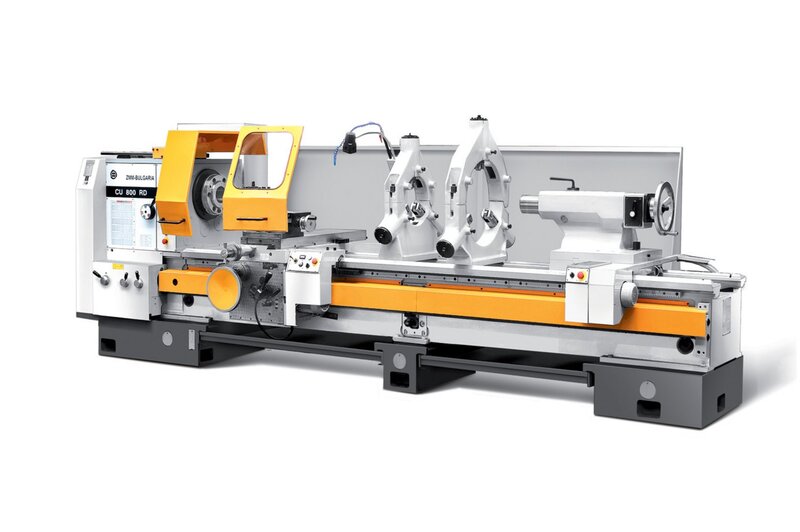

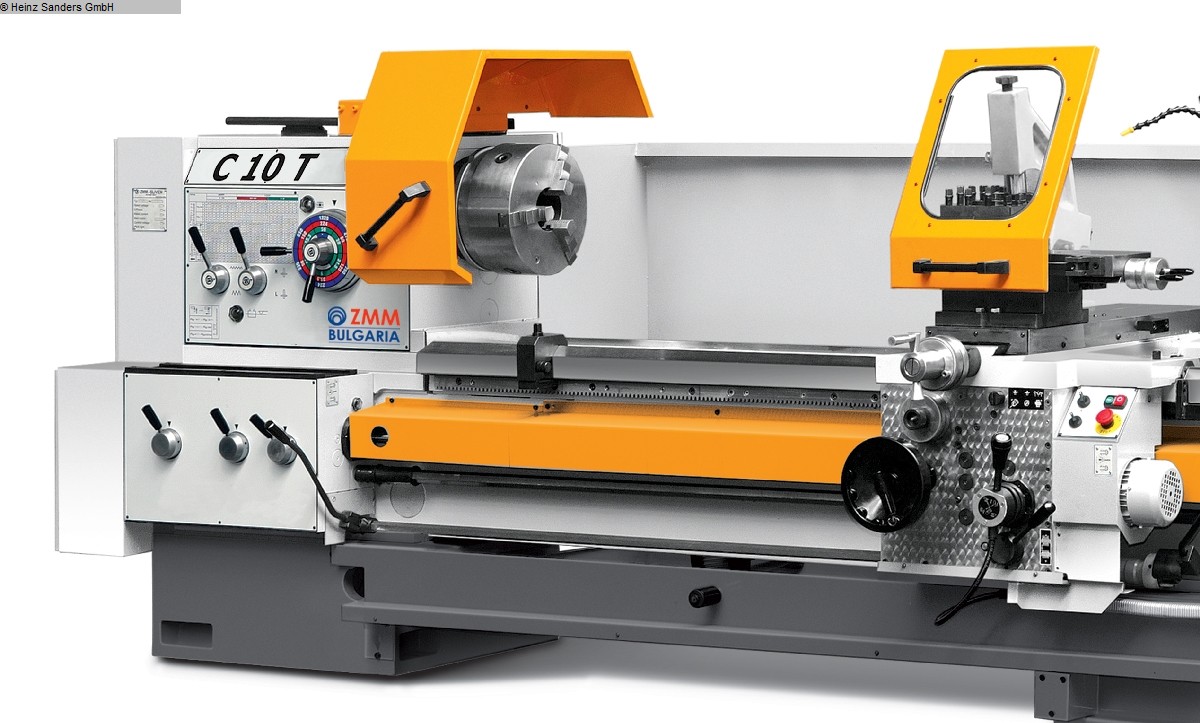

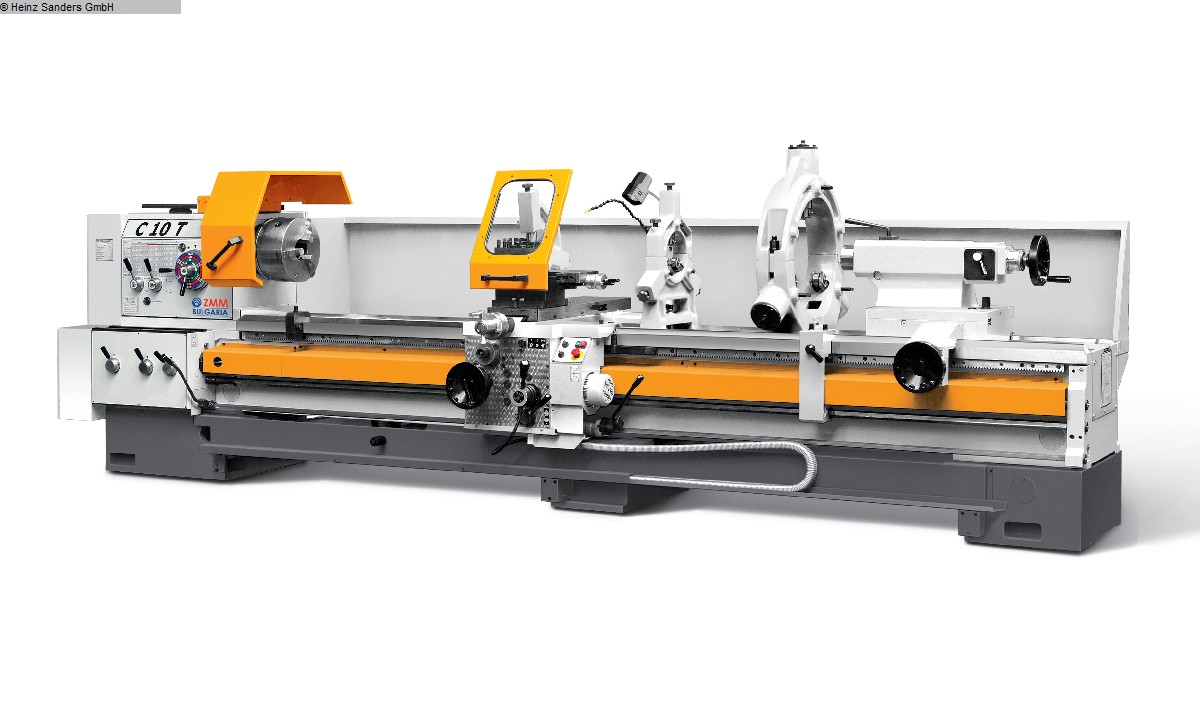

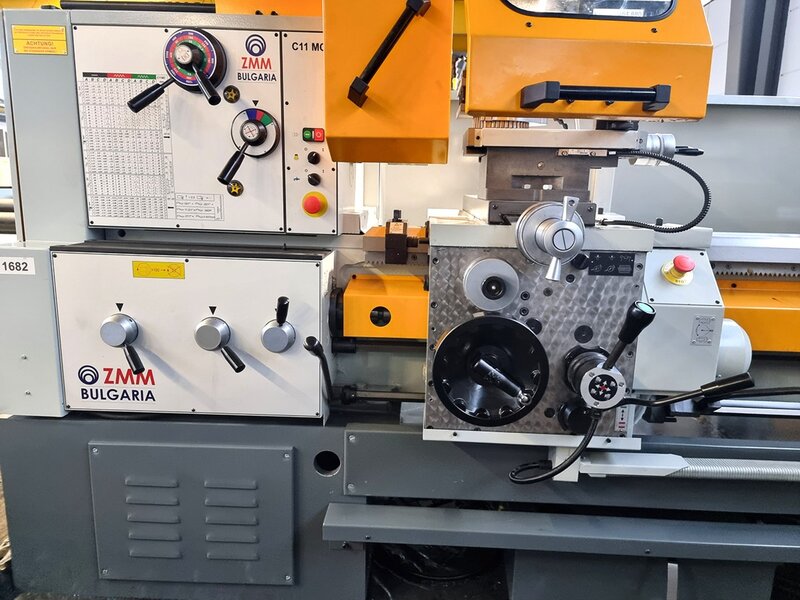

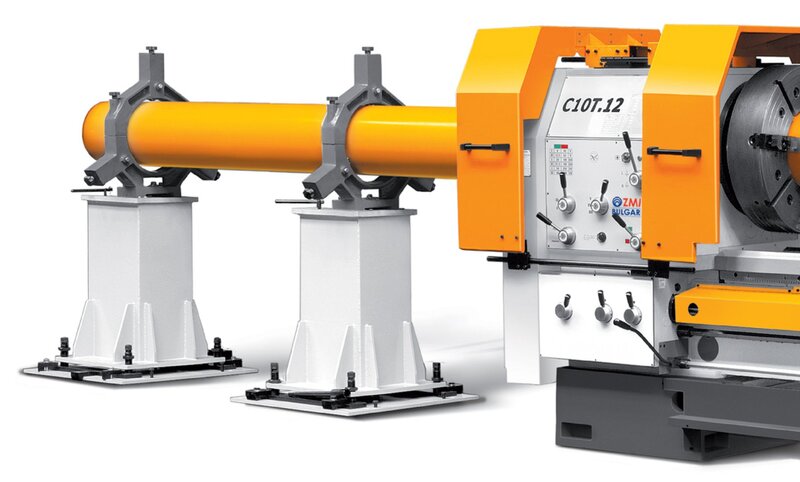

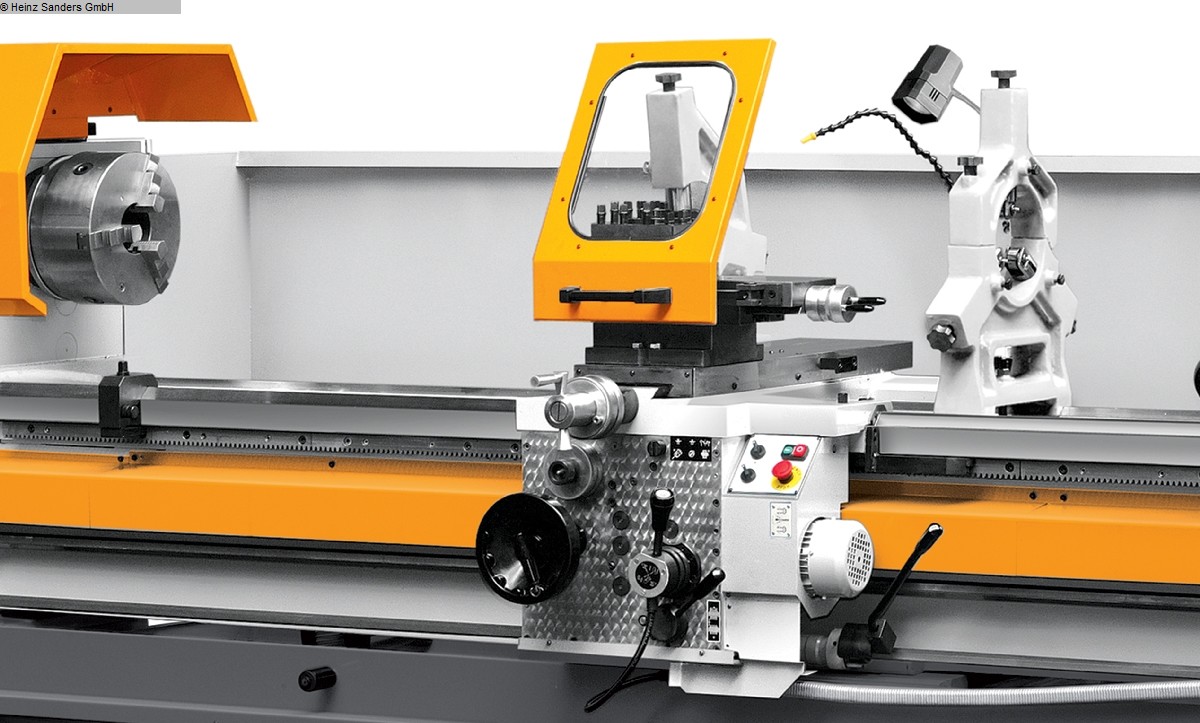

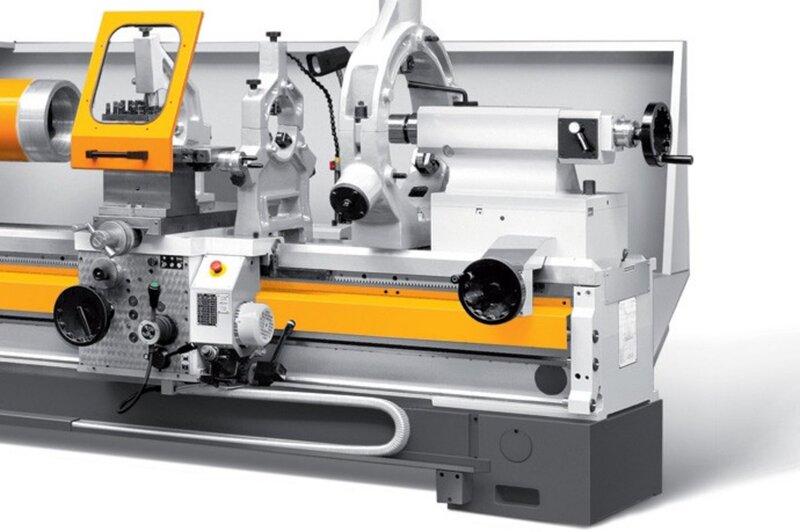

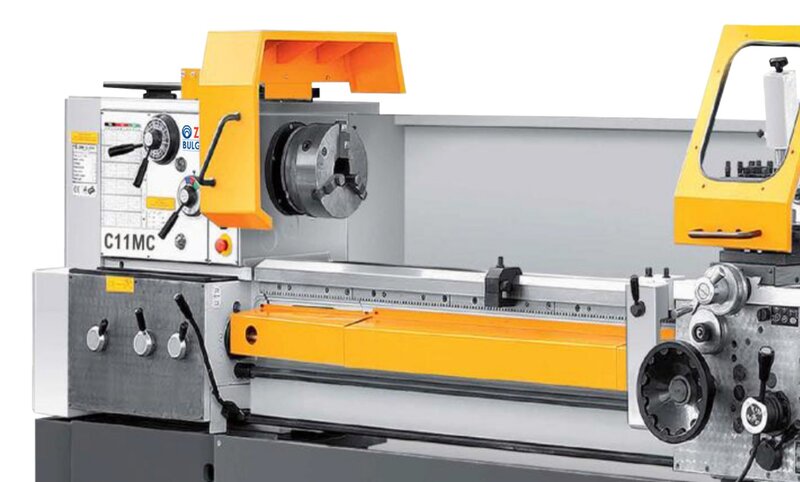

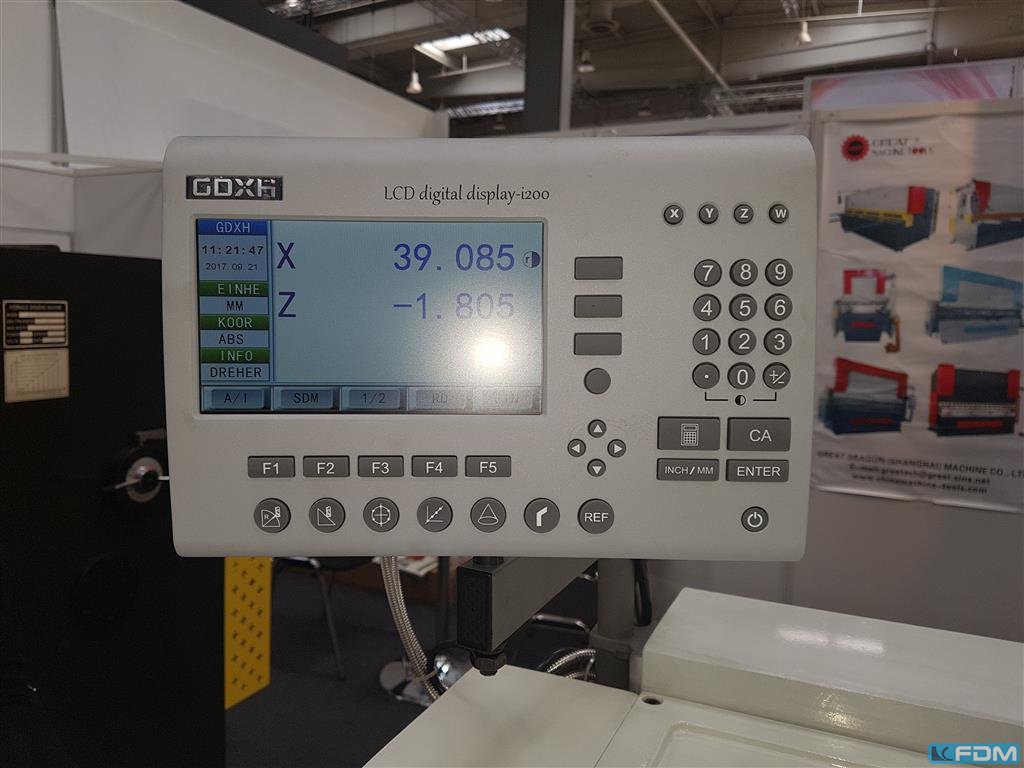

: neu : Bulgarien : 122250 €: 2310.53 €: 1320 mm: 3000 mm: 625 mm: 155 mm: 940 mm: 700 mm: 15 : 160 MK: 5 - 1000 : 160 : 0.032 - 38.9 mm/U: 0.016 - 19.45 mm/U: 0.5 - 480 mm: 60 - 1/16 Gänge/: 0.125 - 120 : 685 mm: 270 mm: 125 mm: 6 MK: 260 mm: 8550 kgdriven by manual transmission3-axes digital readoutquick change toolpostAmestra with 4 holders (3 square, 1 round)3-jaw chuck Bison 3204/DIN6350, Ø 500 mmspindle dead centercoolant equipmentfull length rear splash guardleadscrew and shaft protectionsafety guard for the chucktoolholder guardlevelling bolts and platestailstock quill reducerelectric motor movement of tailstocklow voltage machine lampoperating manualmachine according to ",CE",FURTHER TURNING LENGTHS: turning length1.500 mm € 107 770,00 turning length2.000 mm € 112 550,00 turning length4.000 mm € 130 160,00 turning length5.000 mm € 141 250,00 turning lengt ...

Out of valve production

turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

Auction-ID: A7-46309-31
