otras máquinas para el procesado de metales usadas para la venta (11,051)

Jaw width: 160 mmincluding additional jawsReference: CES - Lot 31

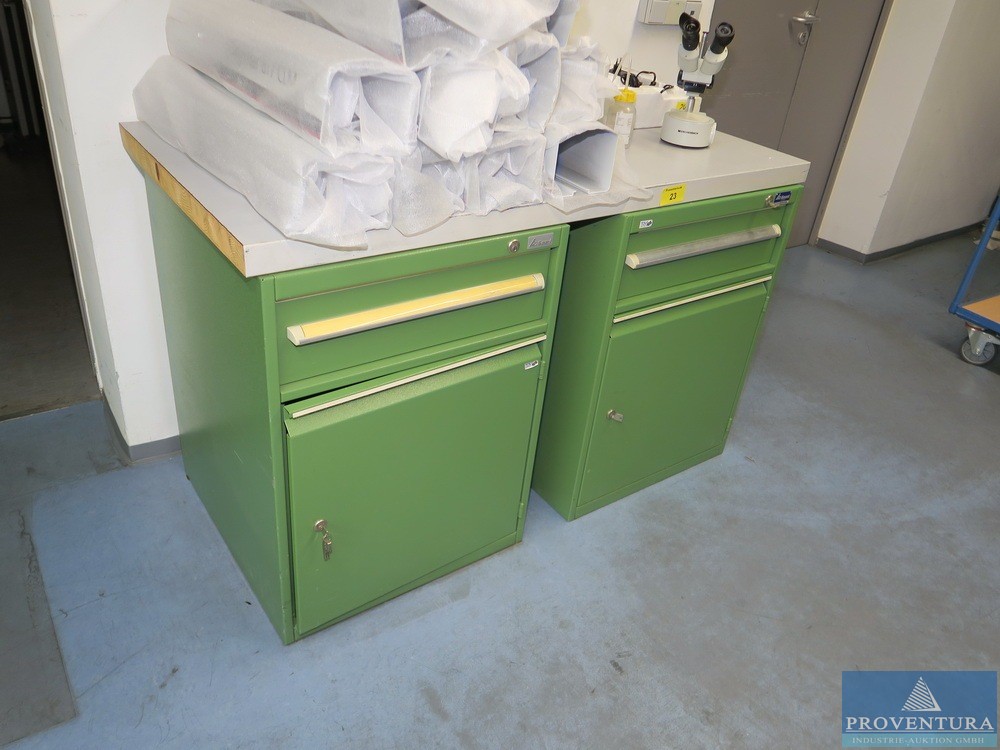

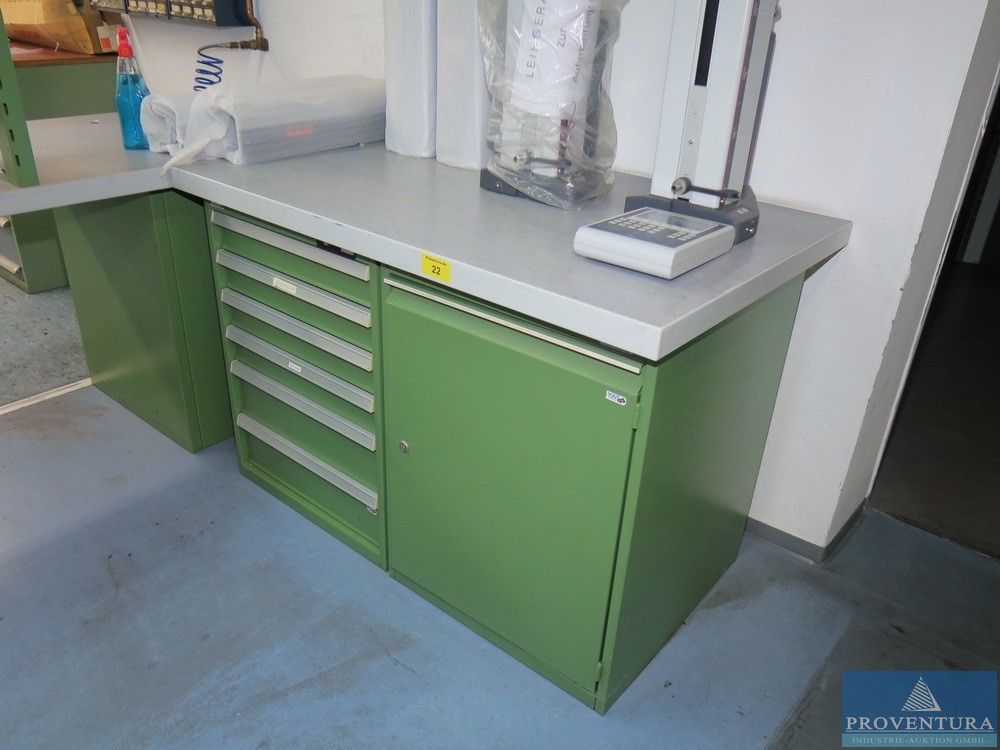

Technical data Type: Workbench with contents Design: heavy sheet steel construction Worktop: Steel Plate Drawers and cupboards available Condition: used Configuration Extensive collection of clamping devices and tools included EROWA clamping system components available Jig and mounting plates included Various precision stops and tool holders included Grinding wheel and gauge/gauge box included Accessories from toolmaking and EDM available Scope of delivery according to illustrations

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M6 EW20° 2GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools

consisting of approx. 19 piecesMeasuring range: up to 150 mmdifferent manufacturersReference: Seitz and Strenger - Lot 18

Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer T1SP 300x145x160 M1,5 EW20° 3GG from the company 3M Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools

Technical data MITSUBISHI MV2400S Wire EDM Machine Manufacturer: Mitsubishi Model No.: MV2400S Year of Make: 2013 Serial Number: 03DM2246 Travel X/Y/Z: 600 × 400 × 310 mm Travel U/V: 150 × 150 mm Max. workpiece size: 1050 × 820 × 305 mm Max. workpiece weight: 1500 kg Table dimensions: 840 × 560 mm Wire diameter: 0.1 – 0.3 mm Machine weight: 3500 kg Supply voltage: AC200/220V 3PE / 50-60 Hz / 35 A Air pressure: 0.5 MPa Air consumption: 75 l/min 15" touchscreen CNC control Ethernet and USB port Configuration one-piece 4-sided table (custom-made) Automatic wire feeder Wire chippers AE II Digital Generator Fine Finishing Generator Optical drive system with linear scales XY Automatic Vertical Front Sliding Door Documentation and accessories available E.KO IONISER tanks behind the machine are not part of the range

Rated power: 9.2 KVA; Rated current: 14 A; No-load voltage: 256 V; Output current adjustment: 20-60 ; Rated output voltage: 104 V; Max cutting thickness: 20 mm; Cyclic duration factor: 60%; Efficiency: 70%; Insulation grade: F; Protection grade: IP21; Arc-start: Contact; 6094

Total: 7 pieces ; unused, different varieties; see photos for more details

Total 3 pieces , Unused , Art.-Nr. 19323 225 , Picture: HSK63T, see photos for more details

A complete Stürtz window production line is available. 1) Stürtz STBAZ-IPT-4000-V bar processing system for frames, sashes and mullions, year of manufacture: 2004. 2) Stürtz SE HSM-25/26-Compact-Plus four-head welding machine for sashes, year of manufacture: 2006. 3) Stürtz 4MC Motion Control CNC cleaning machine for the sash line, year of manufacture: 2011. 4) Stürtz WST-25-CNC turning station at the sash cleaner (3), year of manufacture: 2011. 5) Stürtz SE-HSM-40/26-Compact-Plus horizontal four-head welding machine for frames, year of manufacture: 2006. 6) Stürtz 2MC Motion Control CNC cleaning machine in the frame line, year of manufacture: 2008. 7) Stürtz WST-30 turning station in the frame line, year of manufacture: 2008. 8) Stürtz SE-BHT-3000 brush lifting table as a stop and transport table before the sash stop, year of manufacture: 2008. 9) Stürtz FBS-1 sash hardware sc ...

A Thielenhaus microfinish/superfinish machine for precision surface finishing of rotationally symmetrical components such as shafts, camshafts, crankshafts, and similar precision parts is available. Application range: shaft machining, max. machining length: 750mm, max. workpiece diameter: 100mm, max. travel: 650mm. Machine dimensions X/Y/Z: approx. 2100mm/1450mm/2050mm, weight: approx. 1800kg. Including SL50 belt finishing unit, Elbaron RON 60 SV oil mist extraction system, and workpiece holder. Documentation available. An on-site inspection is possible. The machine was used for sample machining and has hardly run.

longitud de la bolsa: 1 ancho de bolsa: 1 impulso de trabajo: 1 requerimiento total de potencia: 1 kWweight de la máquina aprox: 1 tdimensiones de la máquina aprox: 1 m Los datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.

This 3-axis GEHRING L2-630 was manufactured in 2013. It features a 6-station rotary table, including 2 honing stations, 2 measuring stations, and 1 brushing station, all automated. Ideal for precision honing applications. Contact us for more information.

This 3-axis Other SHEFFIELD Endeavor 9.15.7 was manufactured in 2003. It features an X-axis travel of 900 mm, Y-axis travel of 1500 mm, and Z-axis travel of 660 mm. The machine is equipped with a granite table and brushless linear motors on the X and Y axes. If you are looking to get high-quality measurement capabilities, consider the Other SHEFFIELD Endeavor 9.15.7 CMM machine we have for sale. Contact us for further details.

número de husillos: 6 pasos de husillo: 26 mm longitud de torneo: mm Potencia requerida total: kW peso de la máquina aprox. : tDimensiones de la máquina aprox. m. Los datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.

Three-jaw chuck, three-jaw lathe chuck -Three-jaw chuck: Chuck size Ø 190 mm -Passage: Ø 60 mm -Bolt circle: Ø 170 mm -Interchangeable jaws: available in a wide selection, can be supplied for an additional charge -Dimensions: Ø 190 x 100 mm -Weight: 9.2 kg

Interchangeable jaws, top jaws, three-jaw chucks, segment jaws, clamping jaws, stepped block jaws, stepped top jaws, block jaws, base jaws -Top jaws: Jaw set for three-jaw chuck, hard -Jaw width: 24 mm -Dimensions: see photo technical drawing -Overall dimensions: 90/70/H70 mm -Total weight: 2.2 kg

Height gauge, parallel gauge, height measuring device, height measuring and marking device, height marker -Manufacturer: Carl Mahr, altimeter -Max. working height: 550 mm -Dimensions: 220/70/H635 mm -Weight: 2.2 kg

Thread cutting chuck, thread chuck, tap chuck, milling tool, thread cutting attachment, quick-change thread cutting chuck, quick-change thread chuck -Manufacturer: Holex, Thread cutting chuck, quick-change thread chuck, 7 pieces -Type: 335620-10 -Size: M5 to M20, see photos -Submission/Price: complete -Transport dimensions: 330/120/H70 mm -Weight: 4.4 kg

Height gauge, parallel gauge, height measuring device, height measuring and marking device, height marker -Manufacturer: KS Lenze, height gauge type C500-23 -Max. working height: 520 mm -Number: 2x height gauges available -Price: per piece -Dimensions: 240/175/H575 mm -Weight: 7 kg/pc.

Height indicator, parallel indicator -Max. Working height: 500 mm -Hard metal needle -Dimensions: 230/80/H650 mm -Weight: 3.4 kg

Height indicator, parallel indicator -Max. Working height: 500 mm -Hard metal needle -Dimensions: 615/120/H75 mm -Weight: 2.7 kg

Existe una máquina de moler de tubos húmedos Rema. Potencia del motor: 4kW, velocidad del motor: 1450rpm, diámetro del tubo: 8mm-100mm, bandas abrasivas dimensiones X/Y: 740mm/30mm. Documentación disponible. Es posible realizar una inspección in situ.

Está disponible un sistema de manipulación de robots Fanuc/DMG Mori para máquinas CNC que se usaba con una CTX. Tipo de robot: Fanuc M-20iA, Agarrador 1: doble agarre, Agarrador 2: agarrador de eje, peso máximo de la pieza en operación con un solo agarre/doble agarre: 10 kg/2x5 kg, máximo diámetro de la pieza: 125 mm, peso: aprox. 1075 kg. Incluyendo varias estaciones de almacenamiento y un recinto de seguridad. Documentación disponible. Es posible realizar una inspección in situ.

Longitud de corte mínima/máxima: 370mm/5100mm, ancho máximo de corte: 375mm, altura máxima: 150mm, diámetro de la hoja de sierra: 500mm, diámetro de la hoja: 30mm, rango de giro: 45-90. Dimensiones de la máquina X/Y/Z: aprox. 6100mm/1450mm/1450mm, peso: aprox. 700kg. Es posible realizar una inspección in situ.

This Nikon V-12BDC was manufactured in 2019. It features a 305 mm screen diameter, a measuring stage of 250 × 150 mm, and integrated XY and angle digital displays for precise measurements. The machine includes a 3-position objective turret for quick magnification changes and high-quality halogen illumination for clear imaging. Ideal for production control and precision mechanics. Contact us for more information about this machine.

Máquina EDM Sodick AQ 327L BJ 2006 Máquina EDM Sodick AG 60L BJ 2020

Sistema de medición IM-6600 Transductor IM-6120 Sensor CMOS: 6,6 MP monocromo Pantalla 10,4" Monitor LCD en color Campo de visión: φ100 x 200 mm Unidad de visualización más pequeña: 0,1 μm Iluminación telecéntrica de luz transmitida (anillo de 4 segmentos) Precisión de medición: Modo de medición de campo amplio: ±5 μm Modo de medición de alta precisión: ±2 μm Modo de medición de gran campo visual: ±7 +0,02L μm Modo de medición de posición fija: ±4 +0,02L μm Tabla: Eje X: 100 mm Eje Z: 30 mm Capacidad de carga: 1 kg
